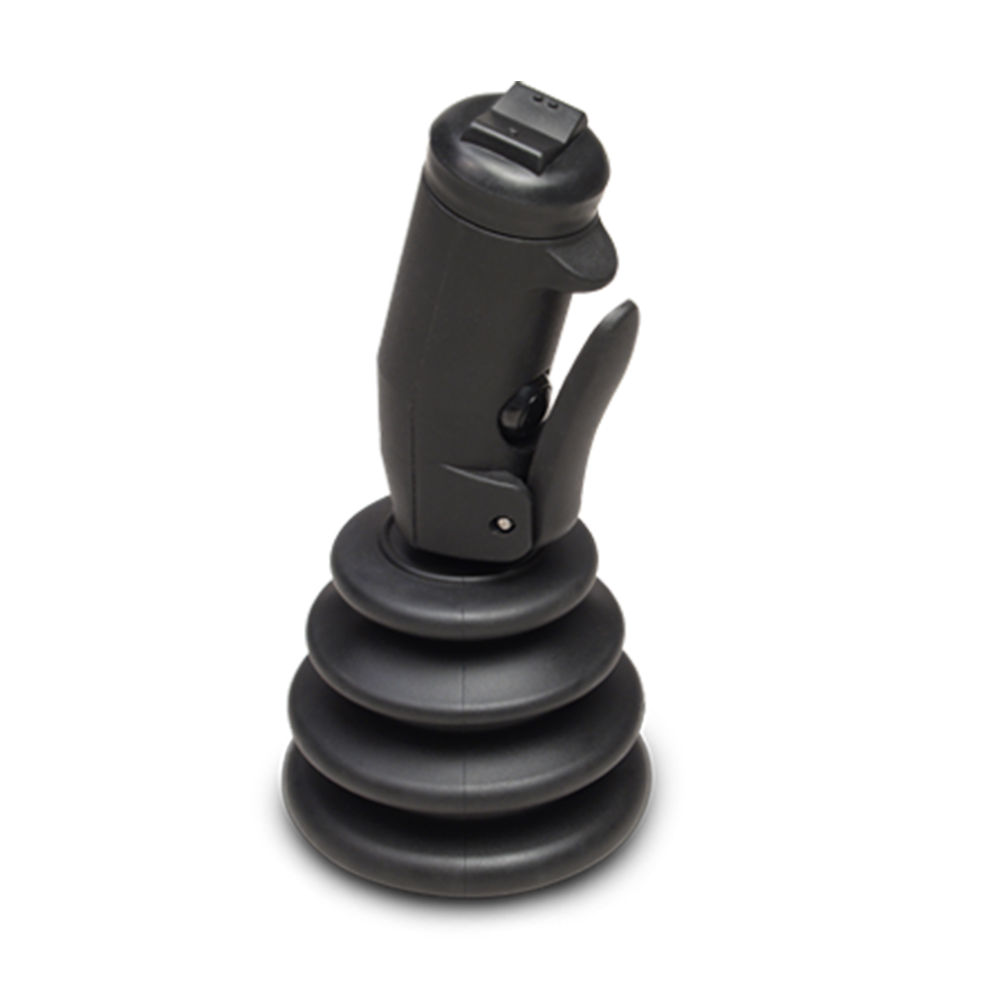

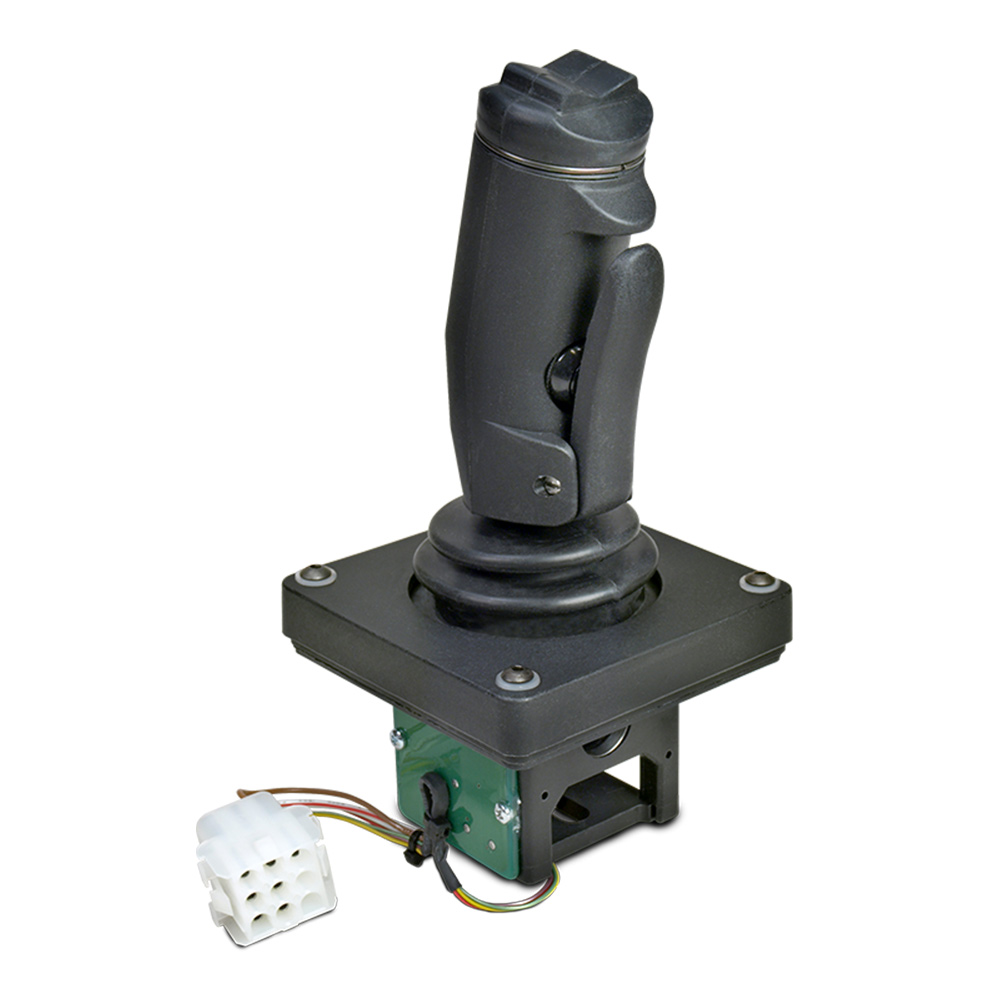

The BH handle boasts a lever-operated push button that's ideal for applications requiring an operator presence switch. The handle is designed with a 15° tilt for operator hand comfort and is fully gasketed for outdoor use.
Inquire nowDesigned with a 15 degree tilt for operator hand comfort.
Components are made from glass filled black nylon, which makes the grip very durable against abuse and corrosion.
Fully gasketed for outdoor use.
The optional front lever is ideal for deadman applications or as an additional function and is easier to operate than conventional push-buttons or pull up collars.
The optional deadman lever push-button is supplied with a tactile feel. This button is also internally sealed and water tight.
The optional rocker switch is very versatile, it can be used in applications requiring momentary action, maintained action or a combination of both.
Applications : The BH handle is ideal for use in applications where security of a operator presence switch is essential to the control of the machinery. The optional rocker switch is ideal for man lifts, scissor lifts, buckets, and other steering applications. Typical equipment applications include:
Scissor Lifts, Aerial Work Platforms, Bucket Trucks, Cranes, Agricultural, Forestry
| General Data | |
| Type | Rocker, Lever Handle |
| Specification Description | Rocker style handle that features a lever-operated push button that's ideal for applications requiring an operator presence switch. |
| Joystick Compatibility | CS3, CS3 B/B, VNSO, XL-VNSO, VNS2, VCSO, VCS2, CS1, PRO-4, PRO-5, PRO-6, NSO-SFA, NS2-K |
| Features and Functionality | |
| Push Buttons | Yes |
| Rocker Switch | Yes |
| Thumbwheel | No |
| Handrest | No |
| Trigger | No |
| Operator Presence Switch | Yes, lever operated push button |
| Mechanical Interlock | No |
| Twist | No |
| Capacitive Hand Detection Sensor | No |
| Technical Data | |
| Handle Height | 4.5 in [115 mm] |
| Additional Specifications | Reference product literature for additional specifications |
