The CS1 boasts an ultra compact and extremely rugged design that is ideal for applications requiring bang/bang and/or potentiometer outputs. Single and dual axis control is available as well as a variety of custom configurable handles and grips.
Inquire nowCompact and versatile design with the ability to mount potentiometers inside the body of the joystick
Durable housing and heavy stainless steel gimbal yokes
Resistant to abuse and ideally suited for high duty cycle applications
| General Data | |
| # of Axis | Single, Dual or Three (Third axis is achieved via a twist handle function or thumbwheel.) |
| Output Options | Microswitches, Potentiometers and PWM |
| Joystick Action | Spring Return or Friction Brake (Friction brake limited to one output device per axis) |

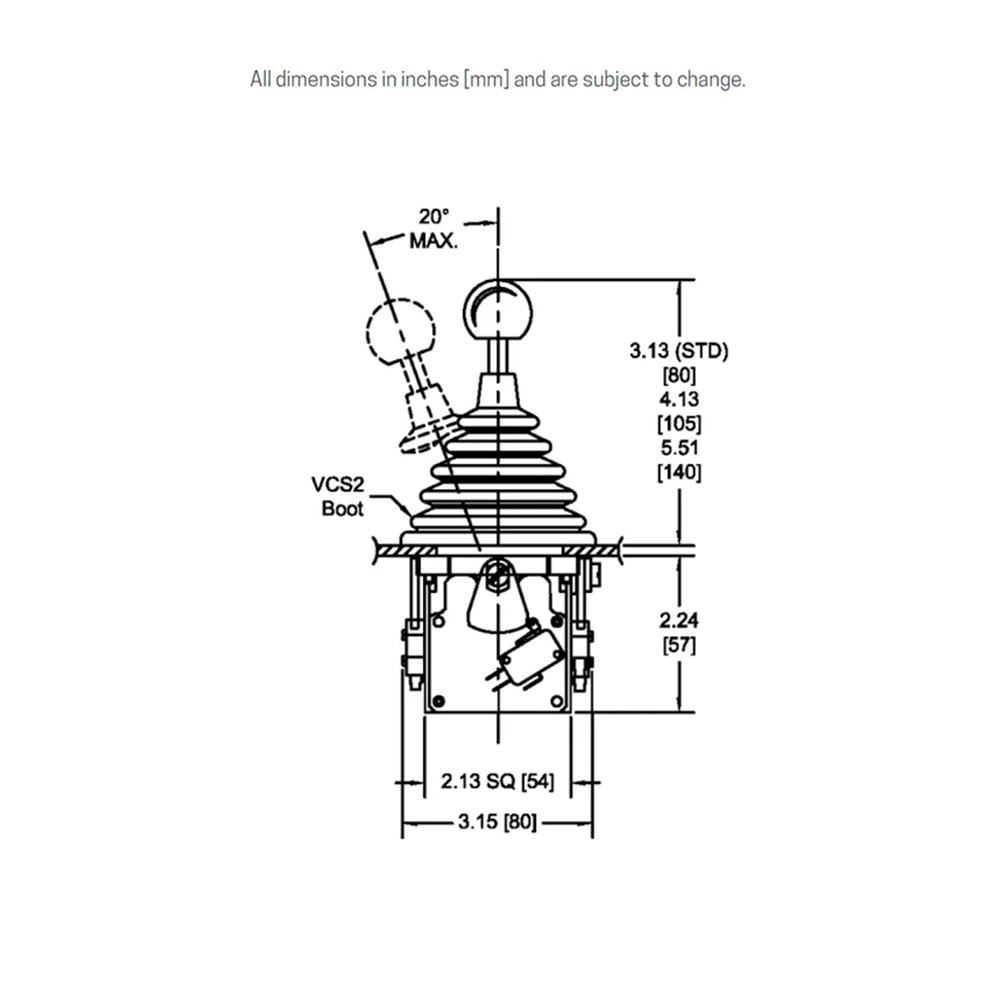

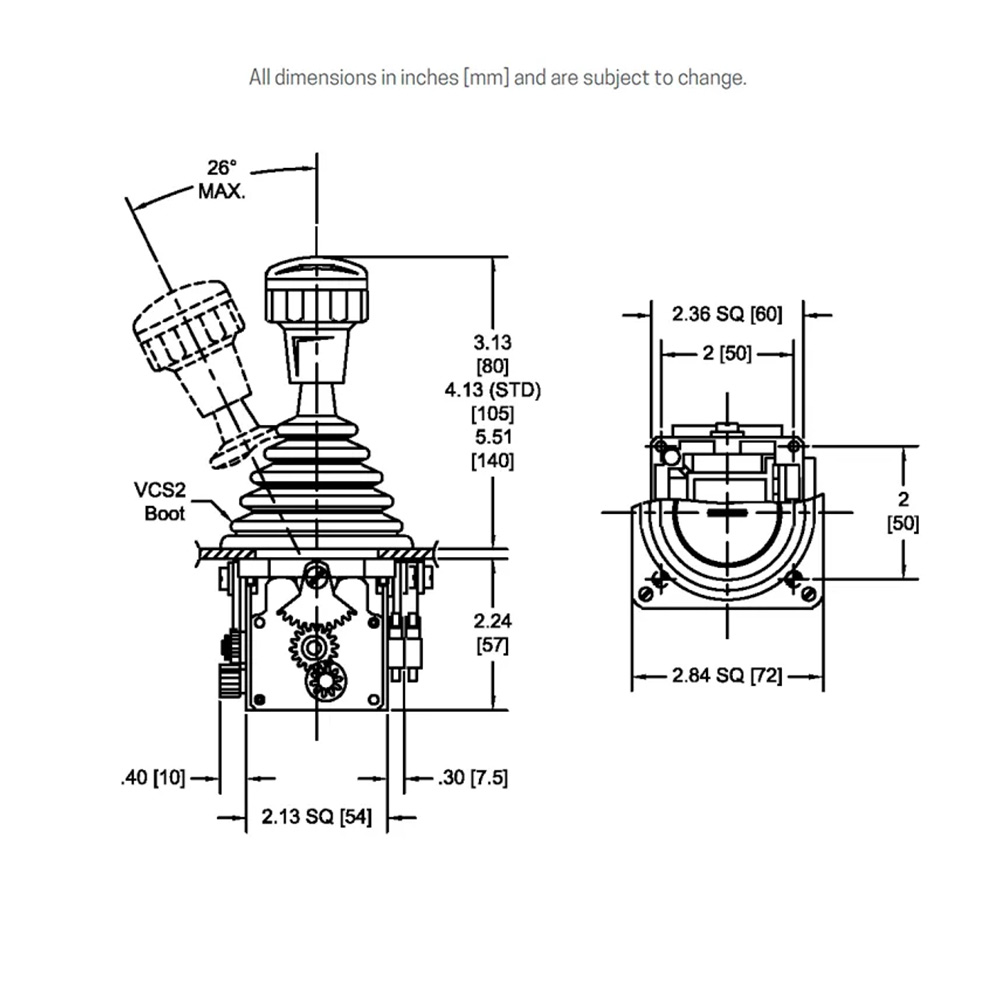

| Handle Travel | +/- 36 degrees each axis (standard); +/- 26 degrees each axis (optional) |
| Gate | Open or Cross |
| Max # of Steps | 1-0-1 |
| Handle Compatibility | Standard Handles, BH, RH, RHS, FG-3, FG-4, FG-5, MG1, MG2, MG9, MG13, MG27, TH30, G56, G58 |
| Life | 3-5 million cycles |
| Materials | Nickel chromium yoke, glass filled body. |
| Est. Shipping Weight | 3 lbs. |
| Est. Shipping Dimensions | 8 in. x 8 in. x 8 in. |
| Electrical Data | |
| Contact Specifications | Switch Type: SPDT (Form C) SS Series Microswitches (Proportional); SPDT (Form C) V Series Microswitches (Bang/Bang) |
| Max. Number | Up to 4 per axis with potentiometer (Proportional); Up to 8 per axis without potentiometer (Proportional); Up to 2 per axis (Bang/Bang) |
| Current Rating (AC) | 5A (Proportional); 11A (Bang/Bang) |
| Voltage Rating (AC) | 250 (Proportional); 250 (Bang/Bang) |
| Current Rating (DC) | 6A (Bang/Bang) |
| Voltage Rating (DC) | 12 - 24 (Bang/Bang) |
| Termination | .110 x .20 in quick disconnect (5A Proportional); .187 x .20 in male quick connect (11A Bang/Bang) |
| Max. Wire Size | 18 AWG |
| Applications |
| The CS1 offers precision control in a compact body and is ideal for applications where space is at a premium. Typical applications include: Bang/bang (on/off) control Marine Forestry equipment Agricultural equipment Road maintenance vehicles Lifts & aerial work platforms |
| Mounting Data | |

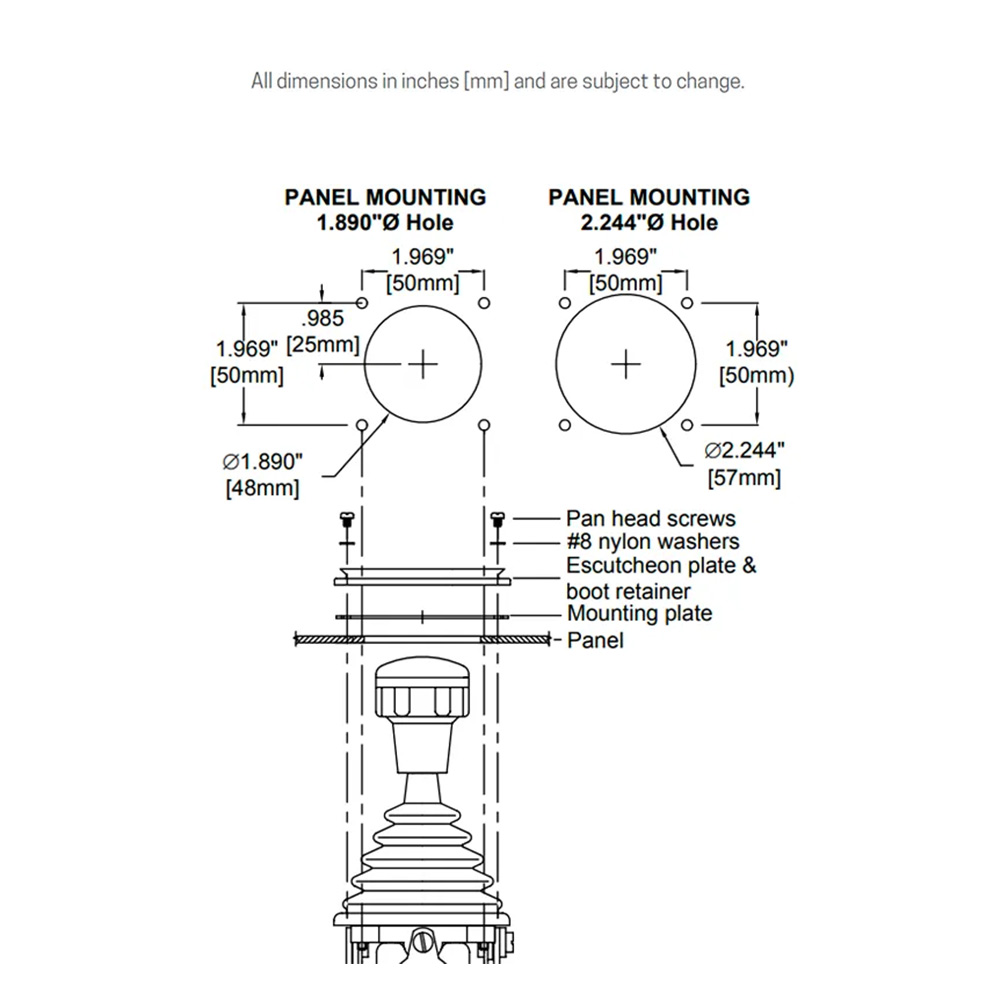

| Mounting Style | Drop-in or Panel (from below) |
| Mounting Footprint | 2.84 x 2.84 in Panel mount (standard); 3.78 x 3.78 in Drop-in mount (required for fighter grip handles); See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP54 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
