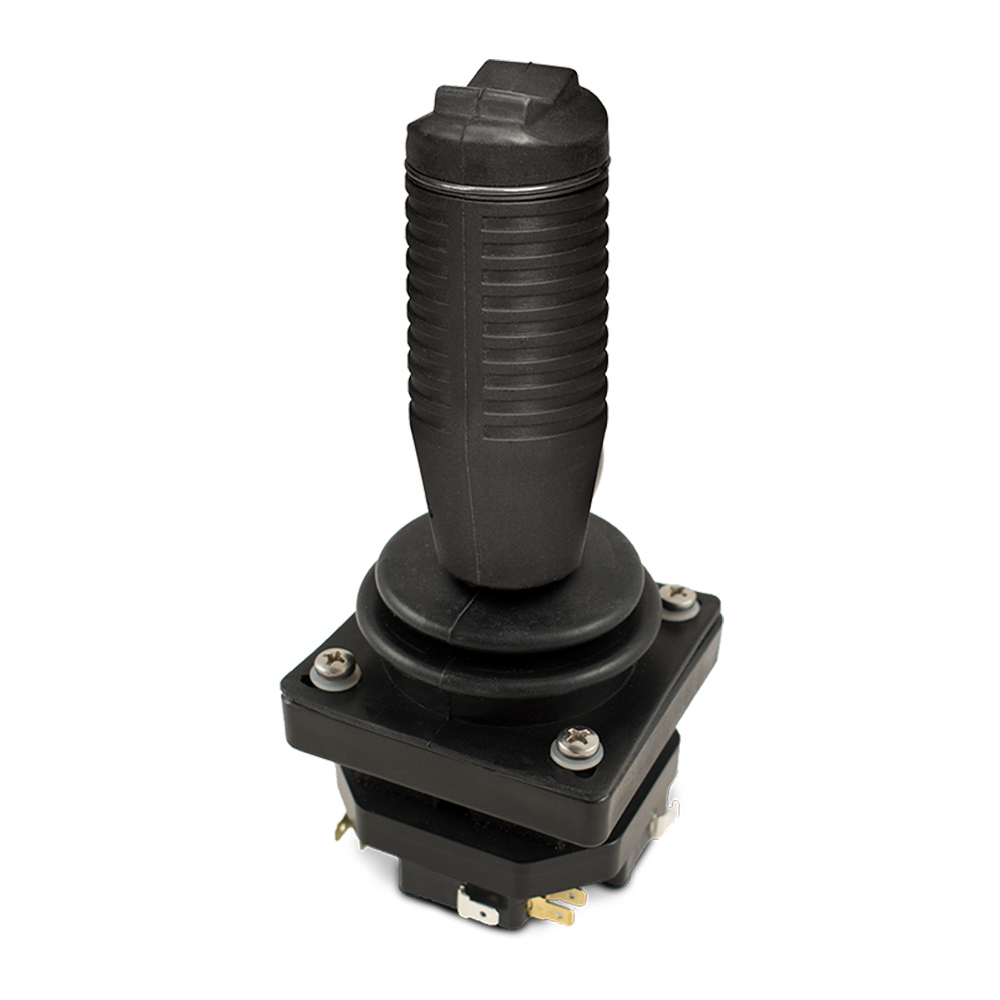

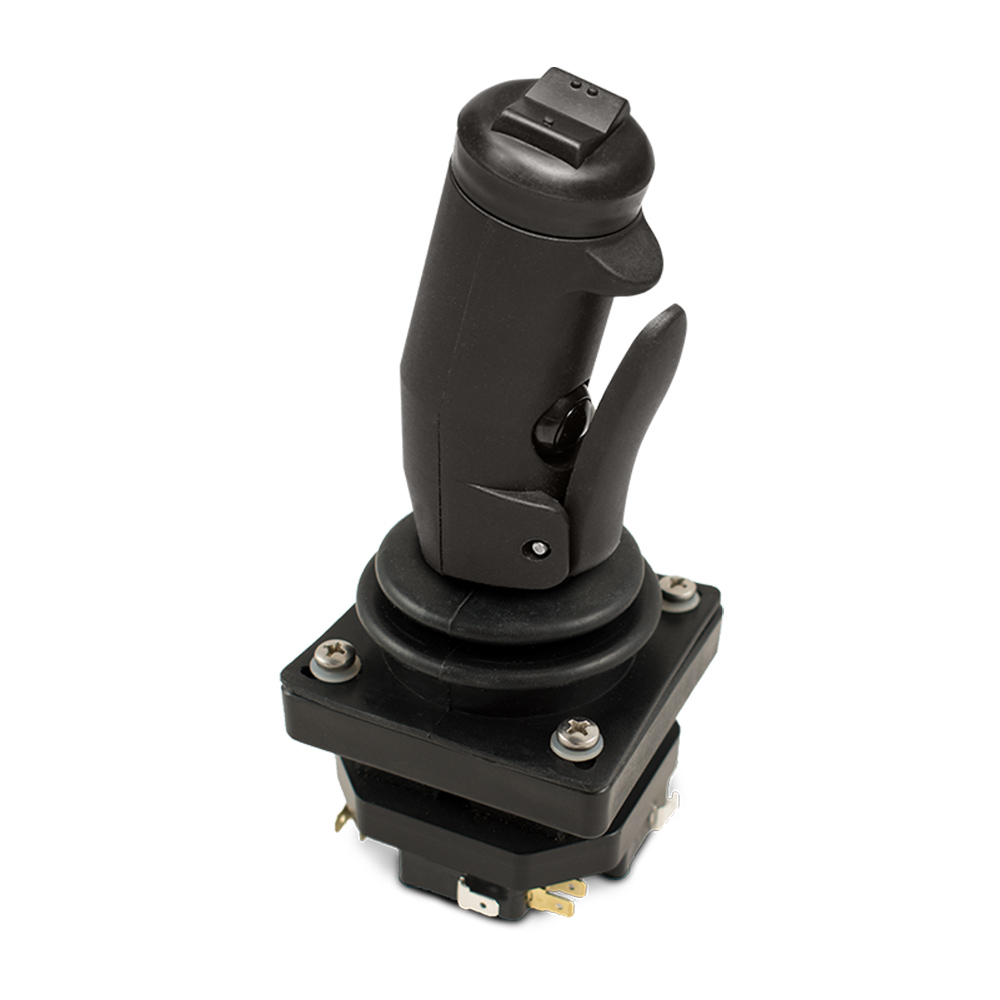

The CS3 B/B is an ultra-tough switch joystick designed specifically for bang / bang (on / off) operation. The durable housing and center pivot design make this device resistant to abuse and ideally suited for high duty cycle applications.
Inquire nowCompact and rugged construction design
Proprietary blend, ultra-tough boot

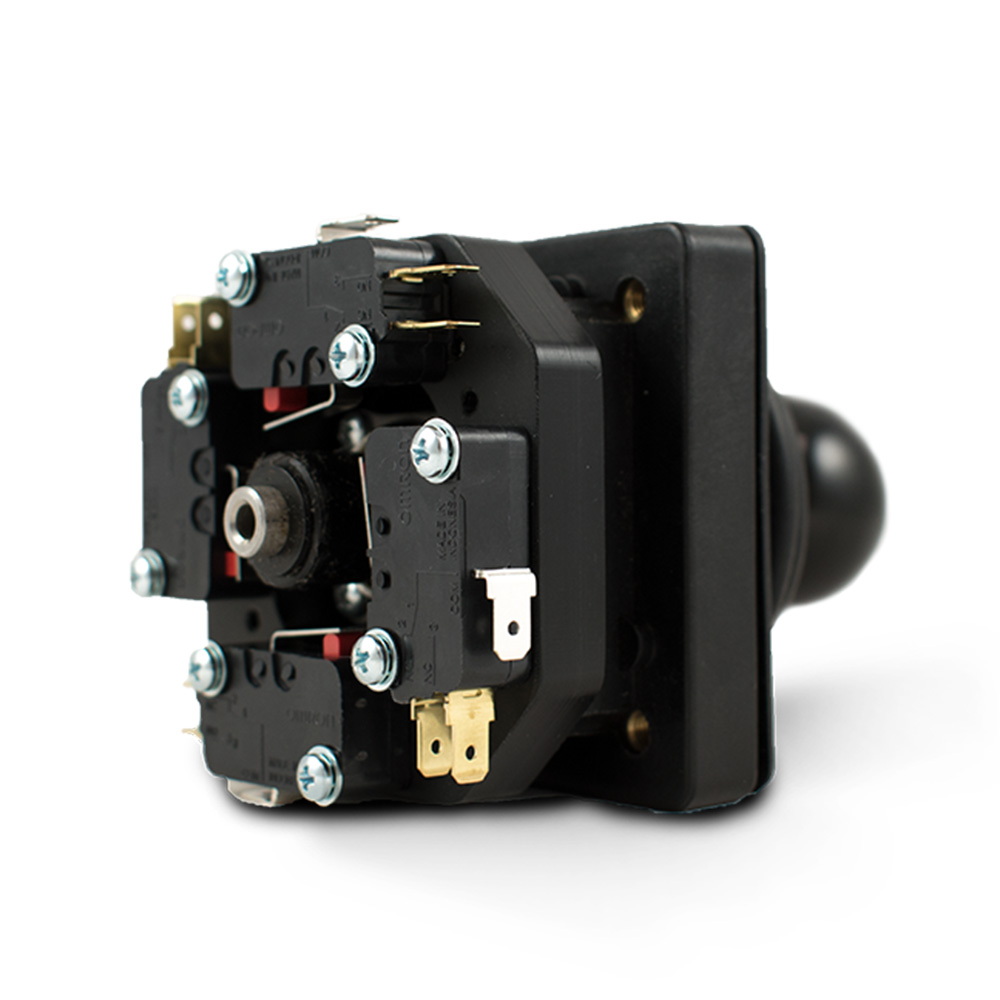

SPDT (Form C) V series snap action switches
Environmentally sealed mounting and corrosion resistant components
High-life compression style spring return
| General Data | |
| # of Axis | Single, Dual or Three (Third axis is achieved via a twist handle function or thumbwheel.) |
| Output Options | Microswitches |
| Joystick Action | Spring Return |
| Handle Travel | +/- 15 degrees each axis |
| Gate | Open or Cross |
| Handle Compatibility | Round Ball, BH, RH, RHS, FG-3, FG-4, FG-5, G58, MG1, MG13, MG27 and TH30 |
| Life | 20 million plus cycles |
| Materials | High strength, glass filled nylon housing. |
| Electrical Data | |
| Contact Specifications | Switch Type: SPDT (Form C) V Series Microswitches |
| Max. Number | Up to 4 per axis |
| Current Rating (AC) | 11A |
| Voltage Rating (AC) | 250 |
| Current Rating (DC) | 6A |
| Voltage Rating (DC) | 12 - 24 |
| Termination | .187 x .20 male quick connect |
| Max. Wire Size | 18 AWG |
| Applications |
| The CS3B/B is ideal for applications requiring bang / bang (on / off) operation. Typical applications include: • On and Off highway mobile equipment • Scissor lifts, boom lifts & aerial work platforms • Construction & agricultural machinery • Road maintenance & refuse vehicles • Boats and marine equipment • And more |
| Mounting Data | |
| Mounting Style | Drop-in or Panel (from below) |

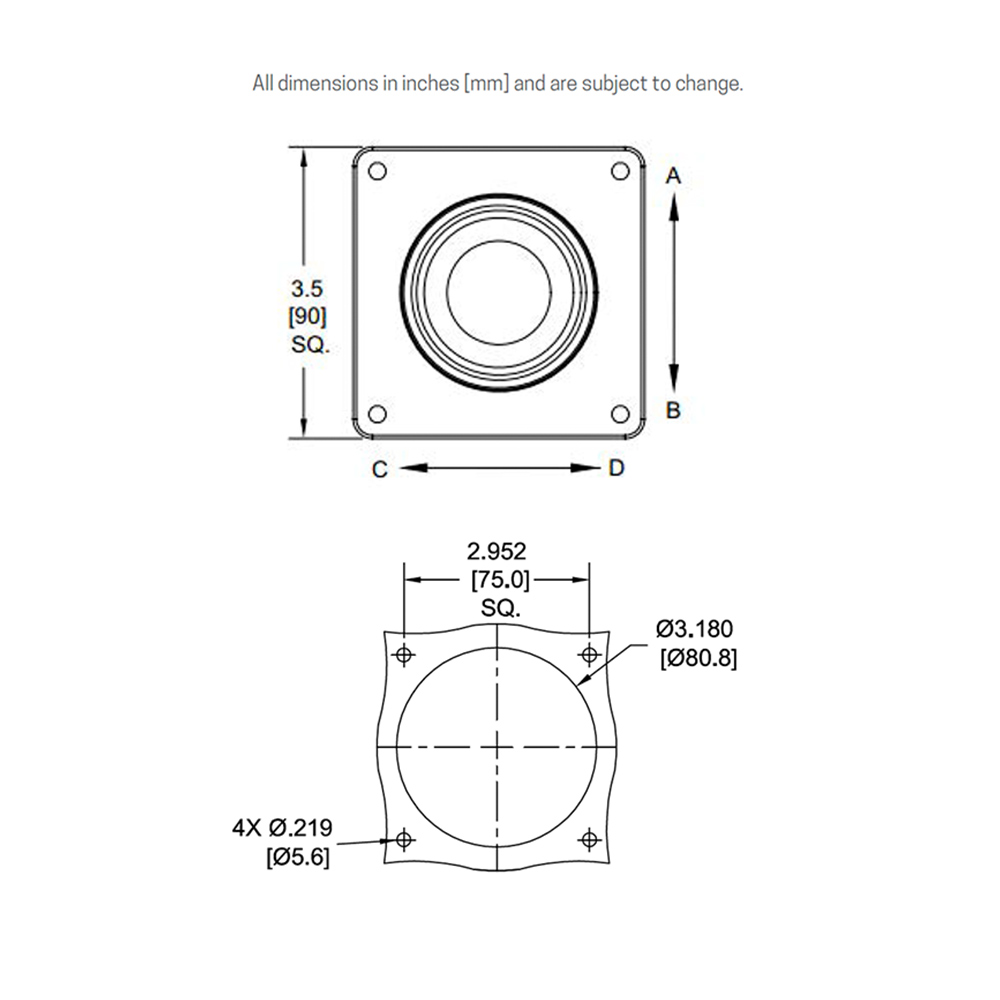

| Mounting Footprint | 2.76 x 2.76 Panel mount; 3.54 x 3.54 Drop-in mount; See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP54 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
