Delta Pack (80x60) Signal white Ready to fit assembly
Delta Pack (80x60) Signal white Ready to fit assembly
Delta Pack (80x60) Signal white Ready to fit assembly

Delta Pack (80x60) Signal white Ready to fit assembly

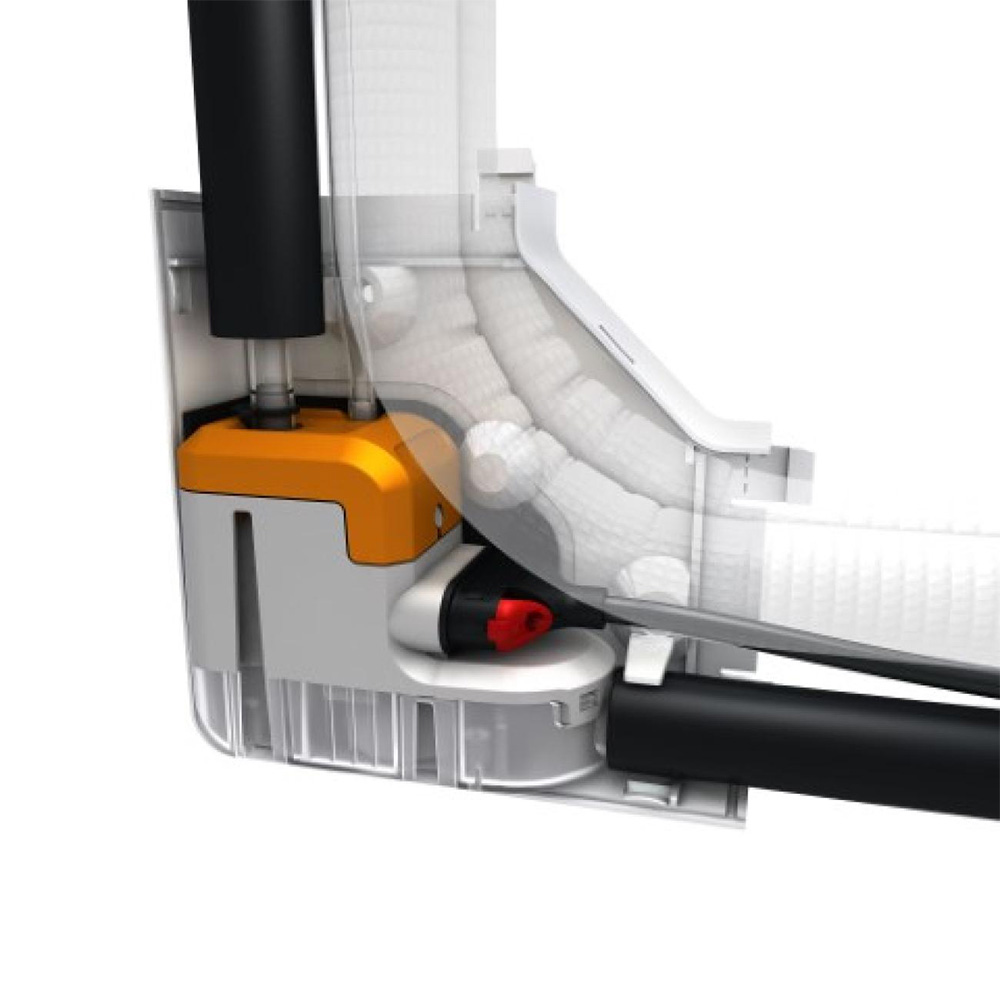

Delta Pack 80x60 includes a new elbow design that can be easily opened by hand by a simple finger push -- no tool is needed. Its streamlined design complements wall mounted air conditioning units. It includes the Si-10 UNIVERS’L pump which incorporates the latest in piston pump technology.

Inquire now
  • Unmatched reliability

  • Low sound level : 22dBA

  • Easy plug in electrical connection


Technical details
Max flow rate 5 gph
20 l/h
Max discharge head 33 ft
10 m
Max pressure 46 feet
14 m
Insulation class Double insulation
Mains supply 230V ~ 50/60Hz ~ 14W
Operation conditions 100%
Protection IPX4
Color RAL 9003
Master pack quantity 5
Safety switch NC 8 A resistive - 250 V
Detection Integrated detection floats
  • Si-10 piston pump, with integrated float detection unit

  • Clear PVC tube (6mm internal diameter - length 1m - foam-insulated over 800mm), fitted with a Drain Safe Device pre-mounted)

  • 1,5 m lockable plug-in power cable, with 2 power wires and 2 safety contact wires

  • Duct

  • 2 part elbow (base + cover)

  • Ceiling duct cover

  • Elbow/Duct gasket

  • Rubber elbow/split gasket

  • Rubber tube (internal diameter 15 mm - connects to split)

  • Vent pipe

  • 6 screws and plugs for fixing duct and elbow

  • 2 pipe clamps

Pump Dimensions
  Pump Packaging
Length 750 mm 763 mm
Width 80 mm 225 mm
Height 60 mm 62 mm
SOUND LEVELS
at 3,3ft or 1m according to EN ISO3744 (dBA) 22.00
Safety standards
CE
EAC
ROHS and WEE directives
Compliant
