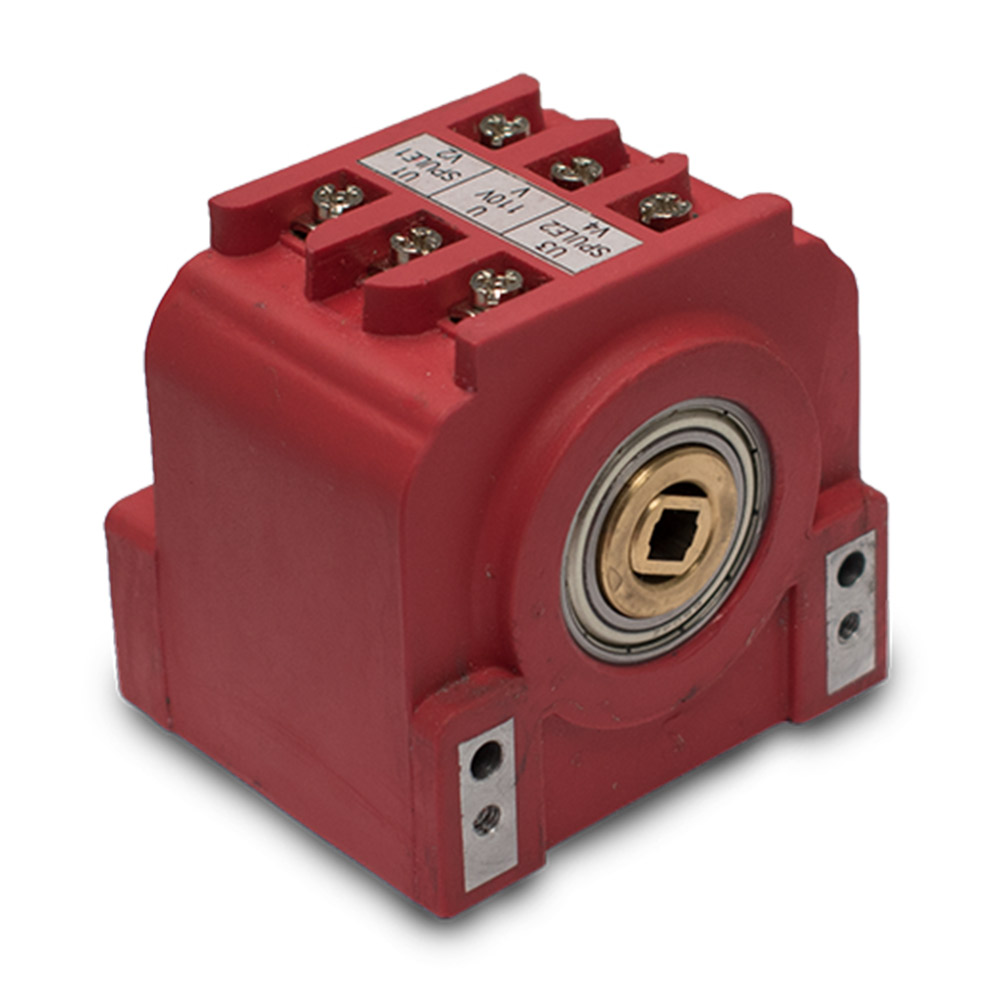

Extremely high life contactless rotary differential transformers that are ideal when duty cycle is high and where the transmission of an AC signal is a requirement. For use in applications where a variety of output characteristics are necessary. Suitable for crane applications where a slightly higher or lower reference voltage may be needed.
Inquire nowSmall space requirement.

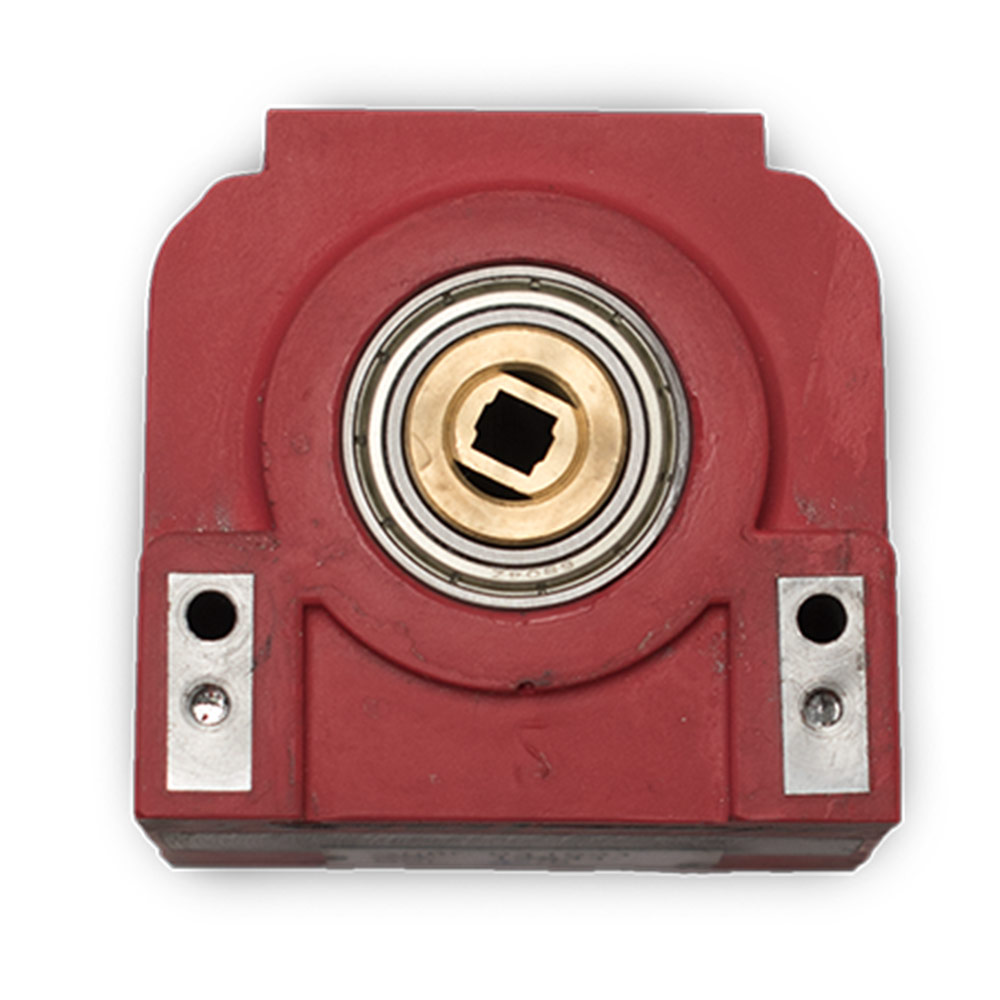

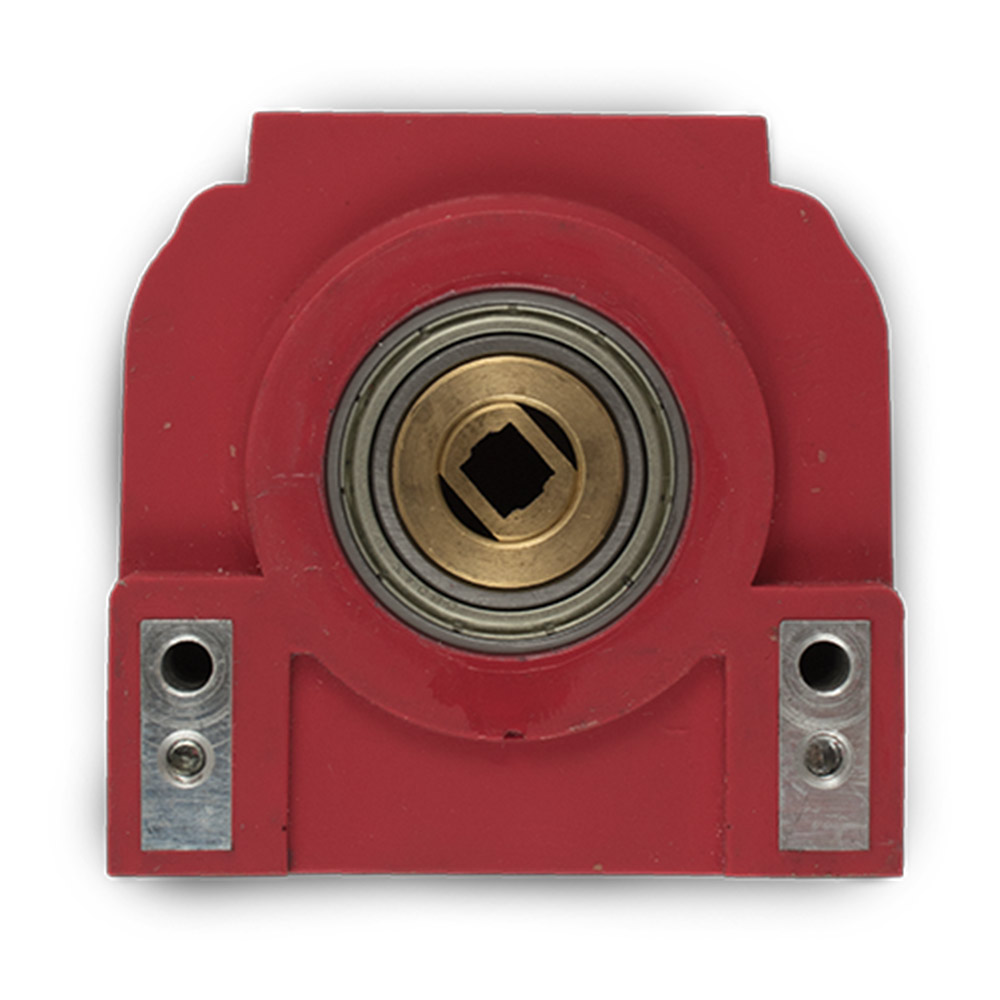

Direct coupling to master switch with easy adjustments for providing offsets in output.
A proportionally smaller output voltage change is provided from 0° to 20° rotation, increasing safety during initial movement, and allowing more operator control at slow speeds.
Primary and secondary coils are epoxy encapsulated separately for electrical and environmental integrity.
| Technical Data | |
| Transformer Rotation | +/- 105 degrees |
| Maximum Load | 3VA |
| Weight | 1.43 lbs |
| Voltage (DGO-1) | Primary 115VAC Secondary 50VAC @ 50 or 60 Hz |

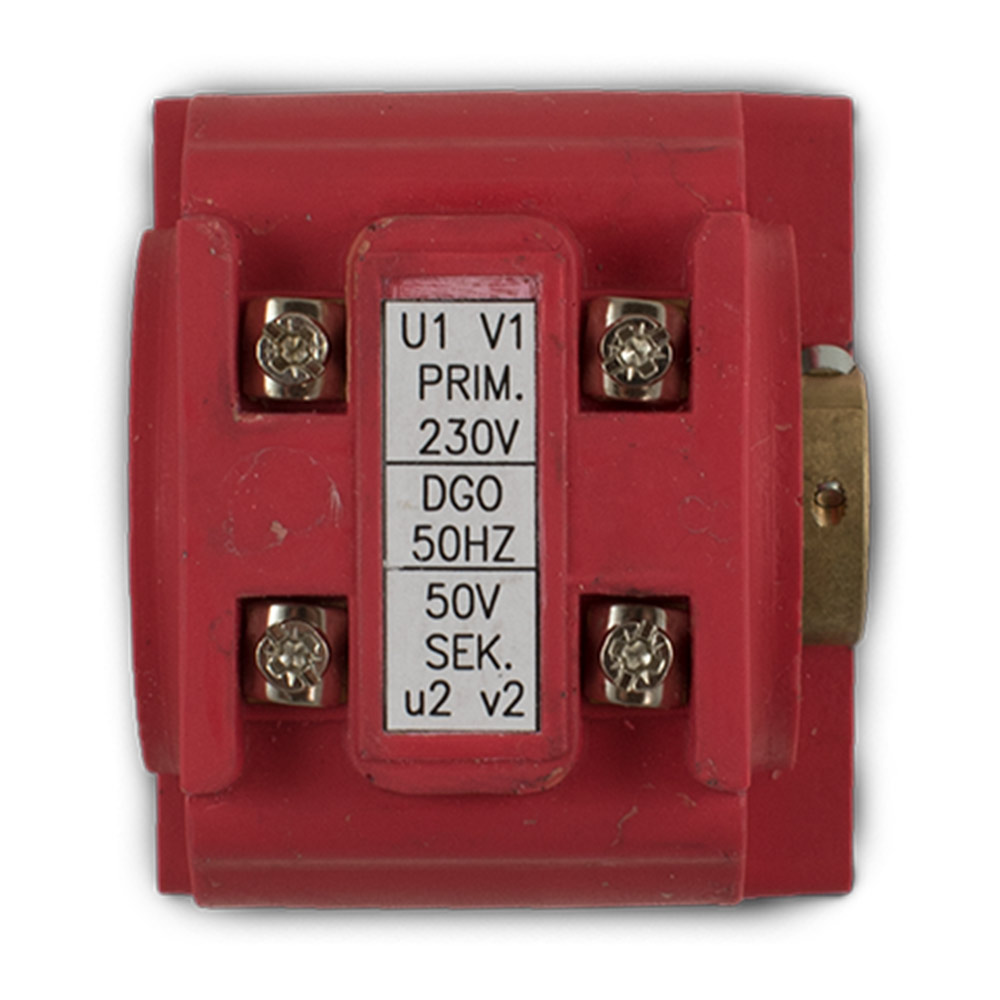

| Voltage (DGO-2) | Primary 220VAC Secondary 50VAC @ 50 or 60 Hz |

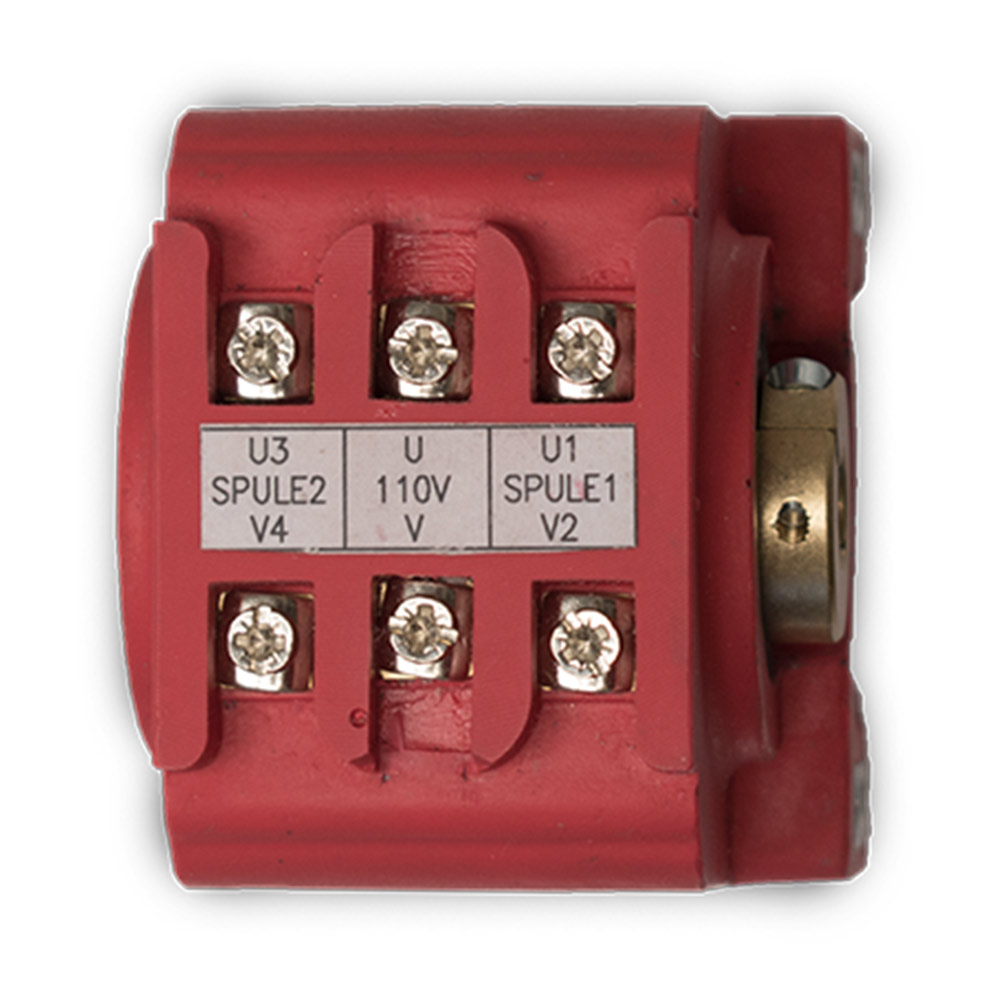

| Voltage (DGO-3) | Primary 115 VAC 2 secondary windings 30VAC each @ 50 or 60 Hz |
