AC/DC converter with offset and full output adjustments. For use with the DGO-3 rotary inductive transformer.

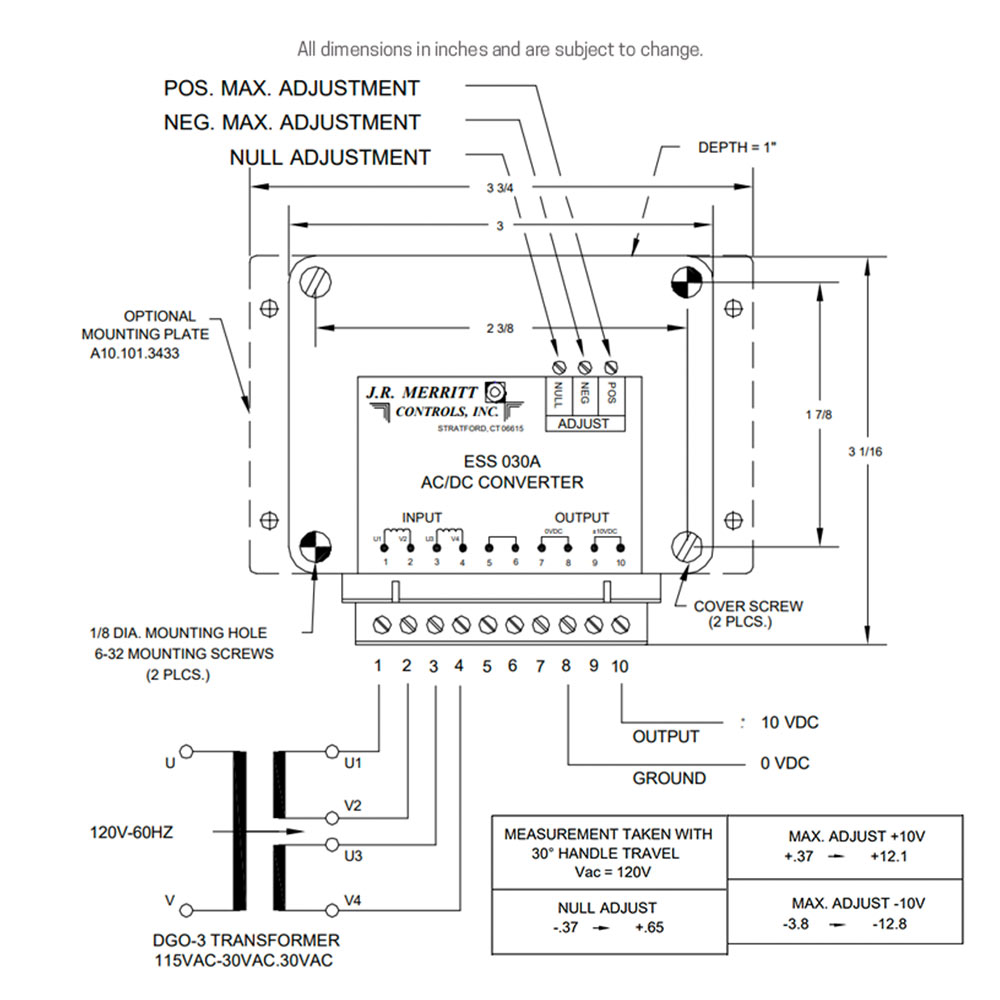

Inquire nowESS 030 is an AC/DC converter designed specifically for use with DGO rotary inductive transformers. The AC signal is converted to a DC reference signal that commands a variable speed drive. Offset and independent full output adjustments allow the user to adjust the drive speed as desired.
| Electrical Data | |
| Input | 30 VAC terminals 1 and 2 30 VAC terminals 3 and 4 |
| Output | (+/-) 10VDC |
| Adjustments | null offset |
| Voltage Limit Plus | (+) 3 VDC to (+) 11 VDC |
| Voltage Limit Minus | (-) 3 VDC to (-) 11 VDC |
| Wattage | 5 |
