The analog amplifier card converts the angle of handle deflection into a voltage reference signal. The signal is adjustable from 3.5v to 11v. The reference signal can be configured to the requirement of your variable speed drive. Four configurations are available. Both 5v and 10v output signals can be accommodated.
| Mechanical Data | |
| Operating Temperature | -25 to +70 degrees C |
| Electrical Data | |

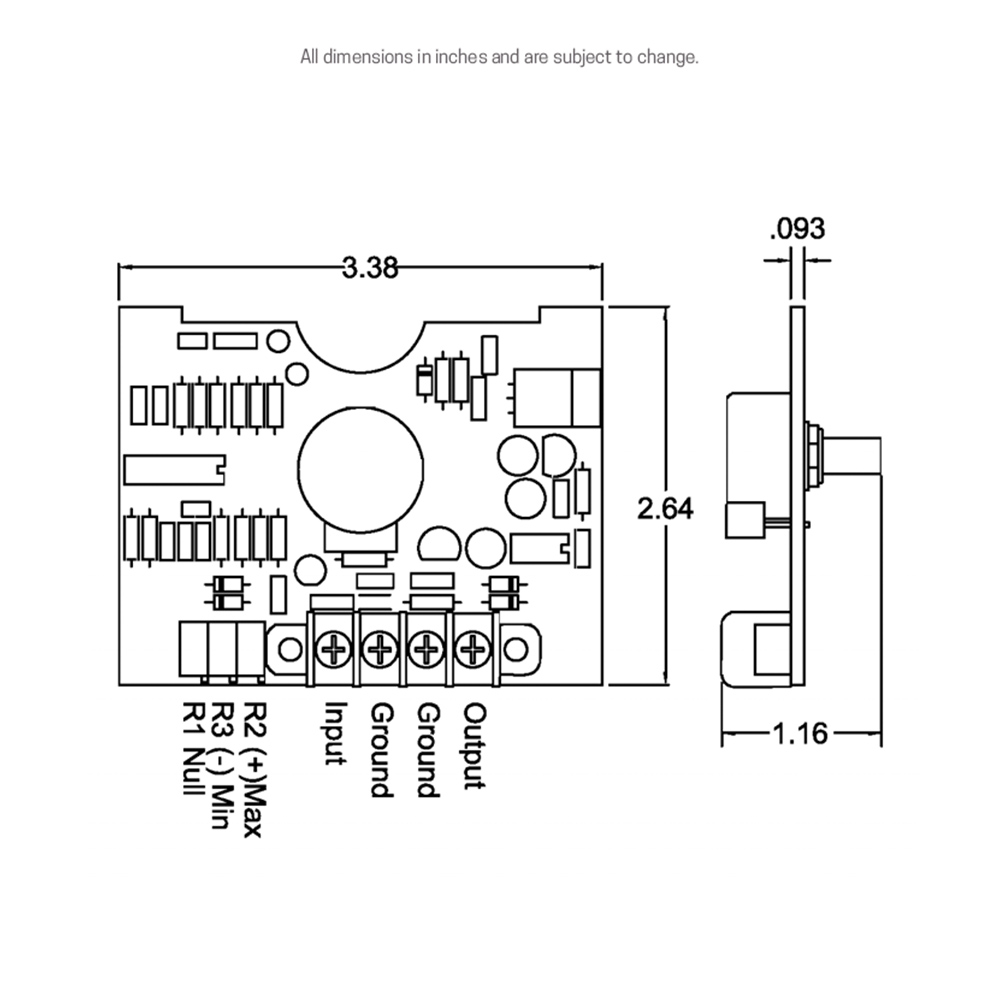

| Adjustments | Trimpot: R1 = null offset R2 = maximum positive R3 = maximum negative |
| Supply Voltage | 18-30VDC |
| Supply Current | 100MA max |
| Adjustment Range | 3.5V - 11V |
| Output Voltage | +/- 0-10V |
| Output Current | 10MA max |

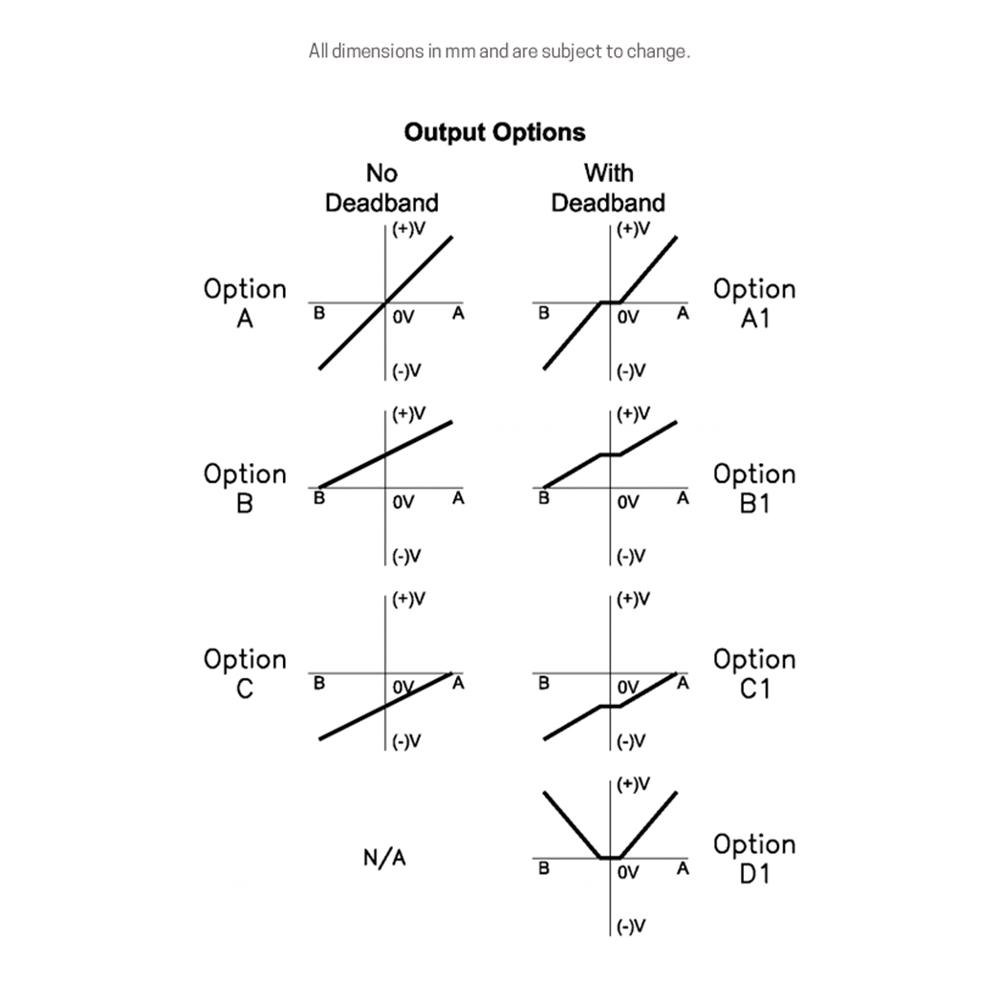

| Output Configurations | 4 |
| Load | >1K ohms |
| Null Offset Adjustment Range | 0 - +/- 0.1V |
| LED | Null set-up indicator |
