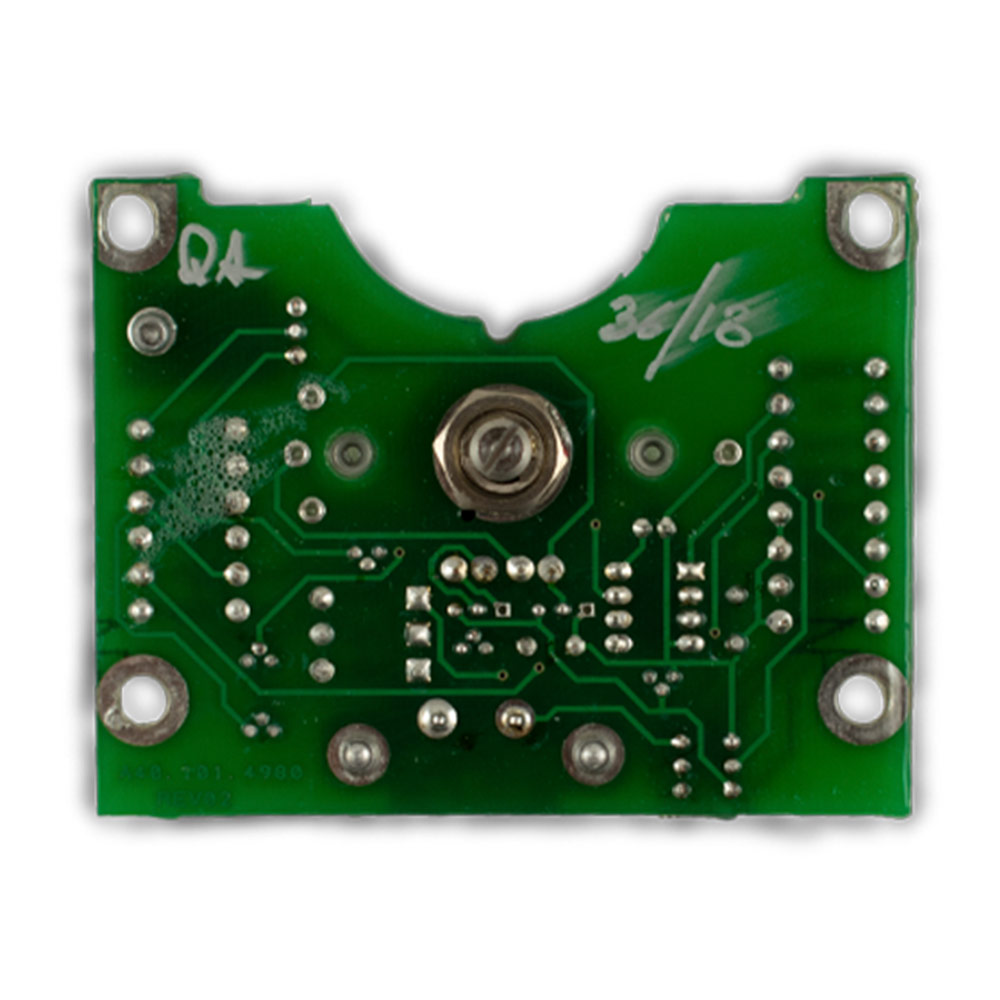

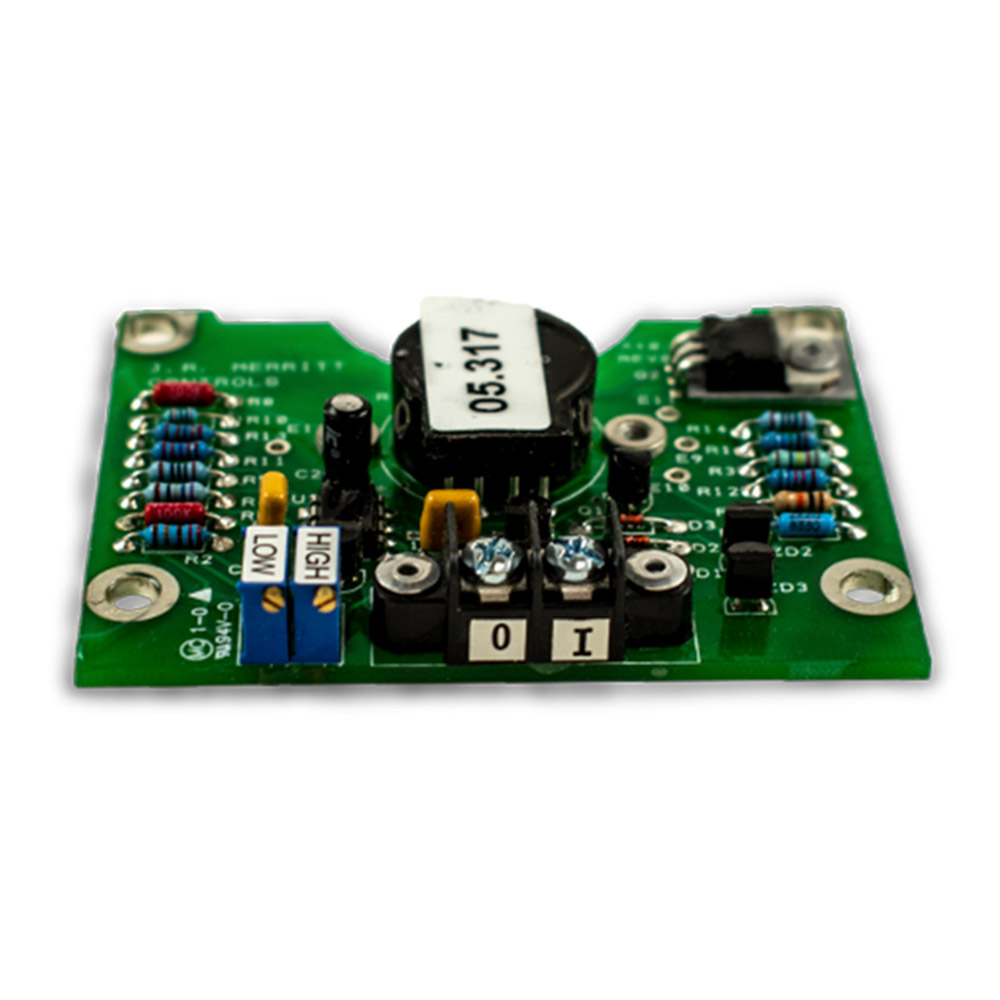

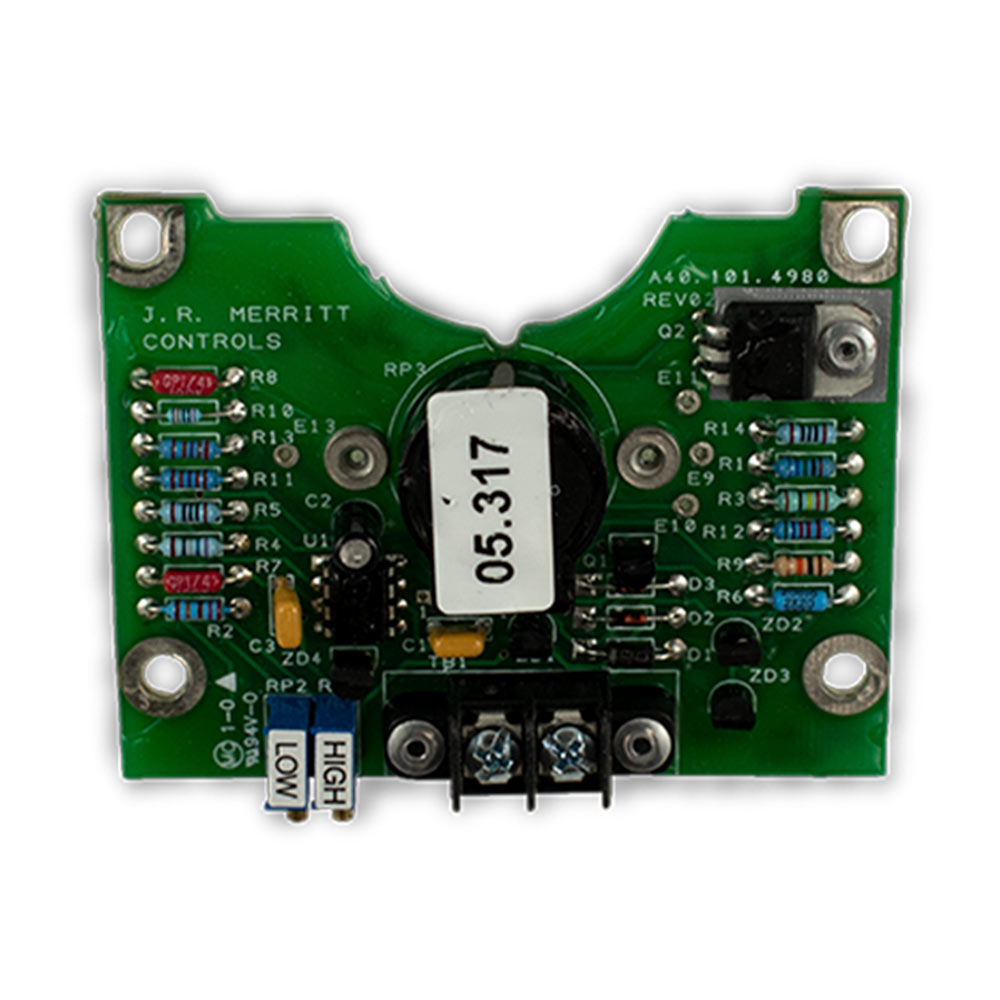

The ESS 420 transmits a current signal which is proportional to the joystick's handle position. The ESS 420 is used in applications where a signal must be transmitted over a considerable distance and where electrical noise is a problem.
Inquire nowThe ESS 420 is utilized in crane applications where reference signals for the variable speed drive must be combined with or run adjacent to control and power transmission cables.
| Mechanical Data | |
| Operating temperature | -25 to +70 degrees C |
| Material | .093 Fiberglass PCB |
| Electrical Data | |
| Supply voltage | 24 VDC |
| Load max | 750 ohms |
| Adjustment range | 2-22 mA |
