With its narrow and wide body variations, the FG4 fighter grip handle offers countless combination possibilities including the ability to create left and right hand configurations. Designed around comfort and reliability, the FG4 is built to withstand the most demanding applications.

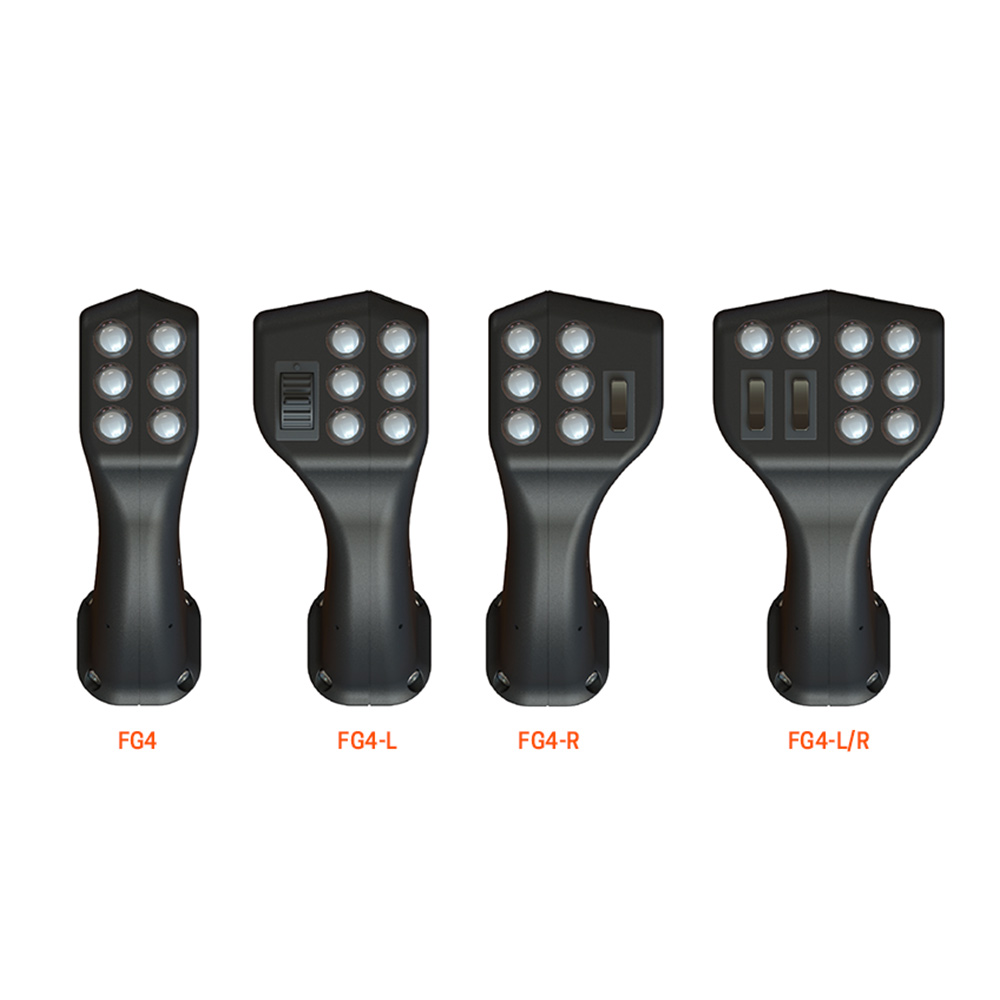

Inquire nowRugged design with narrow and wide body variations to accommodate different mounting orientations and handle functions

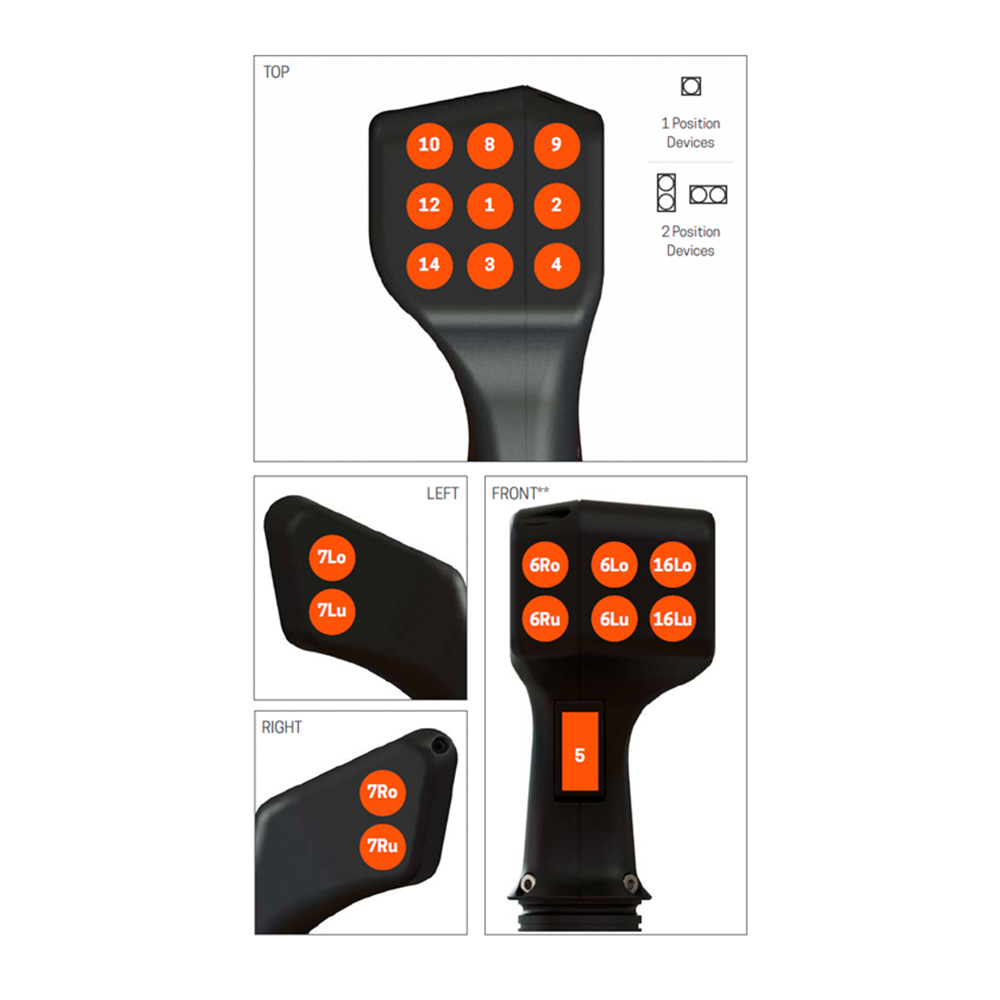

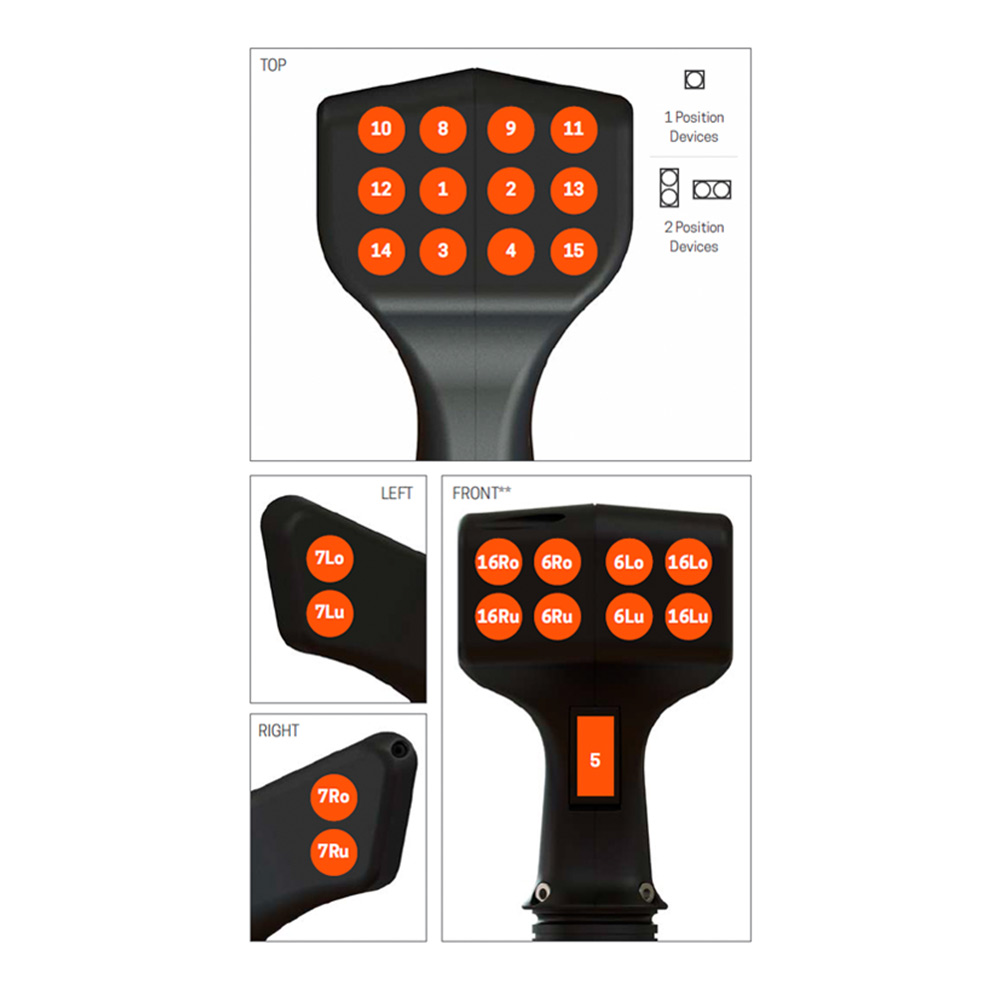

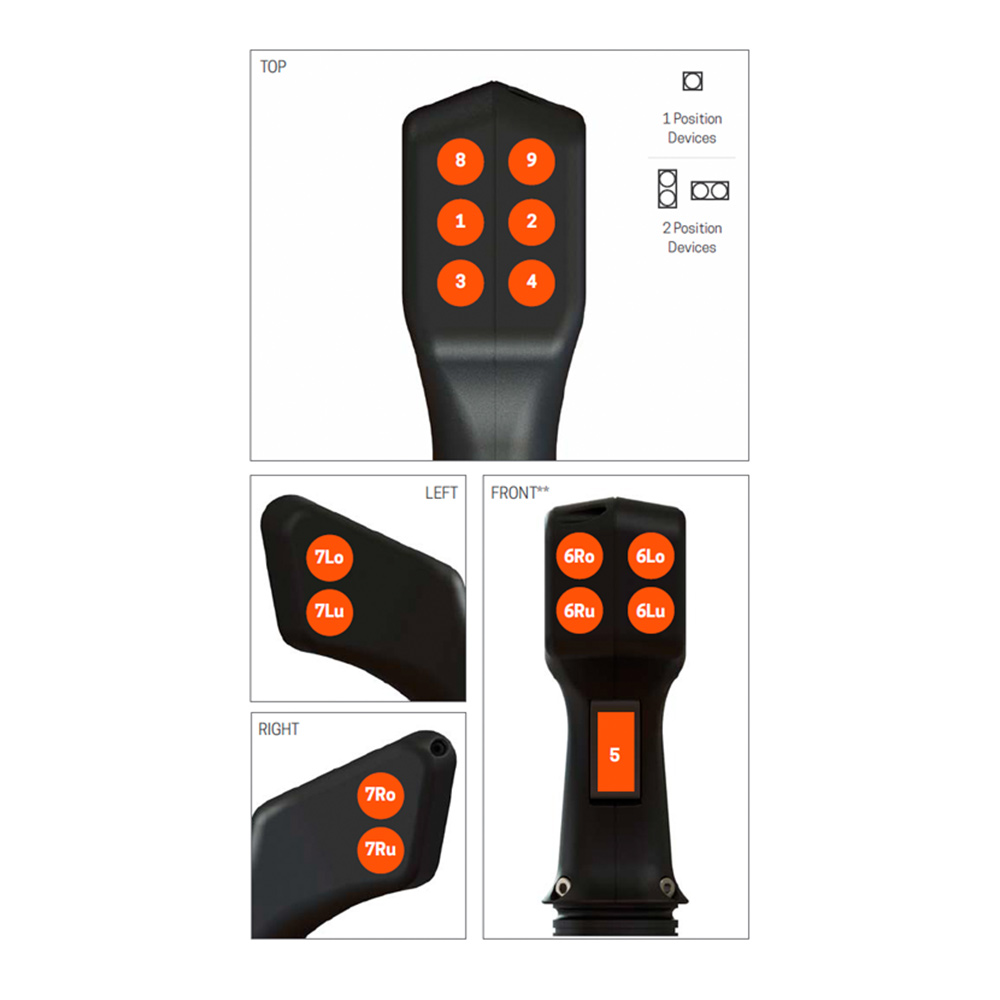

Highly customizable with push buttons, rocker switches, and thumbwheels
Available with optional handrest (right-hand and left-hand versions)
IP65 protection
| General Data | |
| Type | Fighter Grip, Multi-Function |
| Specification Description | Available in narrow and wide body variations, the FG4 fighter grip offers countless combination possibilities and the ability to create left and right hand configurations. |
| Joystick Compatibility | CS3, CS3 B/B, VNSO, XL-VNSO, VNS2, VCSO, VCS2, CS1, PRO-4, PRO-6 |
| Features and Functionality | |
| Push Buttons | Yes |
| Rocker Switch | Yes |
| Thumbwheel | Yes |
| Handrest | Yes, optional |
| Trigger | No |
| Operator Presence Switch | Yes |
| Mechanical Interlock | No |
| Twist | Yes |
| Capacitive Hand Detection Sensor | No |
| Technical Data | |

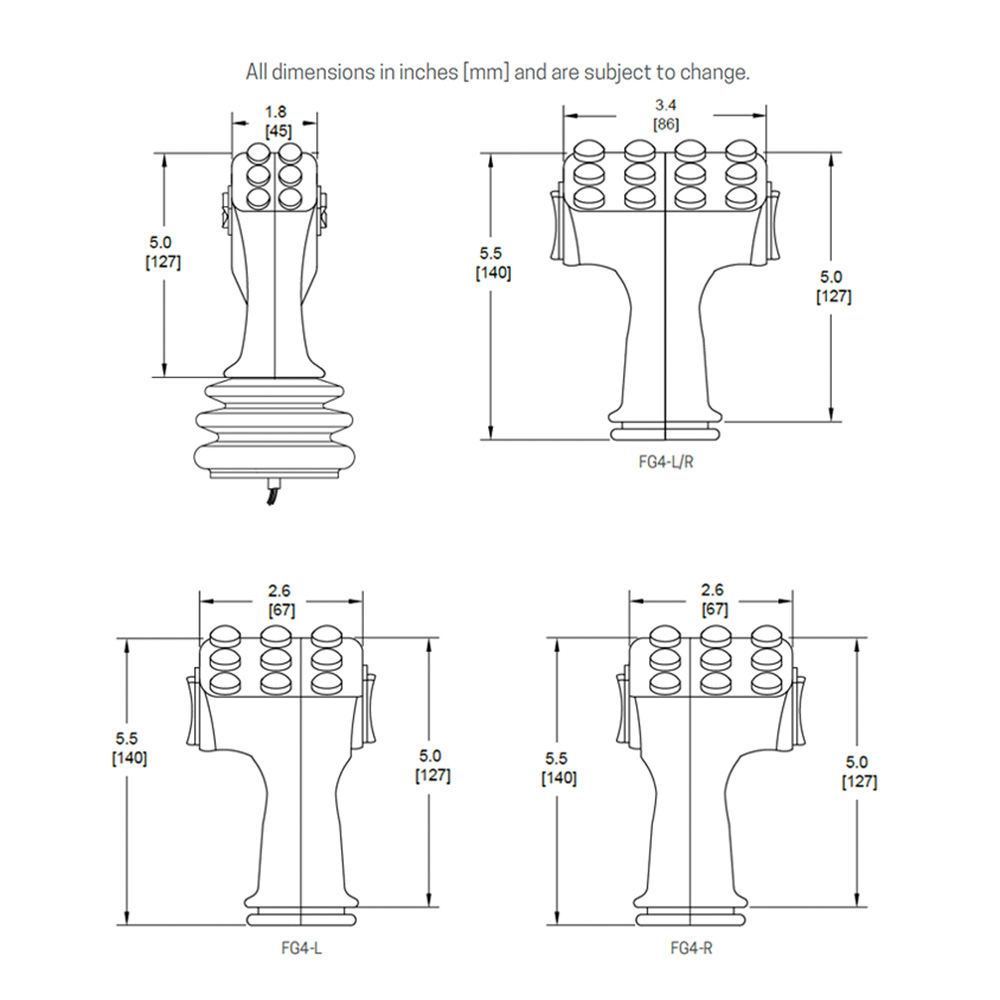

| Handle Height | 5 in [127 mm] |
| Additional Specifications | Reference product literature for additional specifications |
| Environmental Data | |
| IP Rating | IP65 |
