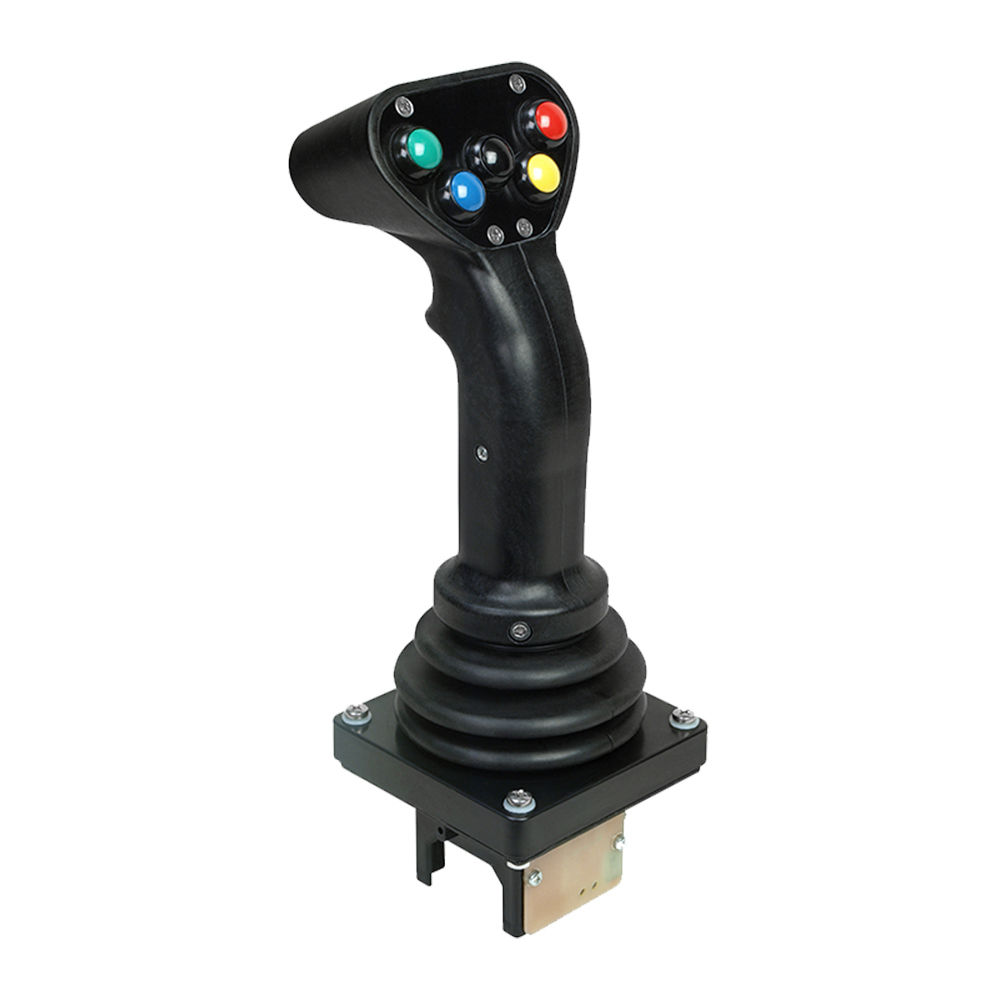

The FG5 fighter grip handle offers optimal comfort and performance in a rugged design. Ideal for left-hand or right-hand applications, the FG5 can be completely customized with a range of devices and functions, including push buttons, rocker switches, thumbwheels and a trigger.
Inquire nowRugged straight handle design that is ideal for left-hand or right-hand applications.

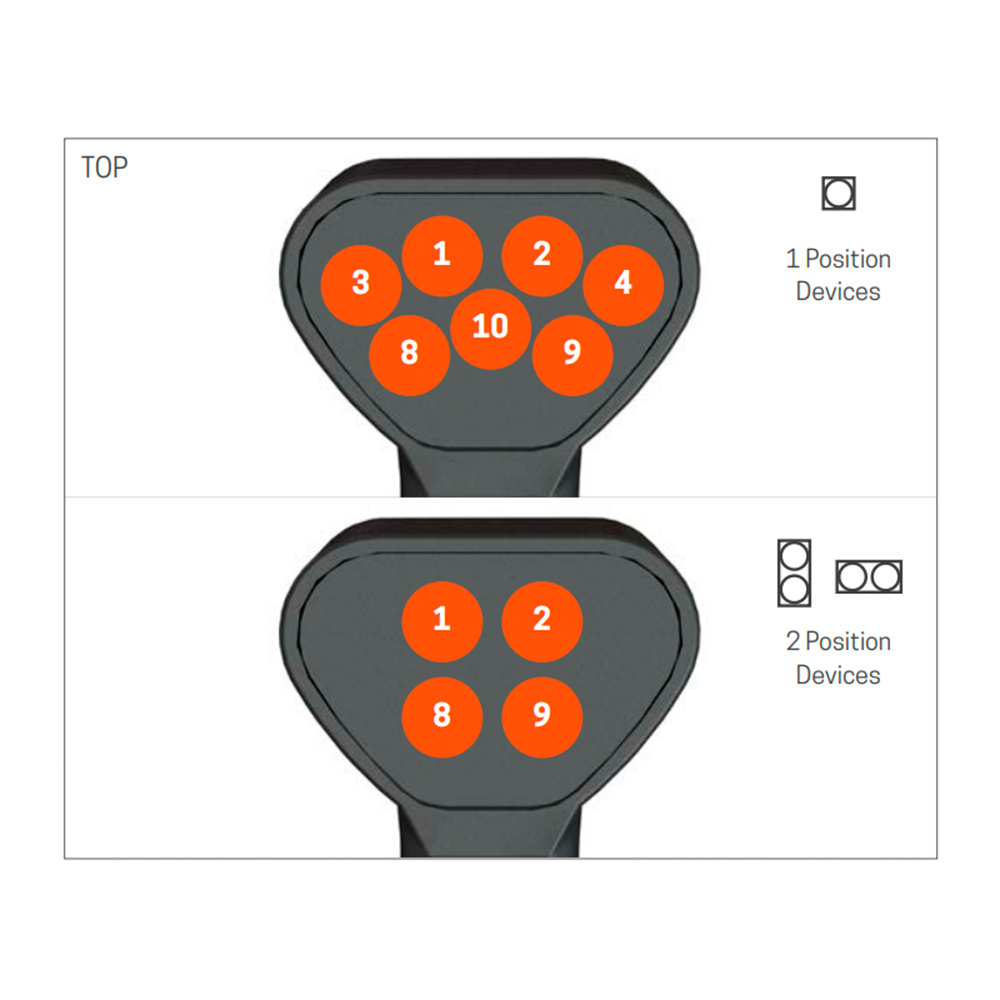

Highly customizable with push buttons, rocker switches, and thumbwheels
Available with optional trigger
IP55 protection
| General Data | |
| Type | Fighter Grip, Multi-Function |
| Specification Description | Ideal for left-hand or right-hand applications, the FG5 fighter grip offers reliability and a true trigger. |
| Joystick Compatibility | CS3, CS3 B/B, VNSO, XL-VNSO, VNS2, VCSO, VCS2, CS1, PRO-4, PRO-6 |
| Features and Functionality | |
| Push Buttons | Yes |
| Rocker Switch | Yes |
| Thumbwheel | Yes |
| Handrest | No |

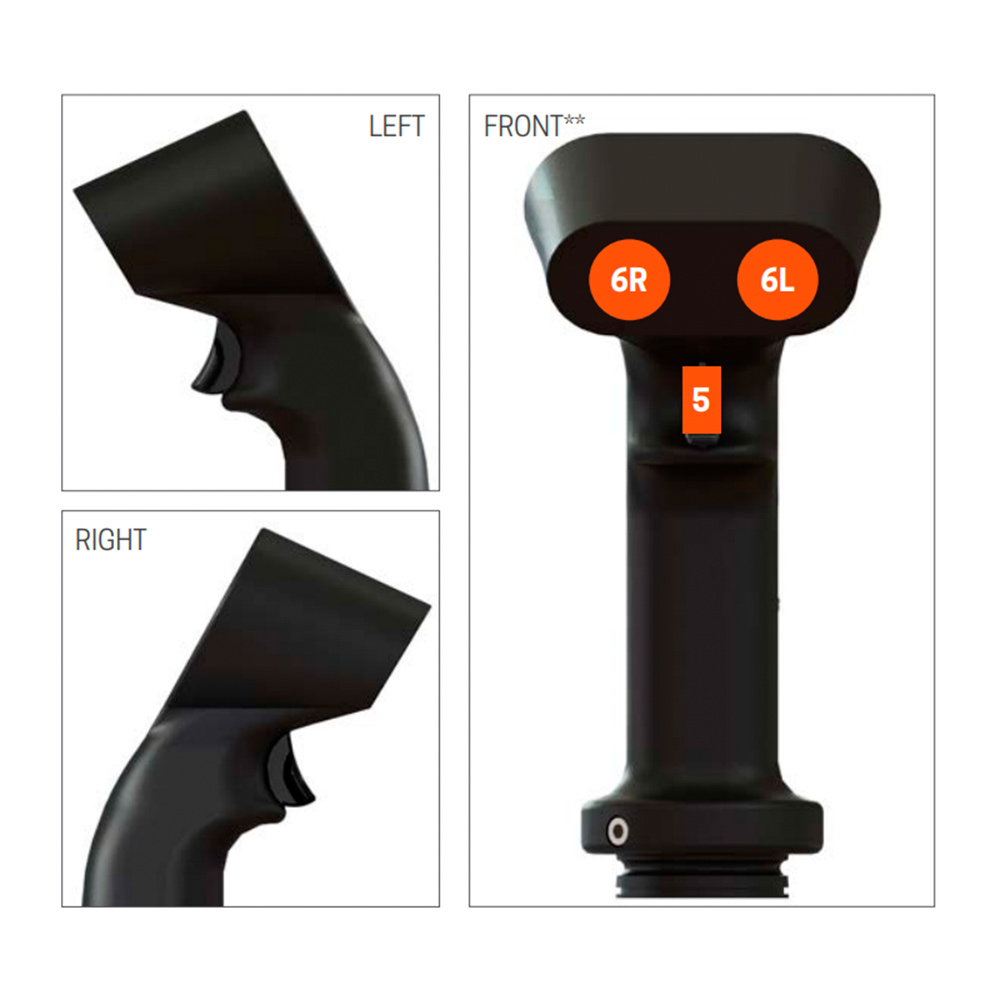

| Trigger | Yes |
| Operator Presence Switch | No |
| Mechanical Interlock | No |
| Twist | Yes |
| Capacitive Hand Detection Sensor | No |
| Technical Data | |

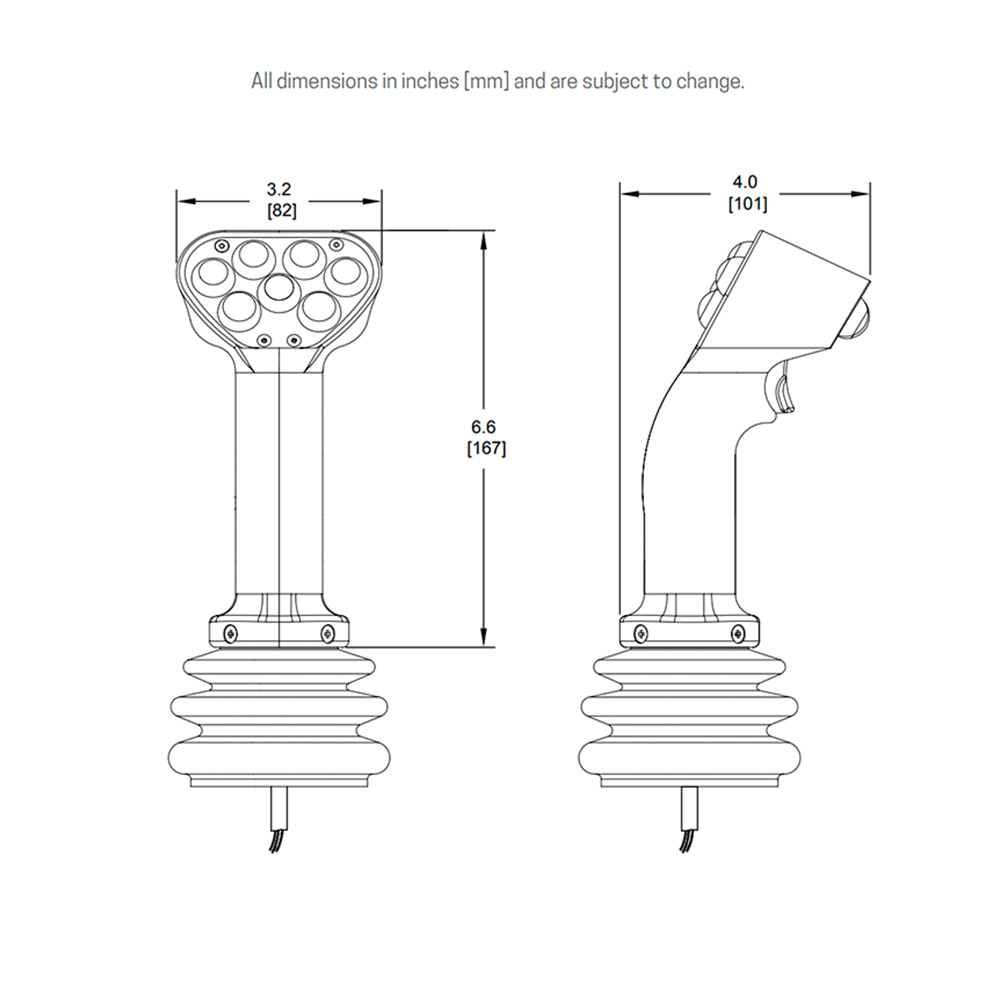

| Handle Height | 6.6 in [167 mm] |
| Additional Specifications | Reference product literature for additional specifications |
| Environmental Data | |
| IP Rating | IP54 |
