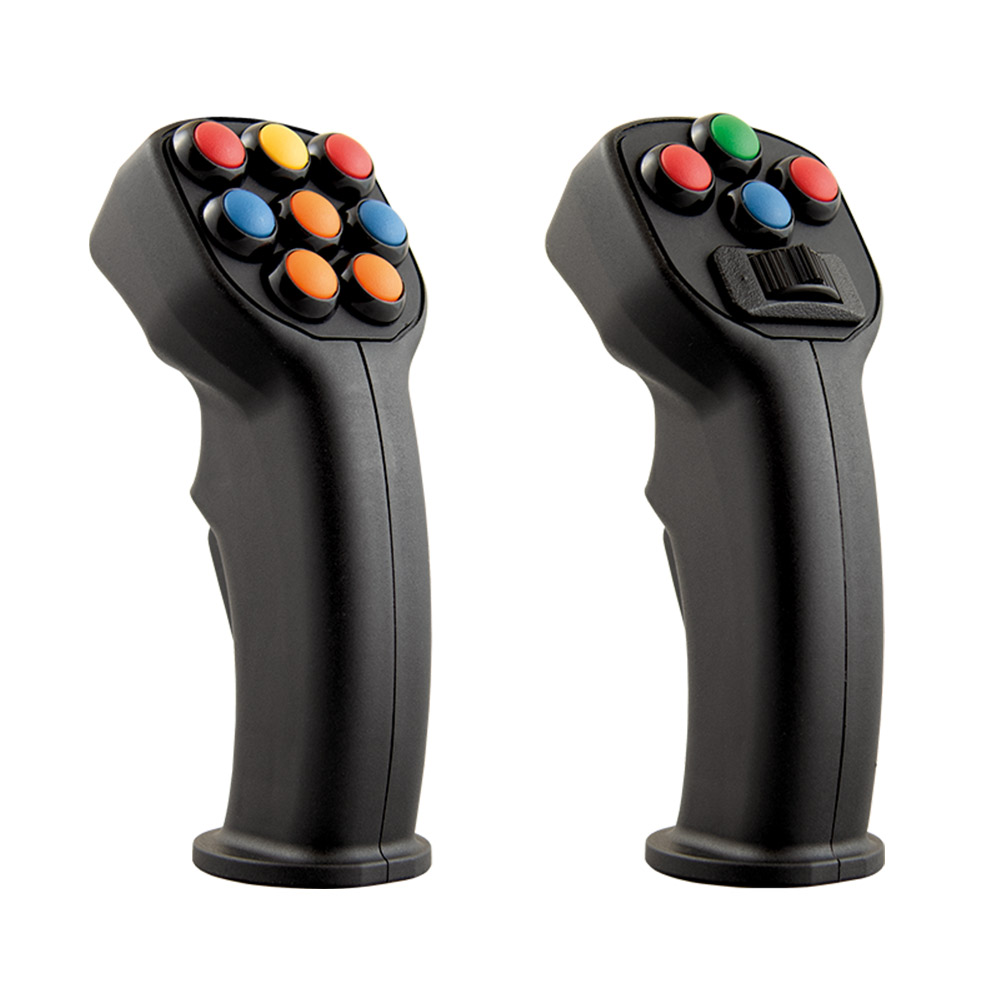

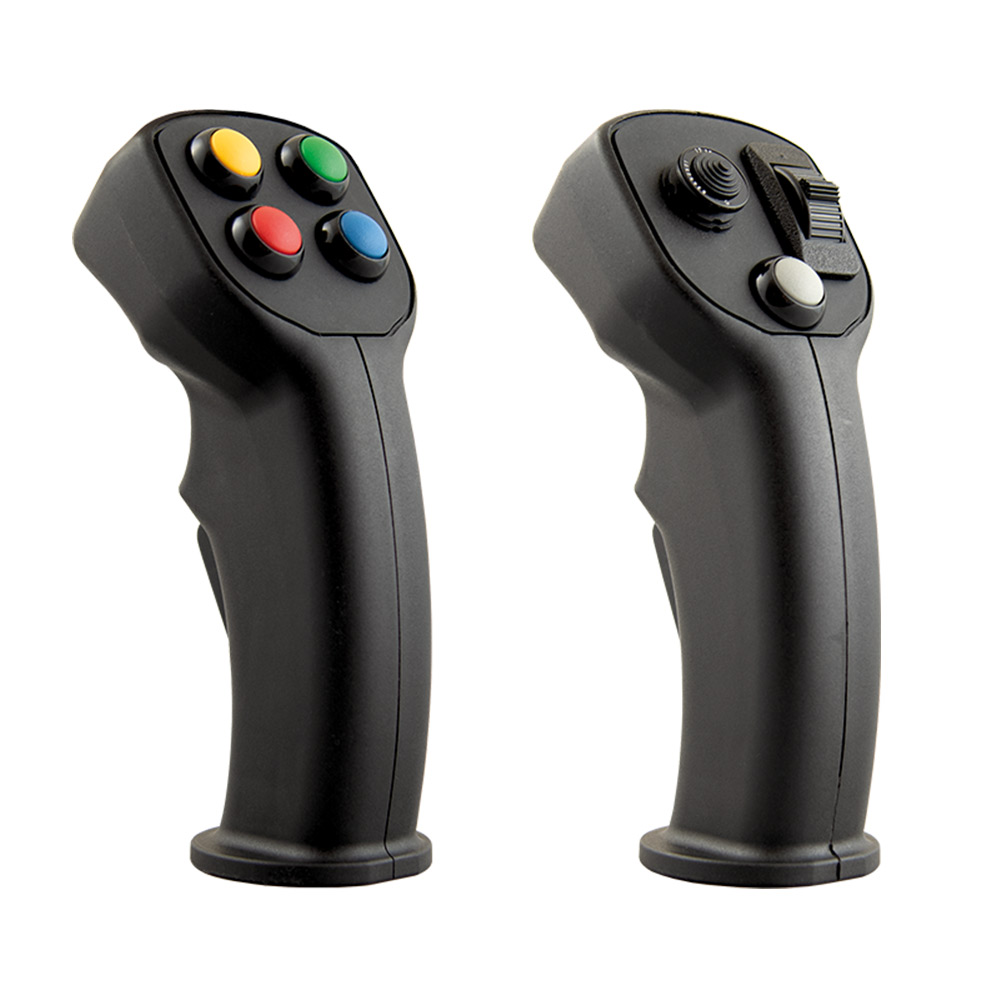

The FG8 multi-function handle provides optimal performance and comfort in a robust design that can be used for left-hand or right-hand operation. Available with push buttons, thumbwheels, mini joysticks and a trigger, the FG8 features a range of individually customizable device plates to fit the needs of your application.
Inquire nowRobust straight handle that is ideal for left-hand or right-hand applications

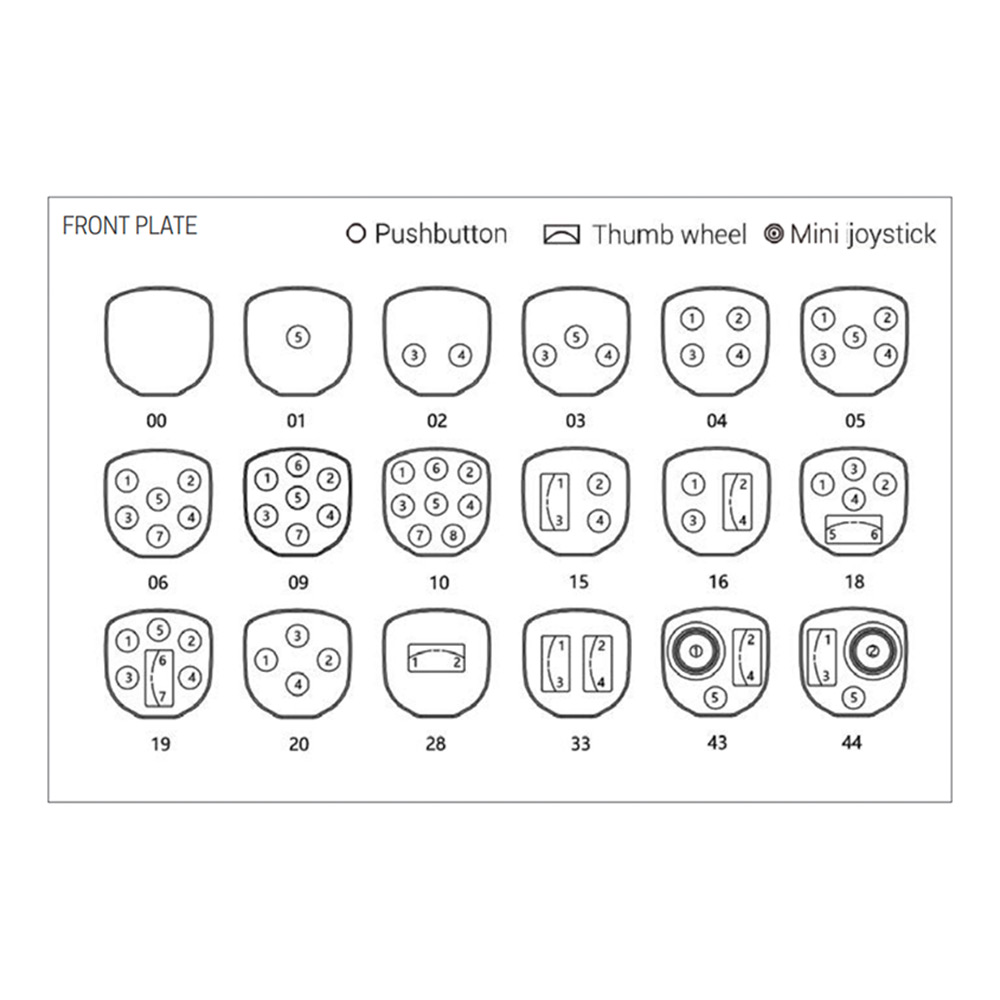

Highly customizable with a selection of front device plates and optional rear devices

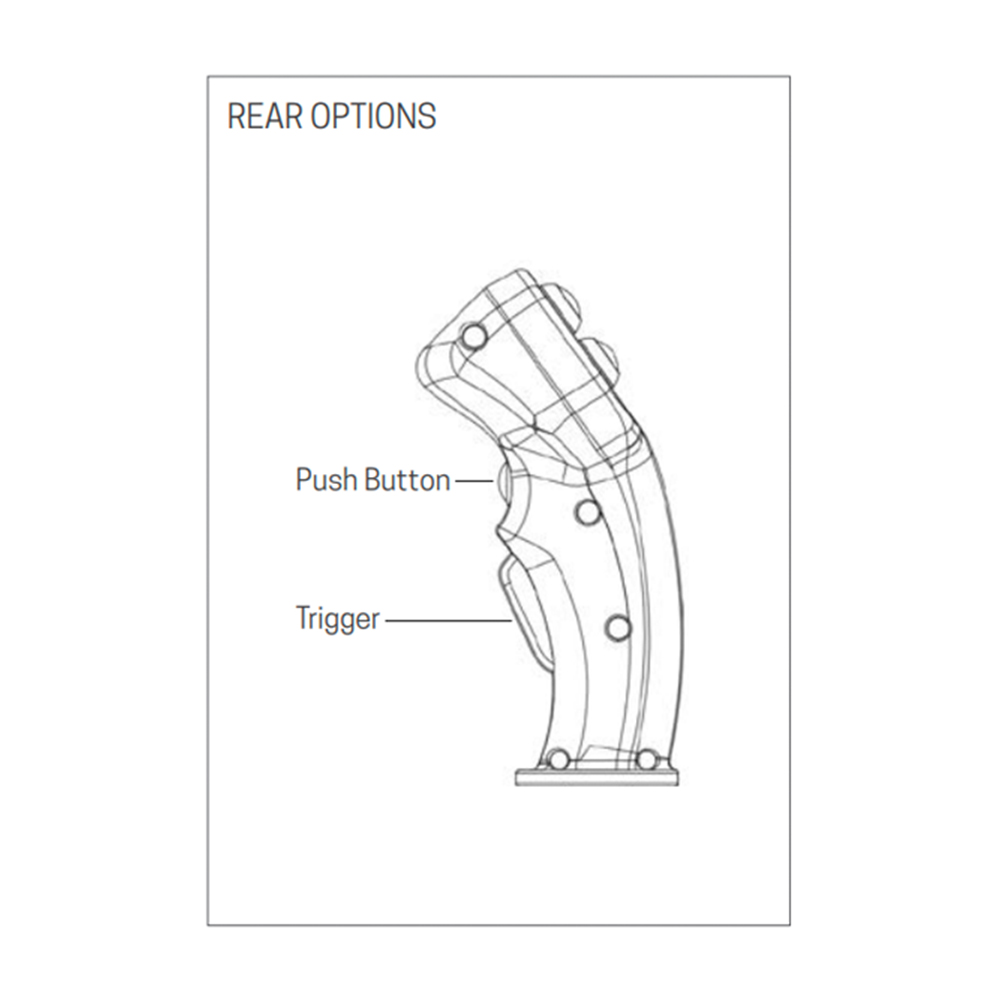

Available with optional trigger
IP65 protection
| General Data | |
| Type | Multi-Function |
| Specification Description | Provides optimal performance and comfort in a robust design that can be used for left-hand or right-hand operation. |
| Joystick Compatibility | VNSO, XL-VNSO, VNS2, VCSO, VCS2, CS1, CS3HD, PRO-4, PRO-6 |
| Features and Functionality | |
| Push Buttons | Yes |
| Rocker Switch | No |
| Thumbwheel | Yes |
| Handrest | No |
| Trigger | Yes |
| Operator Presence Switch | No |
| Mechanical Interlock | No |
| Twist | No |
| Capacitive Hand Detection Sensor | No |
| Technical Data | |

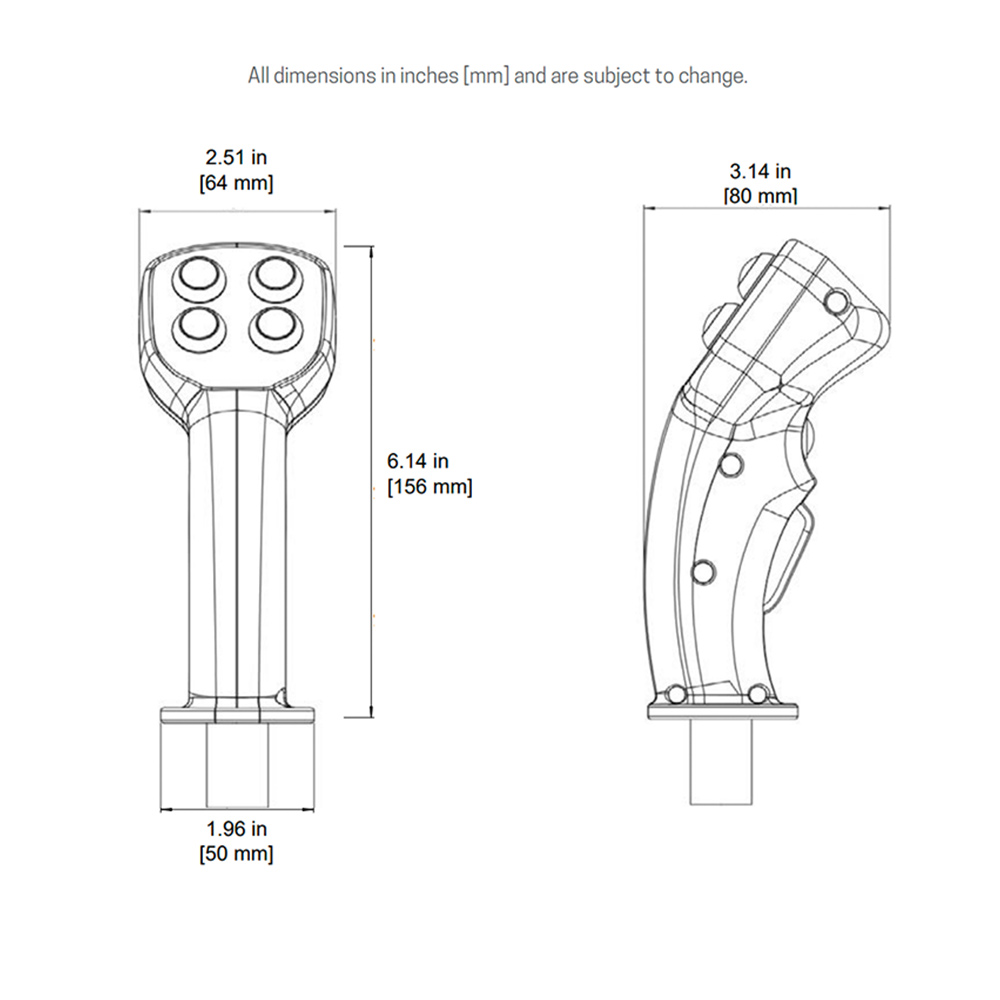

| Handle Height | 6.14 in [156 mm] |
| Additional Specifications | Reference product literature for additional specifications |
| Environmental Data | |
| IP Rating | IP65 |
