The FGP series is furnished either as a portable with handles and straps or as a pendant. The pendant system is furnished with handles, side, and bottom bumpers, and a protective surround handle to protect the joystick controllers from damage.
Inquire nowPendant or portable control console
Rugged design with fiberglass reinforced plastic housing
Will accept two (2) CSO joysticks and four (4) pilot devices.
NEMA 4 - IP54 weatherproof sealing
Side rubber bumpers
Strain relief and hangers
Configured to your requirements
Applications : FGP-02 consoles are most commonly used as pendant stations controlling large overhead cranes and hoists via step or stepless joysticks.
| General Data | |
| Type | Portable Console / Pendant |
| Product Compatibility | VCSO, VCS2, MO, M2, PRO-4, PRO-5, PRO-6, CS3, CS3 B/B, M3 and M4 B/B |

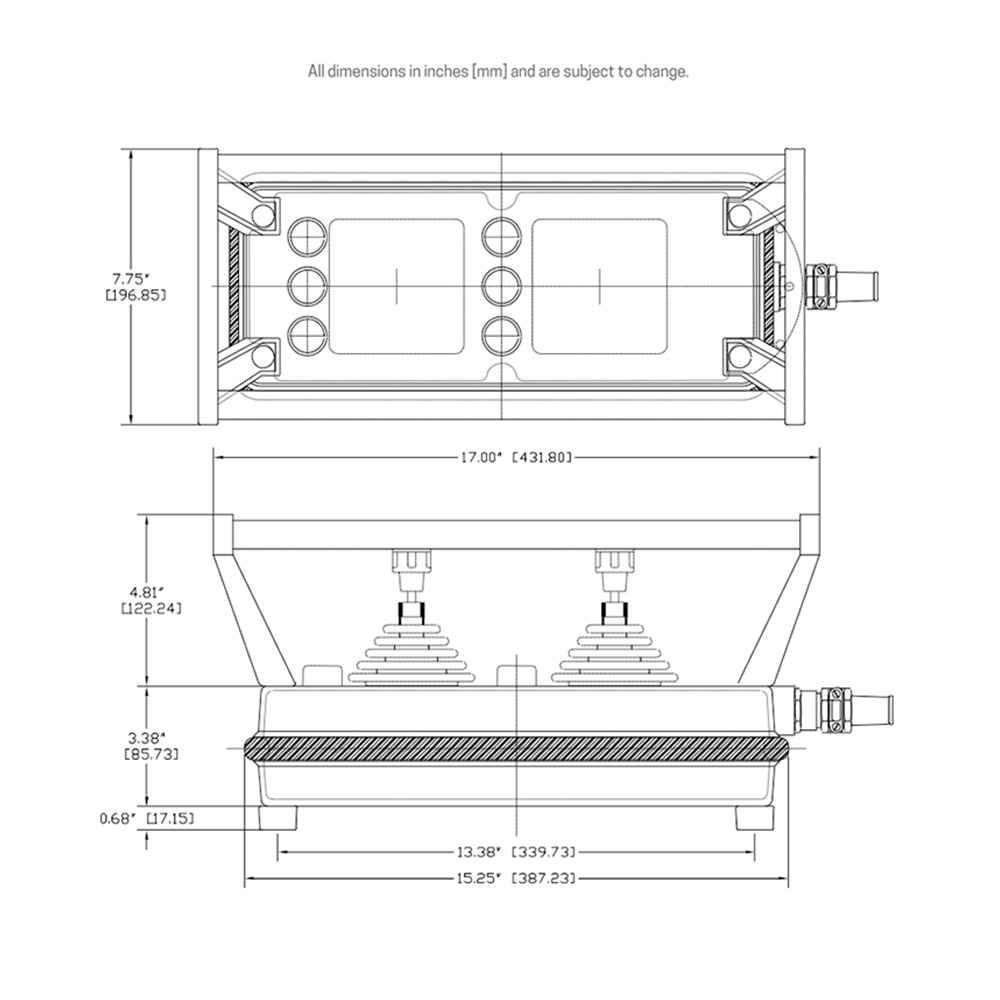

| Dimensions | 15.35" x 7.88" x 3.38" |
| Est. Weight | 6 - 9 lbs |
| Environmental Data | |
| IP Rating | IP65 |
