The use of Floor Pedestals is an economical way to create an operator workstation. The pedestals are sealed to NEMA 12 and feature a hinged cover for ease of service.
Inquire nowAccommodates single or dual axis joysticks
Available in two standard sizes
Custom sizes available upon request
IP52
Applications : Often used in pedestal cranes and stationary control applications without a moving cabin.
| General Data | |
| Type | Pedestal |
| Product Compatibility | VNS0 and VNS2 |

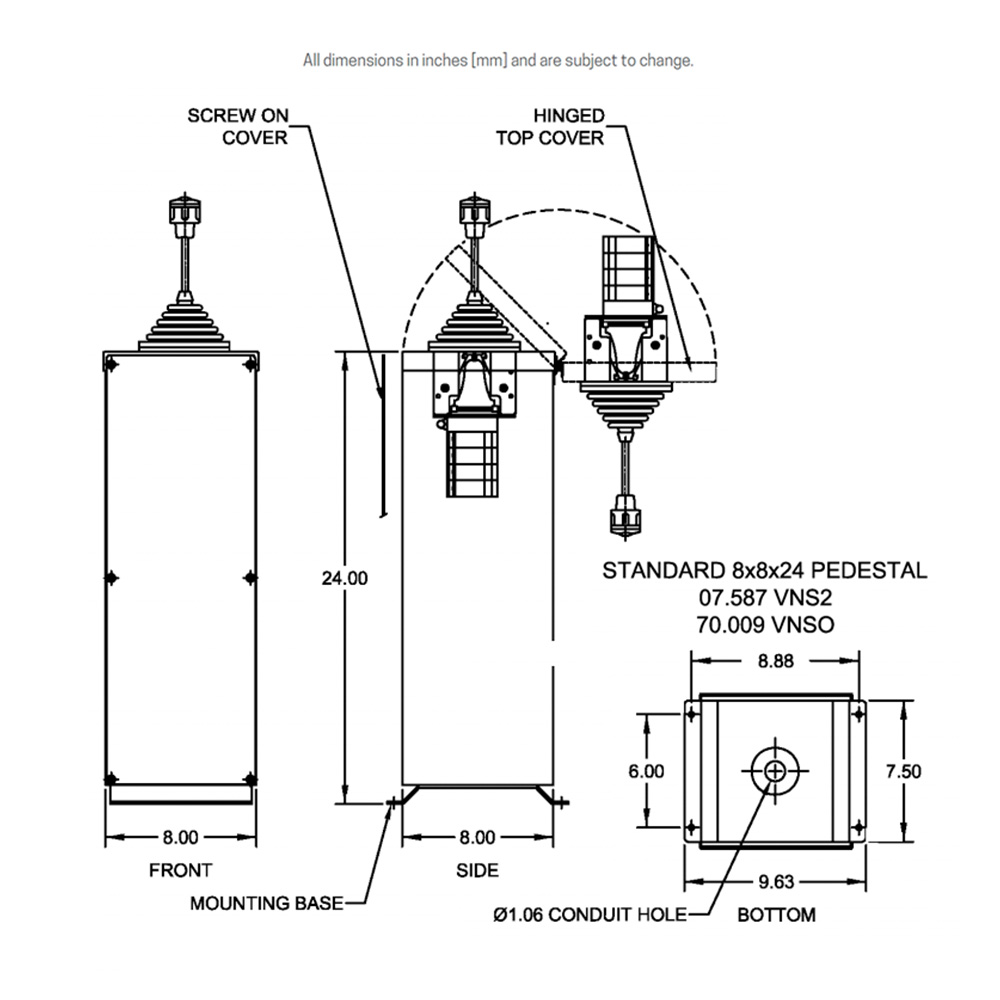

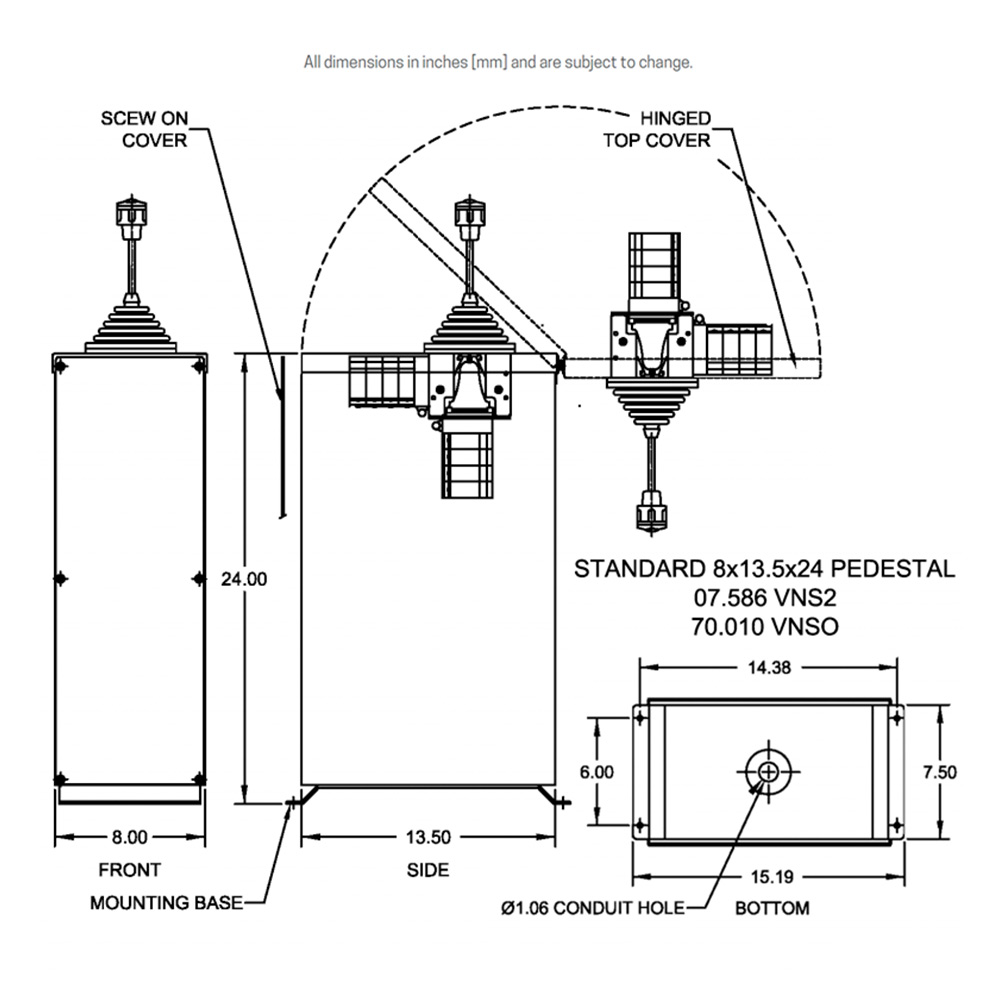

| Dimensions | 8" x 8" x 24" (for single axis joysticks) 8" x 13.5" x 24" (for dual axis joysticks) Custom sizes available upon request |
| Est. Weight | 24 - 35 lbs |
| Environmental Data | |
| IP Rating | IP52 |
