Fill level limit switch for all kinds of liquids. Use in explosive hazardous area, for food and pharmaceutics

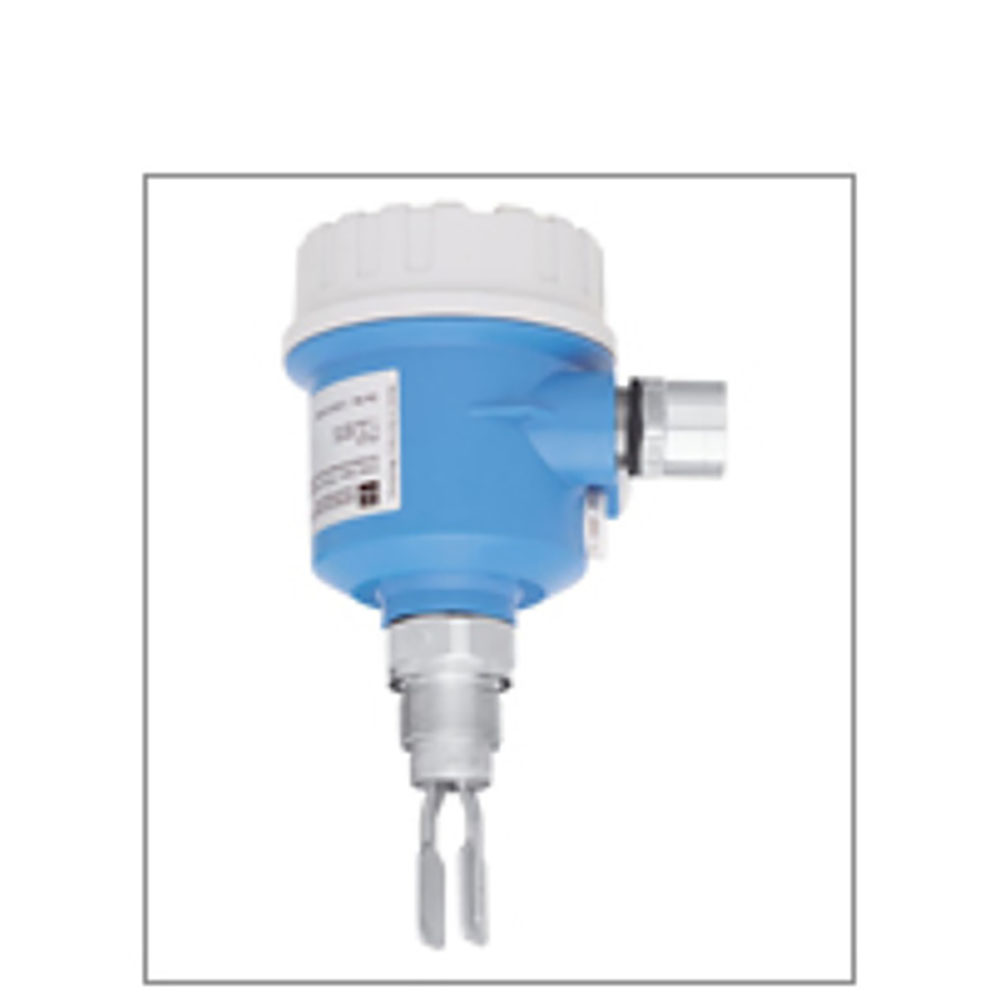

Inquire nowFTL 50: Compact style, suitable for the use in pipelines

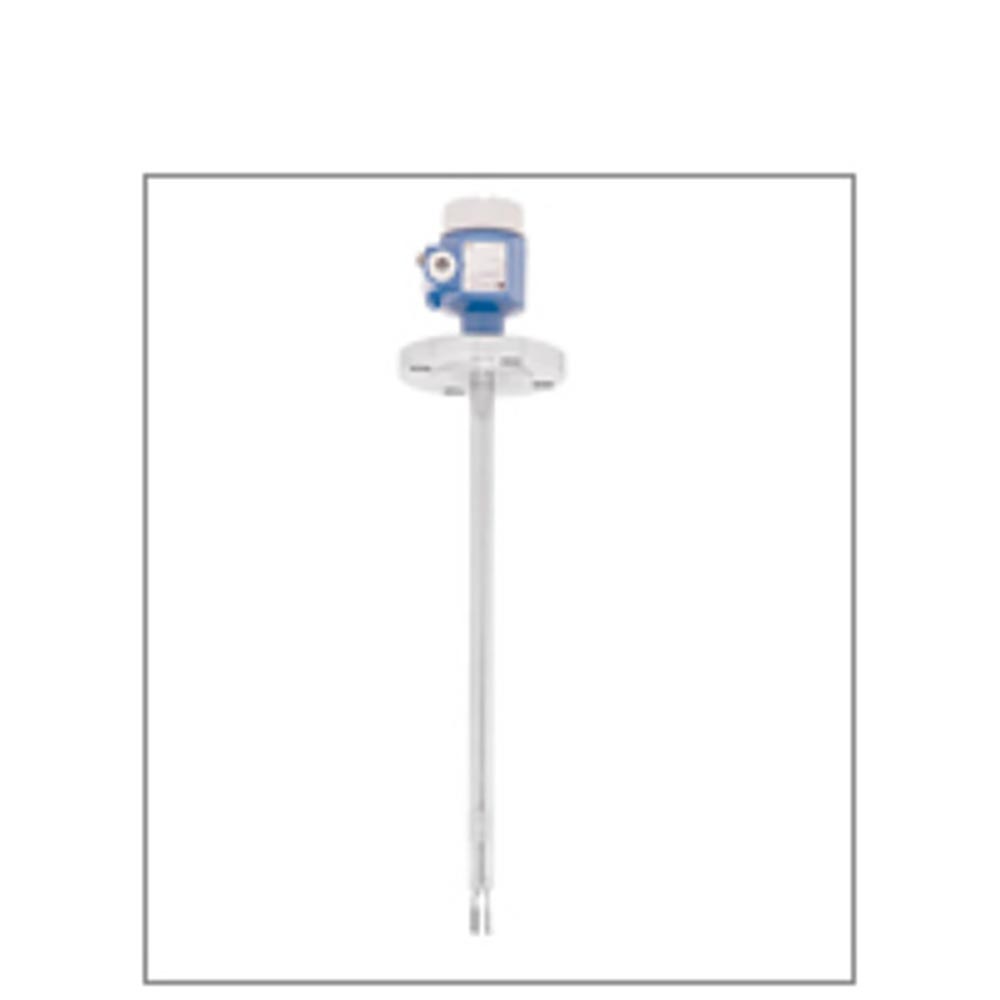

FTL 51: With extension tube up to 3 m

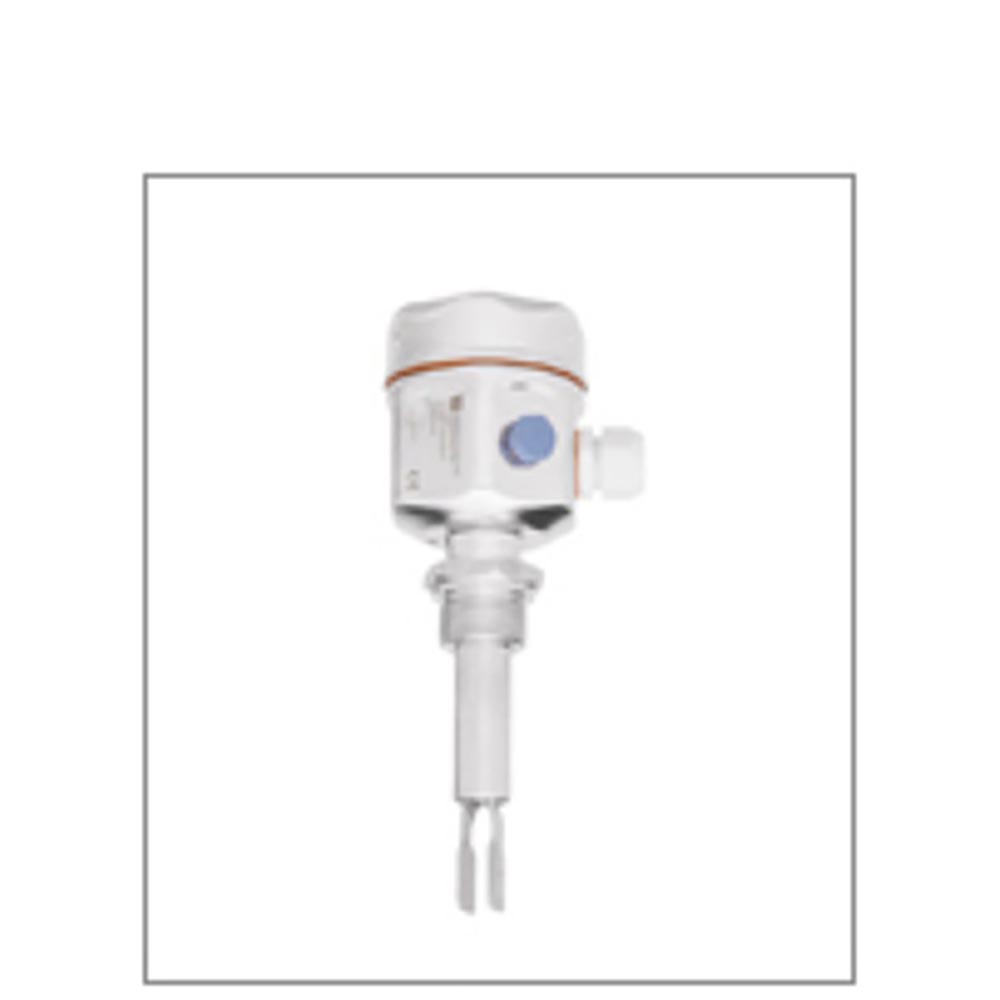

FTL 50 H, FTL 51 H: With polished oscillation fork and easy to clean process connections and housings for food and pharmaceutical areas.
FTL 51 C: With synthetic housing
For the use in very aggressive liquids the highly corrosion resistive material alloy C4 (2.4610) for the oscillation fork and the process connections is available.
The ignition protection types EEx ia and EEx d allows the use in explosive hazardous areas.
| Advantages |
Great variation of process connections: universal useable
Process connectios from ¾" and small dimensions of the oscillation fork: useable also for confined installation situations
Variety of electronics, e.g. NAMUR-, relays-, thyristor-, PFM signal output: suitable connection to each process control
No adjustment: fast and economical inauguration
No mechanicaly moved parts: maintenance free, no wear, long life time
Supervision of the oscillation fork for damage: safe function
| Range of use |
The Liquiphant M is a fill level limit switch for the use in all kinds of liquids
with a temperature between -40 °C and +150 °C
with a pressure up to 60 bar
with a viscosity up to 10.000 mm2 /s
with a density greater 0,5 g/cm3
The function will not be influenced by flow, turbulences, air bubbles, foam, vibration, solid materials or build-up. By this the Liquiphant is an ideal replacement for float switches.
