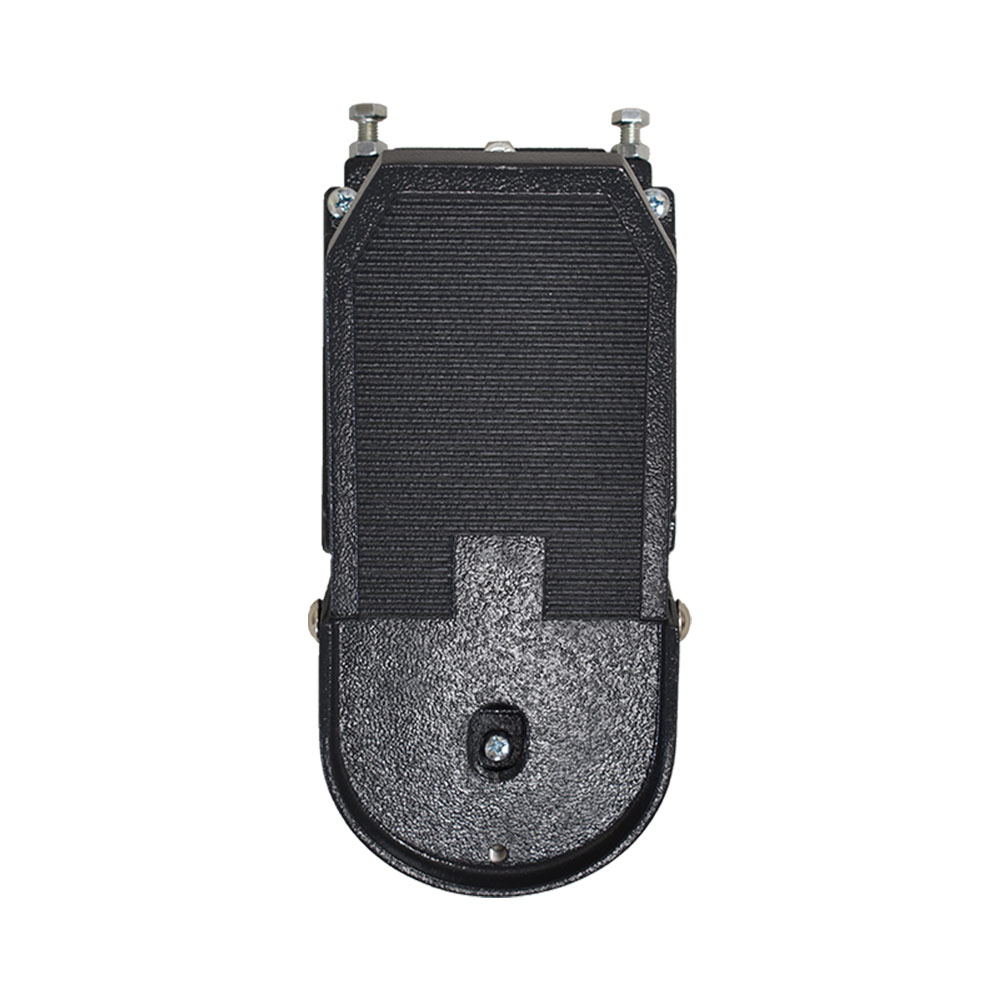

FP1 Foot pedals feature rugged sealed construction and are suitable for providing precise control in high duty cycle applications.
Inquire nowAluminum cast construction
Brass bearings
Compression return springs
Sealing to Nema 4
Dark gray finish
Step or proportional operation
Applications : The FP1 Foot Pedal is most commonly utilized in high-duty cycle process control applications in industrial settings. Typical applications include:
Rolling lines in steel mills, Crane brake, And more
| General Data | |
| Type | Proportional |
| Output Options | Contacts & Potentiometer |
| Pedal Travel | 25 degrees |
| Life | 10 million cycles |
| Materials | Rugged cast aluminum construction & brass bearings. |

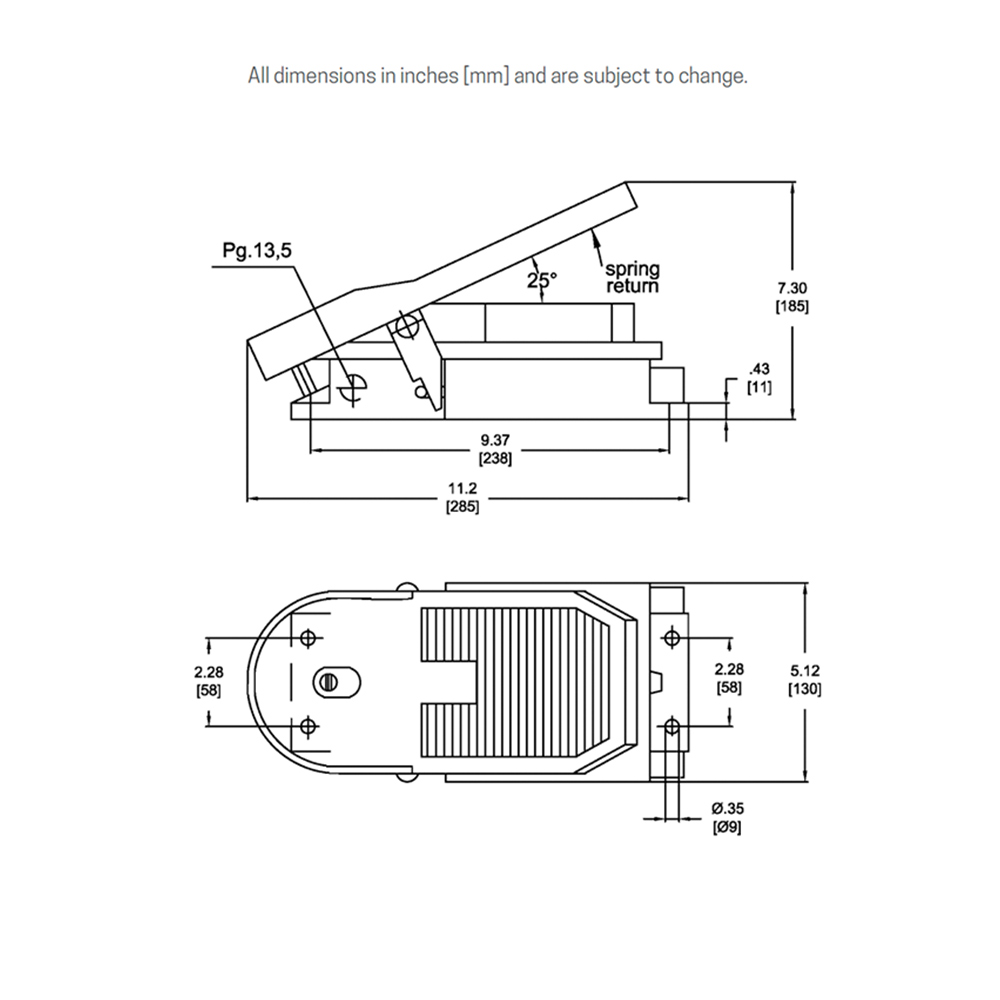

| Size | 11.2" x 5.12" x 7.30" |
| Est Weight | 6.25 lbs |
| Est. Shipping Weight | 8 lbs. |
| Est. Shipping Dimensions | 10 in. x 10 in. x 10 in. |
| Environmental Data | |
| IP Rating | IP66 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Electrical Data | |
| Contact Specifications | Switch Type: Double Pole Snap-In Contact Blocks Max. Number: Up to 3 contact blocks Max. Switching Capacity: Making - 100 amps Breaking - (0.7PF) 240V 80 amps Rating (AC): Continuous 16 amps @ 240V Resistive 8 amps @ 240V Inductive 6 amps @ 240V Termination: Captive Saddle Clamp Max. Wire Size: 12 AWG |
