FP6 Foot Pedals are suitable for industrial environments where precise speed control is desired.
Inquire nowAluminum cast construction.
Ribbed step plate with heel edge for foot positioning
Brass bearings
Compression return springs
Simple, stable mounting
Type : Proportional
Output Options: Contacts, Potentiometer
Applications : For use on mobile equipment in the Mining, Agricultural, Construction and Transportation industries. Typical applications include:
Throttle / accelerator , Airport tugs, And more
| General Data | |
| Type | Proportional |
| Output Options | Contacts & Potentiometer |
| Pedal Travel | 23 degrees |
| Life | 5 million cycles |
| Materials | Powder-coated aluminum housing. |

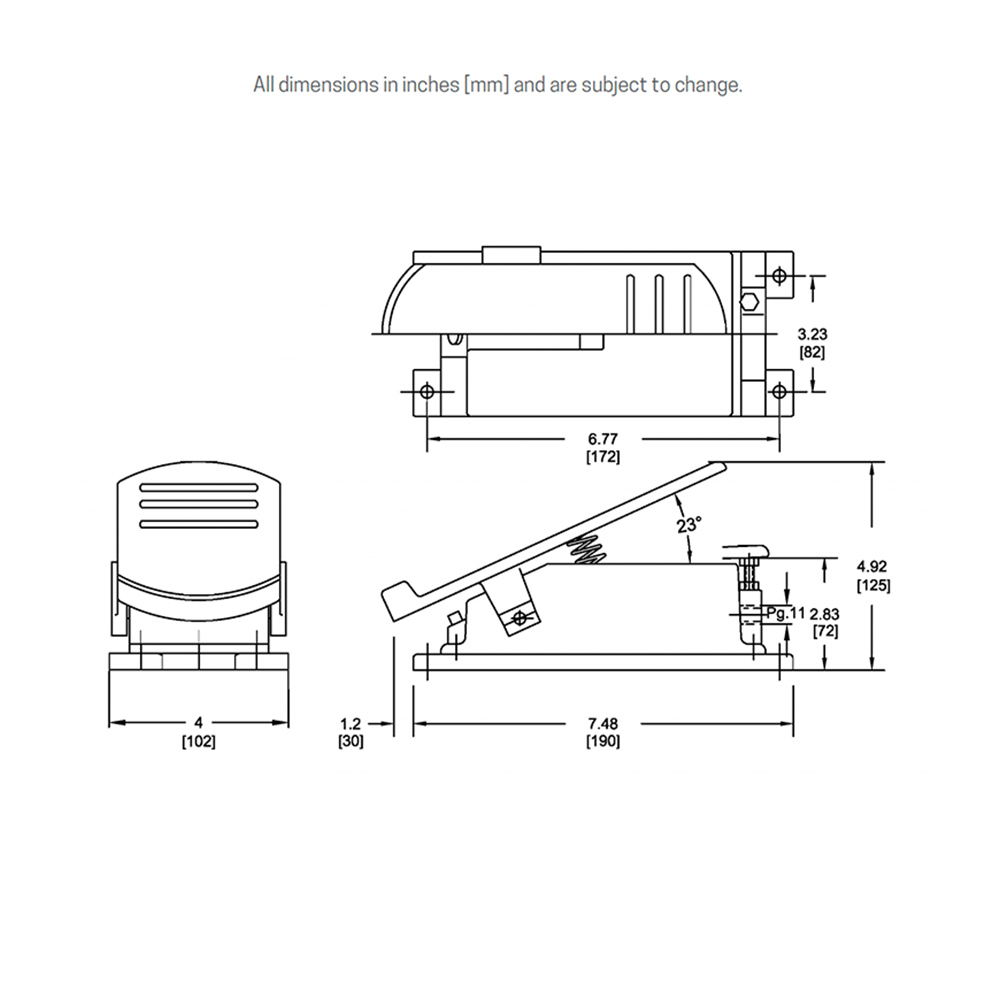

| Size | 7.48" x 4" x 4.92" |
| Est Weight | 2.75 lbs |
| Est. Shipping Weight | 4 lbs. |
| Est. Shipping Dimensions | 10 in. x 10 in. x 10 in. |
| Environmental Data | |
| IP Rating | IP54 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Electrical Data | |
| Contact Specifications | Switch Type: 1 N.O. and 1 N.C. double break microswitches. Max. Number: Up to 2 contacts Rating: 10A 250 VAC Inductive/Resistive 10A 24 VAC Inductive/Resistive Termination: .250 x .020 Male Quick Connect |
