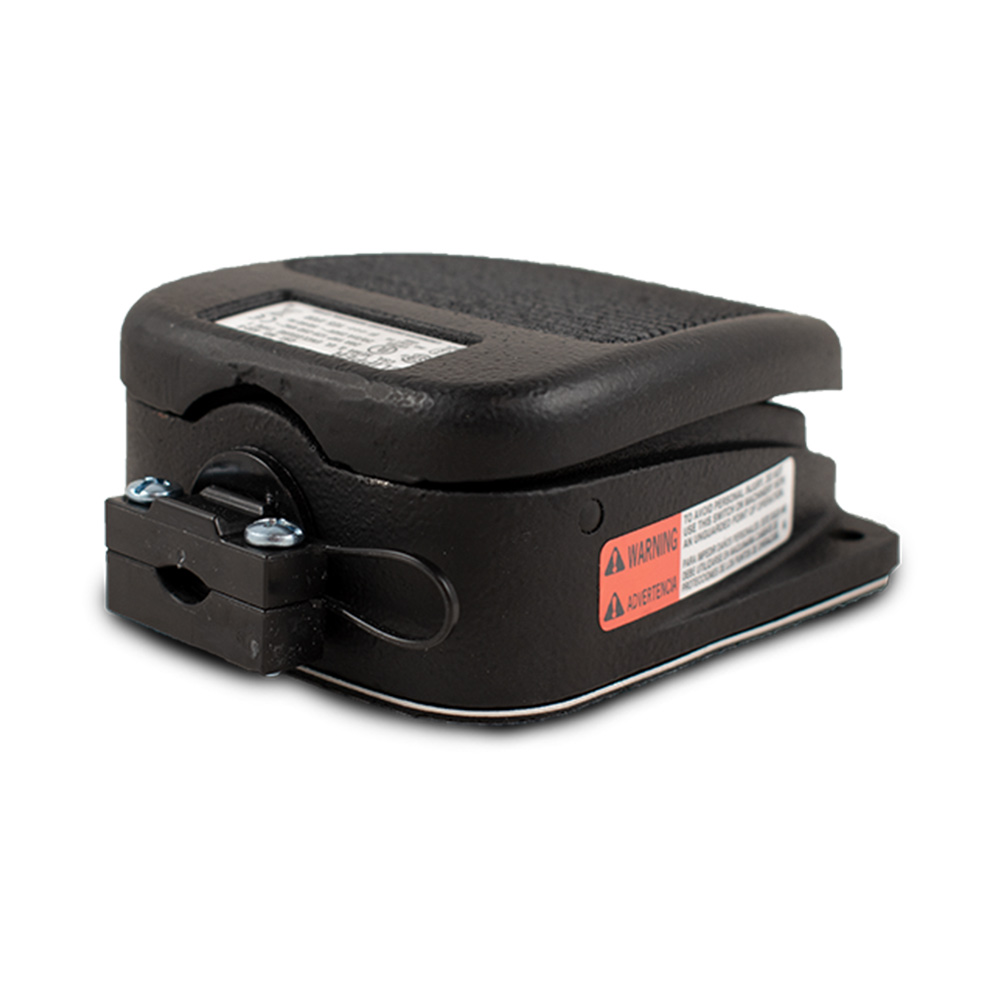

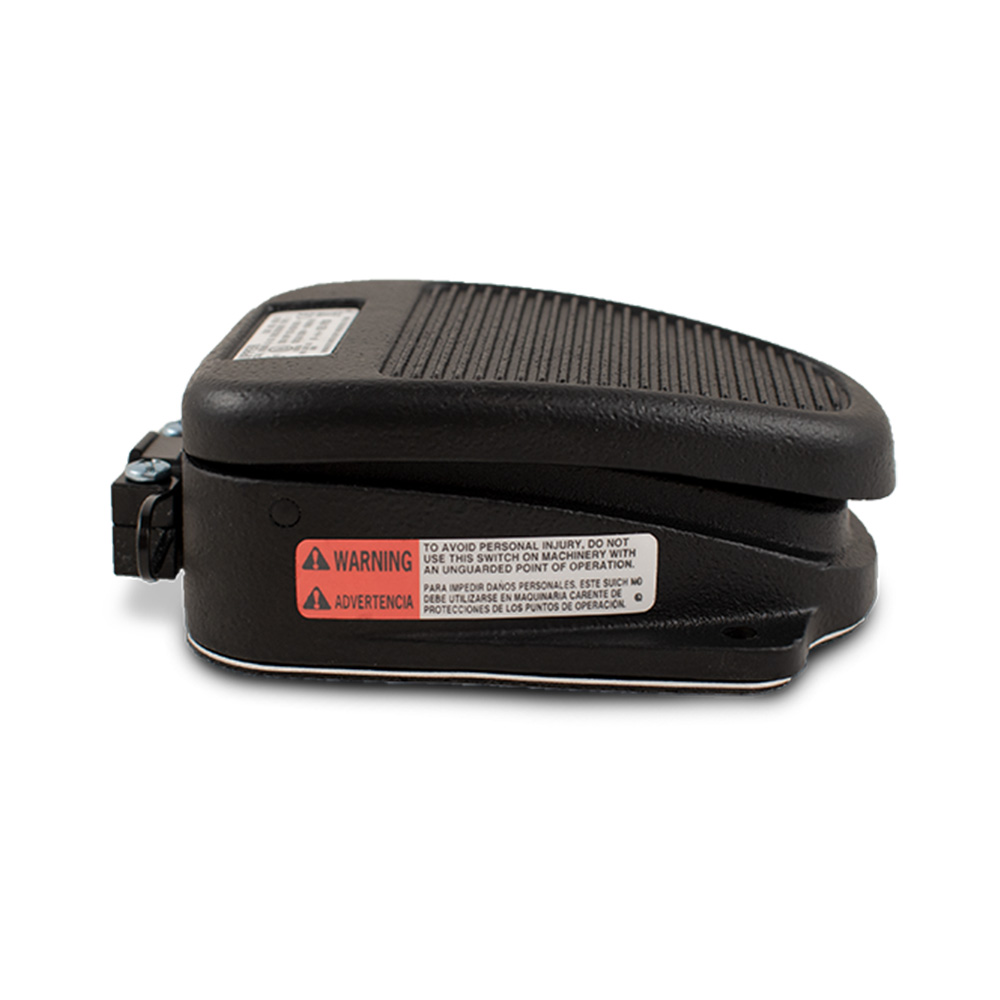

Industrial momentary foot pedal with black finish and anti-skid base. Features a SPDT (single pole double throw) with 1 NO and 1 NC contact. Capable of switching 20 AMP AC loads or low voltage non-inductive DC loads.
Inquire nowBlack finish

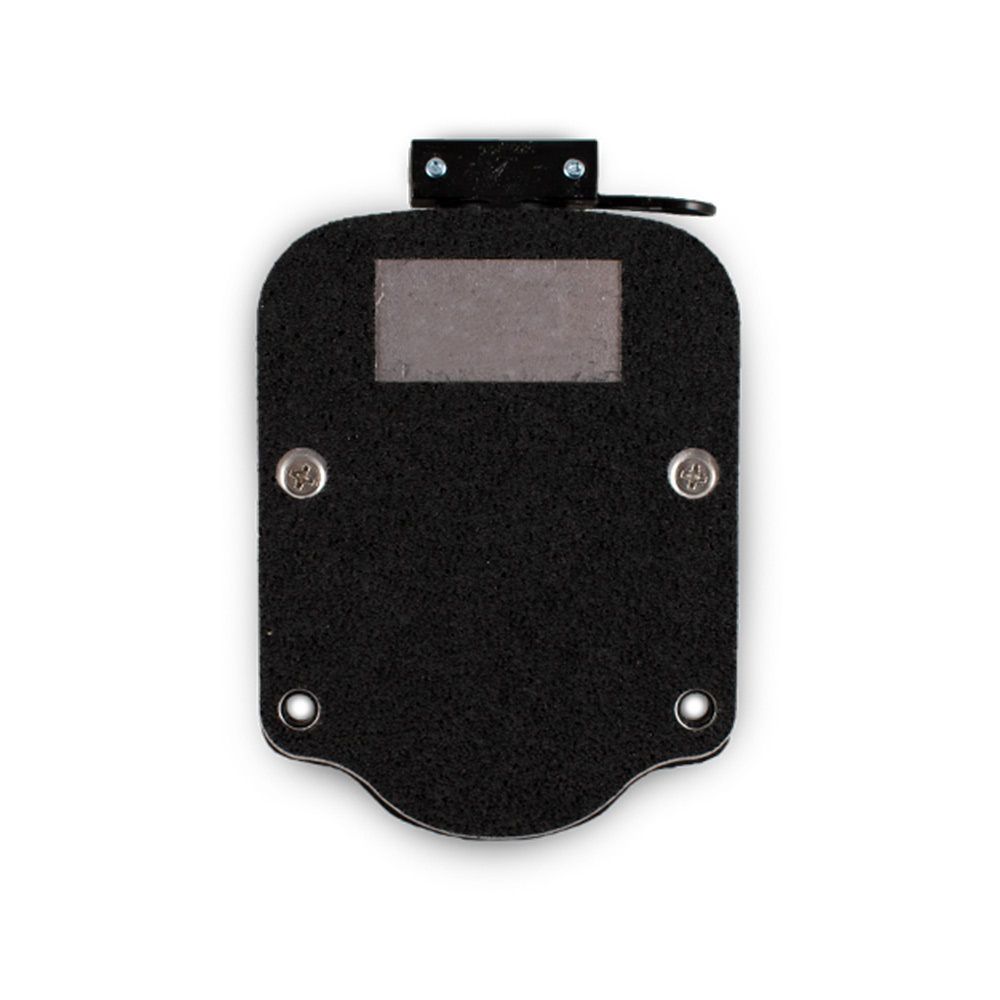

Anti skid base
Features a SPDT (single pole double throw) with 1 NO and 1 NC contact
Applications : For use on mobile equipment where duty cycle is intermittent. Capable of switching 20 AMP AC loads or low voltage non-inductive DC loads. Often used as:
Horn, Notifying machine movement, And more
| General Data | |
| Type | On/Off |
| Output Options | Contacts |
| Materials | Cast iron housing with black finish and nonskid base pad. |
| Size | 4.5" x 3.5" x 1.5" |
| Est Weight | 2.25 lbs |
| Est. Shipping Weight | 3 lbs. |
| Est. Shipping Dimensions | 8 in. x 8 in. x 8 in. |
| Environmental Data | |
| IP Rating | IP20 |
| Electrical Data | |

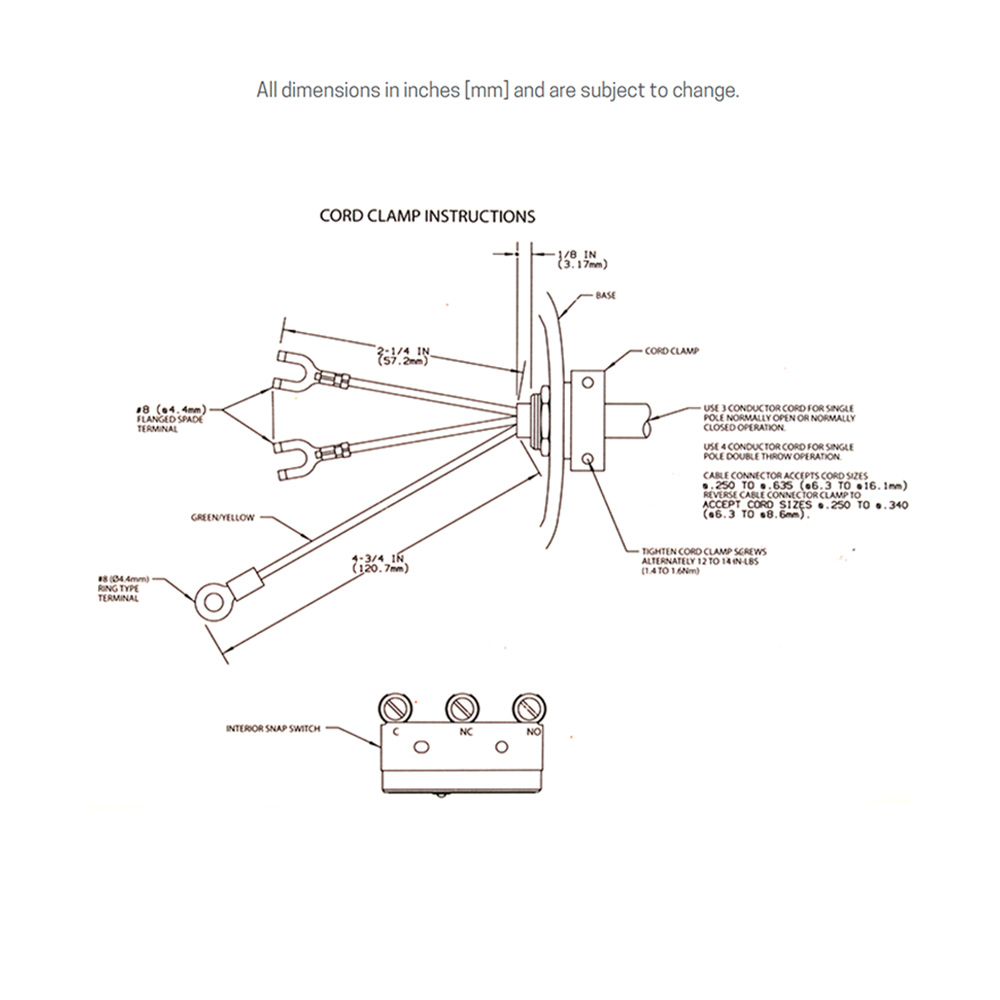

| Contact Specifications | Switch Type: SPDT (From "C") with 1 N.O. and 1 N.C. contact Rating: 20A, 125-250 VAC 1 HP 125-250 VAC .25 amp 250VDC Termination: Screw Terminals |
