The FS1 rugged finger switch features a glass-filled Zytel housing and non-ferrous components, and when used with the IP66 boot the sealed construction makes this device suitable for corrosive and hostile environments. Smooth and precise operation along with robust design make the FS1 perfect for a wide variety of applications.
Upcoming Discontinuation.
Ultra-compact and rugged construction
Light weight, ultra-strong Zytel housing
Conformal coated electronics to resist moisture
Smooth operation with extension style spring return
Long life Hall-effect technology
Meets or exceeds CE EMC requirements
2.2" [55 mm] actuator height
Applications : Compact and lightweight, for use in radio control systems and portable consoles. Rugged enough for industrial vehicles, mobile machinery, on and off-highway, and for in-plant process control where durability and long life are paramount.
| General Data | |
| # of Axis | Single |
| Output Options | Hall-Effect |
| Joystick Action | Spring Return, Friction Brake |
| Handle Travel | +/- 25 degrees each axis |
| Life | 20 million plus cycles |
| Materials | High strength, glass filled nylon housing. |
| Est. Shipping Weight | 1 lbs. |
| Est. Shipping Dimensions | 8 in. x 6 in. x 6 in. |
| Electrical Data | |

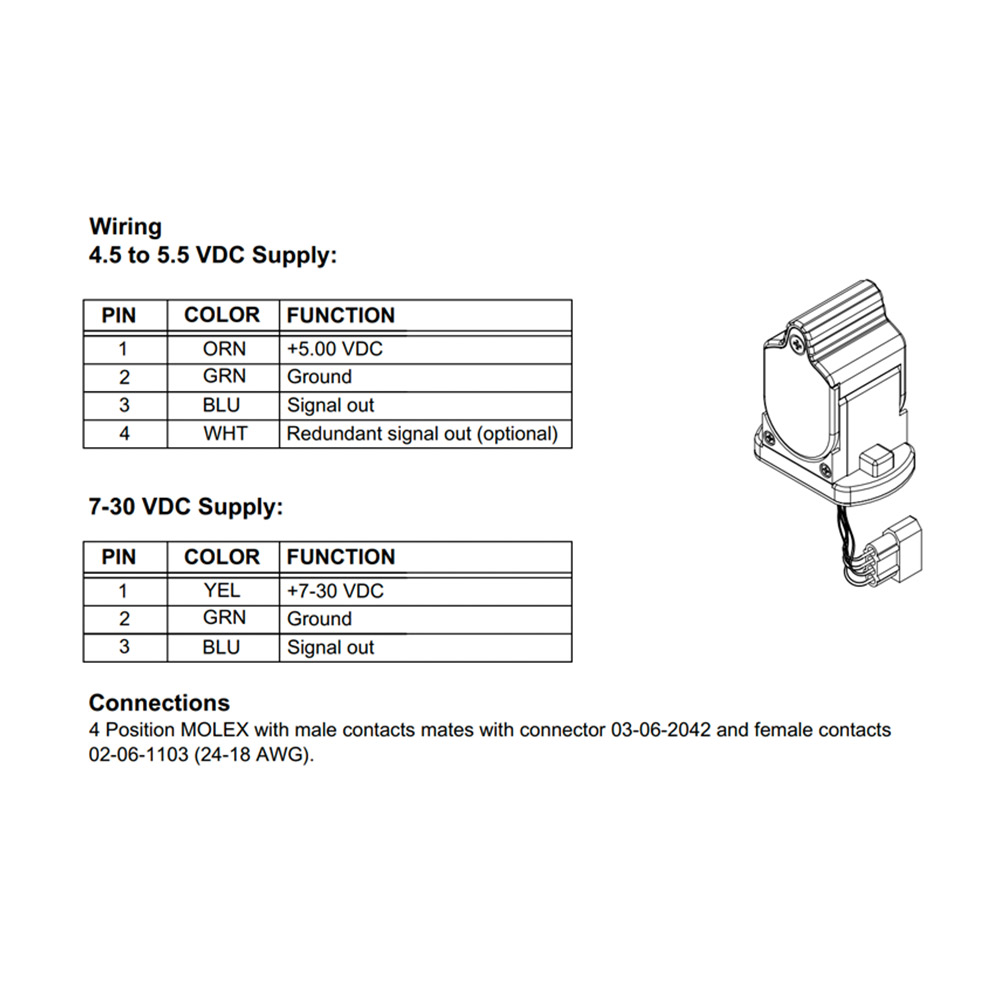

| Hall-Effect Specifications | Supply Voltage: 4.5 to 5.5 VDC; Output Voltage: Ratiometric 0.5 - 2.5 - 4.5 +/- 0.15V @ 5.0V supply; Additional supply and output options available; Output Current: 10 mA; Power Consumption: 20 mA at full load; Termination: 24 AWG wire 12 inch leads with Molex connector |
| EMC Emissions | Complies with EN61000-6-4:2007 Class A Group 1, 80-1000 MHz |
| EMC Immunity | Complies with or exceeds EN61000-6-2:2005, expanded to include RFI Immunity of 100 V/M at 80-1000 MHz and ESD Immunity of 15 kV air, 8 kV contact |
| Mounting Data | |
| Mounting Style | Panel (from below) |

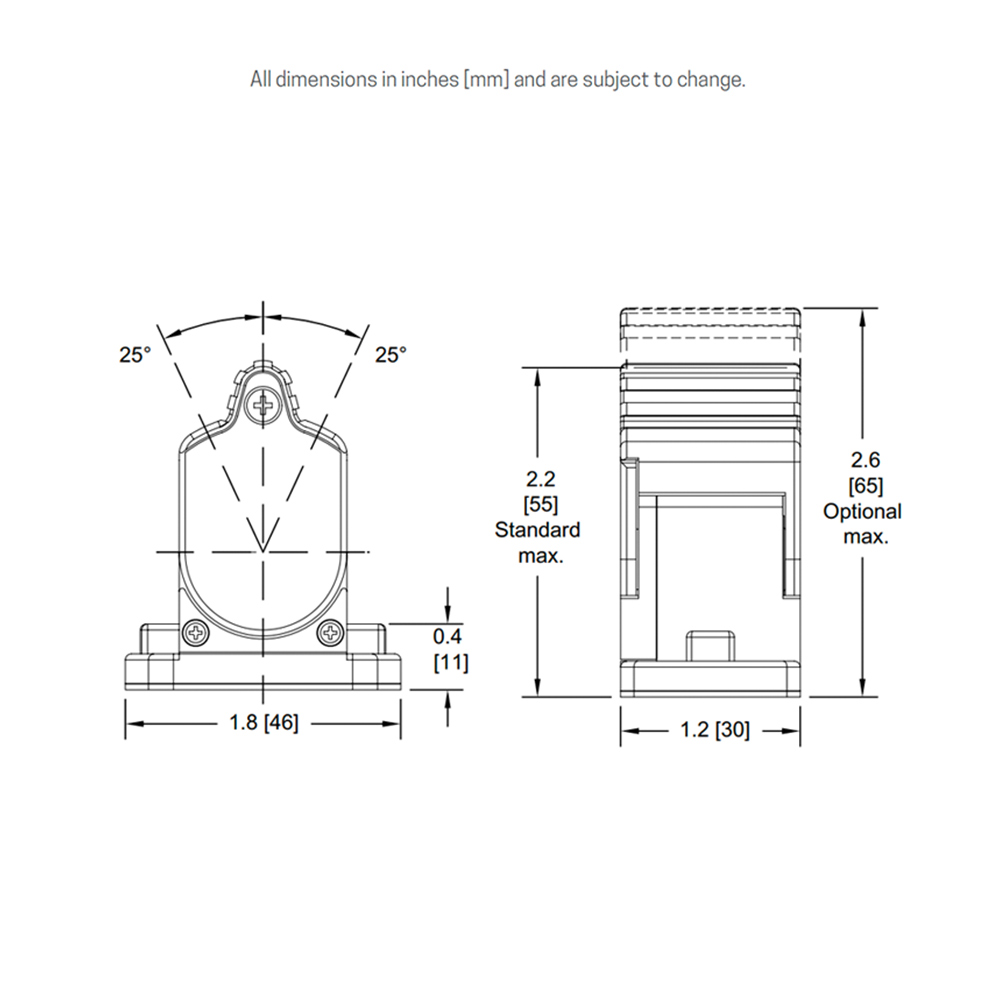

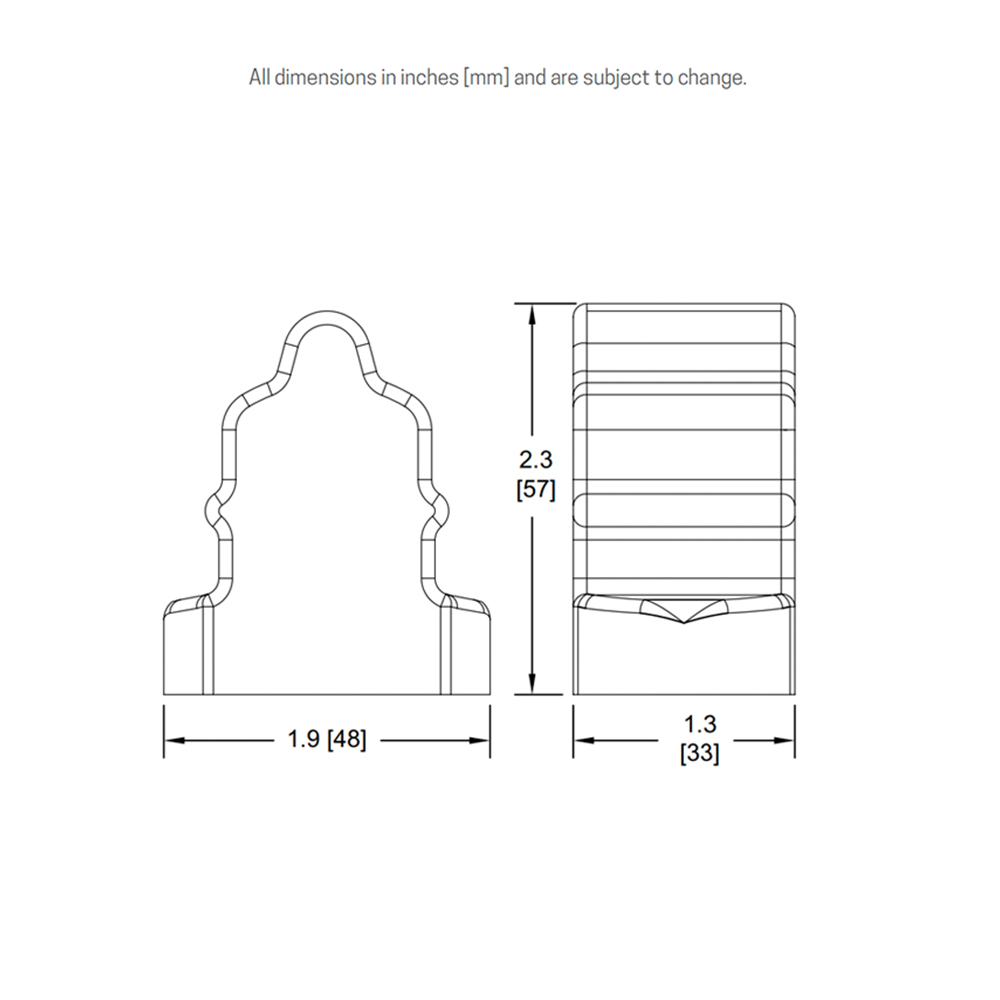

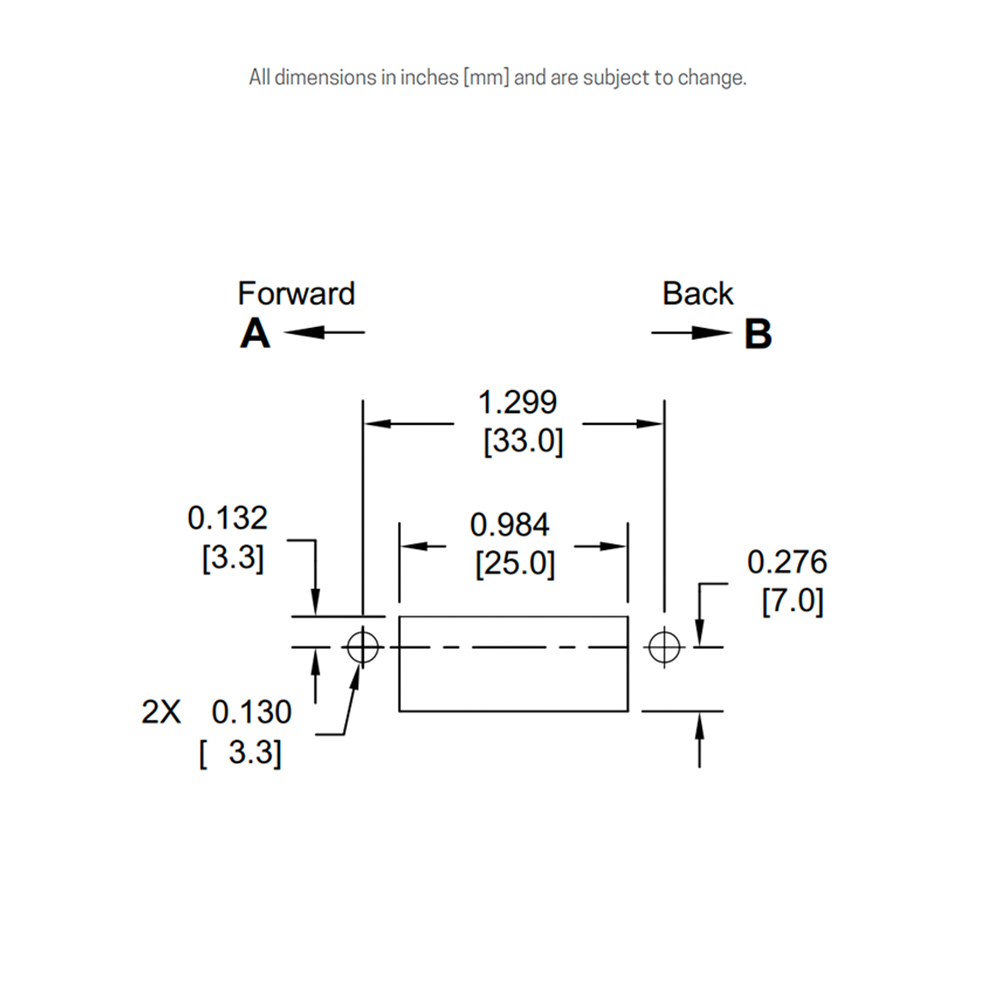

| Mounting Footprint | 1.8 x 1.2 in (without boot); 1.9 x 1.3 in (with boot); See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP54 (standard); IP55 (without shaft seal); IP67 (with optional boot) |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
