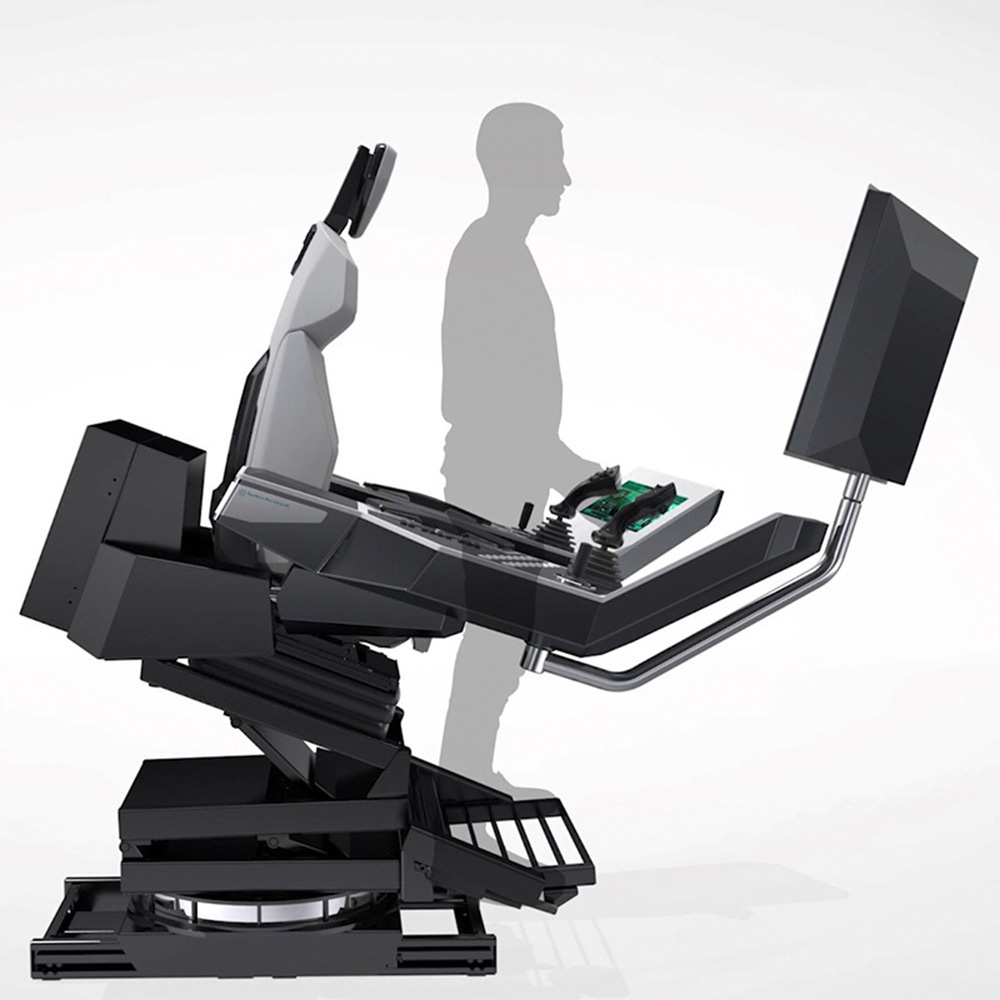

Designed for maximum productivity and operator comfort, the FSMMD chair system offers effortless, electric adjustments and the ability to transform the system from a sitting to a standing operating position. With advanced memory functionality, the FSMMD enables operators to save their preferred operating positions and instantly restore them at the beginning of every shift.
Inquire nowMemory functionality to save and instantly restore seating positions
Effortless electric adjustability
Capable of sitting and standing operating positions
Customizable consoles to meet the requirements of your application
| Control Consoles |

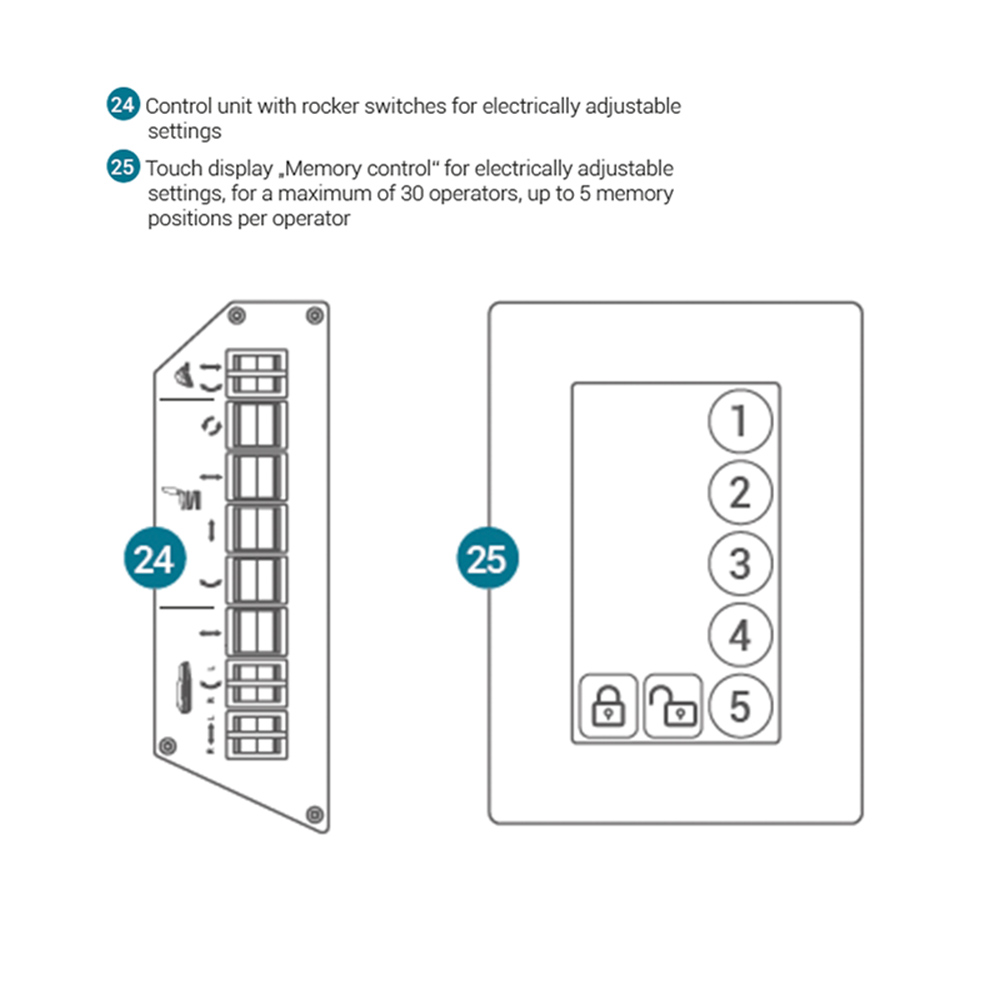

| Standard 11.5" Console : Customizable 11.5" console that allows for a variety of options for buttons and joysticks. Control unit includes rocker switches for adjustable settings. |
| CONSOLE OPTIONS : Custom-configured joysticks or controllers and pilot devices Mechanically adjustable armrests |
| General Data | |
| Unique Features | Effortless, electric adjustments Sitting and standing operation User storable position profiles |
| Console Width | 11.5" |
| Max Number of Devices | 11.5" Console Up to 9 devices and 1 joystick |

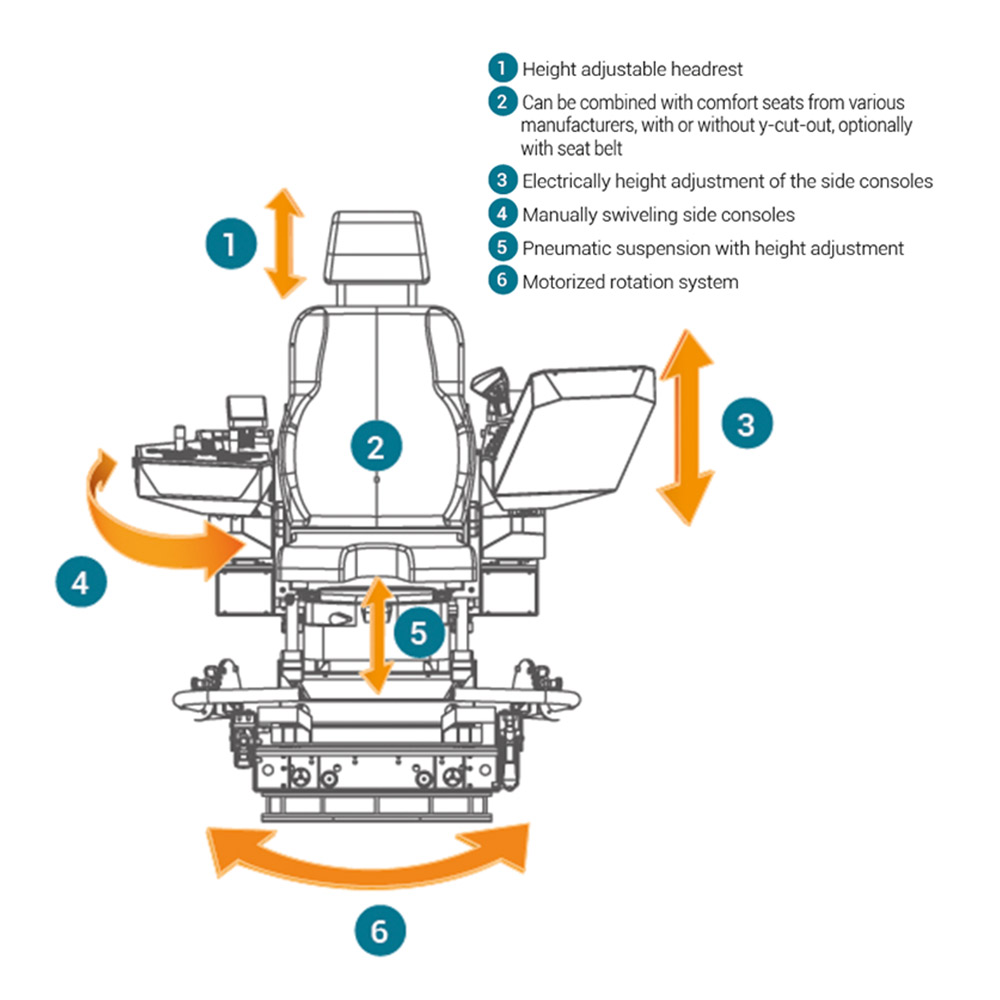

| Seat Options | Model: Koenig Seat (Leather or Cloth) Actimo Seat (Velour or Vinyl) Options: Full cushion or u-cut cushion (Koenig seat only) Heated seat (leather Koenig only) Motorized seat recline (leather Koenig only) 2-point retractable seat belt 4-point shoulder harness Operator presence switch |
| Suspension Options | Pneumatic (Air) Suspensions Weight up to 330 lbs. (150 kg) |
| Armrest Type | Console mounted armrests with manual tilt, height, and horizontal slide adjustments. |

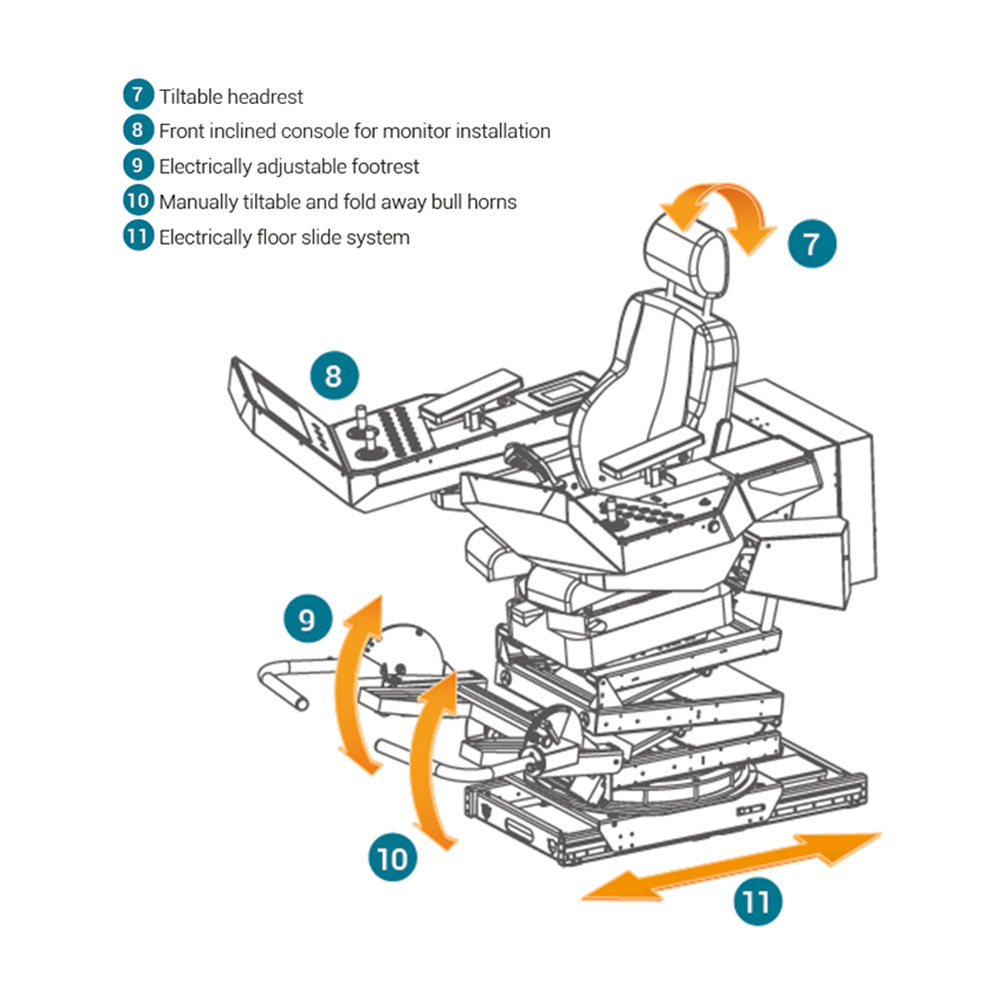

| Footrest Option | Electrical height adjustment Electric footrest incline adjustment Mechanically tiltable and foldable bull horns |
| Est. Shipping Weight | See product literature for more details |
| Est. Shipping Dimensions | See product literature for more details |

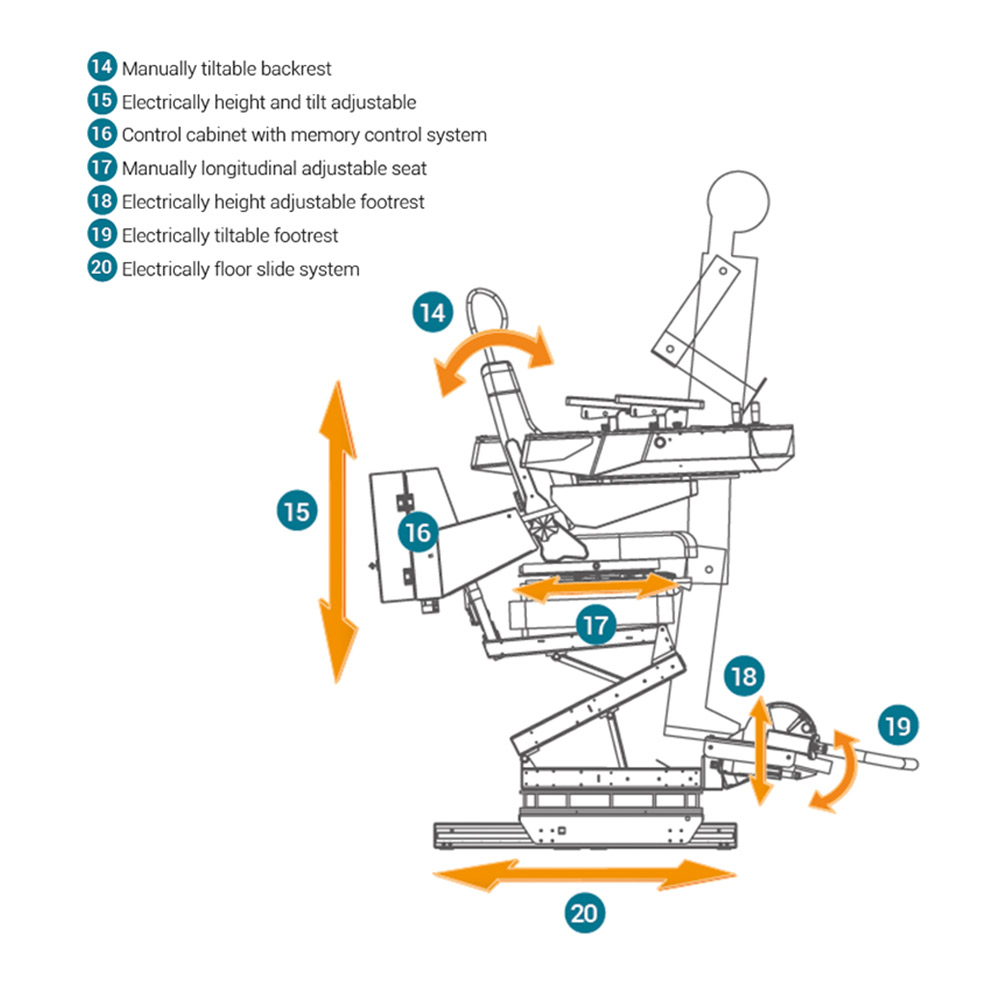

| Adjustment Features | |
| System Rotation | +/- 120 degrees |
| System Height | Yes |
| System Tilt | Yes |
| Consoles Slide Forward/Backward | Yes |
| Consoles Tilt | Yes |
| Armrests - Height | Yes |
| Armrests - Tilt | Yes |
| Armrests - Slide Forward / Backward | Yes |
| Seat - Slide Forward / Backward | Yes |
| Seat - Recline | Yes |
| Seat - Lumbar | Yes |
| Footrest - Height / Tilt | Yes |
| Seat Options |
| The Koenig Operator Seat is a full body contoured seat for optimum back and lateral stability. Available in cloth or leather with our without U-Cut. This fully adjustable seat comes standard with highly durable black cloth upholstery, mechanical lumbar support, continuously adjustable reclining, foldable backrest, adjustable seat depth and adjustable headrest. Our leather seat includes all of the standard features above along with an extra upper lumbar tilt adjustment and adjustable side support. Baffles are incorporated into the backrest to allow for increased airflow. |
| Koenig options electric backrest adjustment motor driven seat adjustment operator presence switch 2-point retractable seat belt or 4-point shoulder harness |
| Technical Data | |
| Rotation Optional | Electrical; +/- 120 degrees |
| Max Turning Radius | System without bull horn footrests: [1530 mm] System with bull horn footrests: [2055 mm] |
| Slide Range | +/- 7.87" [200 mm] |
| Scissor Adjust Range | Min -15 degrees / Max 16 degrees |
| Armrest Adjust Range | See product literature for more details |
| Console Adjust Range | See product literature for more details |
| Backrest Recline | Koenig Seat 10 degrees (forward), 80 degrees (backward) Actimo Seat 80 degrees 46 degrees with 4-point retractable harness |
| Seat Cushion Adjust Range | Koenig Seat Depth: 3.9" [100 mm] Actimo Seat Depth: 2.4" [60 mm] in 5 increments forward Tilt: 3-11 degrees in 4 increments |
| Headrest Adjust Range | Koenig Seat Height adjustment: 2.4" [60 mm] Tilt: 38 degrees Actimo Seat Height adjustment: 3.5" [90 mm] Tilt: 38 degrees |
| Under Chair Cable Clearance | See product literature for more details |
