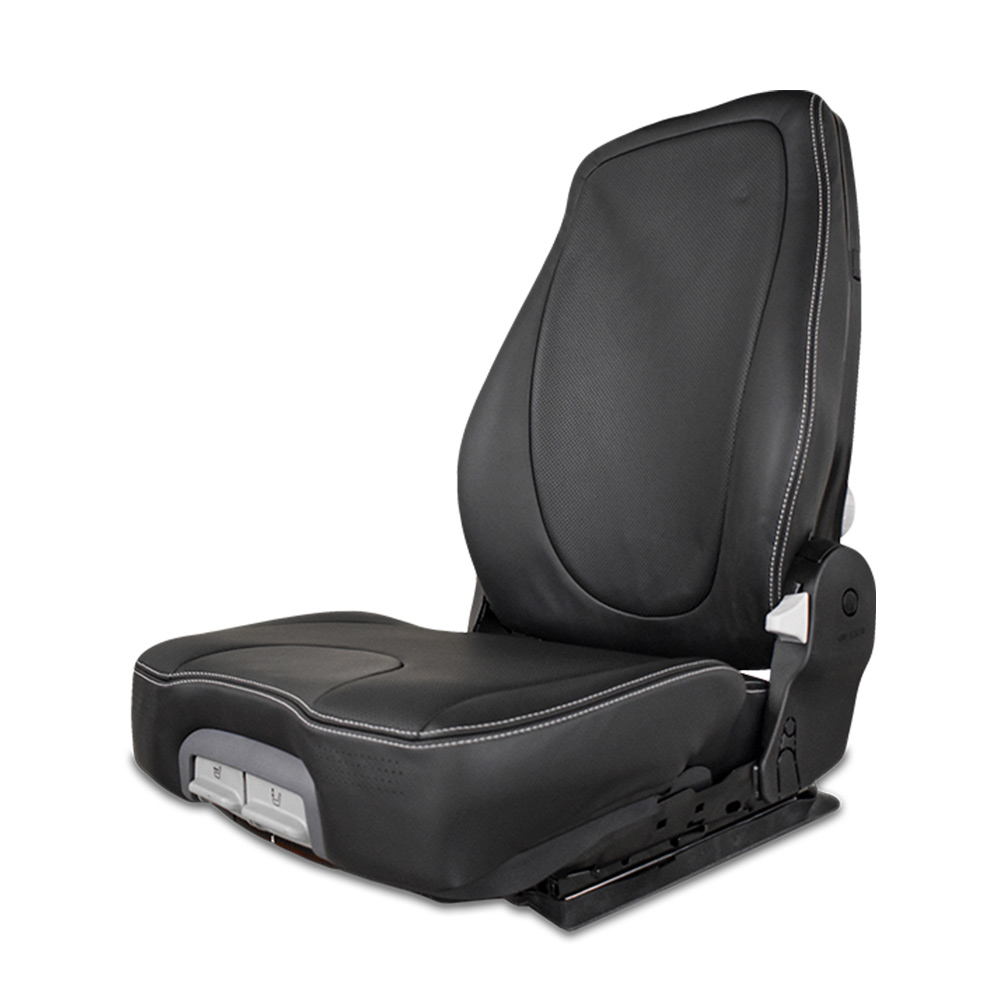

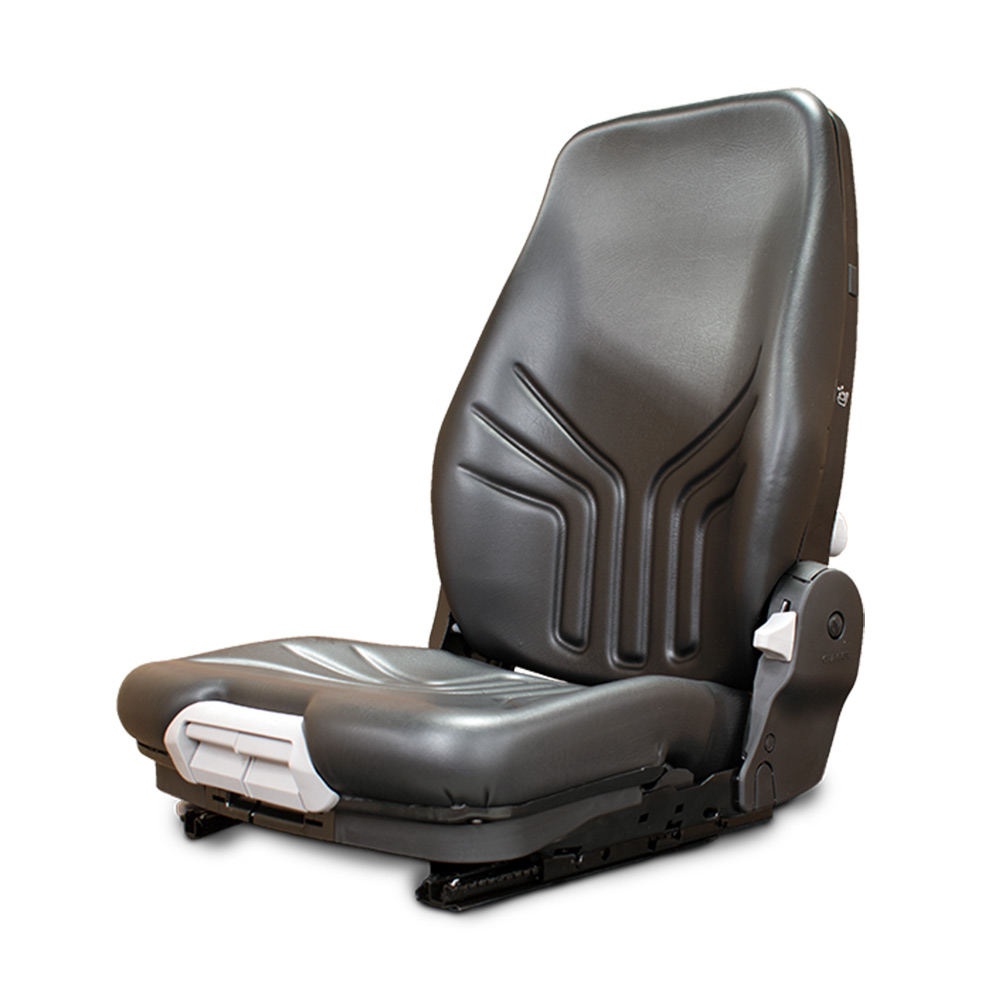

Adjustable, heavy duty, body contoured operator seat for a range of industrial applications. Available with a range of options as a standalone seat or as a part of a complete operator chair system.
Inquire nowLarge range of adjustment features
High backrest of optimum back and side support
Independent backrest, seat height, slope, and fore and aft adjustment
Mechanically adjustable lumbar support
Seat cushion tilt and fore/aft adjustments
Full hydraulic and spring - dampened mechanical suspension system with "Dial In" weight compensation
Field replaceable cushions
Document pouch
Applications: Praised for durability and adjustability, the Grammer Actimo seat has become the first choice in industrial, off-highway, mill, construction, agriculture, port and material handling applications.
| General Data | |
| Unique Features | Highly adjustable and durable Field replacement cushions and parts |
| Seat Options | Velour, vinyl or leather upholstery Armrests with tilt and height adjustments 2-point retractable seat belt 4-point shoulder harness Operator presence switch |

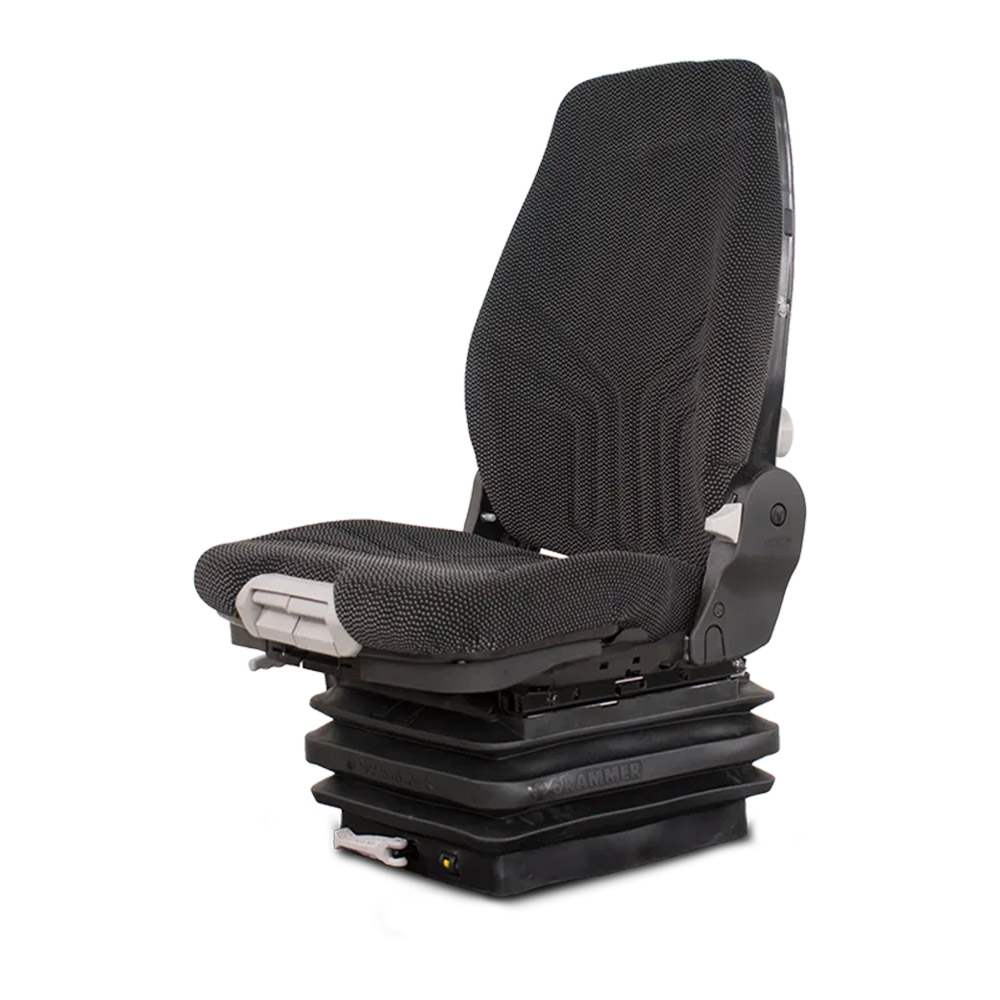

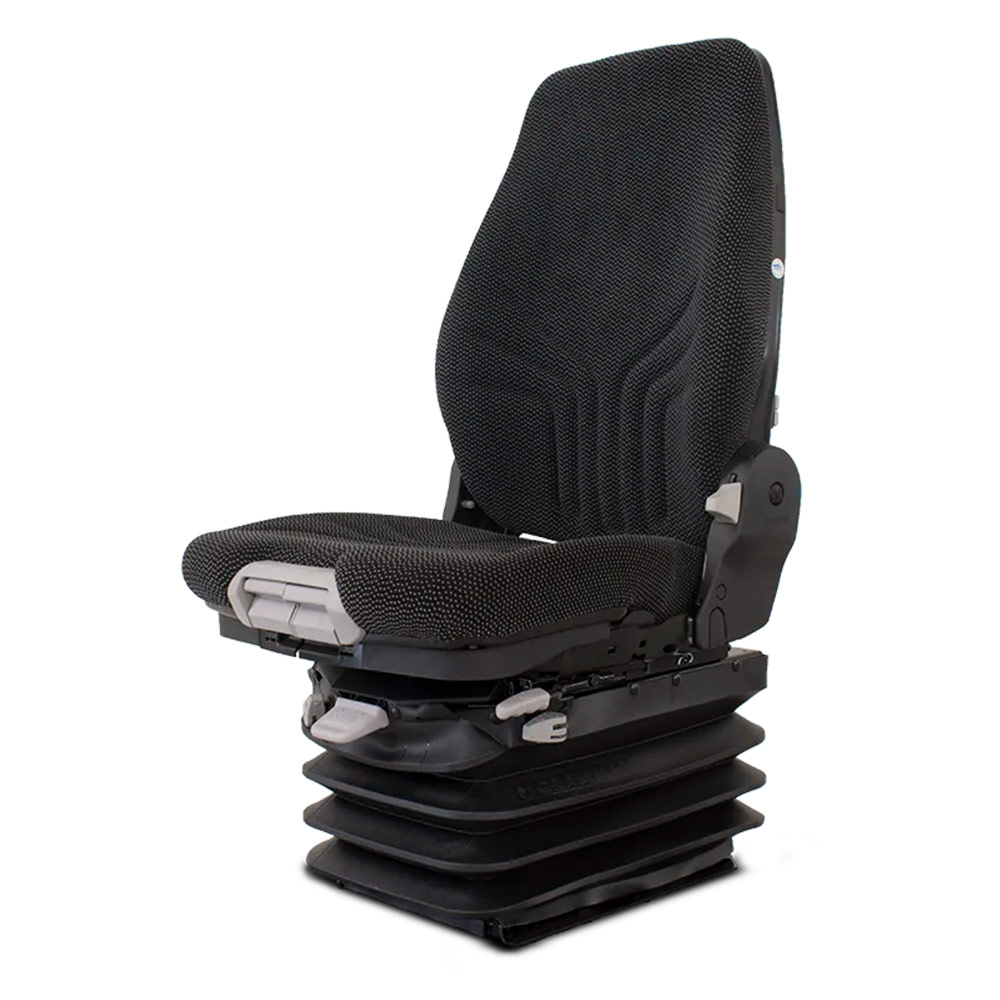

| Suspension Options | Mechanical Suspensions: 3 Step (weight up to 285 lbs) 4 Step w/ Lift Assist (weight up to 309 lbs) Pneumatic (Air) Suspensions: Standard (weight up to 330 lbs) |
| Armrest Type | Optional, seat mounted armrests with tilt and height adjustments. |
| Est. Shipping Weight | w/ suspension: 130 lbs w/ riser: 160 lbs |
| Est. Shipping Dimensions | w/ suspension: 47 in. x 32 in. x 32 in. w/ riser: 42 in. x 42 in. x 36 in. |
| Adjustment Features | |
| System Rotation | Optional, 360 degrees seat swivel |
| Armrests - Height | Yes |
| Armrests - Tilt | Yes |
| Armrests - Slide Forward / Backward | No |
| Seat - Slide Forward / Backward | Yes |
| Seat - Recline | Yes |
| Seat - Lumbar | Yes |

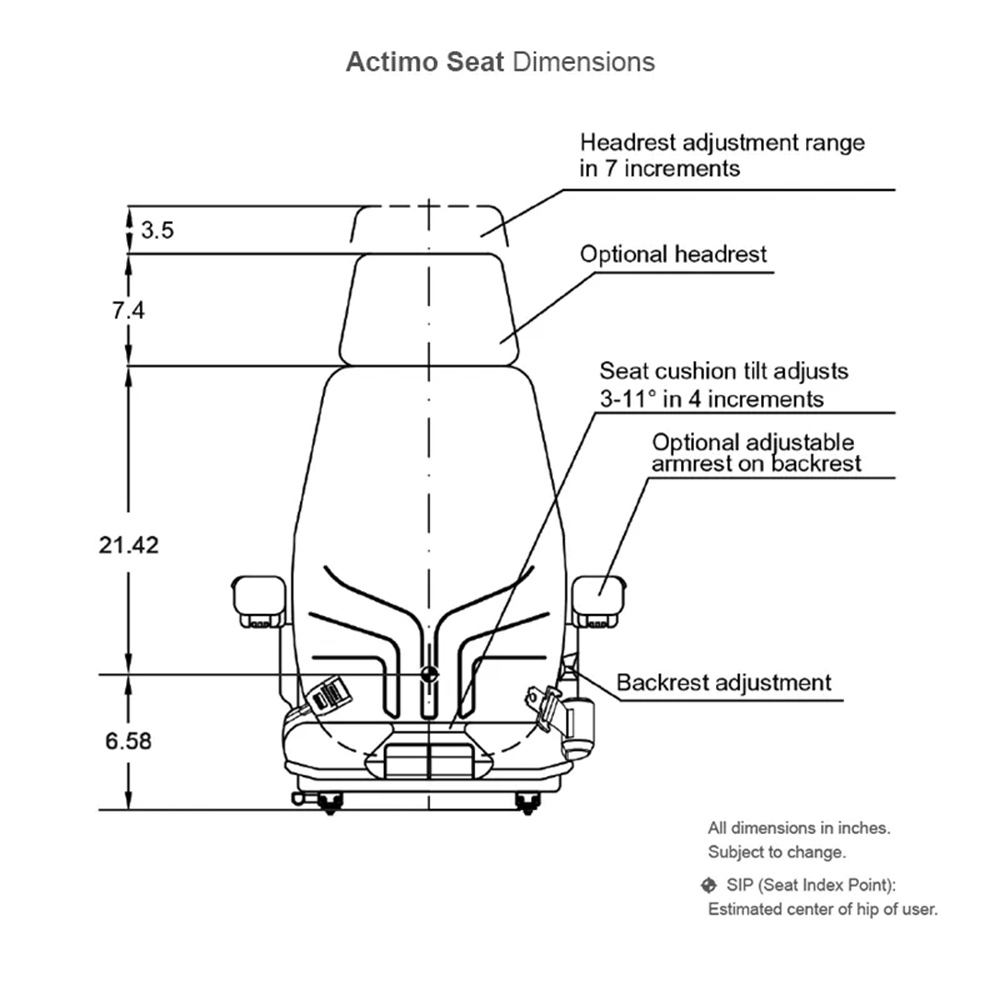

| Technical Data | |
| Rotation Optional | +/-90 degrees, lockable every 10 degrees |
| Slide Range | 8" [203 mm] single seat slide range 16" [406 mm] dual seat slide range (optional) |
| Scissor Adjust Range | Height: adjustable to 3.2" [80 mm] Tilt: adjustable to 14 degrees |
| Armrest Adjust Range | Tilt: -30 degrees (down), +10 degrees (up) and flip up Height: 1.6" [40 mm] in 8 mm increments |
| Backrest Recline | 80 degrees 46 degrees with 4-point shoulder harness |
| Seat Cushion Adjust Range | Depth: 2.4" [60 mm] in 5 increments forward Tilt: 3-11 degrees in 4 increments |
| Headrest Adjust Range | Height adjustment: 3.5" [90 mm] Tilt: 38 degrees |
