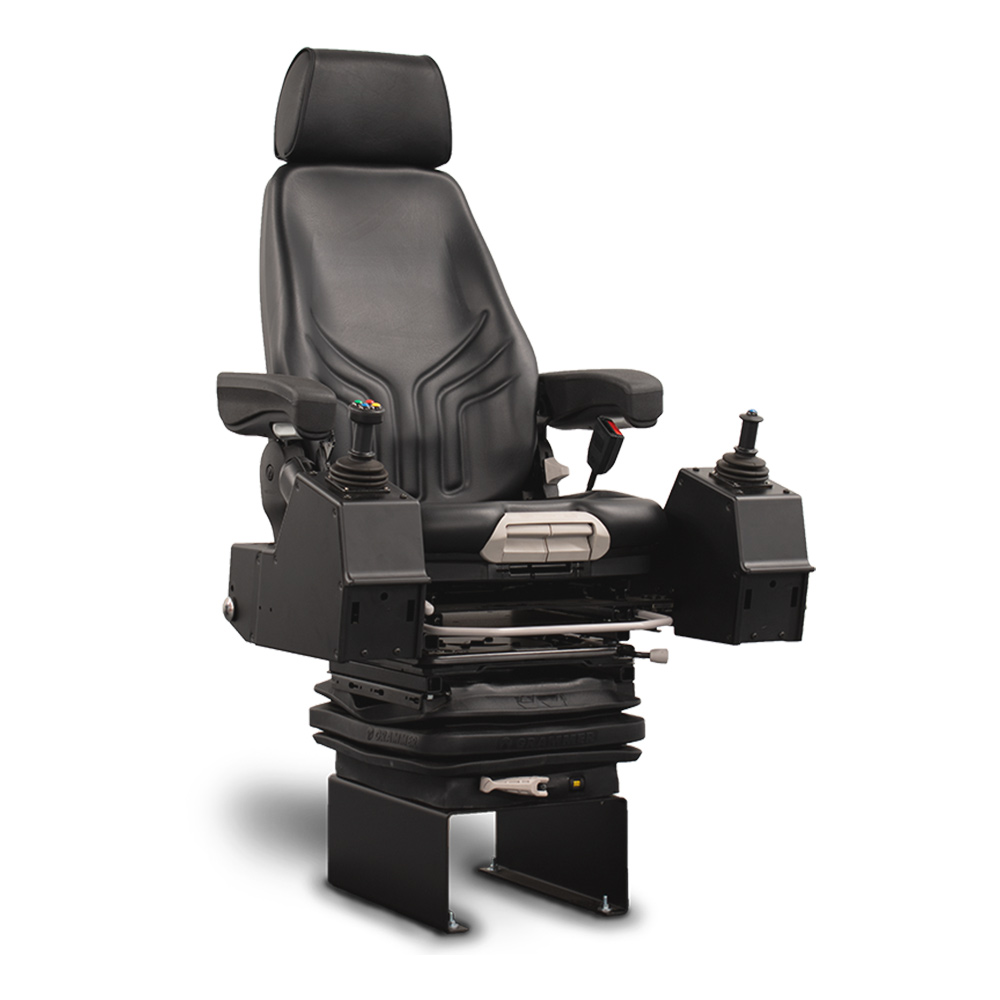

The Type HFC-100 fixed or rotating (optional) operator armchair with 5" wide consoles. Suitable for tight cabins.
Inquire nowFull body contoured seat
Fixed or rotating system
Independent backrest, seat height, slope, and fore and aft adjustment
Mechanically adjustable lumbar support
Seat cushion tilt and fore/aft adjustments
Dual acting independent seat and console slide system
Full hydraulic and spring - dampened mechanical suspension system with "Dial In" weight compensation
Flip up, vertically adjustable armrests
Aluminum consoles - Left console flips back for operator accessibility and includes power disconnect microswitch for safety
Heavy duty steel construction with a powder coat finish
| General Data | |
| Unique Features | Compact design Ideal for applications with limited space |
| Console Width | 4.92" |
| Max Number of Devices | Up to 2 devices and 1 joystick |
| Seat Options | Actimo Seat (Velour or Vinyl) Options: Armrests with tilt and height adjustments 2-point retractable seat belt 4-point shoulder harness Operator presence switch |
| Suspension Options | Mechanical Suspensions: 3 Step (weight up to 285 lbs) 4 Step w/ Lift Assist (weight up to 309 lbs) |
| Armrest Type | Optional, seat mounted armrests with tilt and height adjustments. |
| Est System Weight Packed | 190 - 240 lbs |
| Adjustment Features | |
| System Rotation | Optional, 360 degrees seat swivel |
| System Height | Yes |
| System Tilt | No |
| Consoles Slide Forward/Backward | Yes |
| Consoles Tilt | Left console flips up for seat accessibility |
| Consoles - Slew In/Out | No |
| Armrests - Height | Yes |
| Armrests - Tilt | Yes |
| Armrests - Slide Forward / Backward | No |
| Seat - Slide Forward / Backward | Yes |
| Seat - Recline | Yes |
| Seat - Lumbar | Yes |
| Seat Options |
| The Grammer Actimo operator seat offers a large range of quick and easily accessible adjustment features to adapt to most individuals in a range of applications. Standard features include field replaceable cushions, adjustable headrest, seat-mounted armrests, mechanical lumbar support, fore and aft seat slide adjustment, backrest tilt, cushion tilt, depth adjustment, and document pouch. |
| Seat Options : Ultra tough velour or vinyl seat upholstery Lap seat belt with or without an electrical contact Operator presence switch |
| Control Consoles |
| Custom-configured joysticks or controllers and pilot devices |
| Louvers for console ventilation |
| Forward and backward horizontal console slide adjustment |
| Technical Data | |
| Rotation Optional | +/-90 degrees, lockable every 10 degrees |

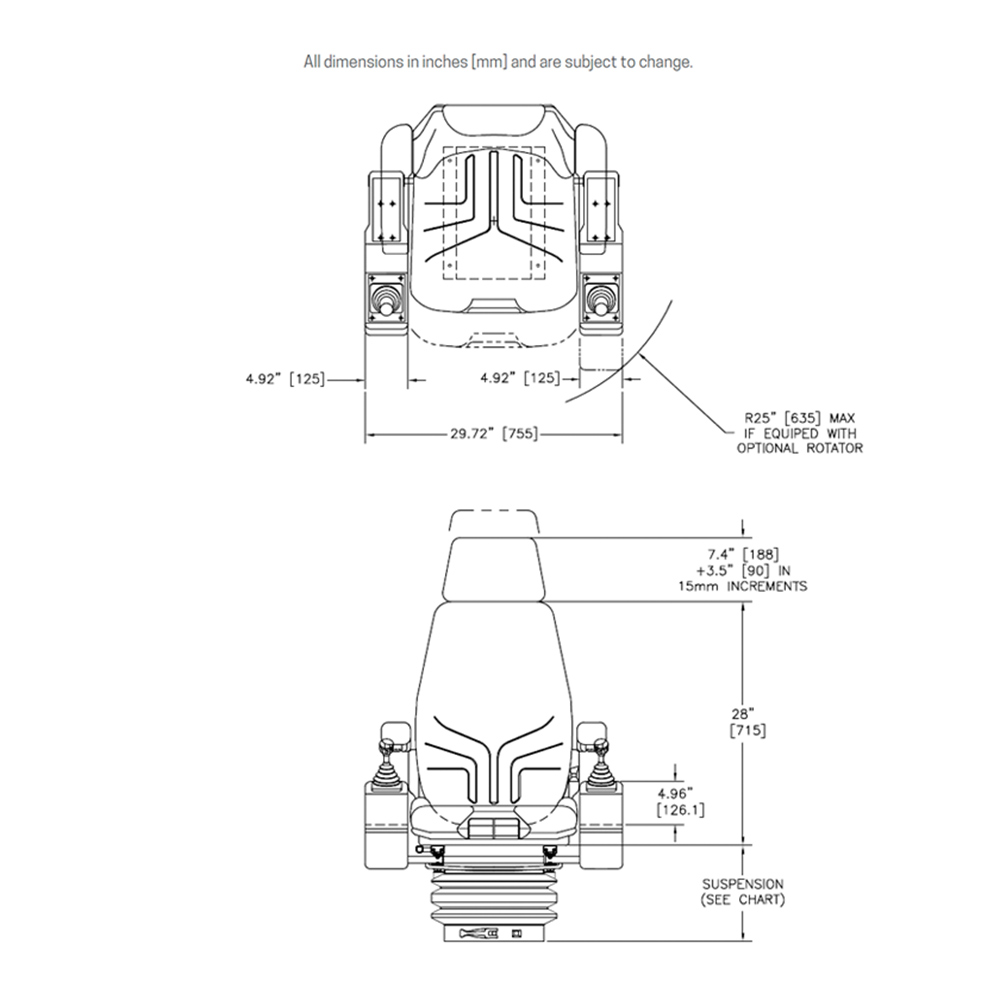

| Max Turning Radius | 25" [635] |
| Slide Range | 16" [406 mm] total adjustment 8" [203 mm] seat slide range 8" [203 mm] seat and console slide range |
| Armrest Adjust Range | Tilt: -30 degrees (down), +10 degrees (up) and flip up Height: 1.6" [40 mm] in 8 mm increments |

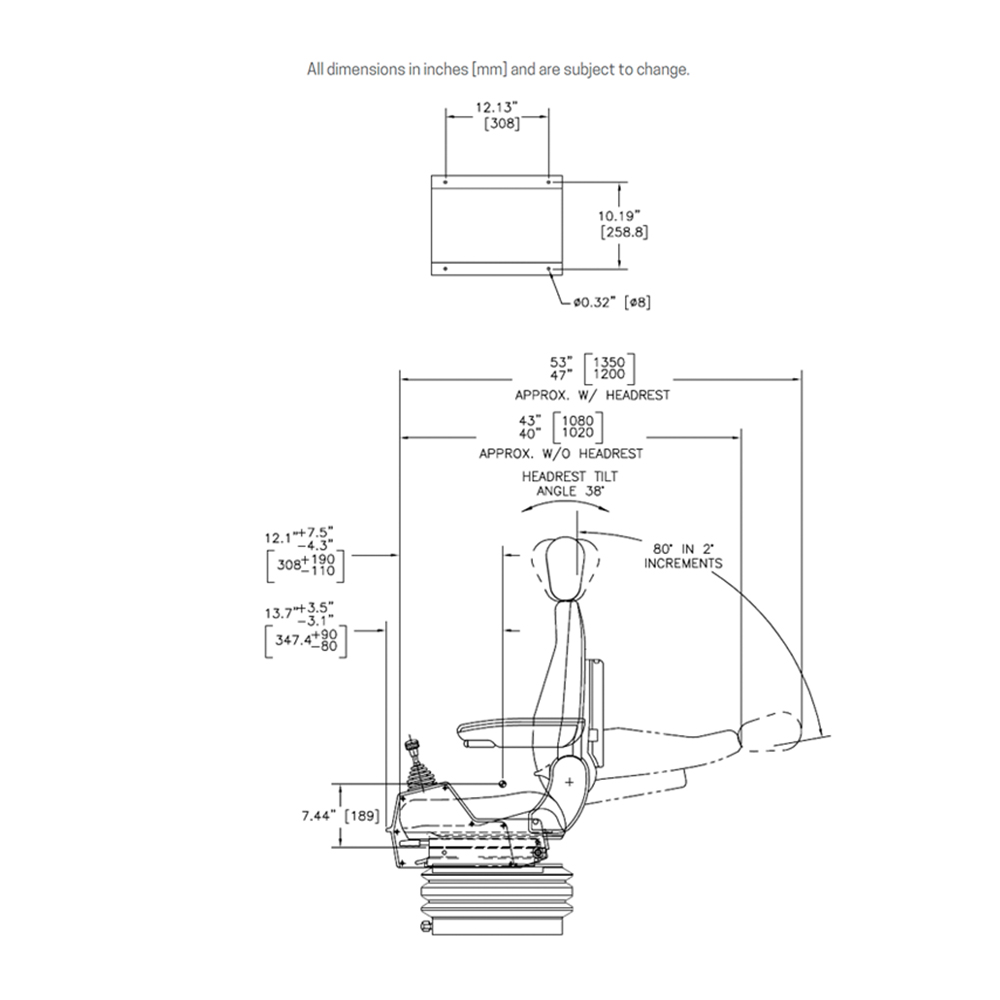

| Backrest Recline | Actimo Seat 80 degrees 46 degrees with 4-point shoulder harness |
| Seat Cushion Adjust Range | Actimo Seat Depth: 2.4" [60 mm] in 5 increments forward Tilt: 3-11 degrees in 4 increments |
| Headrest Adjust Range | Actimo Seat Height adjustment: 3.5" [90 mm] Tilt: 38 degrees |
