This joystick combines a compact design with durability. The extremely compact design allows use in even the smallest enclosures and consoles. Various gates and a variety of handle shapes complete the range of application. The joystick is used in particular in agriculture, construction machinery and radio remote controls.
Inquire nowContactless, wear-free 3D Hall sensor system
Extremely compact design
Range of gate and handles shapes to choose from
Easy integration into complex control systems
Applications : The HS0's compact design make it able to fit even the smallest console designs. Typical applications include:
Radio remote controls
Construction machinery
Agricultural equipment
And more
| General Data | |
| # of Axis | Single or Dual |
| Output Options | Hall-Effect |
| Joystick Action | Spring Return |

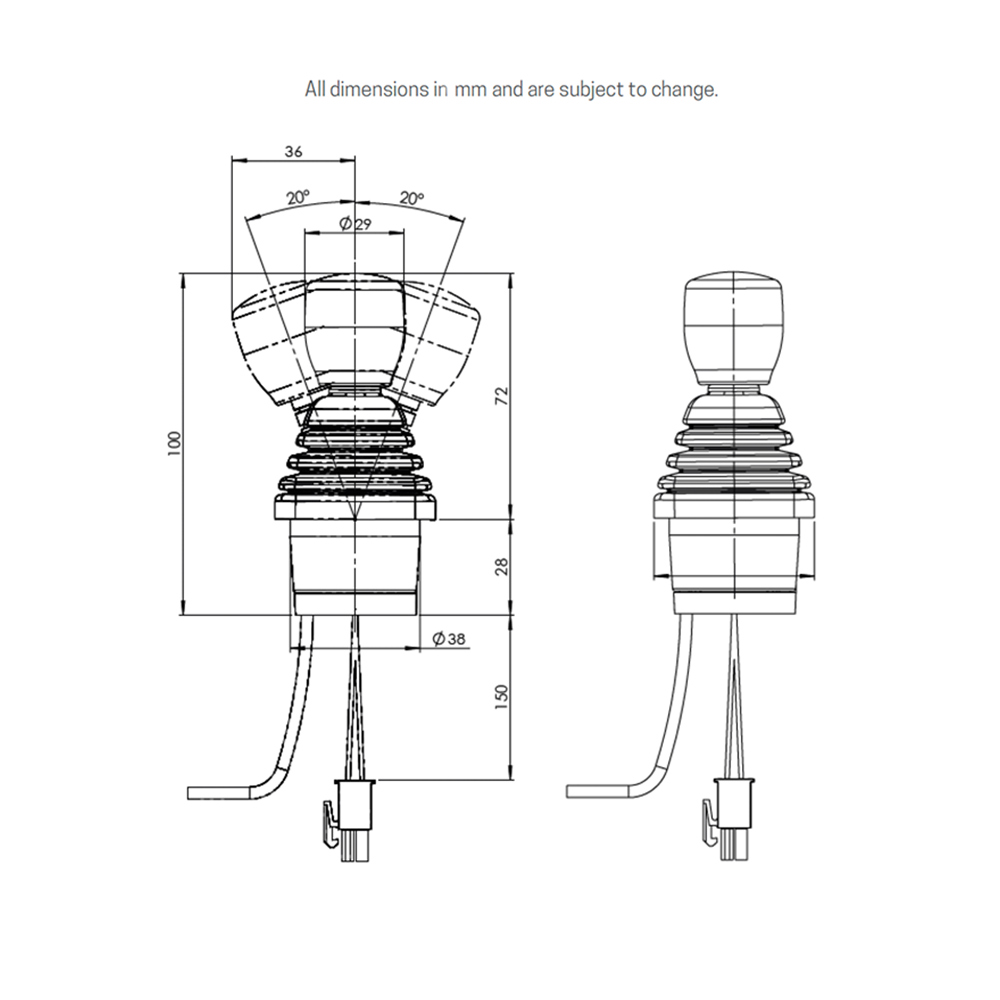

| Handle Travel | +/- 20 degrees each axis |
| Gate | Open or Cross |
| Handle Compatibility | G57 |
| Life | 5 million plus cycles |
| Electrical Data | |
| Additional Specifications | Reference product literature for additional specifications |
| Mounting Data | |
| Mounting Style | Drop-in (From Above) |

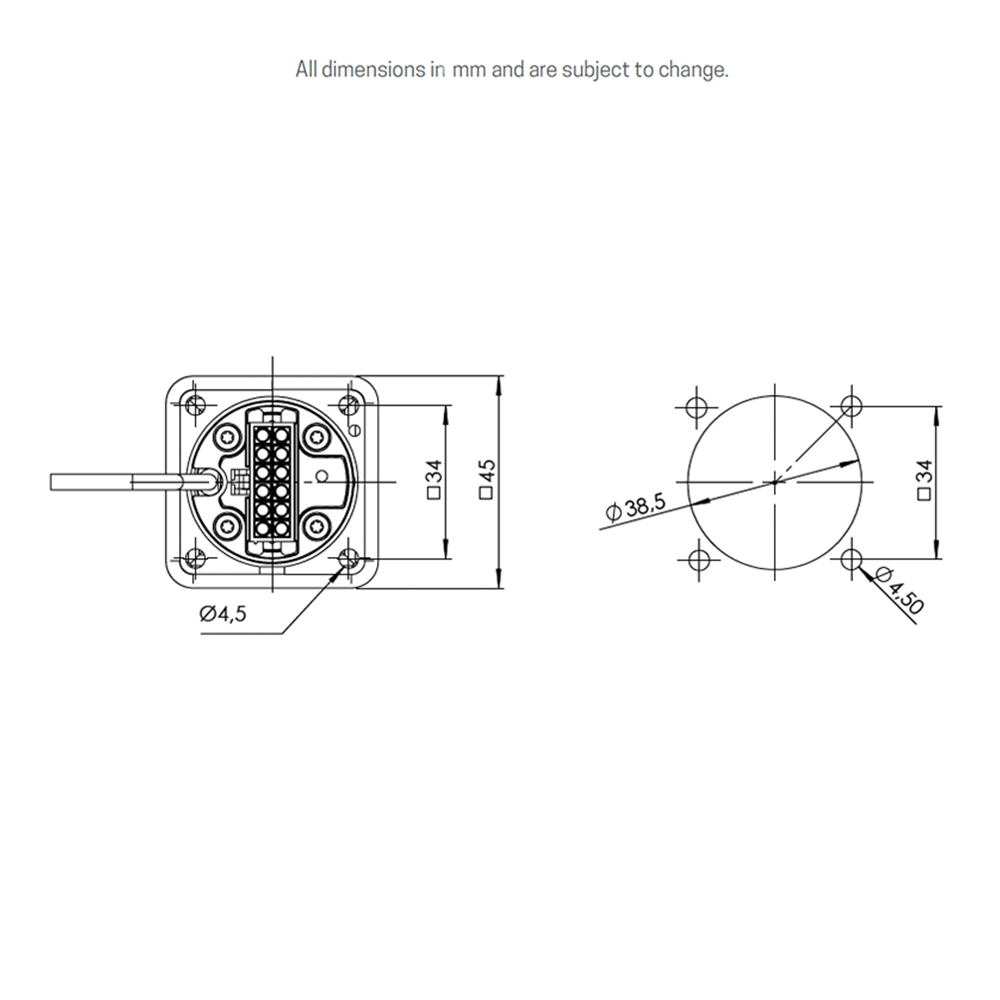

| Mounting Footprint | 38.5 mm x 38.5 mm; See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP67 |
| Operating Temperature | -40 to +185 degrees F [-40 to +85 degrees C] |
