Patented professional measuring device for determining the water content of biomass with optional display of bulk density, calorific value and ATRO ton/m³
Inquire nowExact measurement (max. deviation 1% from the standard value)
Measurement results within seconds without sample preparation
Automated, cost-saving measurement
optional display of bulk density, calorific value and ATRO ton/m³
10 year repair guarantee
Lifetime Support
Article no : 12800
available on request
Description
Only an exact determination of the water content of biomass, with a suitable professional moisture meter, enables fair billing for producers, dealers and end consumers. The water content of biomass is crucial for its calorific value, so quality control during production and delivery is very important. System problems can be avoided with a humimeter BMA biomass moisture meter and water is not purchased at a high price.
Areas of Application:
With the humimeter BMA-2 Wood chip moisture meter, water content determination of wood chips, pellets, miscanthus, elephant grass, Chinese reed, wood shavings, sawdust and corn cobs can be carried out effortlessly and in a matter of seconds. The humimeter BMA-2 Wood chip moisture meter has an optional display of bulk density, calorific value and ATRO tonne/m³ and is perfect for suppliers and operators of biomass heating systems.

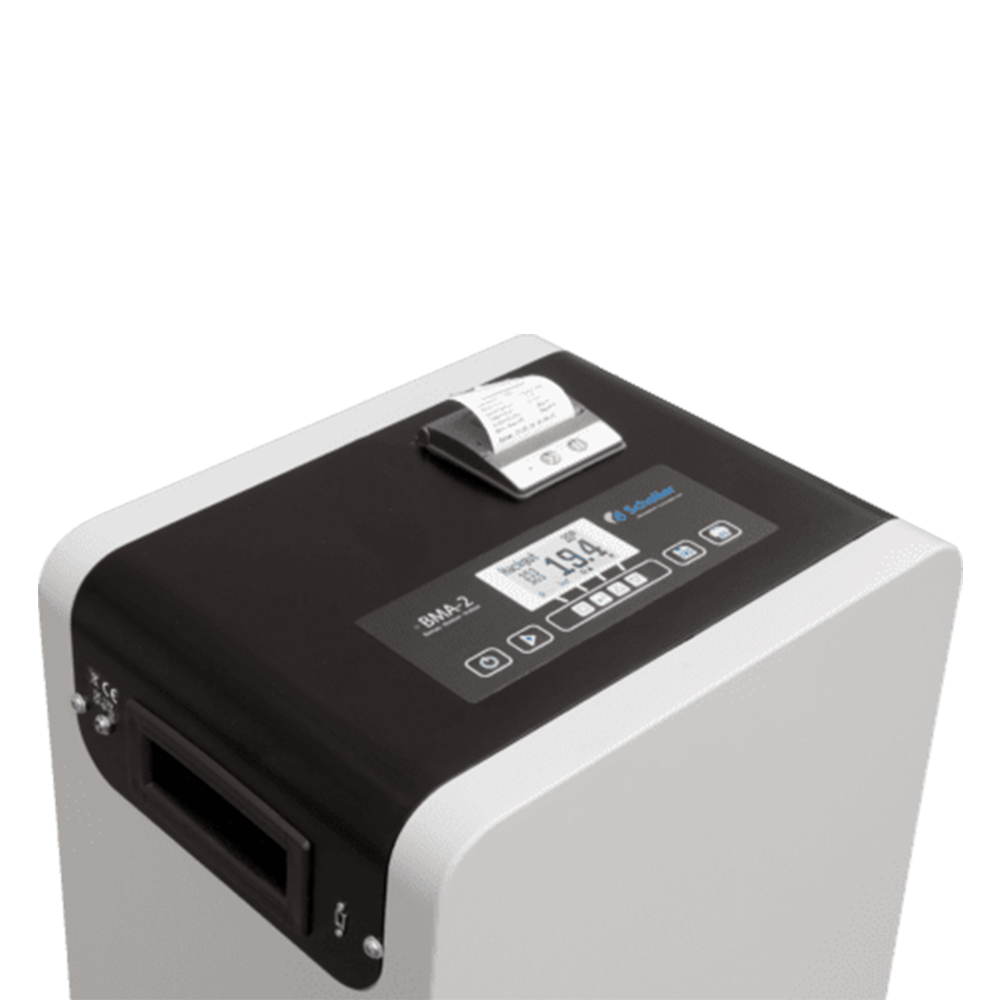

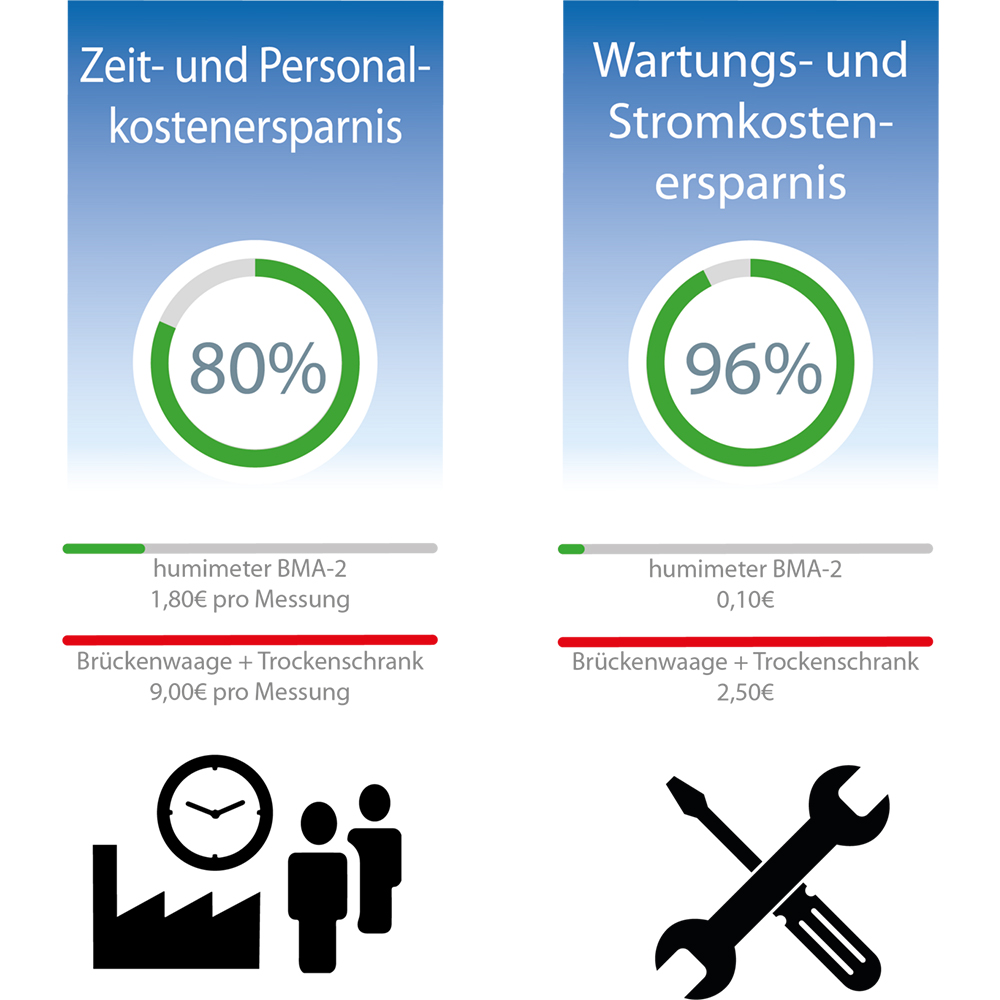

The measured values are recorded on the humimeter BMA-2 Wood chip moisture meter, saved and output via integrated printer or transferred to a PC. With the integrated online function, saved data can be transferred to other programs. This automated measurement saves a lot of time and reduces the resulting energy costs to 4% compared to a conventional measurement in the kiln.
The following requirements are met:
We would be happy to advise you on further variants of the application!
Benefits
| Technical information | |
|---|---|
| Measuring range | 5 to 70% water content (depending on product type) |
| Resolution | 0,1% water content |
| Calibration accuracy to reference material | +/- 1,0% |
| Bulk density compensated | By integrated scales |
| Sample quantity | 12 liters |
| Temperature measurement | Infrared sample temperature measurement |
| Temperature compensation | automatically |
| Temperature range for measuring | 0 to 50 °C |
| Measurement result | Within seconds without preparation of sample |
| Memory function | Datalog for 10.000 values with measuring point report |
| Power Supply | 100-240 VAC |
| Optional | Display of bulk density, calorific value and ATRO ton/m³ (only for wood chips) |
| Dimensions | 432 x 282 x 862 mm |
| Weight | 29 kg |
| Menu languages | English, German, Italian, French, Spanish, Russian, Portuguese, Czech, Polish, International |
