Whole grain meter for agriculture, trade, food and feed industry
Inquire nowVery fast and accurate whole grain measurement
No sample preparation necessary
Non-destructive measurement
Integrated hectoliter weight determination
Offset option
Clean work thanks to filling funnel
Integrated USB interface
Lifetime Support
Article no : 15000
Available immediately
Description

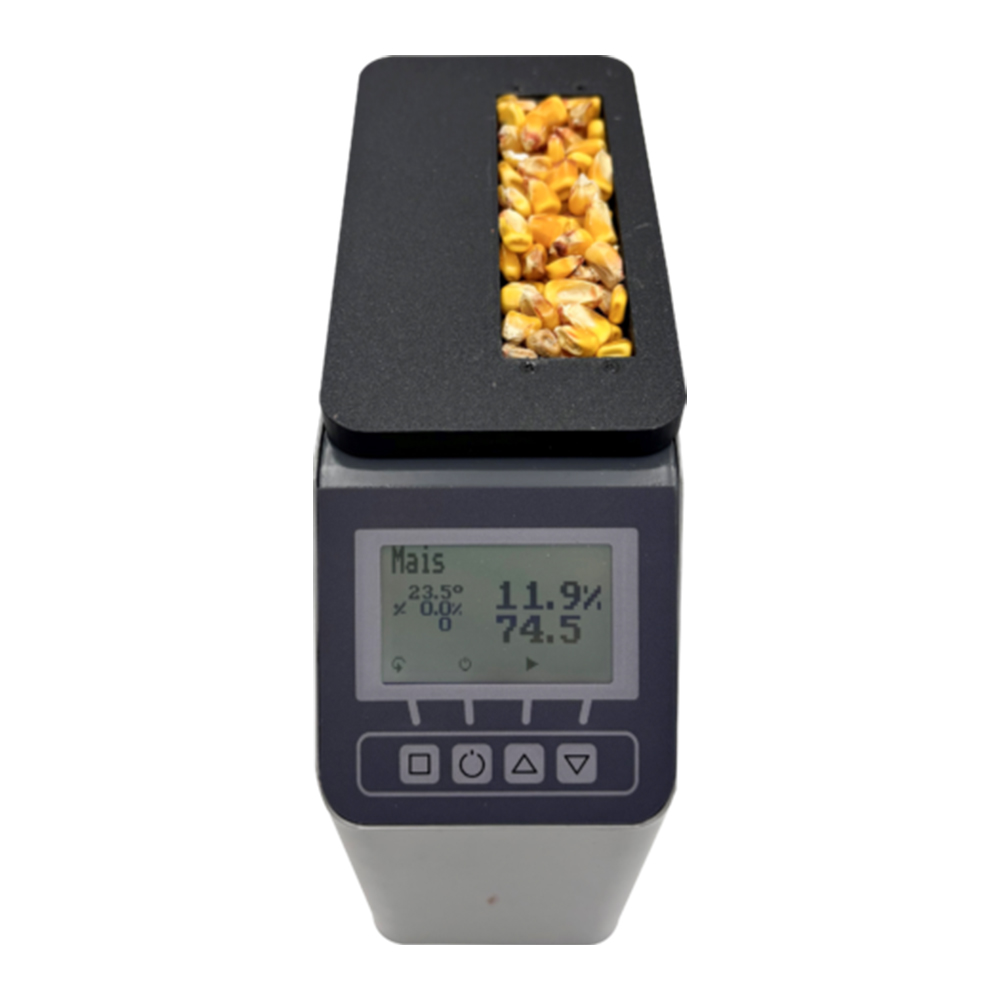

The humimeter FSW whole grain moisture meter is a powerful device for the precise determination of moisture content and hectoliter weight for use in agriculture, trade, seed breeding, and the food and feed industries. The humimeter FSW is particularly suitable for measurement directly in the field.
This universally applicable measuring device is ideal for grains such as corn, wheat, durum wheat, rye, barley, oats, soybeans, rapeseed, hulled spelt, spelt in the husk, unhulled buckwheat, triticale, millet, and sorghum, as well as sunflower seeds, pumpkin seeds, unhulled and hulled rice, field peas, broad beans, lentils, and roasted coffee. Other varieties are available upon request.
The measured values can be saved via the moisture meter's integrated data logger, provided with additional information and retrieved later.

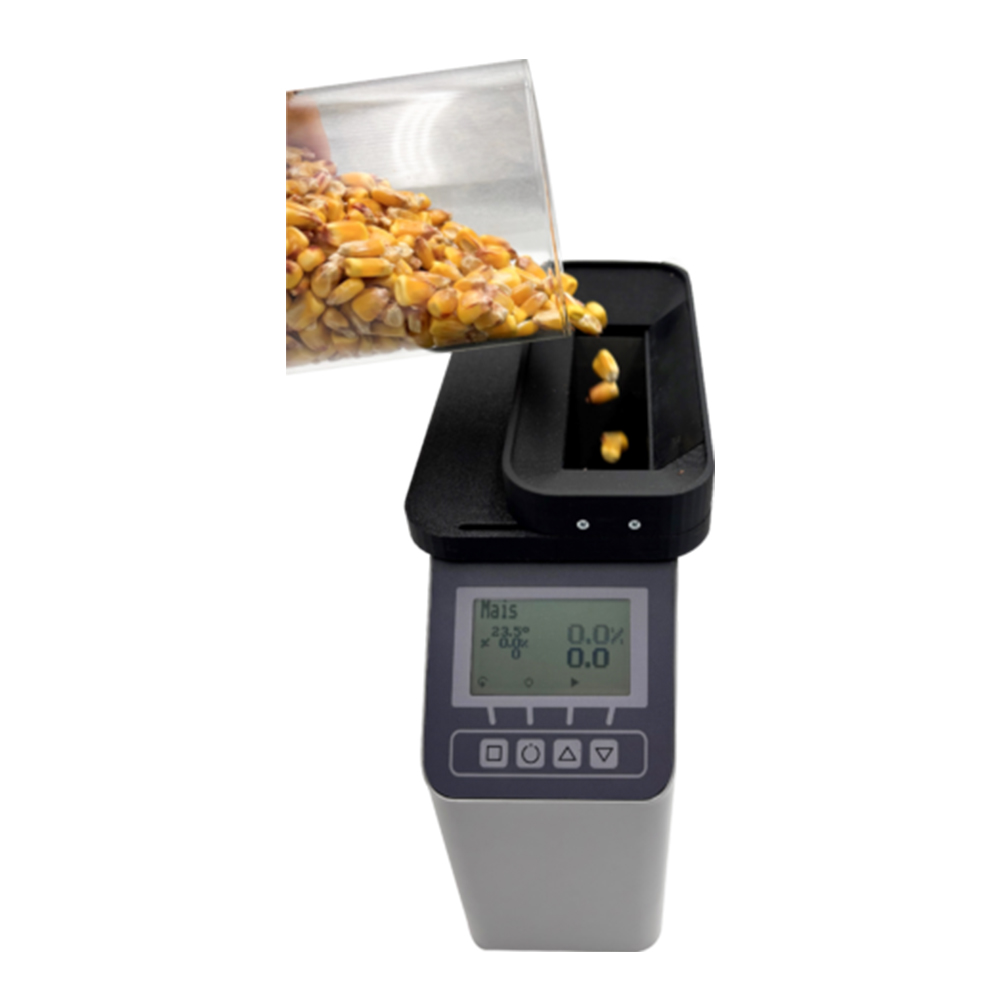

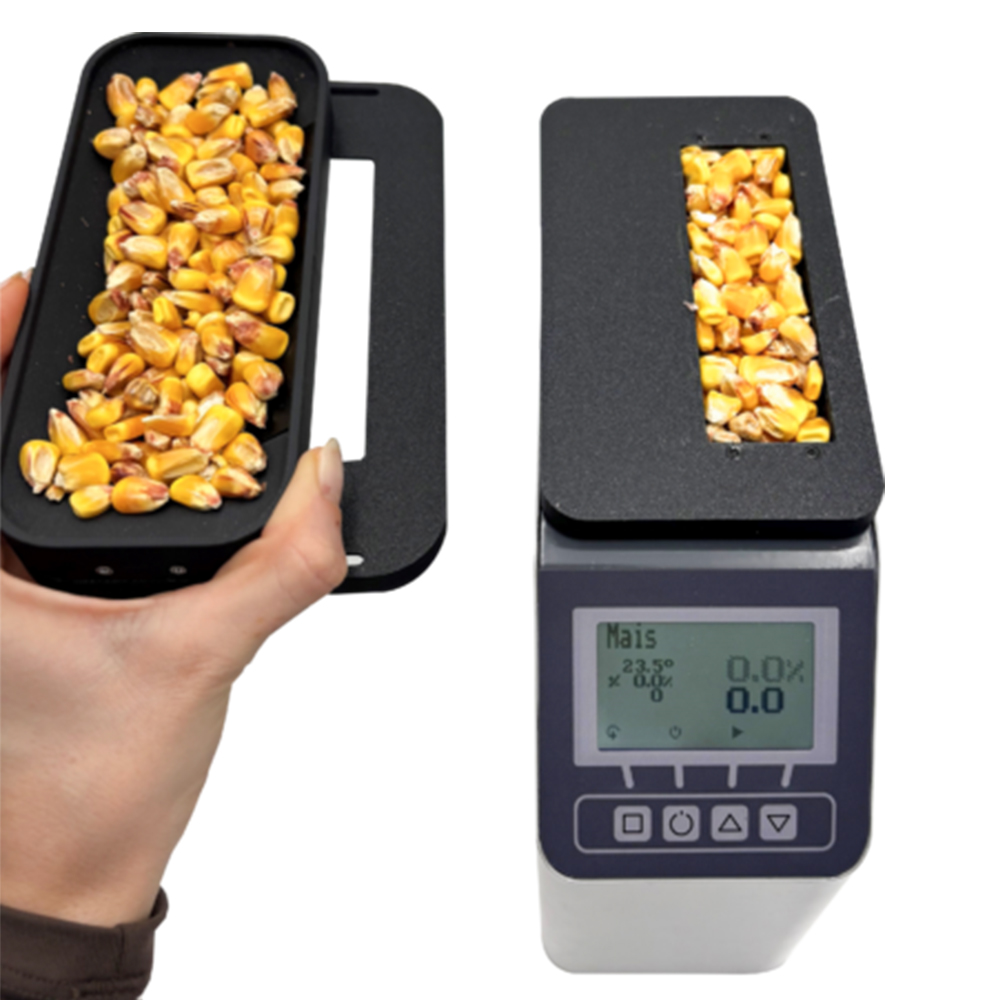

In order to increase the measurement accuracy and reproducibility of the whole grain moisture tester, the measurement is carried out with hectoliter compensation. The filling funnel, which is also included in the scope of delivery, enables clean work. The moisture measurements are output with temperature compensation, and firmware updates and characteristic curve updates can be carried out very easily using the integrated USB interface. The data can be sent directly to an optionally available portable thermal printer (ONLINE function).
The moisture meter FSW is adjusted according to the following reference methods:
EN ISO 6540 for corn
EN ISO 665 for oilseeds
EN ISO 712 for grain
EN ISO 24557 for legumes and beans
Benefits
Fast measurement of humidity, hectoliters, and temperature
Robust steel housing
Reduces drying costs
For all products and end products
Prevents quality deterioration and mold infestation
| Technical information | |
| Measuring range | 5 to 40% water content and 30 to 90 kg/hl (depending on variety) |
| Resolution | 0,1% water content, 0,1 kg/hl hectoliter weight |
| Calibration accuracy water content | +/- 0,4% |
| Calibration accuracy hectoliter weight | +/- 0,7 kg/hl |
| Compensation | Through integrated hectoliter determination and sample temperature measurement |
| Average sample size | Approx. 330 g (depending on variety) |
| Measurement result | Within 3 seconds without sample preparation, clean work possible through filling funnel |
| Memory function | Hold function, datalog for 10.000 logs with measuring point report |
| Dimensions FSW | 250 x 80 x 180 mm |
| Dimensions of the filling funnel | 160 x 100 x 25 mm |
| Weight | 1,7 kg |
| Power Supply | 4 x 1,5 Volt AA Alkaline batteries |
| Offset function | Adjustment of the calibration curve |
| Menu languages | English, German, Italian, French, Spanish, Portuguese, Czech, Polish, Russian, International |
