for determining the absolute water content on the roll with a large measuring depth
Inquire now50 mm measuring depth
Fast and highly accurate
Non-destructive measurement
Hold function
Automatic datalog
Lifetime Support
Benefits
Quick and highly accurate measurement using a non-destructive method
Simple handling, small, handy, applicable anywhere on site
Menu languages: English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
Lifetime Support
| Technical information | |
| Measuring range | 1 to 25% water content |
| Resolution | 0,1% |
| Measuring depth | 50 mm |
| Temperature measurement (paper) | Contactless with 90° optics |
| Paper temperature for moisture measurement | 0 to +80 °C |
| Temperature measurement | -25 to +125 °C |
| Temperature compensation | automatically |
| Measurement result | Within seconds without sample preparation |
| Memory function | Hold function, datalog for 10.000 values with measuring point report |
| Dimensions | 254 x 138 x 70 mm |
| Weight | 850 g |
| Power Supply | Li-Ion rechargeable battery |
| Menu languages | English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International |
Description

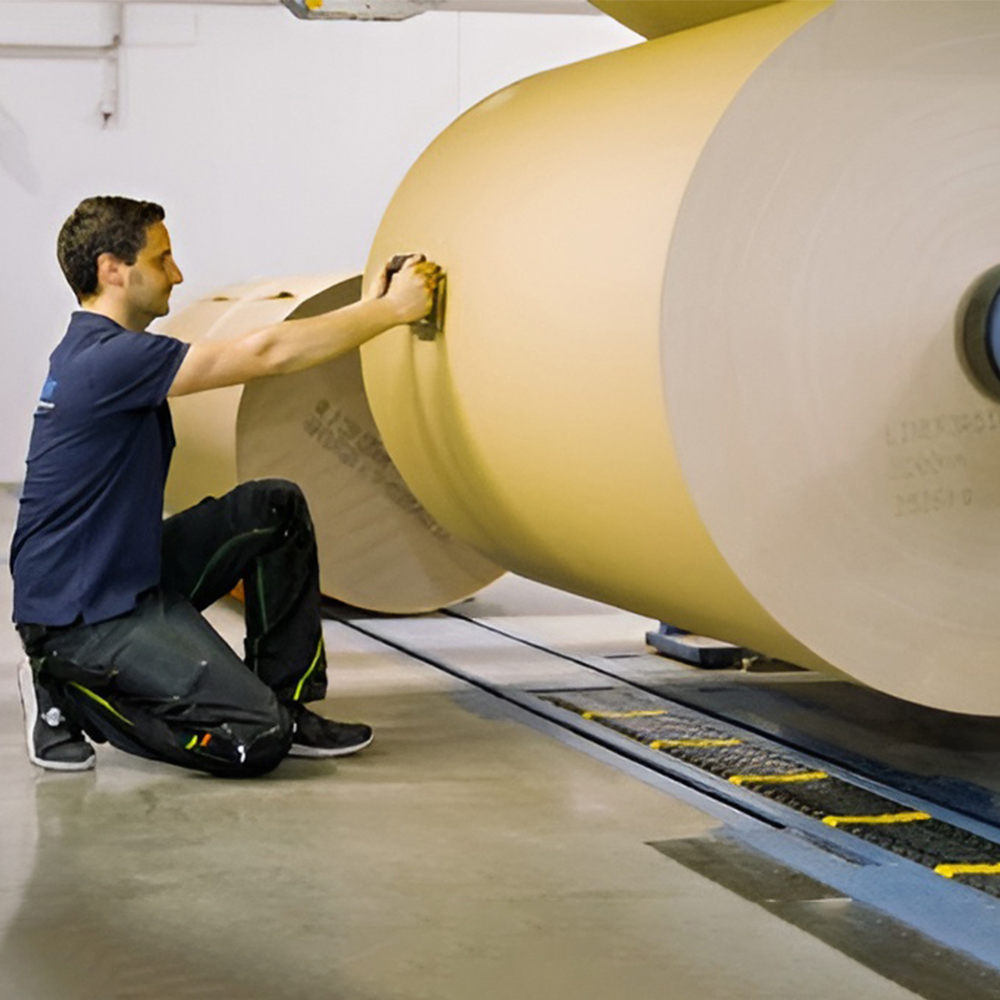

For paper manufacturers, paper processors, and paper dealers, this device enables the non-destructive determination of the absolute moisture content of paper and cardboard on warm, running paper reels as well as on stationary, cool reels.
Equipped with non-contact infrared paper temperature measurement, it allows accurate temperature detection and improved measurement precision through automatic temperature compensation.
Non-destructive measurement is also possible through packaging, making it highly practical for real-world applications.
This paper moisture meter is designed for determining the absolute water content on paper rolls with a high measuring depth.
Infrared paperweb temperature measurement
Humimeter USB data interface module with LogMemorizer measurement data acquisition and evaluation software including USB cable for PC
Power is supplied by a rechargeable battery
Accurate determination of the paper roll temperature
Higher accuracy of the measurement results through temperature compensation based on infrared temperature measurement
The measuring device is calibrated according to the reference method EN ISO 287.
