For receiving control of paper processors like printing houses,
paper retailers and corrugated paper manufacturers.

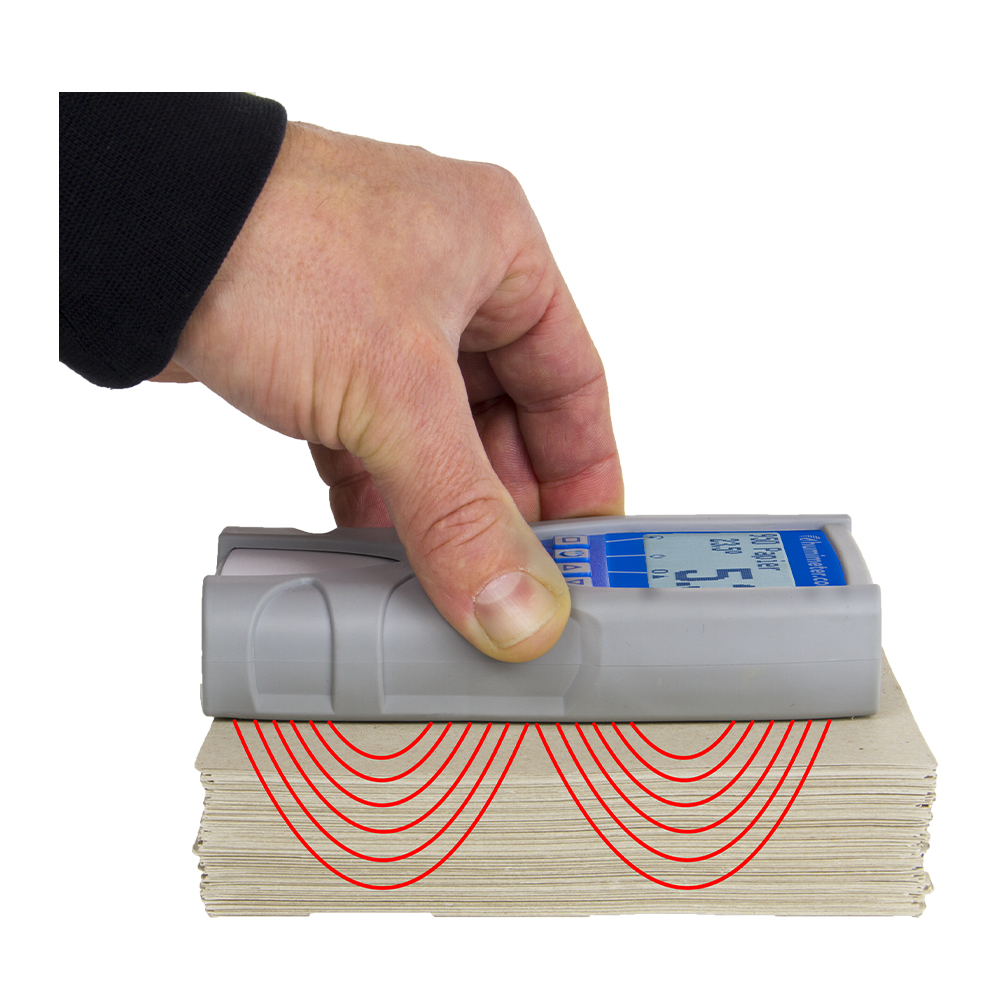

Measuring instrument for determination of absolute water content of paper and solid cardboard at the pile.
For the measurement at the running roll, the humimeter PM5 is required!
For the measurement of corrugated board, the humimeter RH5 is required!
| FEATURES |
Measuring range 1% to 15% water content, depending on the material
Resolution: 0.1% water content
Measuring depth: 20 mm
Paper temperature: 0 to +50°C / 32 to 122°F
Temperature can be set to °C or °F as required
Automatic temperature compensation
Measurement within seconds without prior treatment of samples
Hold function, automatic datalog and manual saving of results for
up to 10,000 logs with measuring point report
Large, well-lit LC display
Dimensions: 147 x 75 x 30 mm (incl. rubber protection), weight 265 g (incl. batteries)
Scope of supply: humimeter PMP with rubber protection cover, wooden case, proof plate and batteries
| Accessories and Extensions | |
| Art. No. | Extended accessories |
| 12297 | Entry of an existing characteristic curve in a FS_3 or humimeter device |
| 11217 | Laboratory analysis testing for new material of our humimeter devices |
| 12278 | humimeter USB data interface module with LogMemorizer measuring data recording and analysing software on USB flash drive incl. USB cable for PC |
| 11733 | Thermo printer runs by battery, industrial model, portable |
| 10600 | Factory calibration certificate. Protocol documenting the calibration of material moisture meters before delivery |
| Your benefits |
Quick and highly accurate measurement using a non-destructive method
Simple handling
Small, handy, applicable everywhere on site
Menu languages in English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish.
Art.No: 13770 humimeter PMP
Paper moisture meter for determination of absolute water content at the pile
