for determining the absolute water content of cellulose sheets in the stack
Inquire nowFast and highly accurate
Large illuminated LC display
Hold function
Small, handy, can be used anywhere on site
Automatic temperature compensation
Lifetime Support
Benefits
Fast and high-precision measurement with a non-destructive method
Easy to use
Small, handy, can be used anywhere on site
Menu languages in English, German, Italian, French, Spanish, Russian, Portuguese, Czech and Polish
Lifetime Support
| Technical information | |
| Measuring range | 6 to 40% water content |
| Resolution | 0,1% |
| Temperature compensation | automatically |
| Measurement result | Within seconds without sample preparation |
| Memory function | Hold function, datalog for 10.000 values with measuring point report |
| Pulp density range | 450 - 900 kg/m³ |
| Dimensions | 575 x 75 x 46 mm |
| Sword sensor length | 300 mm |
| Handle bar | 127 x Ø29 mm |
| Weight | 680 g (including batteries) |
| Power Supply | 4 x 1,5 Volt AA Alkaline batteries |
| Menu languages | English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International |
Description

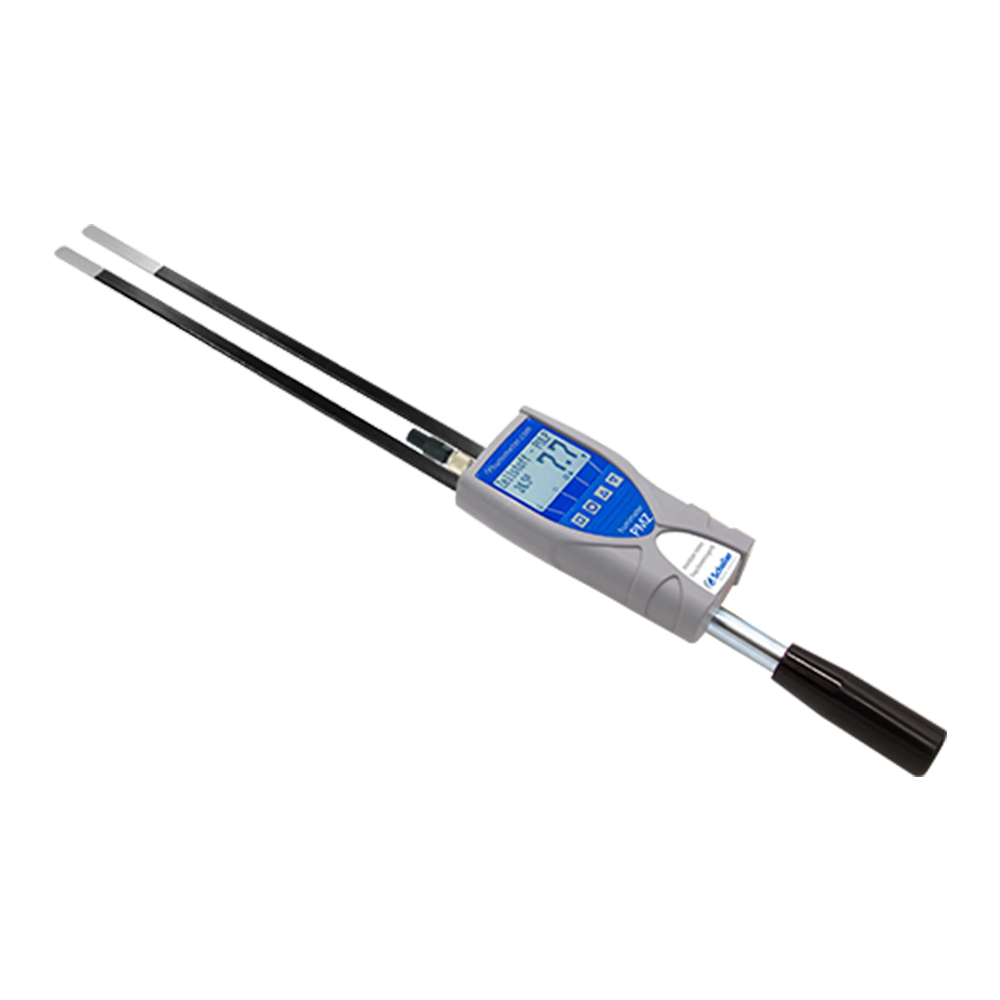

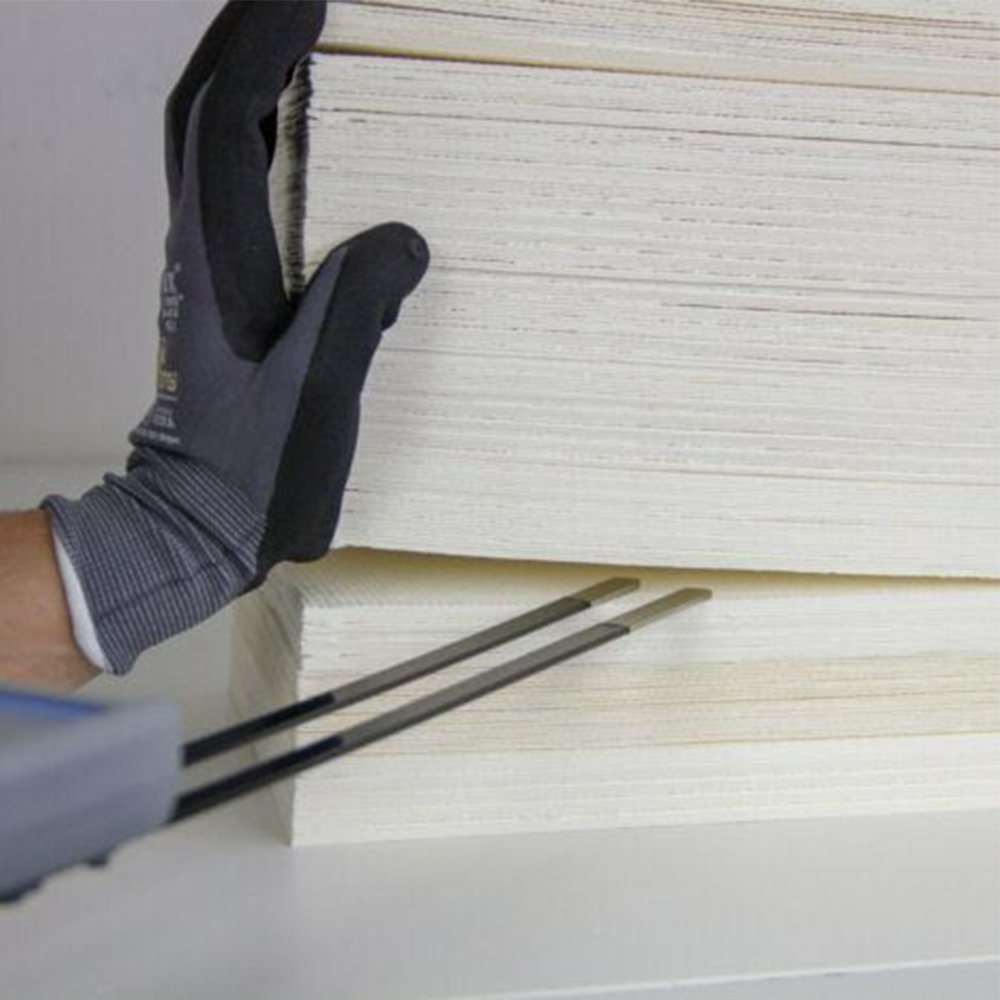

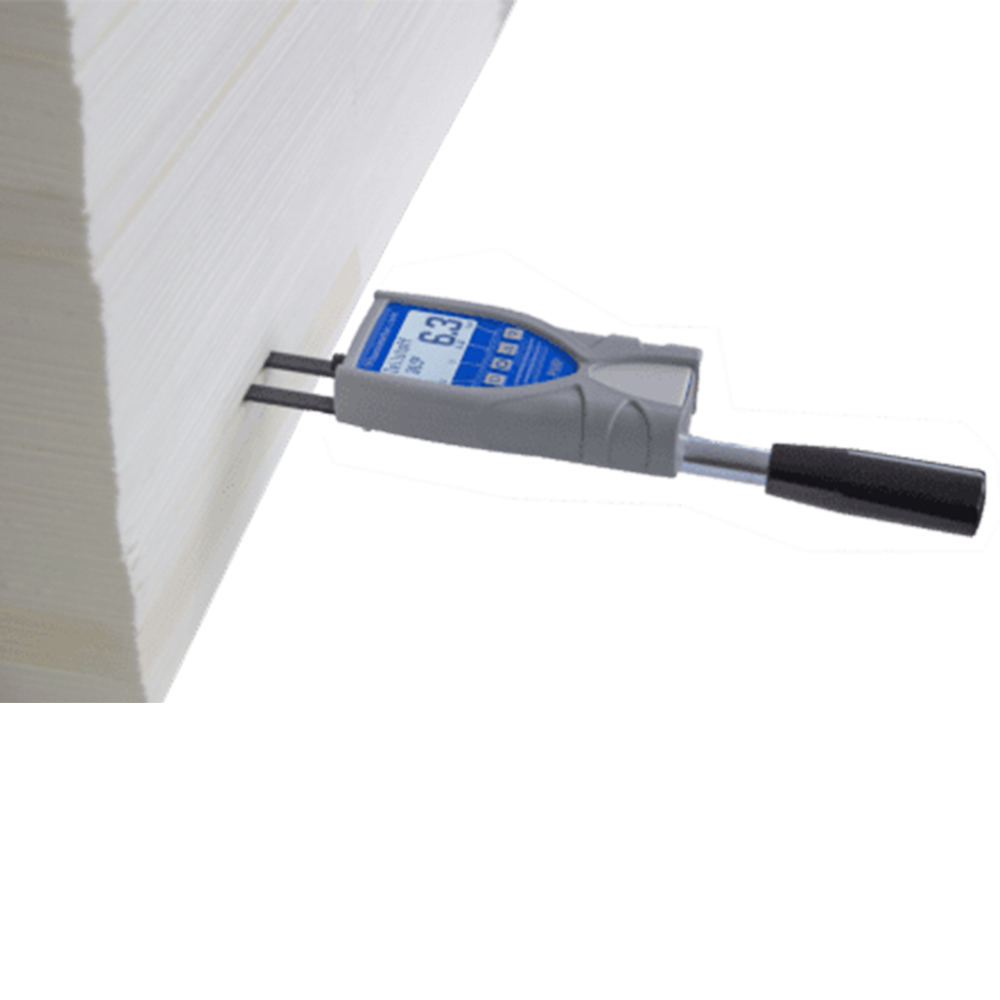

The humimeter PMZ enables rapid inspection of pulp sheets directly in the stack, eliminating the need to remove individual sheets for moisture determination. This allows the water content to be determined within seconds during order picking, packaging, or goods receipt.
The device allows automatic averaging of whole books, deliveries, and batches. Immediately after inserting the double electrodes into the stacked sheets, the water content and temperature of the pulp are displayed.
The humimeter PMZ is suitable for various products, including pulp, dissolving pulp, long-fiber pulp, short-fiber pulp, hardwood pulp, softwood pulp, sulfite pulp, sulphate pulp, pulp bales, pulp plates, and pulp sheets.
Batch allocation can be performed directly on the device. Measurement data can be transferred via USB or Bluetooth using the LogMemorizer PC software and exported as a CSV file for integration into quality assurance systems.
