Very fast equalisation process
Long-term stable humidity and temperature sensors
Wide range of characteristics
Data logger for 10.000 measured values
Lifetime Support
Article no : 11487
Available immediately
Description
The humimeter RH1 offers high-precision sensor technology, a wide selection of characteristic curves, and a data logger with optional USB interface and PC evaluation software – all combined in a compact handheld measuring device.
The hygrometer is designed to measure relative and absolute humidity as well as the dew point temperature of the surrounding air. By placing the device near materials such as wood or paper, the equilibrium moisture content (µg) or water content in the material can also be determined. Additionally, the current temperature – selectable in °C or °F – is displayed with each measurement.
Scope of delivery: humimeter RH1 humidity meter, rubber protection, batteries, instruction manual

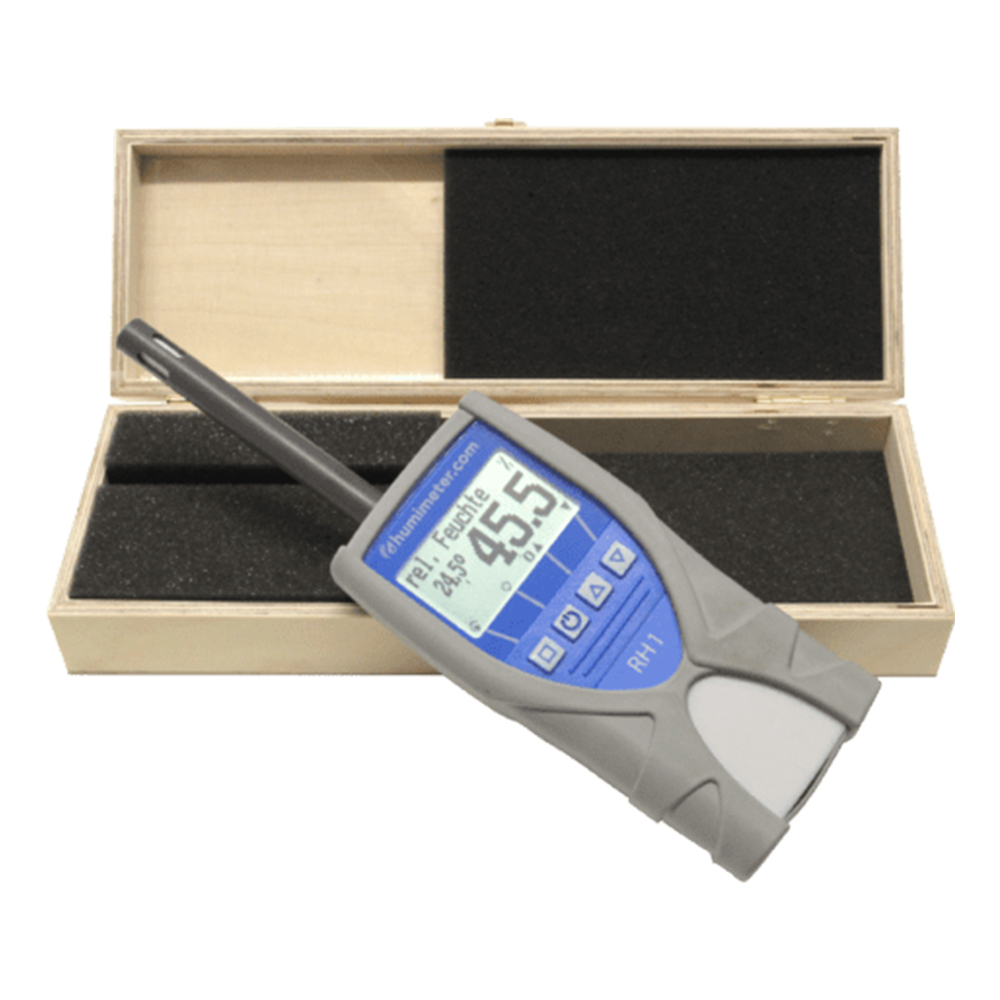

Optional: humimeter USB data interface module with LogMemorizer measurement data acquisition and evaluation software, including USB cable for PC, printer, and wooden case
Benefits
| Technical information | |
|---|---|
| Relative humidity | 0 to 100%, resolution 0,1% RH |
| Calibration (humidity) | 10 to 90%, +/- 1,5% RH (at 25 °C) |
| Temperature | -10 to +60 °C, resolution 0,1 °C, 14 to 140 °F |
| Calibration (temperature) | +/- 0,3 °C (at 25 °C) |
| Dew point | -55 to +60 °C, resolution 0,1 °C, -67 to 140 °F |
| Absolute humidity | 0 to 130 g/m³, resolution 0,1 g/m³ |
| Ugl wood moisture | 2 to 30%, resolution 0,1% |
| Calibration (Ugl) | 5 to 15%, accuracy +/- 0,5% (at 25 °C) |
| Memory function | Hold function, datalog for 10.000 values with measuring point report |
| Protection class | IP40K |
| Dimensions device | 249 x 75 x 30 mm |

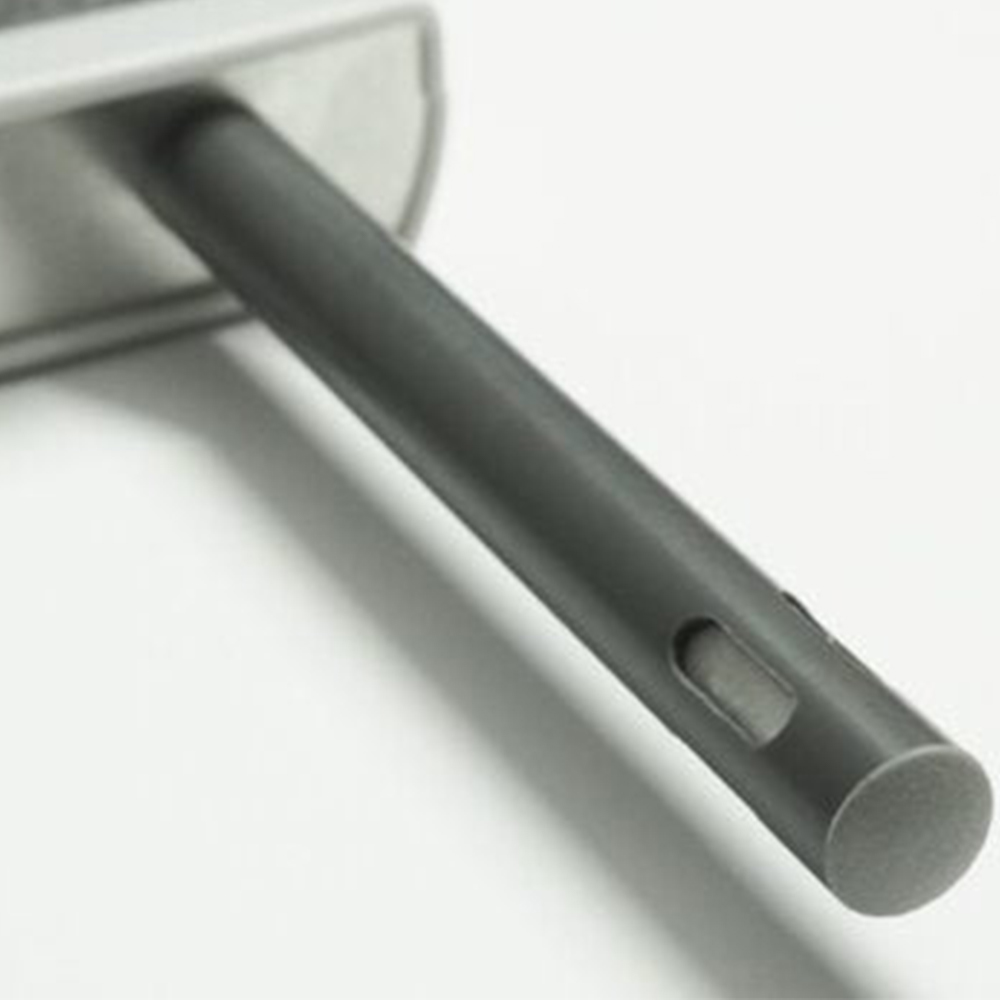

| Dimensions sensor tube | Ø12 x 102 mm |
| Weight | 270 g (including batteries) |
| Power supply | 4 AA alkaline batteries 1,5V |
| Menu languages | English, German, French, Italian, Spanish, Russian, Portuguese, Czech, Polish and International |
