Measurement at different depths of the bearing
Very easy to use
Robust sensor tube (up to 2 meters)
Long-term stable
Data log for up to 10.000 values
Lifetime Support
Article no : 14346
Available immediately
Description

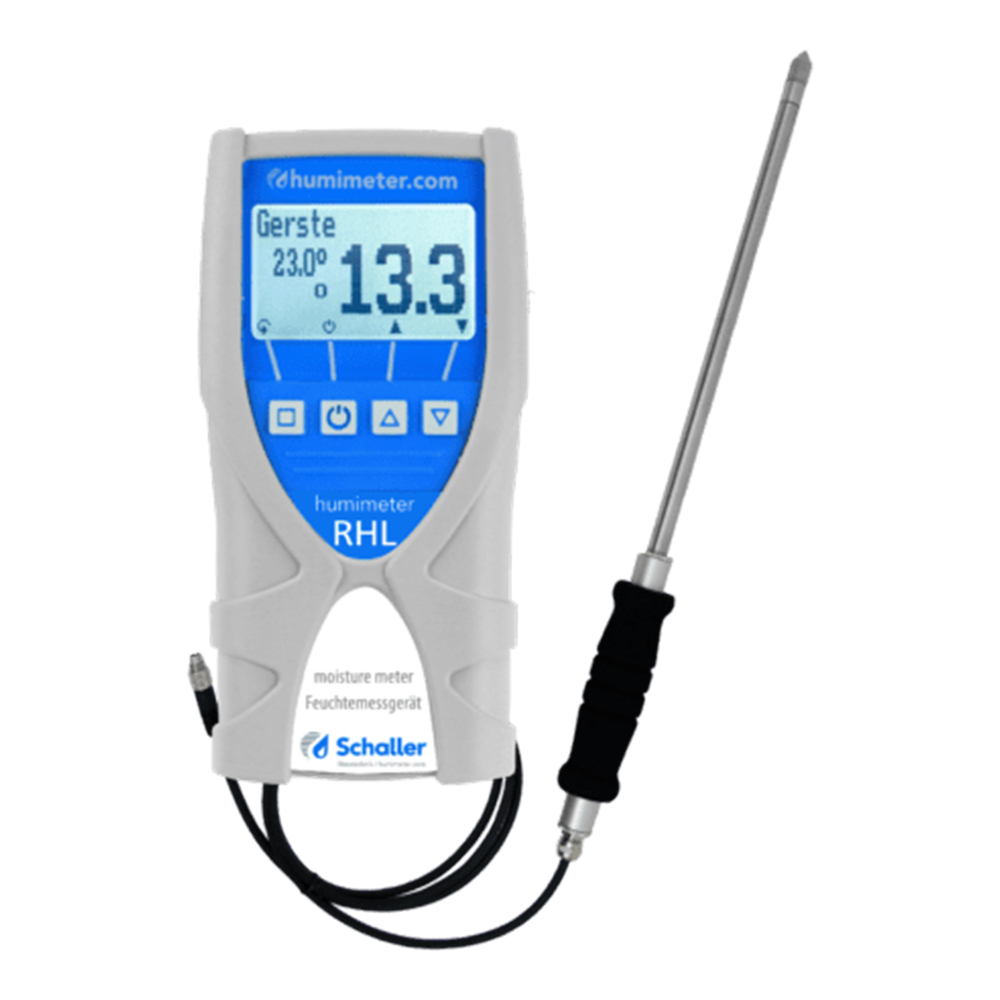

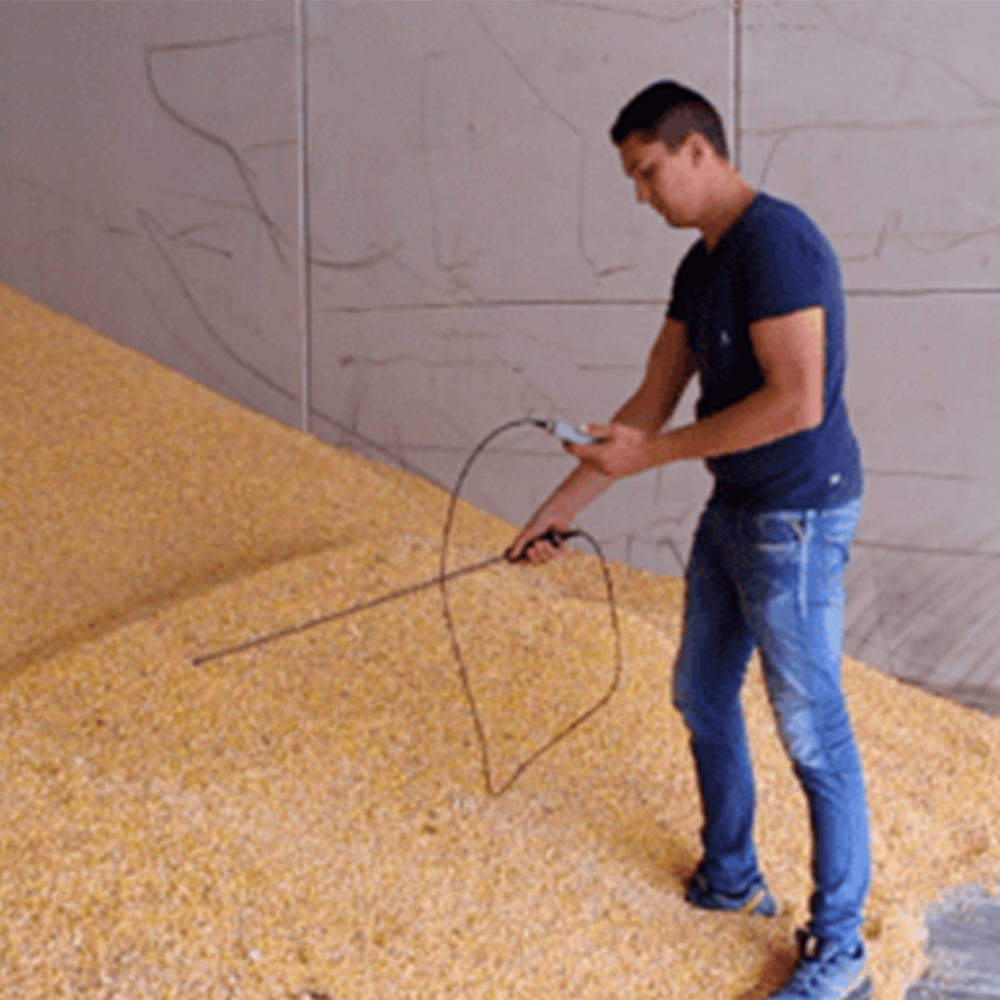

The basic device humimeter RHL offers the possibility to connect different humidity sensors. The penetration probe can be manufactured in lengths between 300 and 2000 mm, depending on requirements. The standard length is 300 mm. With the lance, moisture measurement is also possible in deeper layers of the warehouse. With the additionally connectable aw value measuring chamber, it is also possible to measure small sample quantities.
Benefits
Aw value, relative humidity, absolute humidity, dew point, equilibrium moisture content
Quick balancing
Long-term stable humidity and temperature sensors
Easy data storage on the portable moisture meter
Automatic temperature compensation
Optimal documentation
| Technical information | |
| Measuring range | Corn, wheat, barley, rye, triticale 12 to 18% water content |
| Aw value (Water activity) | 0,001 – 1 |
| Relative humidity | 0 to 100% RH |
| Dew point | -55 to +60 °C |
| Resolution | 0,1% water content, 0,001 aw, 0,5 °C/°F |
| Temperature range | 10 to 30 °C |
| Operating temperature for sensor | -20 to +120 °C |
| Accuracy relative humidity | +/- 1,5% (at 25 °C) |
| Accuracy temperature | +/- 0,3 °C (at 25 °C) / +/- 0,5 °F (at 77 °F) |
| Accuracy grain | +/- 0,6% (at 25 °C) |
| Temperature compensation | Automatically |
| Memory function | Hold function, measured value memory for up to 10.000 values |
| Storage temperature | -20 °C to +60 °C |
| Power Supply | 4 x 1,5 Volt AA alkaline batteries |
| Power consumption | 60 mA (with display lighting) |
| Dimensions | 145 x 75 x 30 mm |
| Weight | 266 g (including batteries) |
| Protection class | IP 40 |
| Menu languages | English, German, Italian, French, Spanish, Portuguese, Czech, Polish, Russian, International |
