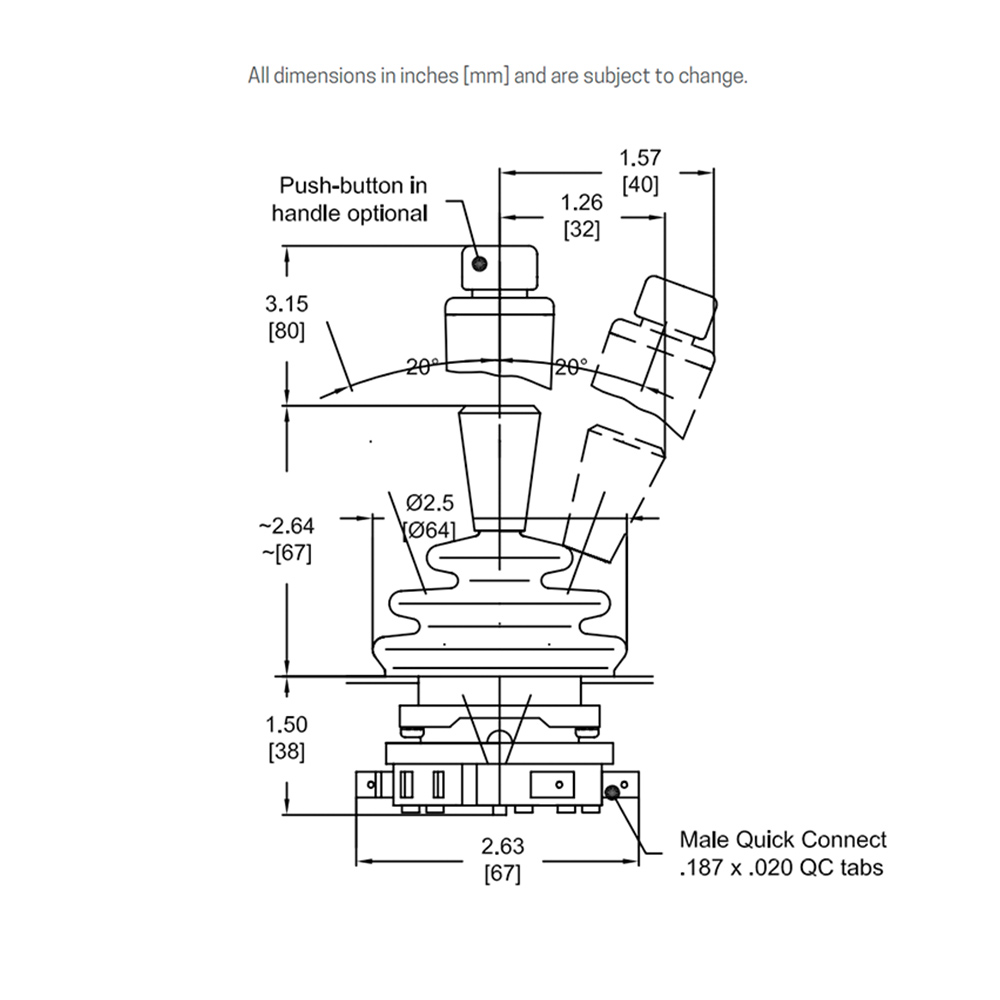

The M2 is a mini joystick designed specifically for bang / bang (on / off) operation. Available in single or dual axis control, this finger operated joystick is suited for use in remote control systems and applications with limited space.
Inquire nowUltra compact and rugged design
Environmentally sealed mounting and corrosion resistant components
High life non-biasing compression-style spring return
10A microswitches
Glass filled zytel housing and sealed construction
Applications : M2 typical application include mobile equipment and machinery for material handling, manufacturing and process control. It is also utilized in portable consoles and pendants for remote control operation.
| General Data | |
| # of Axis | Single or Dual |
| Output Options | Microswitches |
| Joystick Action | Spring Return |
| Handle Travel | +/- 28 degrees each axis |
| Gate | Open or Cross |
| Handle Compatibility | Tapered, round ball, push button or mechanical interlock |
| Life | 3-5 million cycles each direction |
| Materials | High strength, glass filled nylon housing. |
| Est. Shipping Weight | 2 lbs. |
| Est. Shipping Dimensions | 8 in. x 6 in. x 6 in. |
| Electrical Data | |
| Contact Specifications | Switch Type: SPDT (Form C) V Series Microswitches Max. Number: Up to 2 per axis Current Rating (AC): 11A Voltage Rating (AC): 250 Current Rating (DC): 6A Voltage Rating (DC): 12 - 24 Termination: .187" x .20" male quick connect Max. Wire Size: 18 AWG |
| Mounting Data | |
| Mounting Style | Panel (from below) |

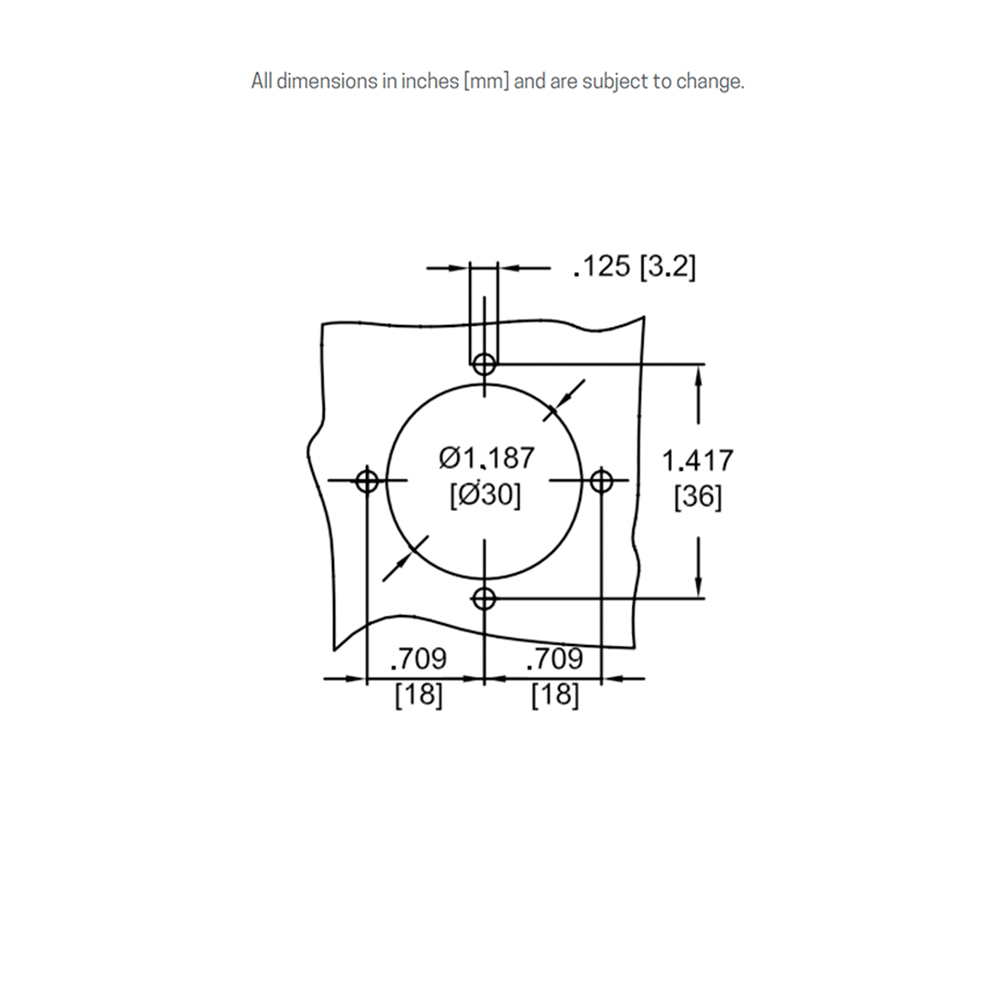

| Mounting Footprint | 2.5" x 2.5" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP54 |
| Operating Temperature | -4 to +140 degrees F [-20 to +60 degrees C] |
