The M3 rugged, finger operated hall-effect joystick is ideally suited for use in portables for remote control systems or for precision control of mobile and industrial machinery. The glass-filled Zytel housing, non-ferrous components and sealed construction make this device suitable for corrosive and hostile environments. Available in single or dual axis operation.
Inquire nowUltra-compact and rugged construction
Environmentally sealed mounting and corrosion resistant components
Conformal coated electronics to resist moisture
Non-biasing smooth operation with high life compression style spring return
Long life Hall-effect technology
Meets or exceeds CE EMC requirements

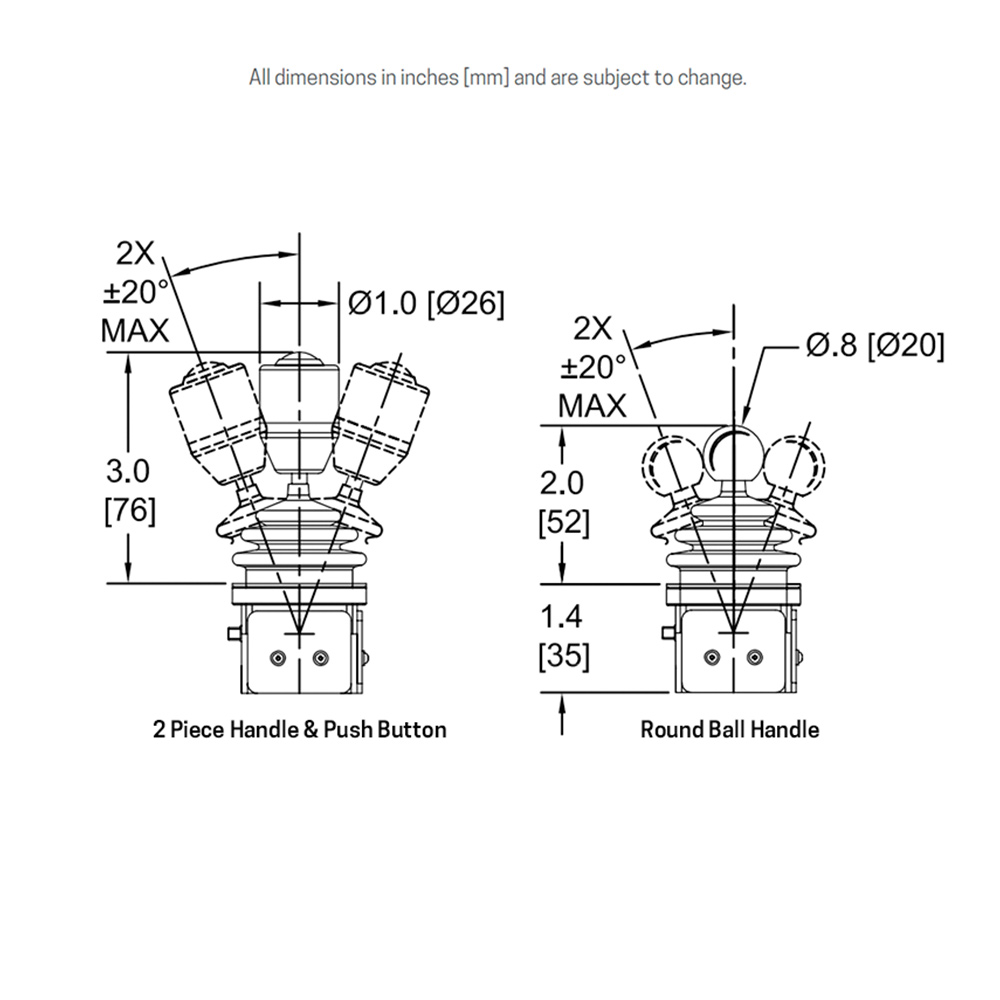

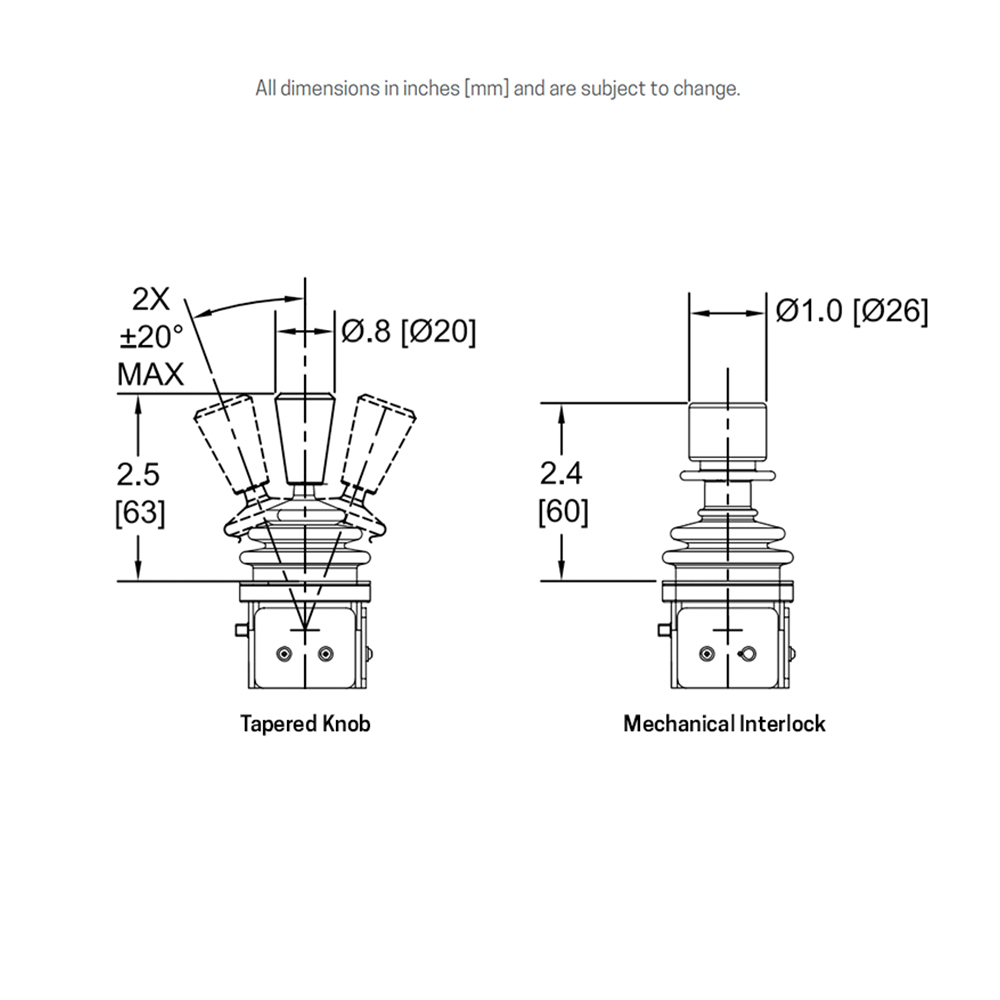

| General Data | |
| # of Axis | Single or Dual |
| Output Options | Hall-Effect |
| Joystick Action | Spring Return |
| Handle Travel | +/- 10 degrees each axis |
| Gate | Open or Cross |
| Handle Compatibility | Tapered, 2 piece, push button, or mechanical interlock |
| Life | 20 million cycles |
| Materials | High strength, glass filled nylon housing. |
| Est. Shipping Weight | 2 lbs. |
| Est. Shipping Dimensions | 8 x 6 x 6 in. |
| Electrical Data | |
| Hall-Effect Specifications | Supply Voltage: 4.5 to 5.5 VDC Output Voltage: Ratiometric 0.5 - 2.5 - 4.5 +/- 0.15V @ 5.0V supply Additional supply and output options available Output Current: 10mA Power Consumption: 20 mA @ full load Termination: 20 AWG wire 6" leads with mini-fit connector EMC Emissions: Complies with EN61000-6-4:2007 Class A Group 1, 80-1000 MHz EMC Immunity: Complies with or exceeds EN61000-6-2:2005, expanded to include: RFI Immunity of 100 V/M @ 80-1000 MHz ESD Immunity of 15Kv air, 8Kv contact |
| Applications |
| For use in virtually any finger operated industrial or mobile equipment application. Typical utilized in: Radio control systems Portable consoles Mobile on / off-highway machinery In-plan process control And more |
| Mounting Data | |
| Mounting Style | Panel (from below) |

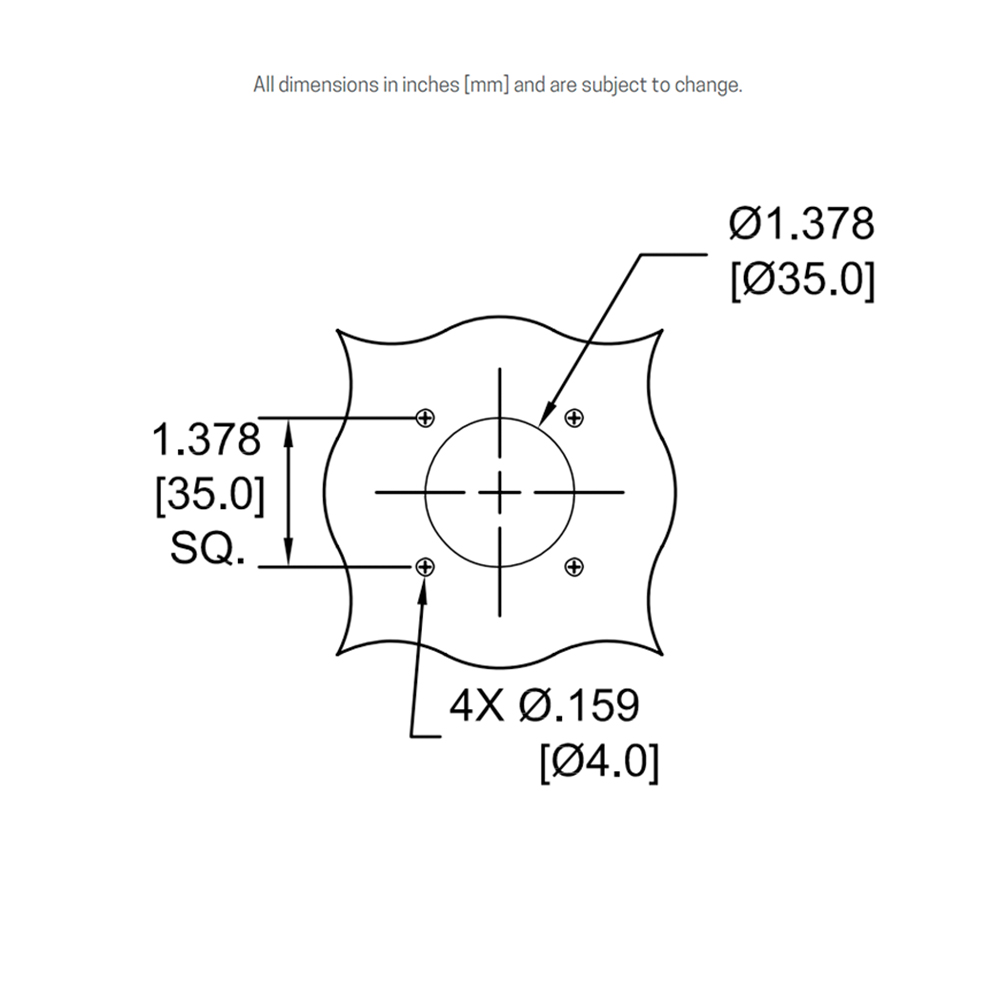

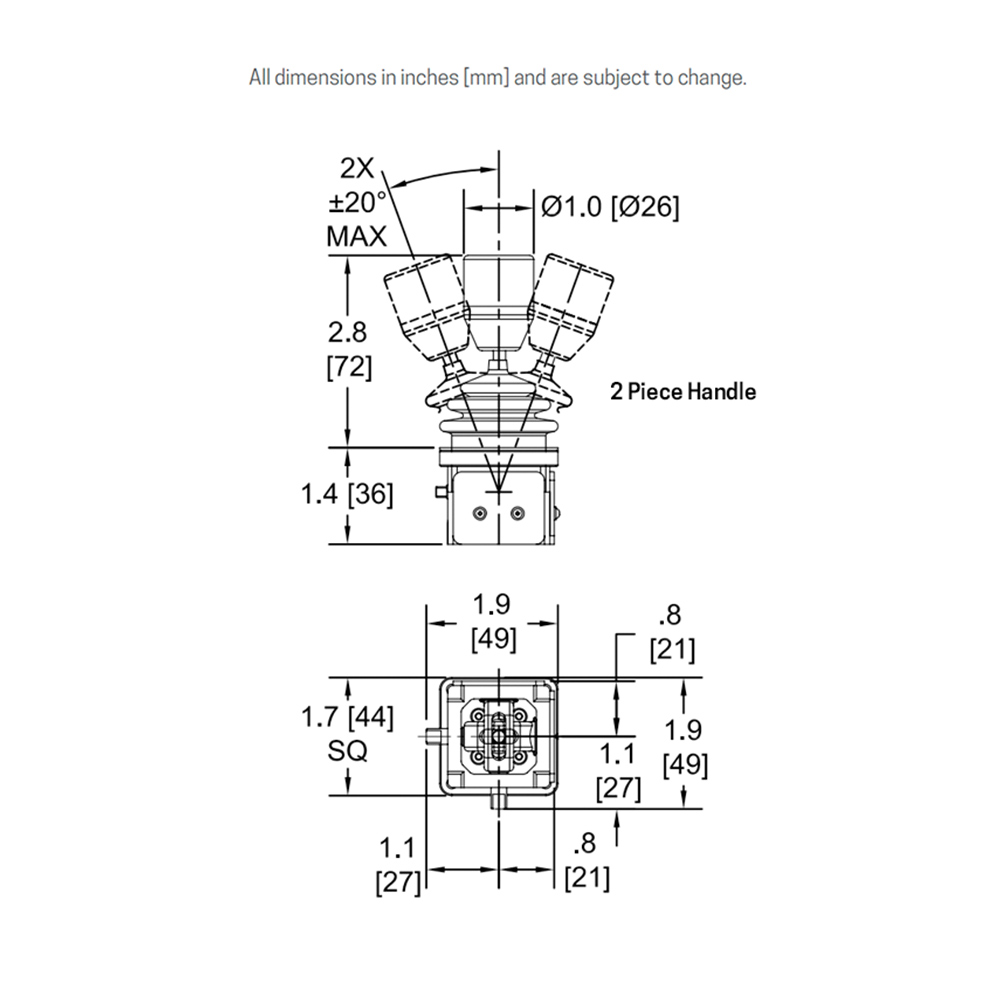

| Mounting Footprint | 1.9" x 1.9" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP55 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
