The M4 B/B is a compact finger operated joystick designed specifically for bang / bang (on / off) operation. Available in single or dual axis control, the M4 B/B features a glass-filled Zytel housing and non-ferrous components making it suitable for corrosive and hostile environments.
Inquire nowUltra-compact and rugged construction
Environmentally sealed mounting and corrosion resistant components
Light weight, ultra-strong Zytel housing
Non-biasing smooth operation with high life compression style spring return
High life V series snap action switches
1 N.O. - 1 N.C. each direction
| General Data | |
| # of Axis | Single or Dual |
| Output Options | Microswitches |
| Joystick Action | Spring Return |

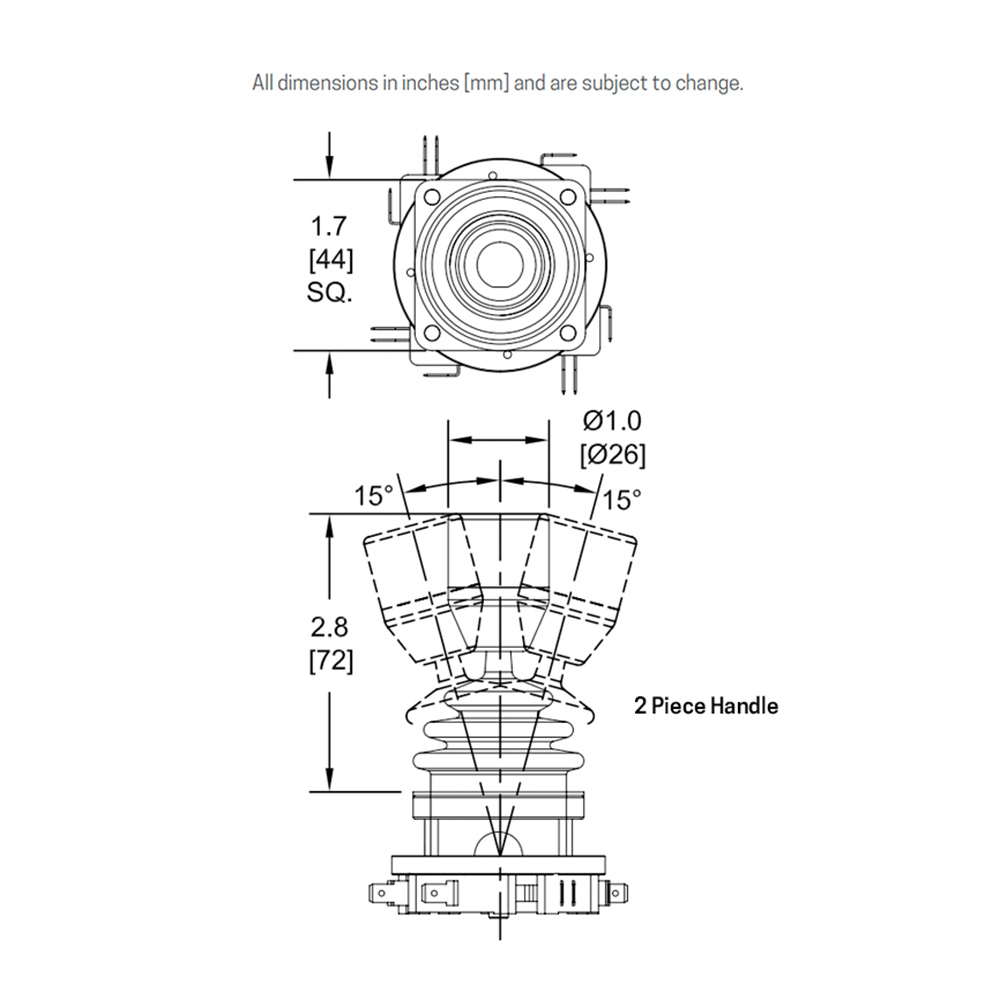

| Handle Travel | +/- 15 degrees each axis |
| Gate | Open or Cross |

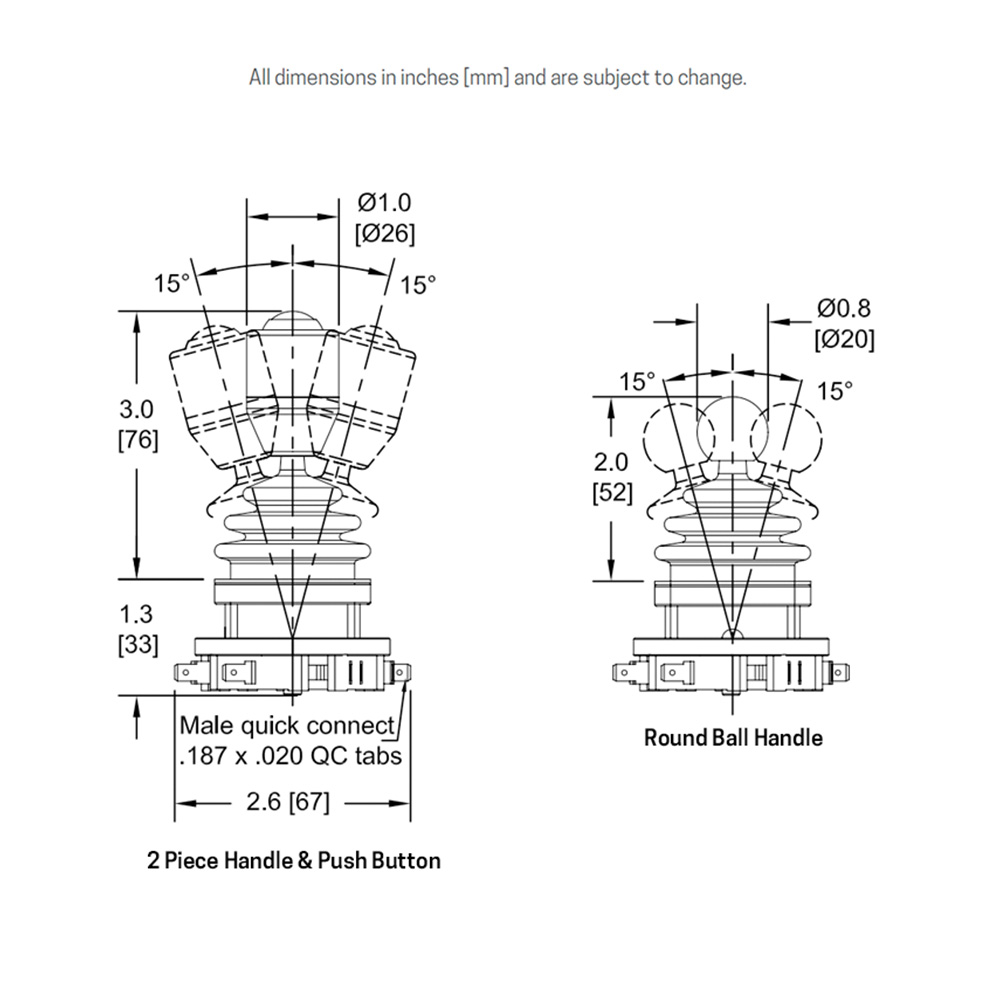

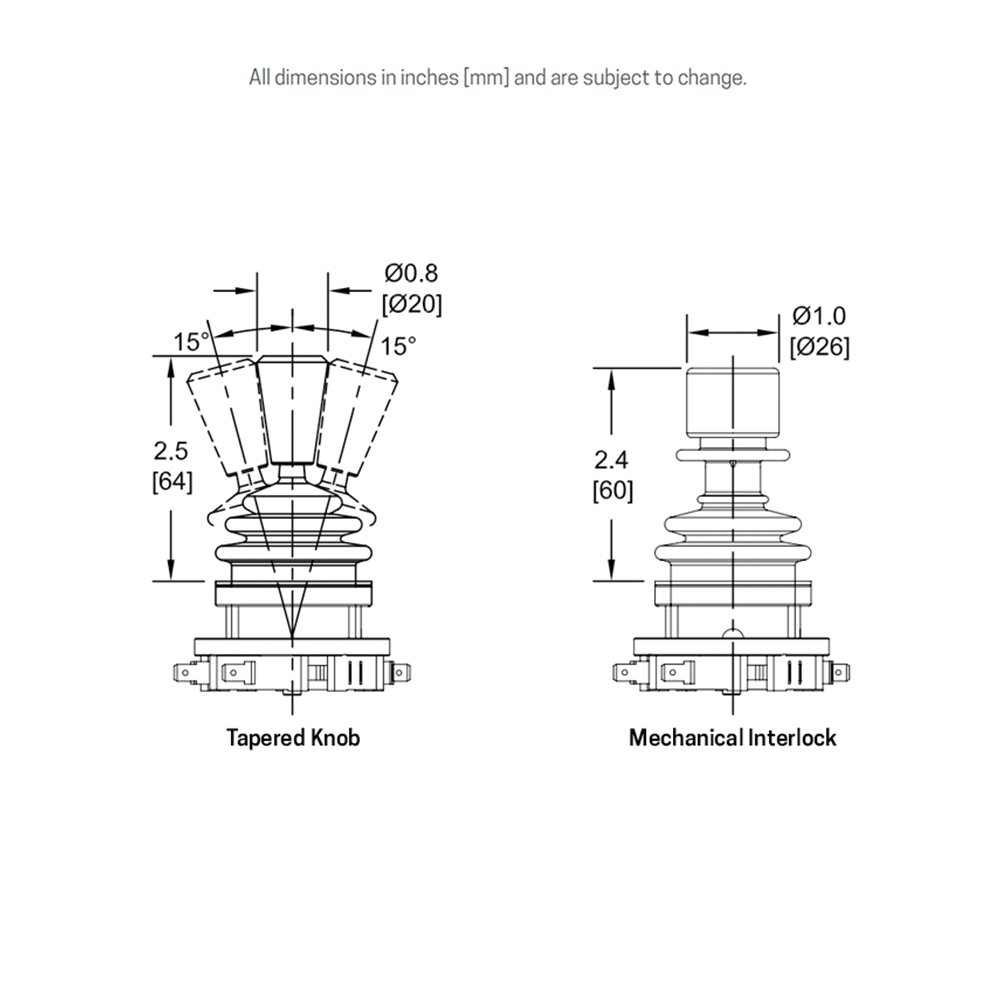

| Handle Compatibility | Tapered, 2 piece, push button, or mechanical interlock |
| Life | 20 million cycles |
| Materials | High strength, glass filled nylon housing. |
| Est. Shipping Weight | 2 lbs. |
| Est. Shipping Dimensions | 8 x 6 x 6 in. |
| Electrical Data | |
| Contact Specifications | Switch Type: SPDT (Form C) V Series Microswitches Max. Number: Up to 2 per axis Current Rating (AC): 11A Voltage Rating (AC): 250 Current Rating (DC): 6A Voltage Rating (DC): 12 - 24 Termination: .187" x .20" male quick connect Max. Wire Size: 18 AWG |
| Applications |
| For use in virtually any finger operated industrial or mobile equipment application. Typical utilized in: Radio control systems Portable consoles Mobile on / off-highway machinery In-plan process control And more |
| Mounting Data | |
| Mounting Style | Panel (from below) |

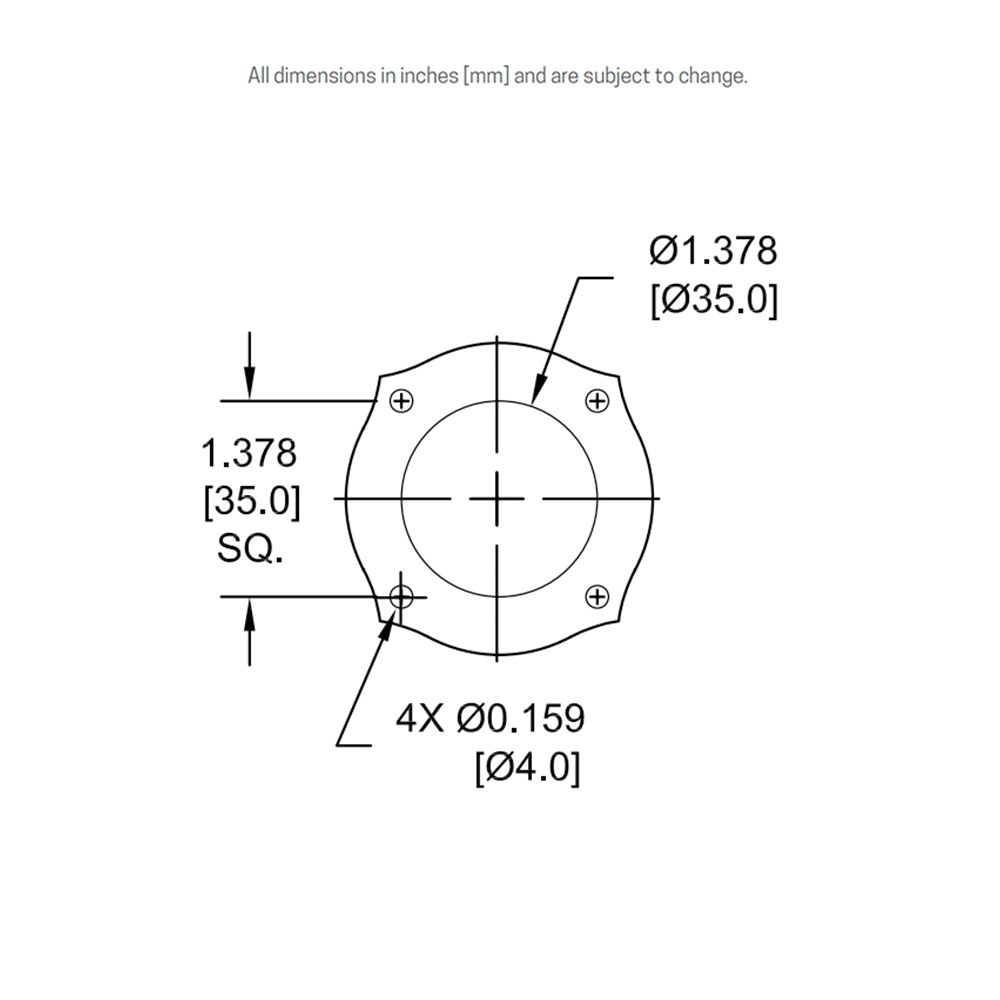

| Mounting Footprint | 1.9" x 1.9" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP54 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
