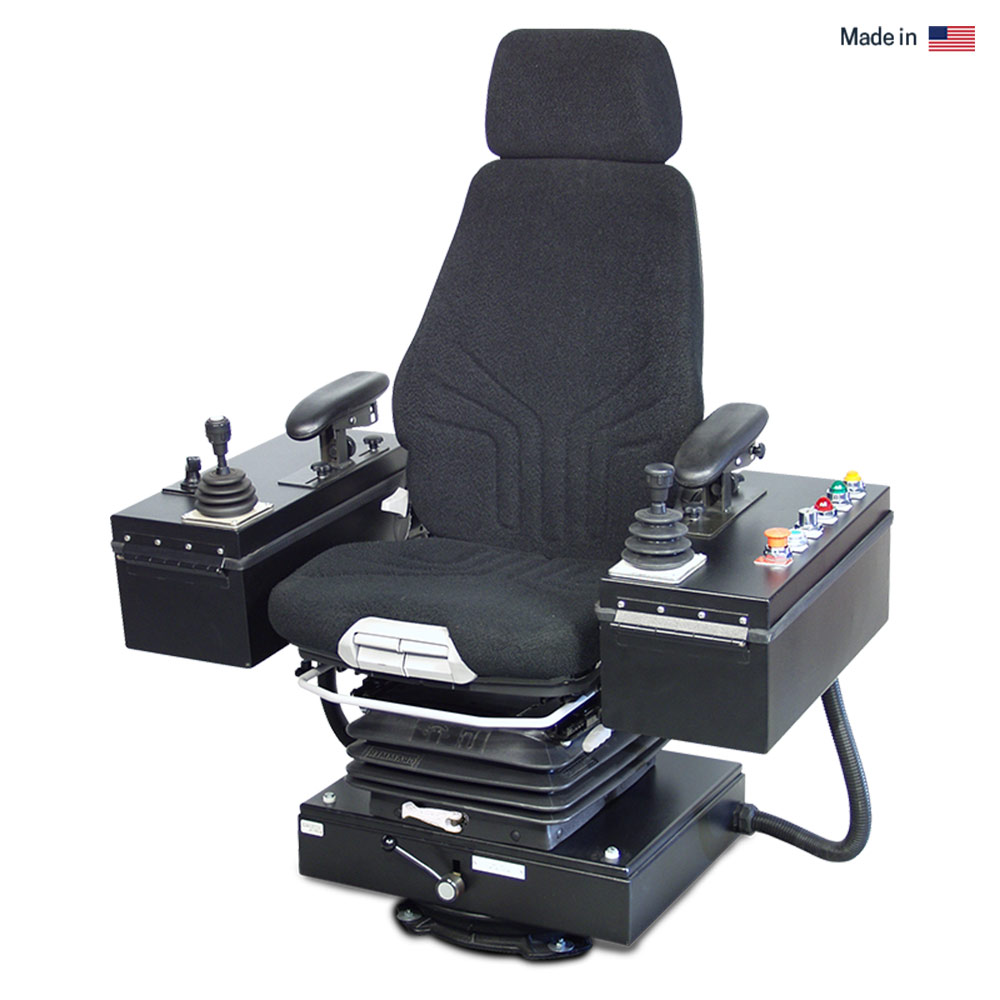

The industry standard for cranes and a range of cab-operated equipment, the Merritt Select (formerly FSA/FSAD & LFC/LRC) operator chair system offers a balance of adjustments and ruggedness in a field proven design.
Inquire nowRotating or fixed base with fixed, customizable consoles
Heavy-duty steel construction with black powder coat finish
Dual seat and console slide system that allows the consoles and seat to slide together or individually
Tilt, vertical and horizontal adjustable armrests
| Seat Options |
| ACTIMO SEAT : The Grammer Actimo operator seat offers a large range of quick and easily accessible adjustment features to adapt to most individuals in a range of applications. Standard features include field replaceable cushions, mechanical lumbar support, fore and aft seat slide adjustment, backrest tilt, cushion tilt, depth adjustment, and document pouch. |
| SEAT OPTIONS : Ultra-tough velour or vinyl seat upholstery Adjustable headrest Operator presence switch Lap seat belt with or without an electrical contact |
| Control Consoles |

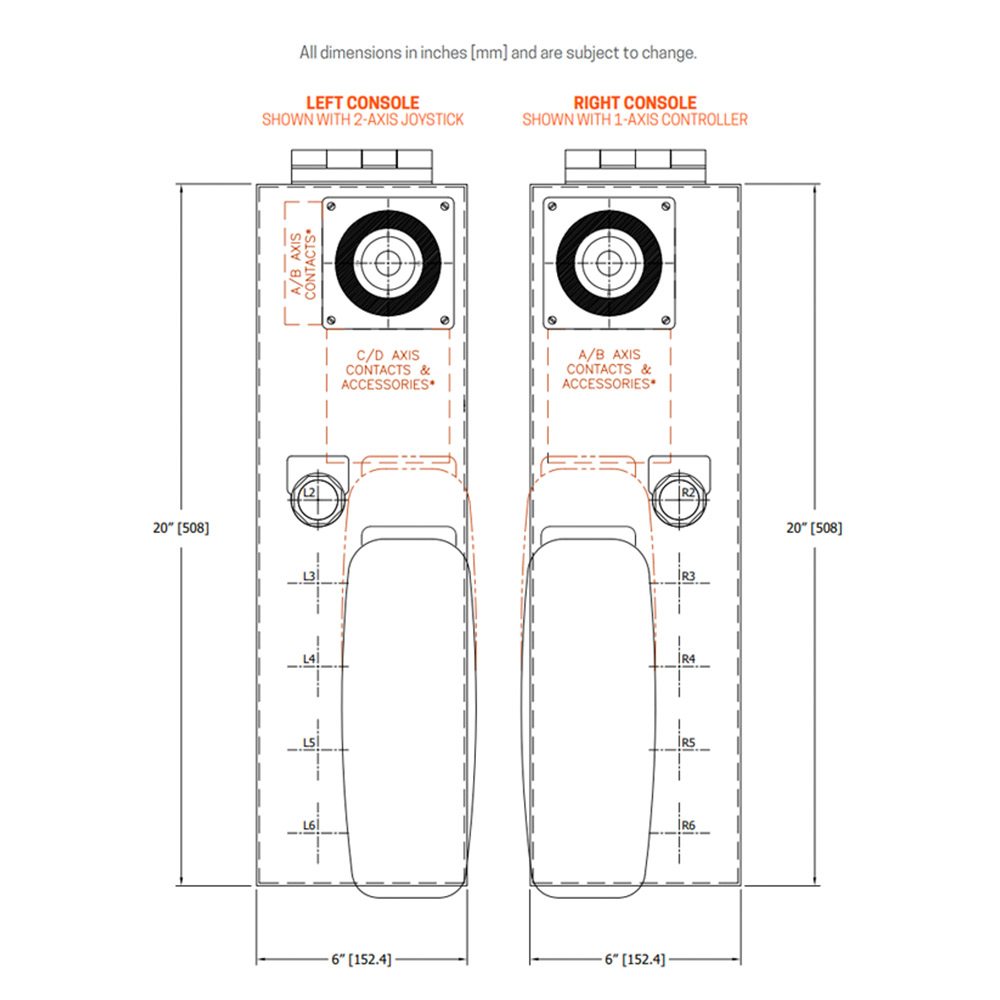

| 6" CONSOLE : Allows for 5 devices and 1 joystick. |

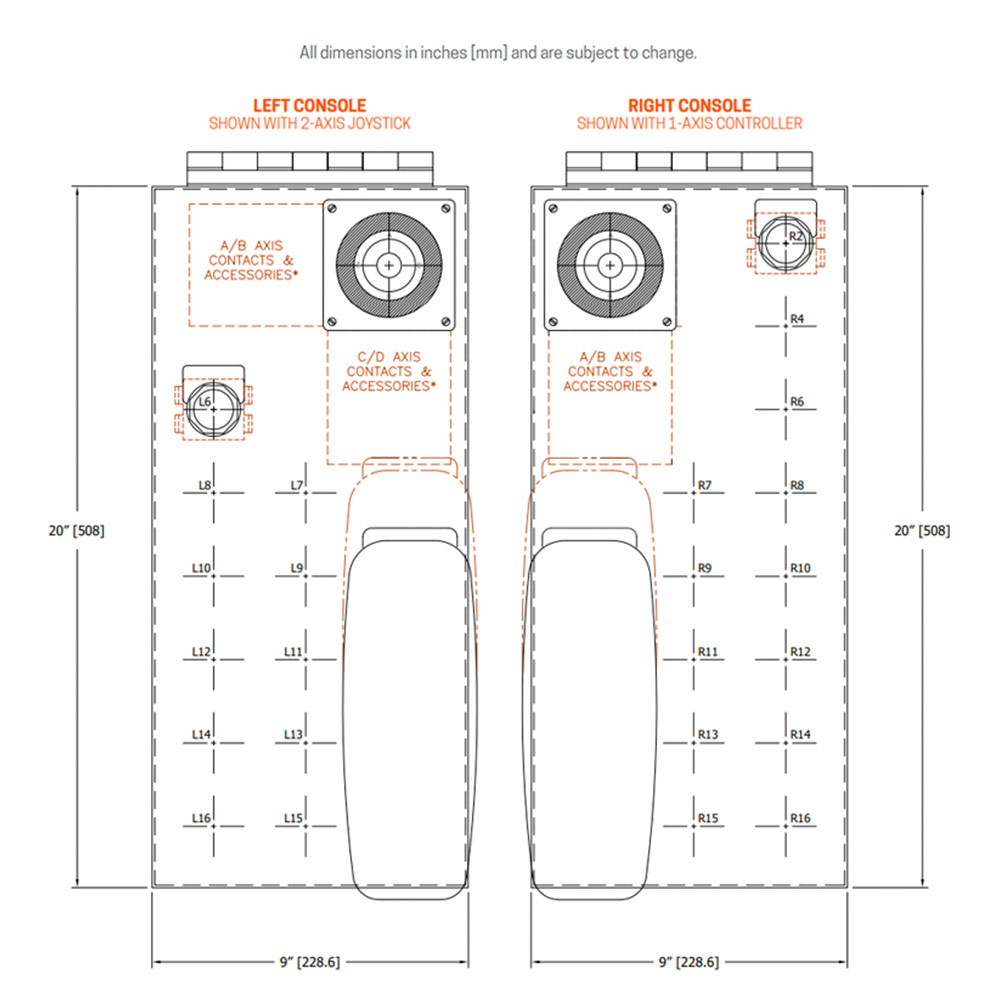

| 9" CONSOLE : Allows for 11 devices and 1 joystick or 8 devices and 2 (1-axis) joysticks. |
| 12" CONSOLE : Allows for 19 devices and 1 joystick or 15 devices and 2 joysticks. |

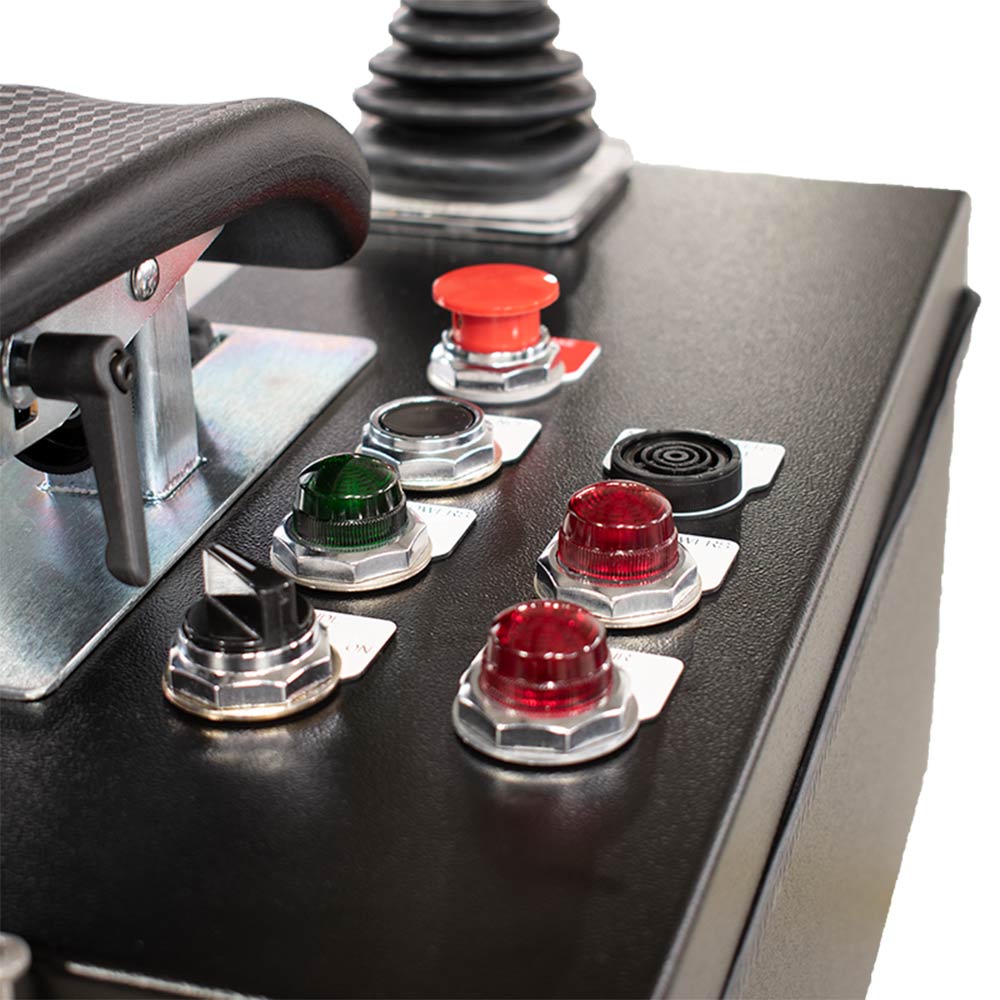

| CONSOLE OPTIONS : Custom-configured joysticks or controllers and pilot devices Flip-up consoles that allow for easy seat access where space is limited Louvers for console ventilation Stainless steel console covers for marine applications Console mounted cup holder on left and/or right console |
| General Data | |
| Unique Features | Industry standard for cranes Multitude of configurations |
| Console Width | 6", 9" or 12" |
| Max Number of Devices | 6" Console Up to 5 devices and 1 joystick 9" Console Up to 11 devices and 1 joystick or 8 devices and 2 (1-axis) joysticks 12" Console Up to 19 devices and 1 joystick or 15 devices and 2 joysticks |
| Seat Options | Actimo Seat (Velour or Vinyl) Options: Armrests with tilt and height adjustments 2-point retractable seat belt 4-point shoulder harness Operator presence switch |
| Suspension Options | Mechanical Suspensions: 4 Step w/ Lift Assist (weight up to 309 lbs) Heavy Duty (weight up to 400 lbs) Pneumatic (Air) Suspensions: Standard (weight up to 330 lbs) Wide (weight up to 375 lbs) Heavy Duty (weight up to 485 lbs) |
| Armrest Type | Console mounted armrests with tilt, height, and horizontal slide adjustments. |
| Footrest Option | 2-piece fixed footrest 1-piece (platform-style) fixed footrest |
| Est. Shipping Weight | 375 lbs. |
| Est. Shipping Dimensions | 60 in. x 45 in. x 52 in. |
| Adjustment Features | |
| System Rotation | Optional, up to 270 degrees |
| System Height | Yes |
| System Tilt | No |
| Consoles Slide Forward/Backward | Yes |
| Consoles Tilt | Optional, flip-up |
| Consoles - Slew In/Out | No |
| Armrests - Height | Yes |
| Armrests - Tilt | Yes |
| Armrests - Slide Forward / Backward | Yes |
| Seat - Slide Forward / Backward | Yes |
| Seat - Recline | Yes |
| Seat - Lumbar | Yes |
| Footrest - Height / Tilt | No |
| Technical Data | |
| Rotation Optional | 270 degrees max with pin lock or friction brake Pin Lock 4 locking positions (every 90 degrees). Positions can be customized. Friction Brake System holds throughout +/- 135 degrees of travel. |

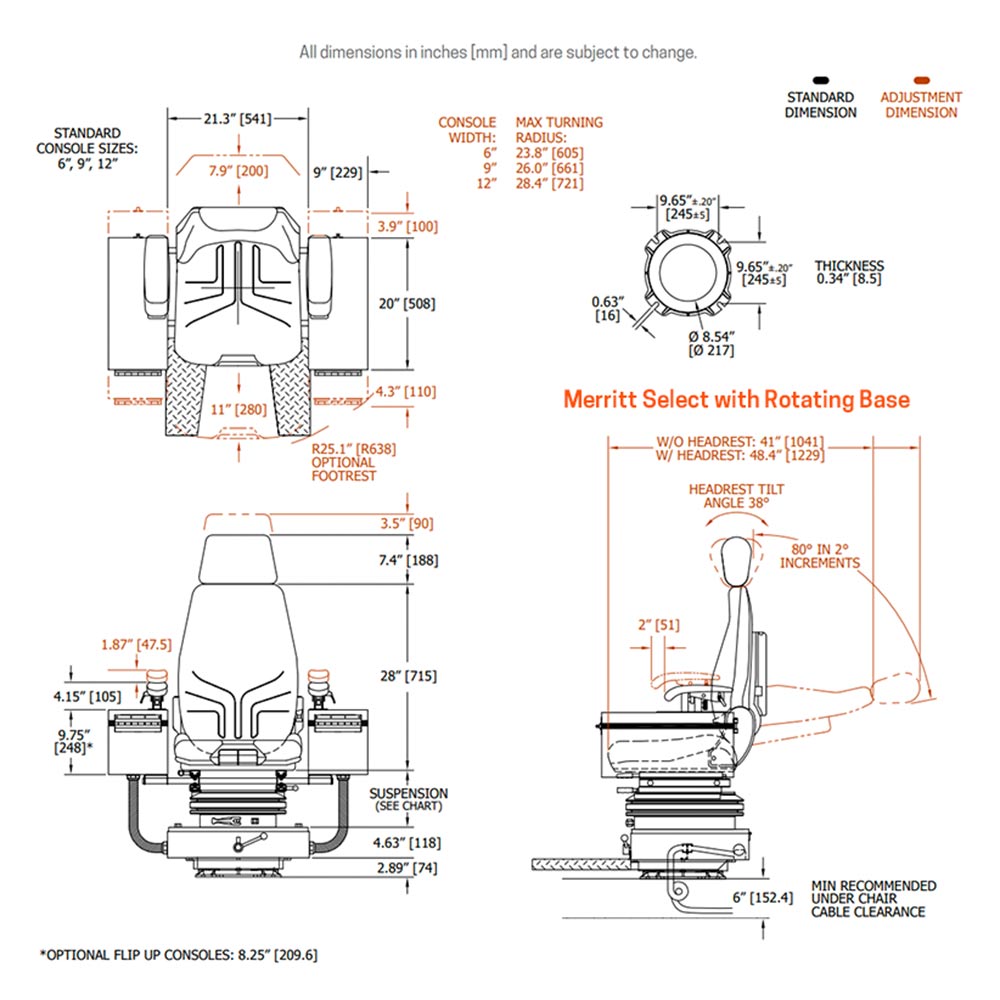

| Max Turning Radius | System with 6" Console: 23.8" [605 mm] System with 9" Consoles: 26.0" [661 mm] System with 12" Console: 28.4" [721 mm] |
| Slide Range | 16" [406 mm] total adjustment 8" [203 mm] seat slide range 8" [203 mm] seat and console slide range |
| Armrest Adjust Range | Tilt: -10 degrees (down), +5 degrees (up) Height: 1.87" [47.5 mm] Horizontal: 2" [51 mm] |
| Console Adjust Range | (Optional) Flips up for access to seat in restricted space applications |
| Backrest Recline | Actimo Seat 80 degrees 46 degrees with 4-point shoulder harness |
| Seat Cushion Adjust Range | Actimo Seat Depth: 2.4" [60 mm] in 5 increments forward Tilt: 3-11 degrees in 4 increments |
| Headrest Adjust Range | Actimo Seat Height adjustment: 3.5" [90 mm] Tilt: 38 degrees |
| Under Chair Cable Clearance | 6" [152.4 mm] Min |
