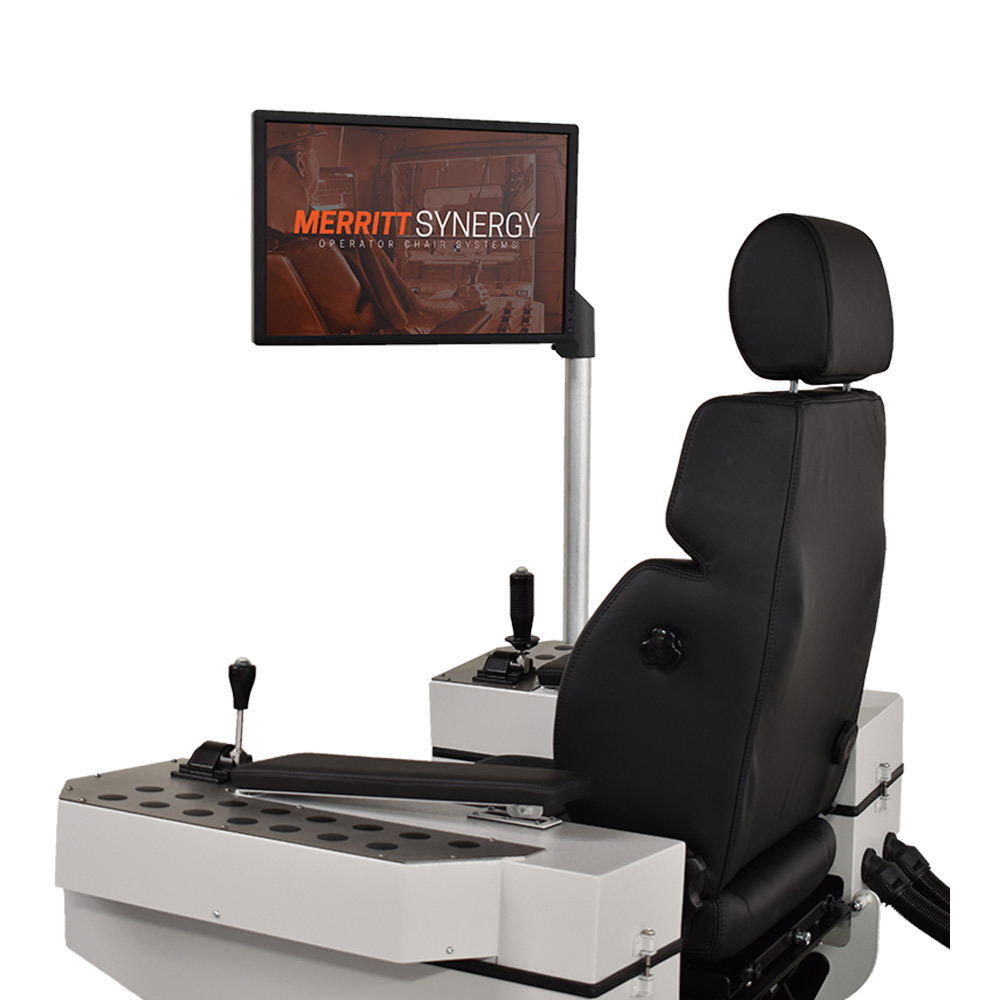

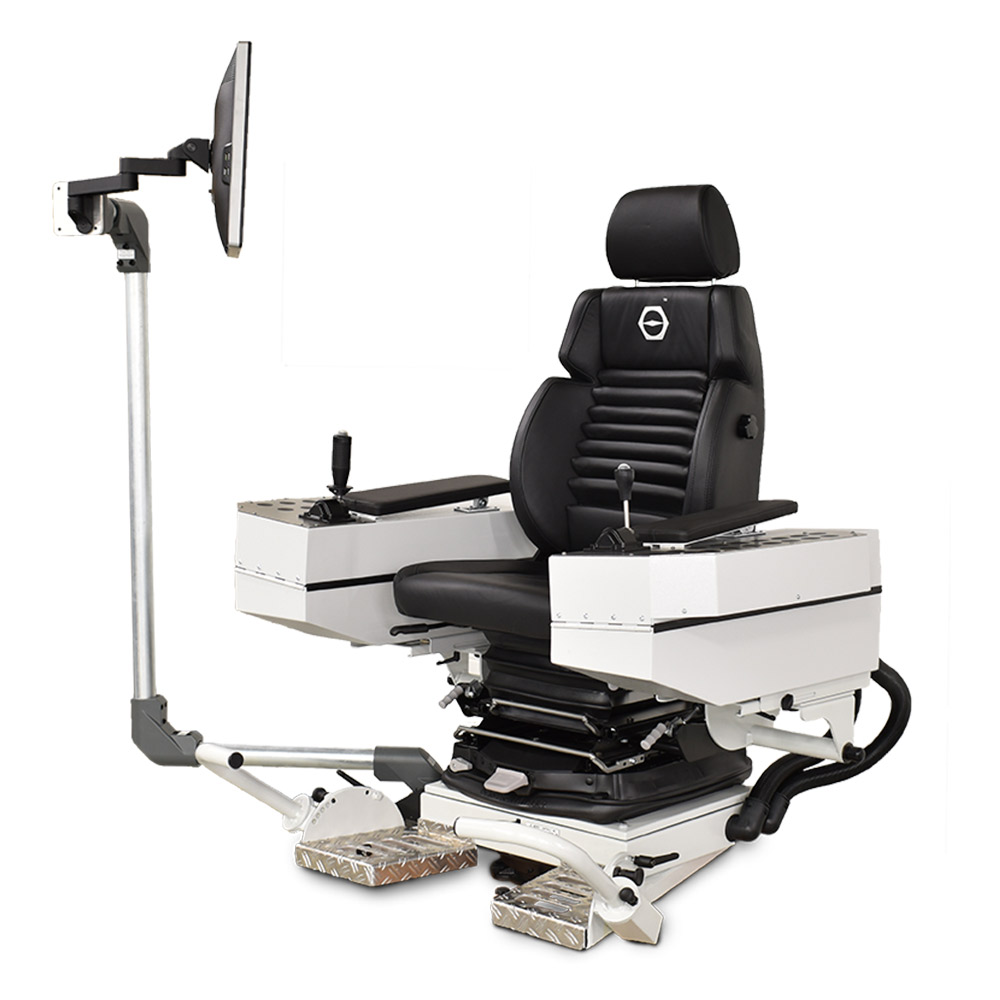

Combining superior comfort and adjustability, the Merritt Synergy line of operator chair systems brings ease-of-use and productivity to new heights.
Inquire nowThe MERRITT SYNERGY chair systems feature a multitude of adjustment capabilities to help optimize comfort and reduce stressful seating positions for operators of all statures, from less than five feet tall to well over six feet in height.
| Control Consoles |
| Standard 10" Consoles : Light grey customizable 10" console that allows for 8 button and 1 joystick placement or 6 buttons and 2 joysticks. |
| Standard 12" Console : Light grey customizable 12” console that allows 14 buttons and 1 joystick or 12 buttons and 2 joysticks. Gas shock assisted tilt and movement capabilities are activated by conveniently located push buttons or levers, simplifying and speeding up the adjustment process. Console mounted armrests with angle adjustment help provide the necessary upper body support for applications when the operator is required to lean forward. |
| Custom Sized : Custom consoles are available with widths up to 15” wide. Gas shock assisted tilt and movement capabilities are activated by conveniently located push buttons or levers, simplifying and speeding up the adjustment process. Console mounted armrests with angle adjustment help provide the necessary upper body support for applications when the operator is required to lean forward. |
| Console Options : Consoles can be customized with additional options to meet the needs of your application. Options include customized controllers, custom-wired-pilot devices, leather hand rests, cup holders, black paint and stainless steel covers. |
| General Data | |
| Unique Features | High level of adjustability Improved operator comfort |
| Console Width | 10", 12" or custom (up to 15") |
| Max Number of Devices | 10" Console Up to 8 devices and 1 joystick or 6 devices and 2 joysticks 12" Console Up to 14 devices and 1 joystick or 12 devices and 2 joysticks |
| Seat Options | Model: Actimo Seat (Velour or Vinyl) Options: Full cushion or u-cut cushion (Koenig seat only) Heated seat (leather Koenig only) Motorized seat recline (leather Koenig only) 2-point retractable seat belt 4-point shoulder harness Operator presence switch |
| Suspension Options | Mechanical Suspensions: Heavy Duty (weight up to 400 lbs) Pneumatic (Air) Suspensions: Wide (weight up to 375 lbs) Heavy Duty (weight up to 485 lbs) |
| Armrest Type | Console mounted, large armrests with 11 position tilt adjustment for optimal upper body support. Leather handrest also supplied standard. |
| Footrest Option | 2-piece fixed footrest with adjustable horns 2-piece fixed footrest |
| Est. Shipping Weight | 580 lbs. |
| Est. Shipping Dimensions | 60 in. x 45 in. x 52 in. |
| Adjustment Features | |
| System Rotation | Optional, up to 270 degrees |
| System Height | Yes |
| System Tilt | Yes |
| Consoles Slide Forward/Backward | Yes |
| Consoles Tilt | Yes |
| Consoles - Slew In/Out | Yes |
| Armrests - Height | Yes |
| Armrests - Tilt | Yes |
| Seat - Slide Forward / Backward | Yes |
| Seat - Recline | Yes |
| Seat - Lumbar | Yes |
| Footrest - Height / Tilt | Yes |
| Seat Options |
| The Actimo operator seat offers a large range of quick and easily accessible adjustment features to adapt to most individuals in a range of applications. Standard features include mechanical lumbar support and ultra-tough velour or vinyl upholstery along with fore and aft seat slides, backrest tilt, cushion tilt, depth adjustment, document pouch and adjustable headrest. |
| Actimo options 2-point retractable seat belt and 4-point shoulder harness tilt adjustable armrests operator present switch black leather upholstery with our without heat and ventilation |
| Technical Data | |
| Rotation Optional | 270 degrees max with pin lock or friction brake operation Pin Lock 4 locking positions (every 90 degrees). Positions can be customized. Friction Brake System holds throughout +/- 135 degrees of travel. |
| Max Turning Radius | System with 10" Console: 30.5" [775 mm] System with 12" Console: 33.1" [840 mm] |
| Slide Range | 23.4" [595 mm] total adjustment 15.6" [400 mm] seat slide range 7.8" [200 mm] seat and consoles slide range |
| Scissor Adjust Range | Height: adjustable to 3.2" [80 mm] Tilt: adjustable to 14 degrees |
| Armrest Adjust Range | Tilt / height adjustment: 11 positions, 5 - 30 degrees |
| Console Adjust Range | Tilt: -20 degrees (down), +50 degrees (up) Slew: 5 degrees (in), 10 degrees (out) Slide: +/-1.97" [50 mm] |
| Backrest Recline | Actimo Seat 80 degrees 46 degrees with 4-point retractable harness |
| Seat Cushion Adjust Range | Actimo Seat Depth: 2.4" [60 mm] in 5 increments forward Tilt: 3-11 degrees in 4 increments |
| Headrest Adjust Range | Actimo Seat Height adjustment: 3.5" [90 mm] Tilt: 38 degrees |
| Under Chair Cable Clearance | 6" [152.4 mm] Min |
