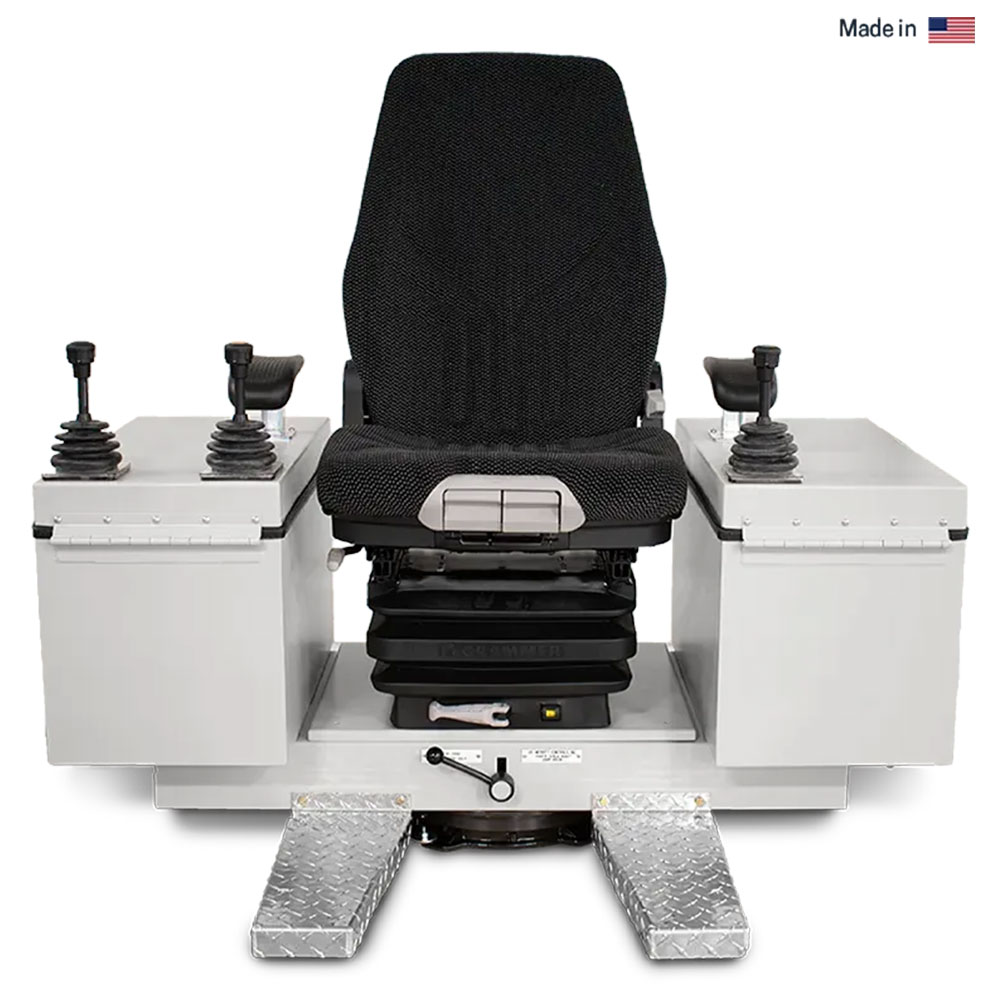

The Merritt Ultra (formerly SV1C) consists of a rigid, heavy duty construction and oversized consoles to house a multitude of joysticks, controllers, and pilot devices. The heavy duty operator chair system also features a range of manual seat adjustments for positioning flexibility.
Inquire nowHeavy-duty steel construction with beige powder coat finish
A range of seat adjustments for positioning flexibility
Rotating or fixed chair system base

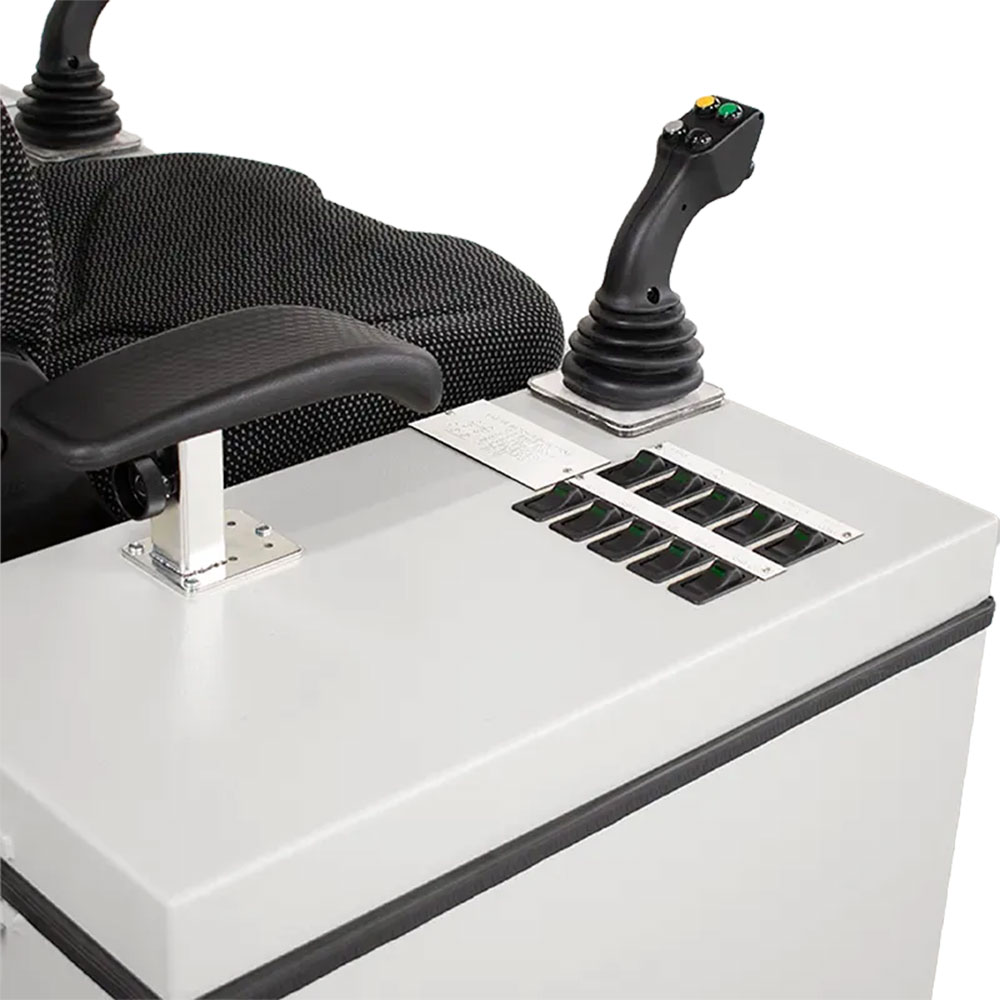

Highly customizable, oversized consoles
Height adjustable, console-mounted armrests
| Seat Options |
| ACTIMO SEAT : The Grammer Actimo operator seat offers a large range of quick and easily accessible adjustment features to adapt to most individuals in a range of applications. Standard features include field replaceable cushions, mechanical lumbar support, fore and aft seat slide adjustment, backrest tilt, cushion tilt, depth adjustment, and document pouch. |
| Seat Options : Ultra tough velour or vinyl seat upholstery Adjustable headrest Additional seat slide for extended horizontal movement up to 16" Lap seat belt with or without an electrical contact Operator presence switch Seat-mounted armrests |
| Control Consoles |
| 9" Console : Allows for 13 devices and 1 joystick. |
| 12.5" Console : Allows for 24 devices and 1 joystick or 22 devices and 2 (1-axis) joysticks. |
| 13.5" Console : Allows for 27 devices and 1 joystick or 23 devices and 2 joysticks. |
| 15" CONSOLE : Allows for 33 devices and 1 joystick or 31 devices and 2 joysticks. |

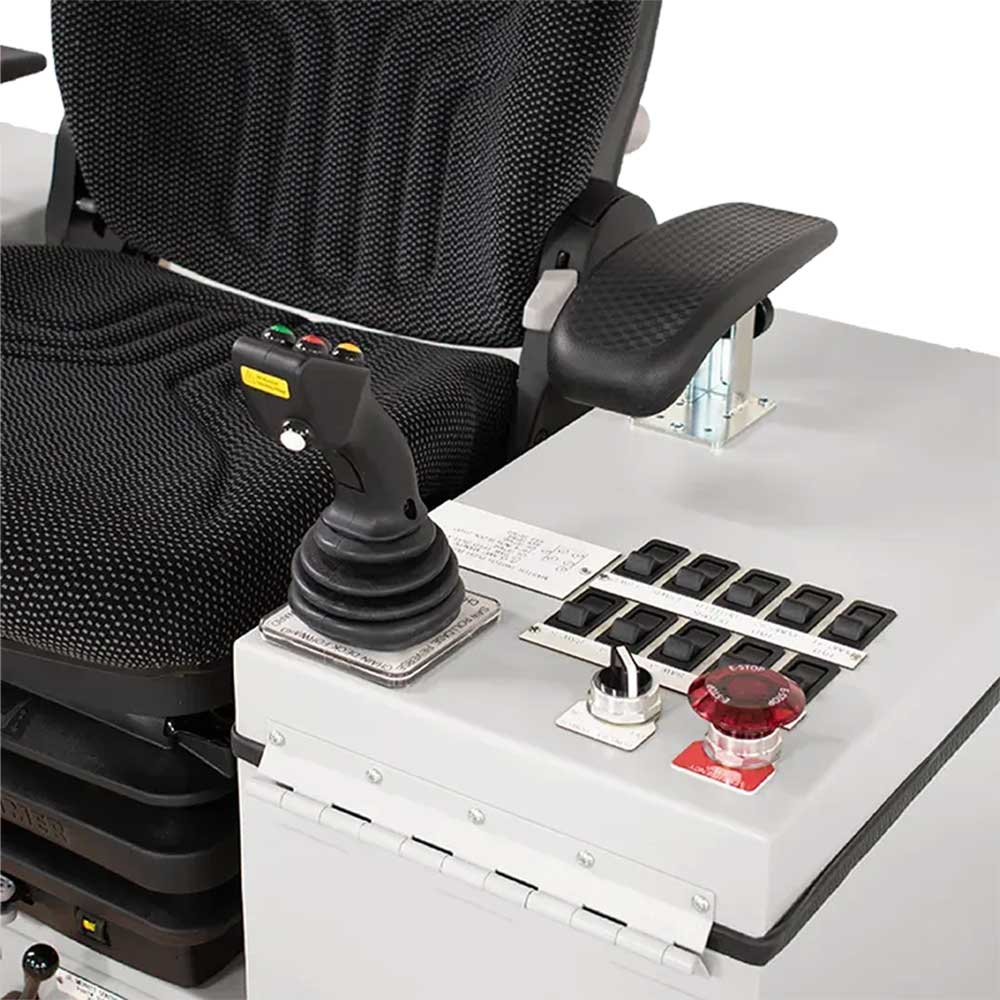

| Console Options : Custom-configured joysticks or controllers and pilot devices Louvers for console ventilation Forward and backward horizontal console slide adjustment Forward sloped console covers (13.5” or 15” only) Stainless steel console covers for marine applications |
| General Data | |
| Unique Features | Highly rugged design Oversized consoles for large number of devices |
| Console Width | 9", 12.5", 13.5" or 15" Forward sloping consoles also available in 13.5" and 15" sizes |
| Max Number of Devices | 9" Console Up to 13 devices and 1 joystick 12.5" Console Up to 24 devices and 1 joystick or 22 devices and 2 (1-axis) joysticks 13.5" Console Up to 27 devices and 1 joystick or 23 devices and 2 joysticks 15" Console Up to 33 devices and 1 joystick or 31 devices and 2 joysticks |
| Seat Options | Actimo Seat (Velour or Vinyl) Options: Armrests with tilt and height adjustments 2-point retractable seat belt 4-point shoulder harness Operator presence switch |
| Suspension Options | Mechanical Suspensions: 3 Step (weight up to 285 lbs) Heavy Duty (weight up to 400 lbs) Pneumatic (Air) Suspensions: Standard (weight up to 330 lbs) Wide (weight up to 375 lbs) Heavy Duty (weight up to 485 lbs) |
| Armrest Type | Console mounted armrests with height adjustment. |
| Footrest Option | 2-piece fixed footrest 1-piece (platform-style) fixed footrest |
| Est. Shipping Weight | 490 lbs. |
| Est. Shipping Dimensions | 60 in. x 45 in. x 52 in. |
| Adjustment Features | |
| System Rotation | Optional, up to 270 degrees |
| System Height | Yes |
| System Tilt | No |
| Consoles Slide Forward/Backward | Optional |
| Consoles Tilt | No |
| Consoles - Slew In/Out | No |
| Armrests - Height | Yes |
| Armrests - Tilt | No |
| Armrests - Slide Forward / Backward | No |
| Seat - Slide Forward / Backward | Yes |
| Seat - Recline | Yes |
| Seat - Lumbar | Yes |
| Footrest - Height / Tilt | No |
| Technical Data | |
| Rotation Optional | 270 degrees max with pin lock or friction brake Pin Lock 4 locking positions (every 90 degrees). Positions can be customized. Friction Brake System holds throughout +/- 135 degrees of travel. |

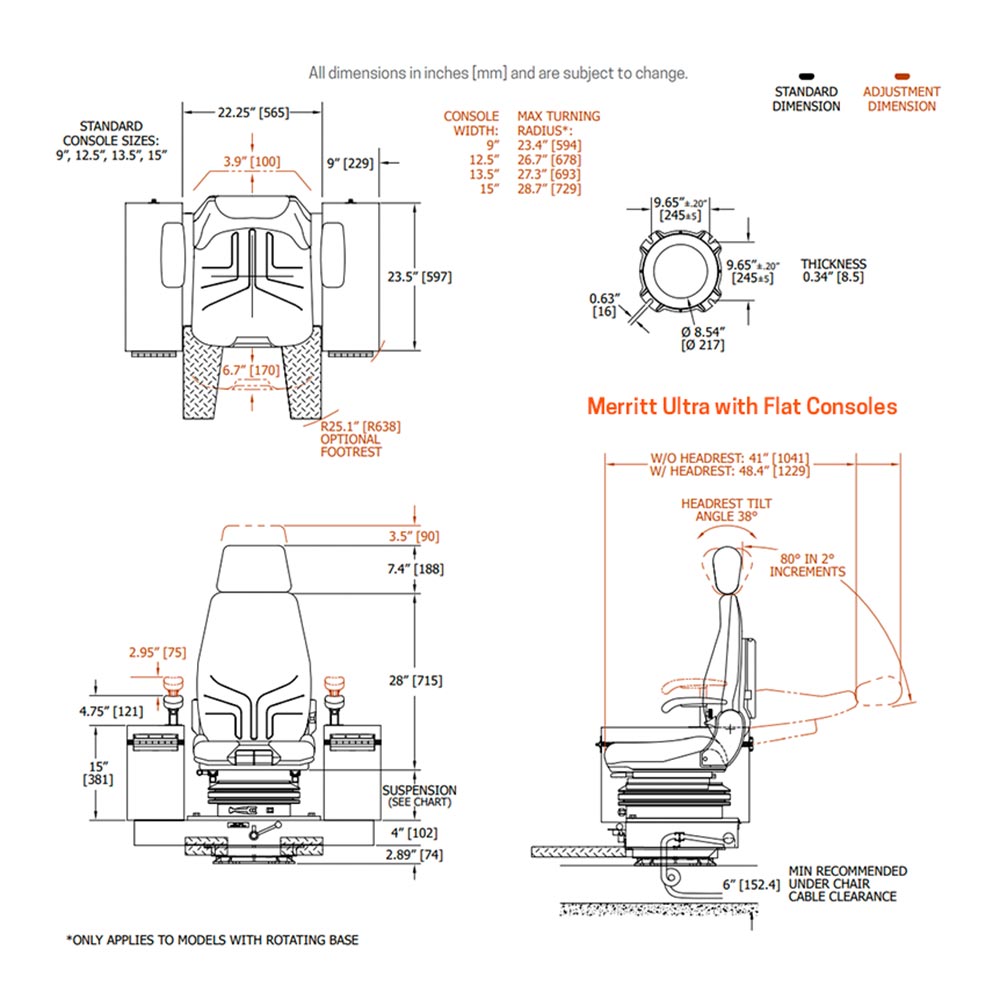

| Max Turning Radius | System with 9" Consoles: 23.4" [594 mm] System with 12.5" Consoles: 26.7" [678 mm] System with 13.5" Consoles: 27.3" [693 mm] System with 13.5" Forward Sloped Consoles: 28.1" [715 mm] System with 15" Consoles: 28.7" [729 mm] System with 15" Forward Sloped Consoles: 29.5" [748 mm] |
| Slide Range | 8" [203 mm] single seat slide range 16" [406 mm] dual seat slide range (optional) |
| Armrest Adjust Range | Height: 3.5" [75 mm] |
| Console Adjust Range | 8" [203 mm] console slide range (optional) |
| Backrest Recline | Actimo Seat 80 degrees 46 degrees with 4-point shoulder harness |
| Seat Cushion Adjust Range | Actimo Seat Depth: 2.4" [60 mm] in 5 increments forward Tilt: 3-11 degrees in 4 increments |
| Headrest Adjust Range | Actimo Seat Height adjustment: 3.5" [90 mm] Tilt: 38 degrees |
| Under Chair Cable Clearance | 6" [152.4 mm] Min |
