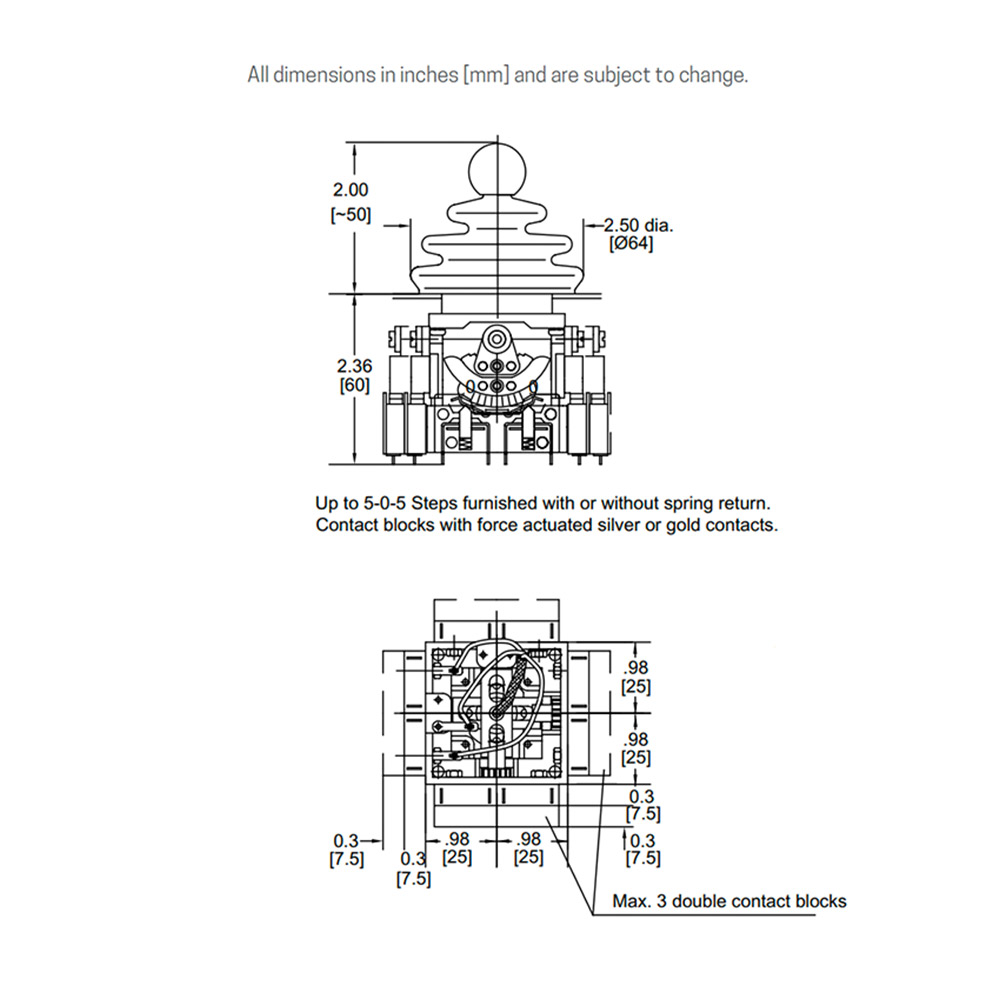

The MO finger operated joystick features an ultra-compact and rugged construction. Available in single or dual axis, the MO mini joystick can be configured with different handle types and with microswitch or potentiometer output.
Inquire nowEnvironmentally sealed
Center acting compression return spring
Standard and custom handle patterns
Proportional potentiometric
5-0-5 steps
Applications : The MO is commonly used to control material handling and processing machinery in a variety of industries. Also used in portable consoles and pendants for remote control.
| General Data | |
| # of Axis | Single or Dual |
| Output Options | Microswitches & Potentiometer |
| Joystick Action | Spring Return or Friction Brake |

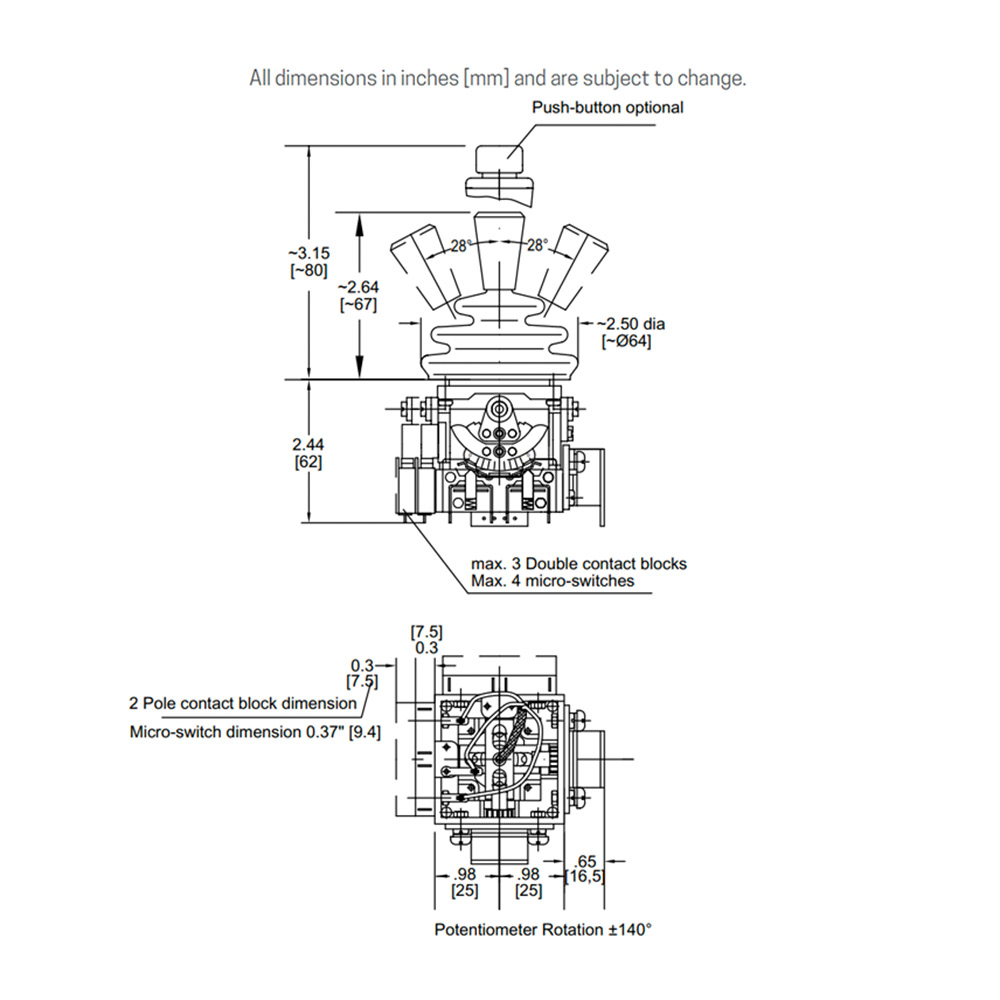

| Handle Travel | +/- 28 degrees each axis |
| Gate | Open or Cross |
| Max # of Steps | Up to 5-0-5 |
| Handle Compatibility | Tapered, round ball, push button or mechanical interlock |
| Life | 3-5 million cycles each direction |
| Materials | High strength, glass filled nylon housing. |
| Est. Shipping Weight | 2 lbs. |
| Est. Shipping Dimensions | 8 in. x 6 in. x 6 in. |
| Electrical Data | |
| Contact Specifications | Switch Type: SPDT (Form C) SS Series Microswitches Max. Number: Up to 4 per axis with potentiometer Up to 8 per axis without potentiometer Current Rating (AC): 5A Voltage Rating (AC): 250 Termination: .110 x .20" quick disconnect Max. Wire Size: 18 AWG |
| Mounting Data | |
| Mounting Style | Panel (from below) |
| Mounting Footprint | 2.5" x 2.5" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP54 |
| Operating Temperature | -4 to +140 degrees F [-20 to +60 degrees C] |
