Shares the VNSO's robust construction, but with a larger 12 mm shaft diameter and the option to mount potentiometers on the inside of its body for applications with space restriction. The NNSO are very robust joysticks with aluminum pressure casting consoles and metal gears. Their resistance against ozone, UV radiation, oil and maritime climate makes them especially suitable for heavy operations and in Ex-areas.
Inquire nowRugged construction with nickel chromium gimbal mechanism, case hardened bearings and operating shaft
Robust 12 mm diameter shaft for the most demanding machinery applications
Supports horizontal, vertical and tandem mounting of contact drives to suit the available installation space
Option for potentiometers to be mounting on the inside of the body for installation in tight areas
Stepless or stepped control with a large variety of output devices and types available
Environmentally sealed panel mounting
Applications : The NNS0 is applicable in a wide array of operations thanks to its resistance to ozone, UV radiation, oil and maritime climates.
| General Data | |
| # of Axis | Single, Dual or Three* *Third axis is achieved via a twist handle function or thumbwheel. |
| Output Options | Contacts, Potentiometer, Encoder, 4-20mA, Transformer, ProfiBus & ProfiNet |
| Joystick Action | Spring Return, Friction Brake or Maintained |
| Handle Travel | +/- 26 degrees each axis |
| Gate | Open, Cross or Custom |
| Max # of Steps | Up to 7-0-7 |
| Life | 25 million cycles |
| Materials | Aluminum body and nickel chronium yoke. |
| Mounting Data | |

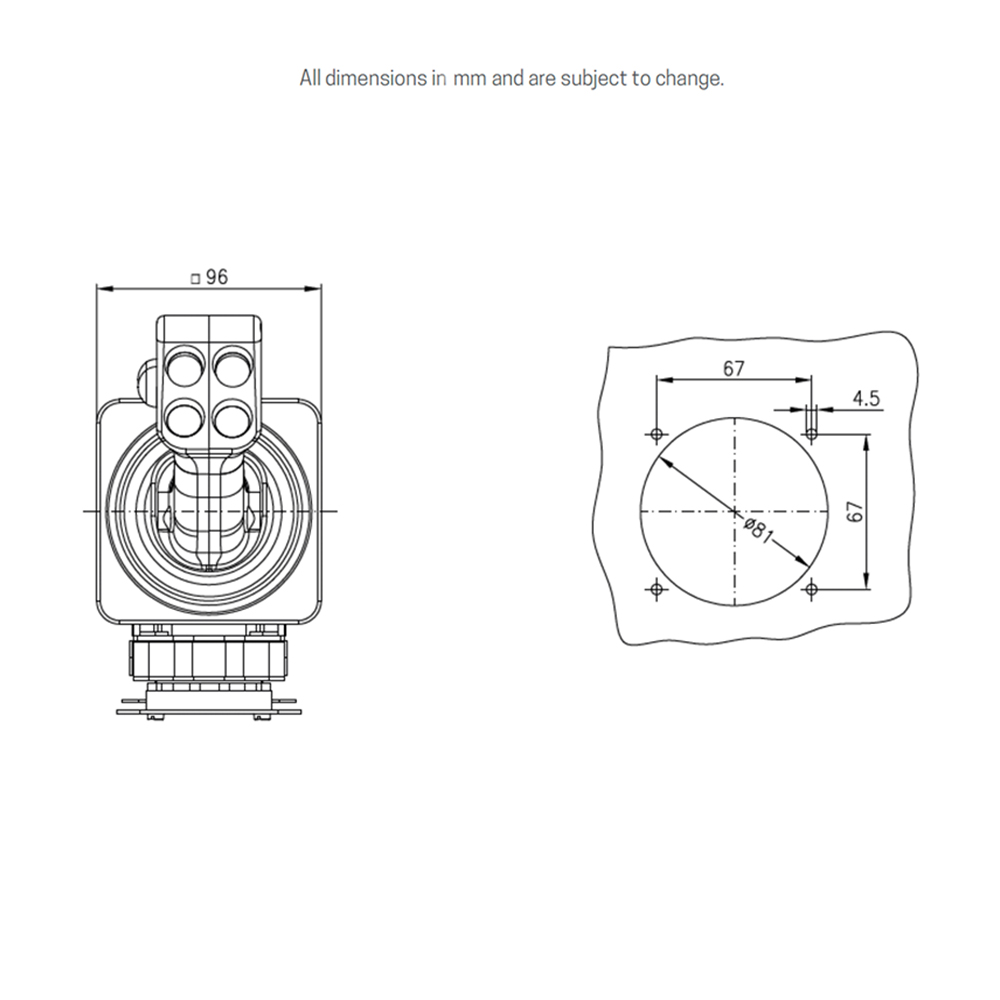

| Mounting Style | Panel (from below) |
| Environmental Data | |
| IP Rating | IP54 |
| Storage Temperature | -40 to +140 degrees F [-40 to +60 degrees C] |
