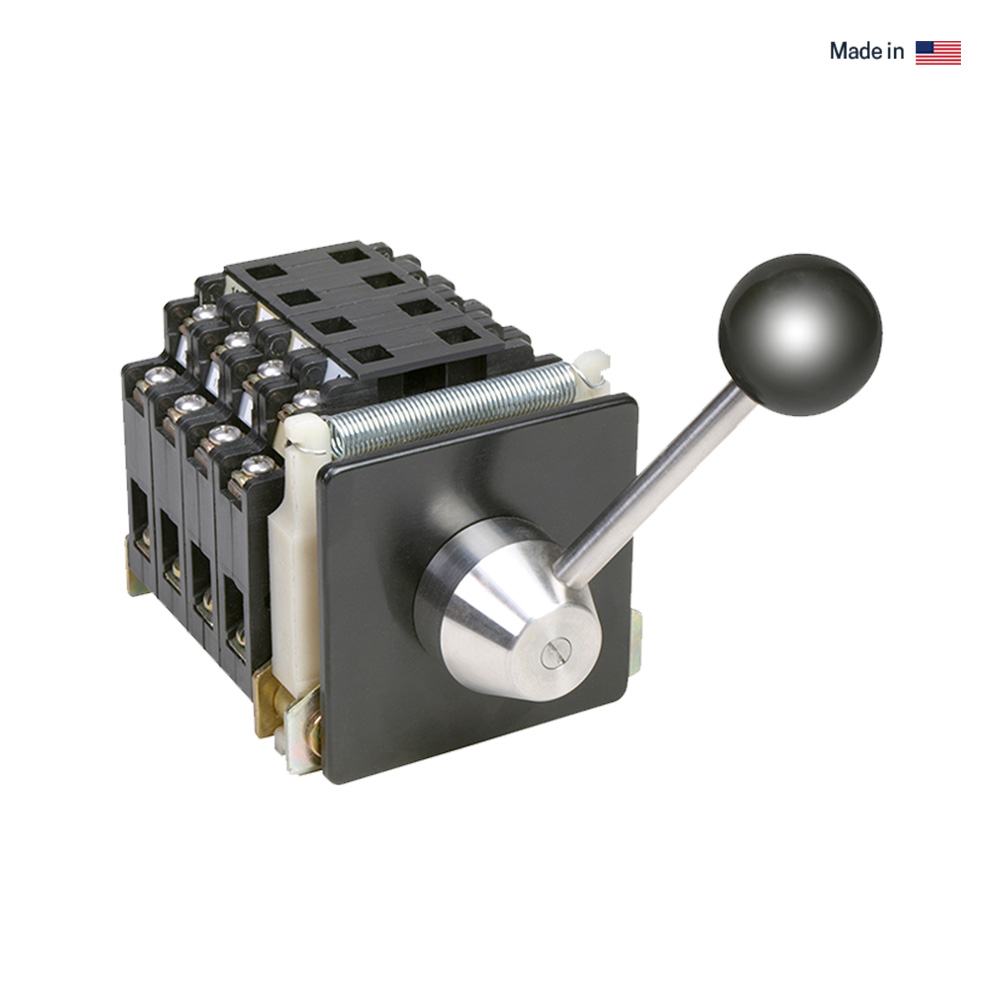

NS2-0/NSB2-0 Rotary Master Switch features the same rugged design components and versatility as the NS2/NSB2 series of Joysticks.
Inquire nowRugged construction with brass bearings and square steel operating shaft.
High design flexibility with combination of custom programmable contacts, detents, spring return, potentiometers and electronics.
Precise step control with up to 7-0-7.
| Applications |
| The NS2-0/NSB2-0 provides directional, precise proportional speed and step control of AC/DC variable speed drives. Applications include In-plant Process Control, Mining Vehicles, Conveyor and Lift Systems. |
| Lift/drop magnet control |
| In-plant process control |
| Conveyor and lift systems |
| Steel & aluminum rolling mills |
| And more |
| General Data | |
| Output Options | AC or DC Contacts, Potentiometer, Encoder & Transformer |
| Handle Action | Spring Return, Friction Brake or Maintained |
| Handle Travel | 0-330 degrees Max. handle action in cast enclosure +/- 120 degrees |
| Max of Steps | Up to 7-0-7 or 0-16 positions |
| Handle Compatibility | Teardrop & chrome steel ball lever |
| Life | 10 million cycles |
| Materials | Aluminum body and nickel chronium yoke. |
| Est. Shipping Weight | 15-23 lbs. |
| Est. Shipping Dimensions | 24 in. x 12 in. x 12 in. |

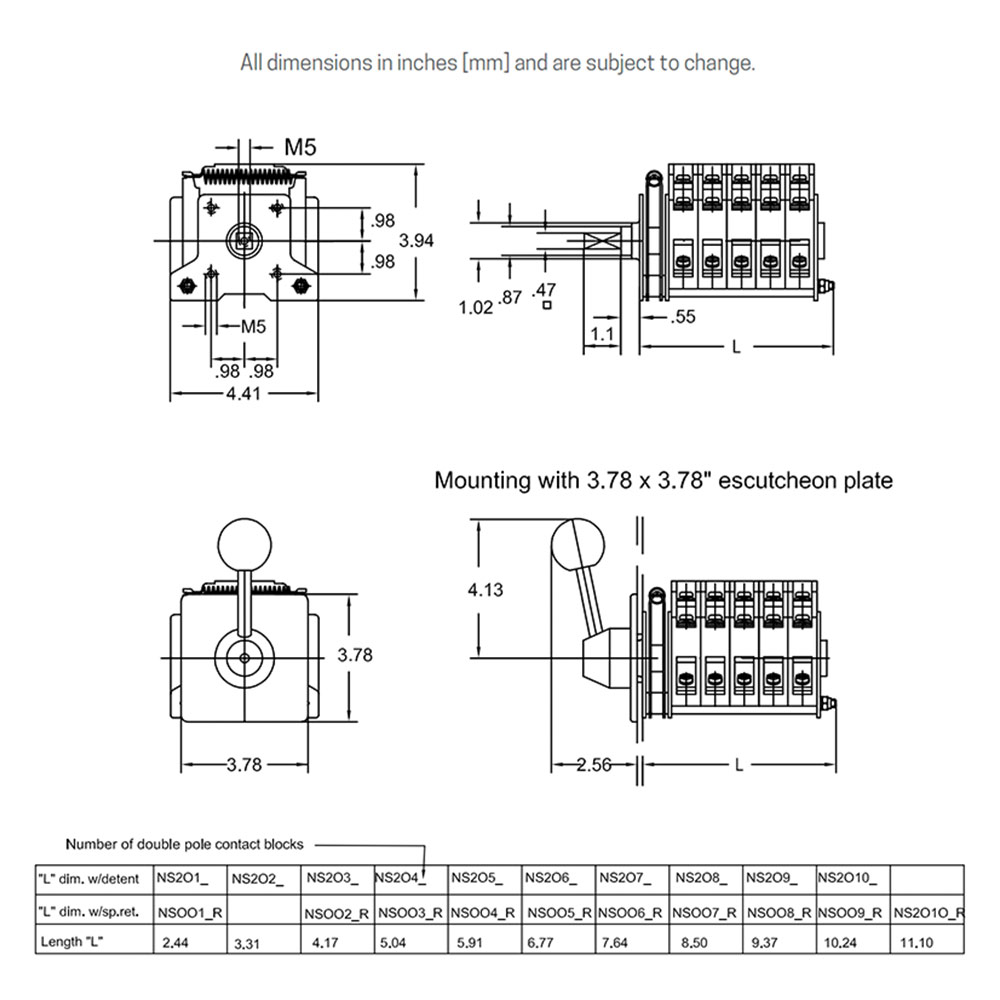

| Mounting Data | |
| Mounting Style | Panel (from below) |

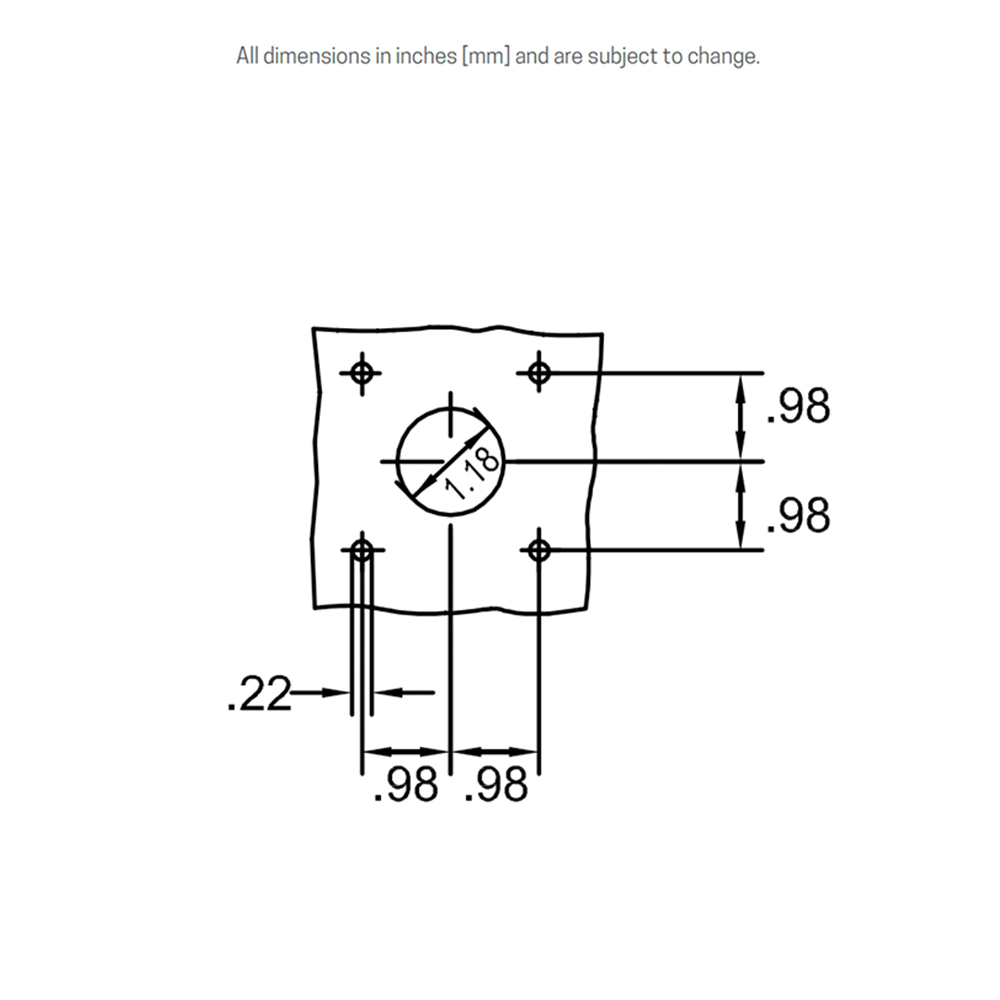

| Mounting Footprint | 4" x 4" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | Up to IP66 / Nema 4x (with cast enclosure & round nameplate) |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
| Electrical Data | |
| Switch Type | Double Pole Contact Blocks |
| Max. Number | Up to 10 contact blocks (20 circuits) |
| Max. Switching Capacity | Making - 160 amps Breaking - (0.7PF) 240V 160 amps |
| Rating (AC) NS2-0 | Continuous 25 amps @ 600V Resistive 20 amps @ 240V Inductive 14 amps @ 240V |
| Rating (DC) NSB2-0 | Resistive 5 amps @ 250V Inductive 2 amps @ 250V |
| Termination | Saddle Clamp |
| Max. Wire Size | 12 AWG |
