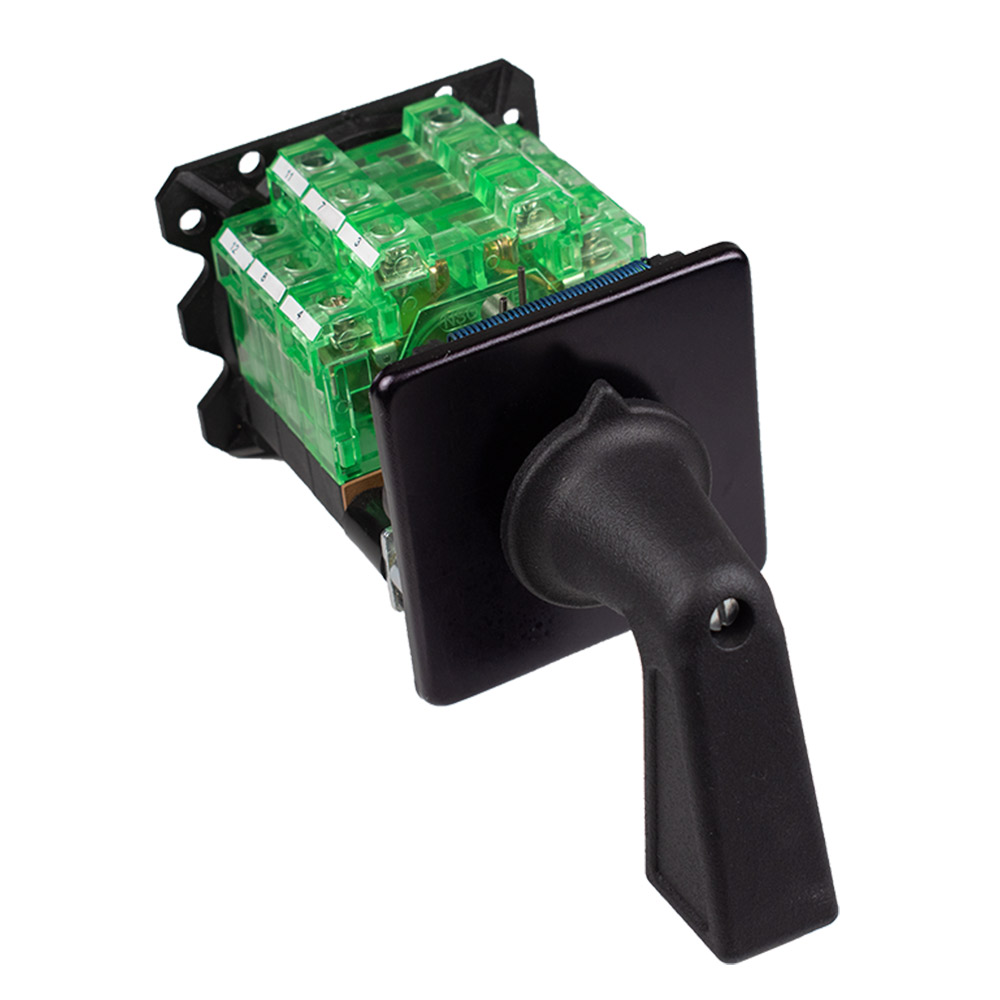

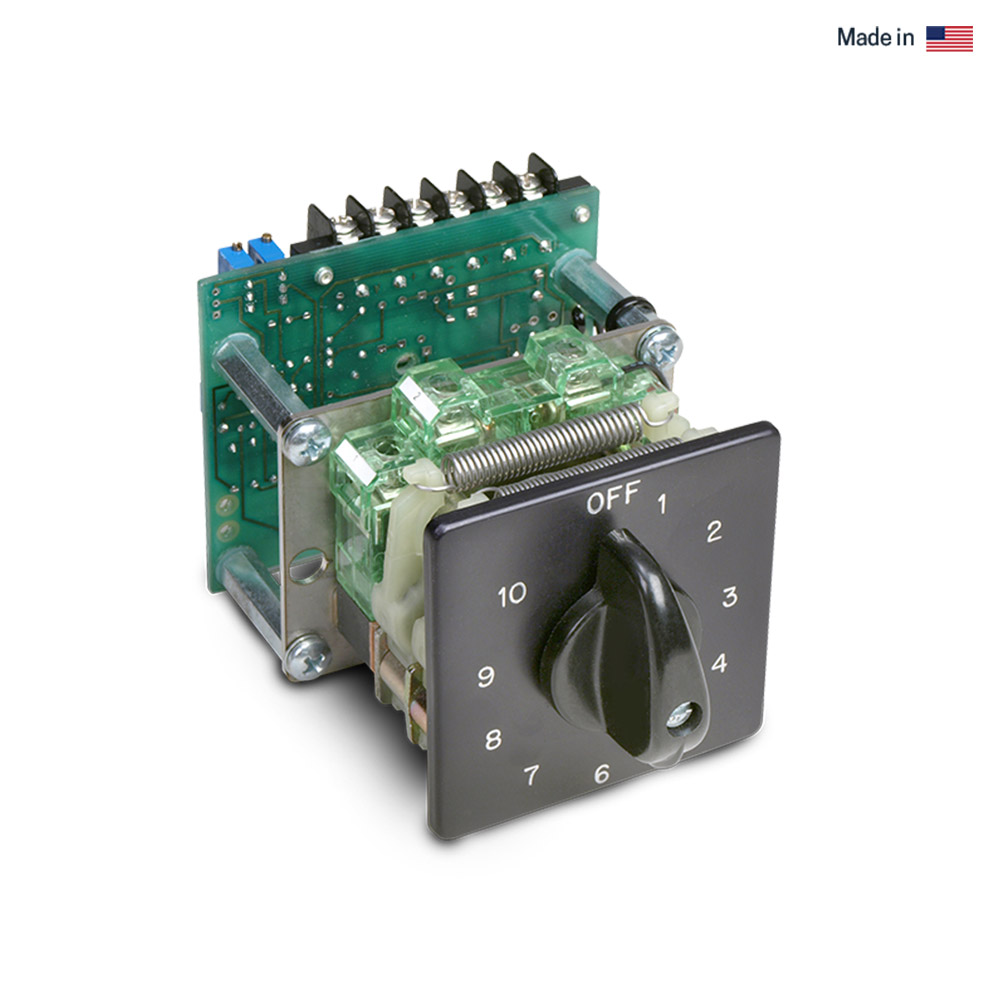

NSO-0 Rotary Master Switch features the same rugged design components and versatility as the NSO series of Joysticks.
Inquire nowRugged construction with brass bearings and square steel operating shaft.
High design flexibility with combination of custom programmable contacts, detents, spring return, potentiometers and electronics.
Precise step control with up to 7-0-7.
| Applications |
| The NSO-0 provides directional, precise proportional speed and step control of AC drives and electro-hydraulic valves. Typical applications include: |
| In-plant process control |
| Mining vehicles |
| Conveyor and lift systems |
| Steel & aluminum rolling mills |
| And more |
| General Data | |
| Output Options | Contacts, Potentiometer, Encoder, 4-20mA & Transformer |
| Handle Action | Spring Return, Friction Brake or Maintained |
| Handle Travel | +/- 36 degrees each axis |
| Max of Steps | Up to 7-0-7 or 0-16 positions |
| Handle Compatibility | Teardrop, pistol grip & chrome steel ball lever |
| Life | 10 million cycles |
| Materials | Aluminum body and nickel chronium yoke. |
| Est. Shipping Weight | 4 lbs. |
| Est. Shipping Dimensions | 10 in. x 10 in. x 10 in. |

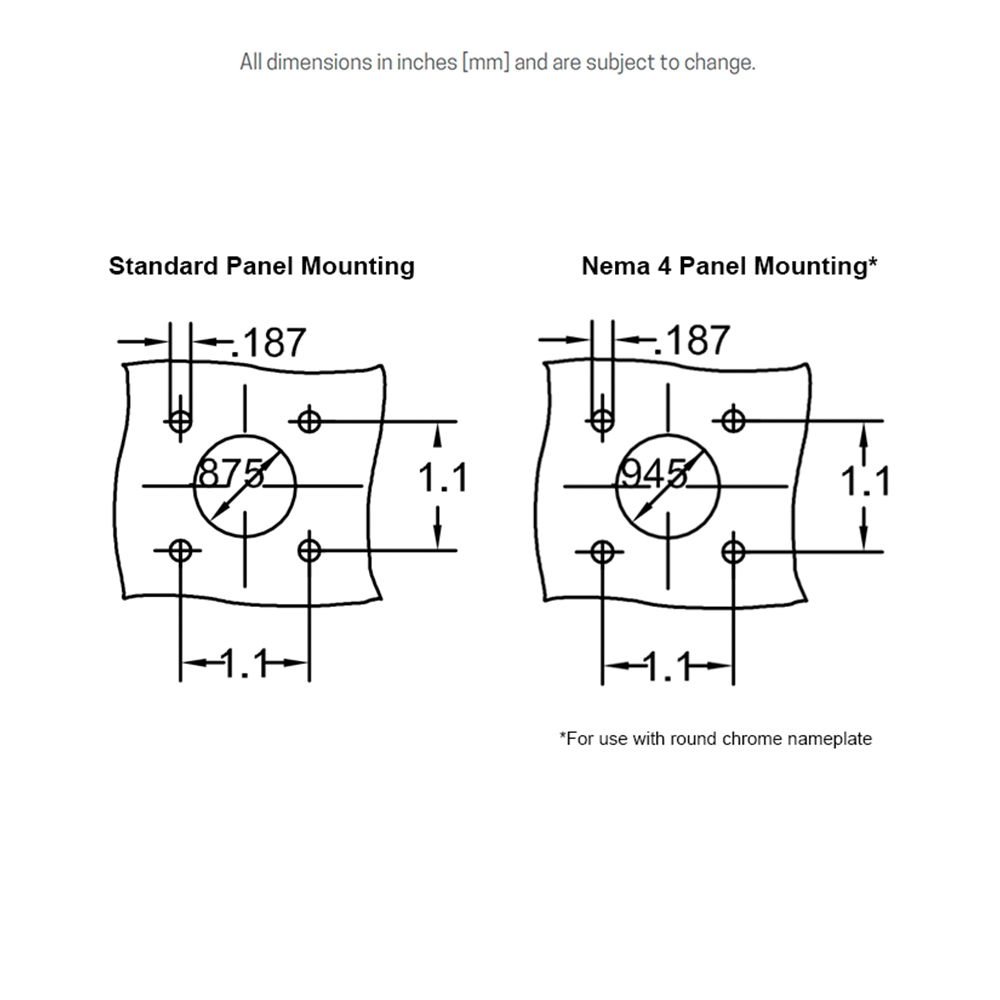

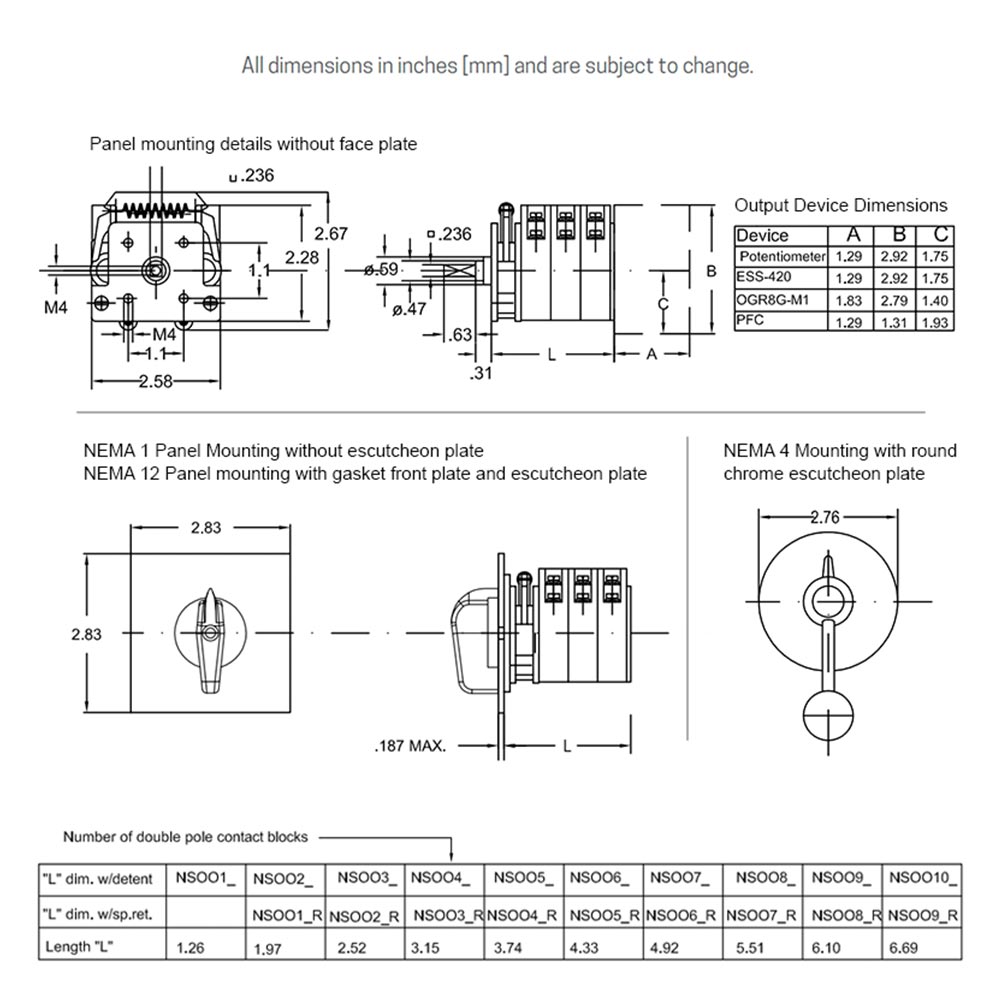

| Mounting Data | |
| Mounting Style | Panel (from below) |
| Mounting Footprint | 2.84" x 2.84" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | Up to IP66 / Nema 4x (with cast enclosure & round nameplate) |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
| Electrical Data | |
| Switch Type | Double Pole Snap-In Contact Blocks |
| Max. Number | Up to 10 contact blocks (20 circuits) |
| Max. Switching Capacity | Making - 100 amps Breaking - (0.7PF) 240V 80 amps |
| Rating (AC) | Continuous 16 amps @ 240V Resistive 8 amps @ 240V Inductive 6 amps @ 240V |
| Termination | Captive Saddle Clamp |
| Max. Wire Size | 12 AWG |
