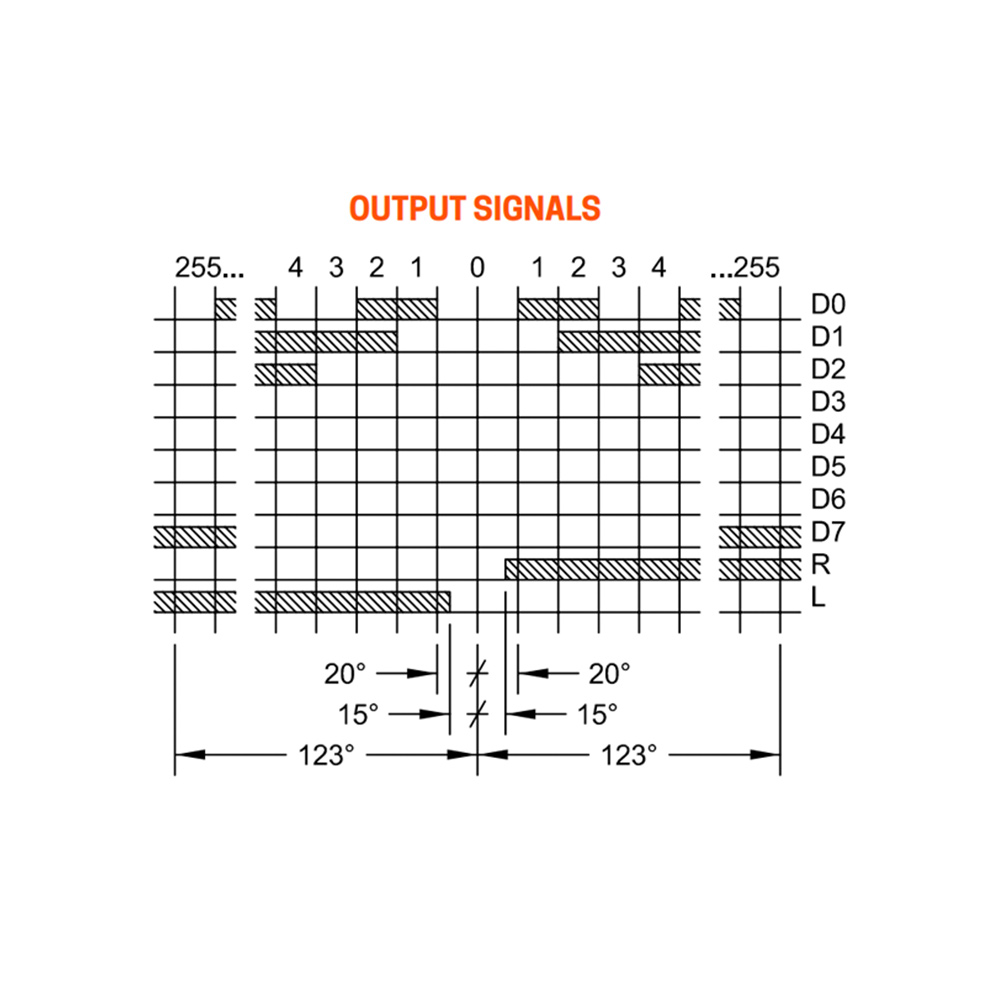

The OEL8G-K absolute encoder (formerly OGR8G-M1) produces a gray coded digital output with a resolution of 255 discrete counts in each direction. This contactless system uses optoelectronics to identify each position, which eliminates the wear usually associated with analog potentiometer outputs.
Inquire nowGray coded digital output with a resolution of 255 discrete counts in each direction, plus (2) directional bits
Contactless system uses optoelectronics to identify each position, which eliminates wear
Special shaft with sealed ball bearing

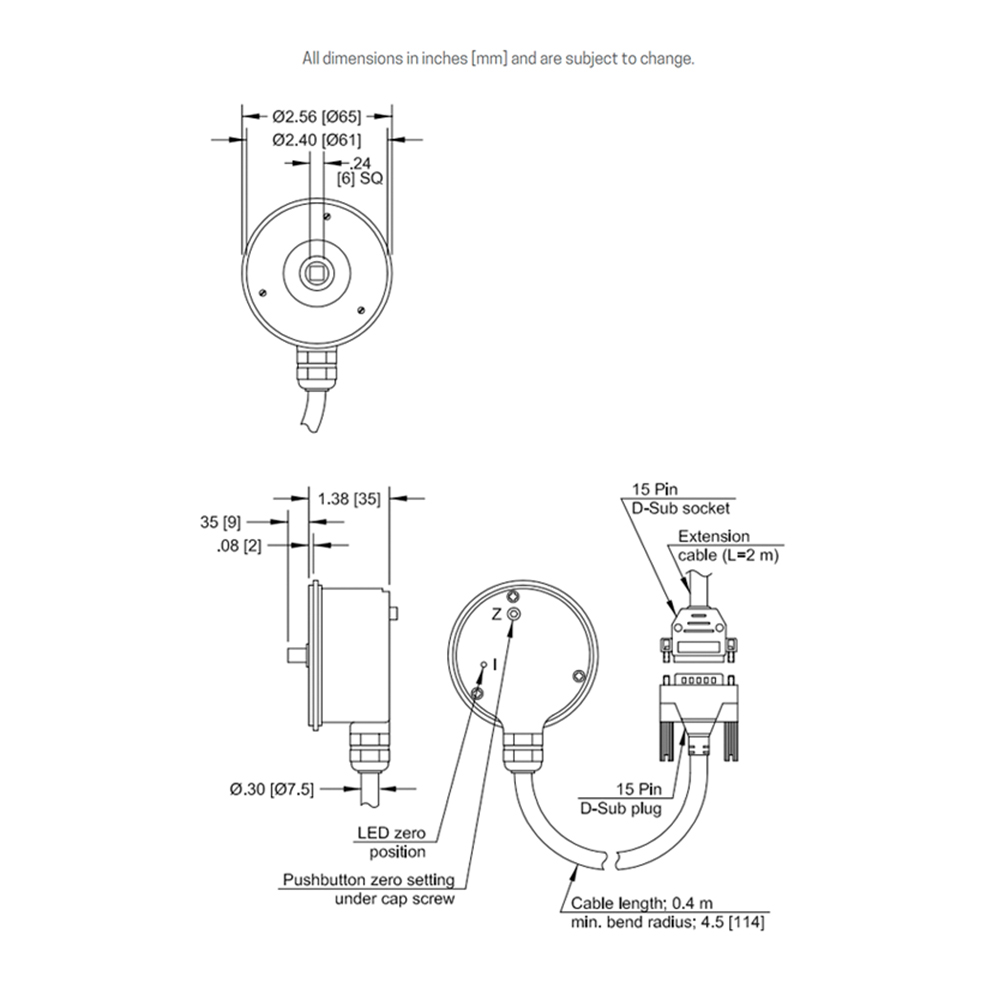

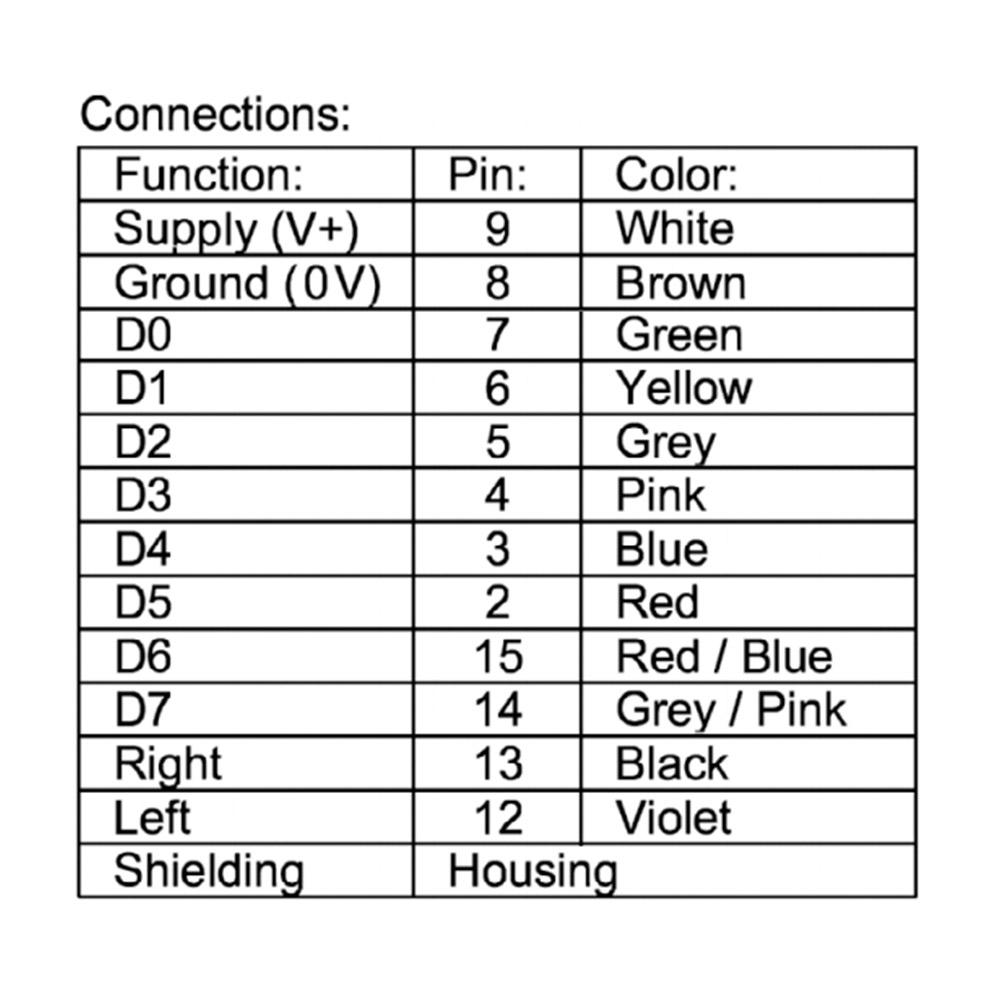

15 pin Sub-D connector
Cable length with connector 1.6' [0.5M]
LED for zero pulse operation
High quality electronic design with high noise immunity
All photoelectric LED principle on a chip, not discrete components
Push button for setting zero
Long life and high accuracy
