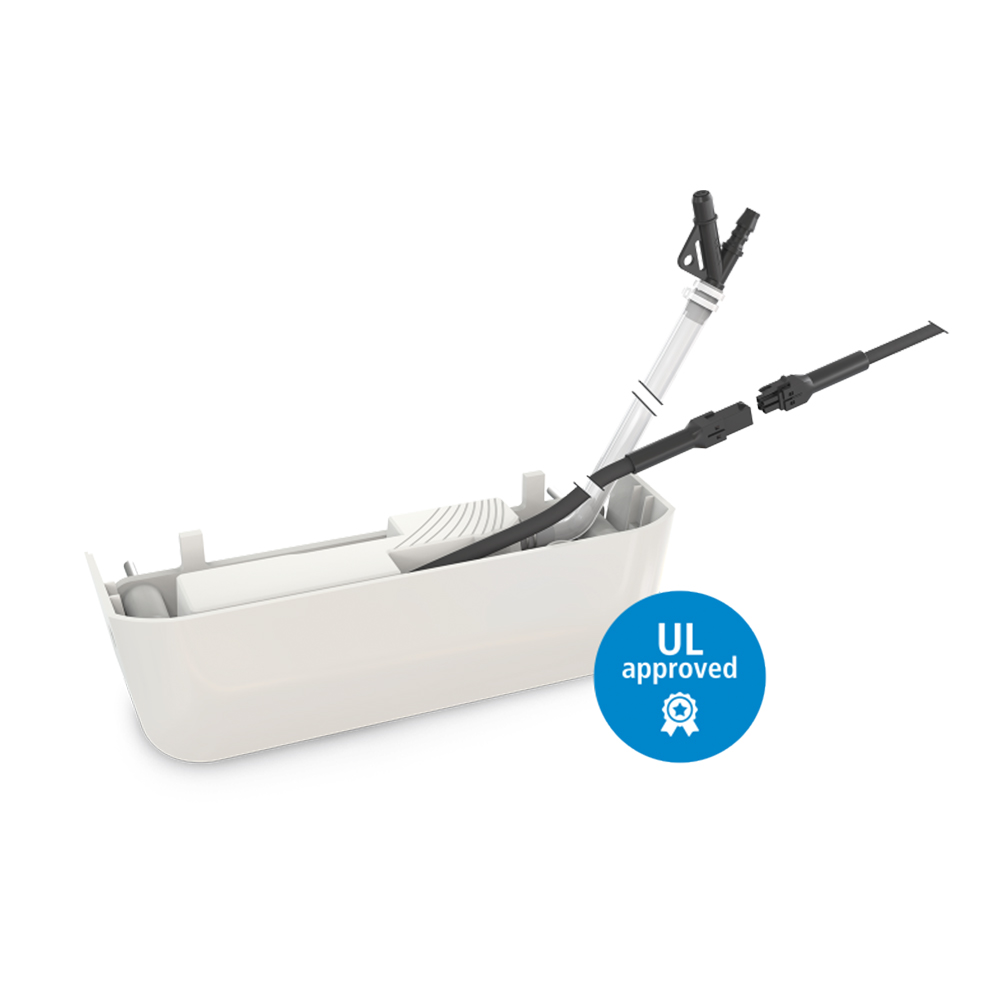

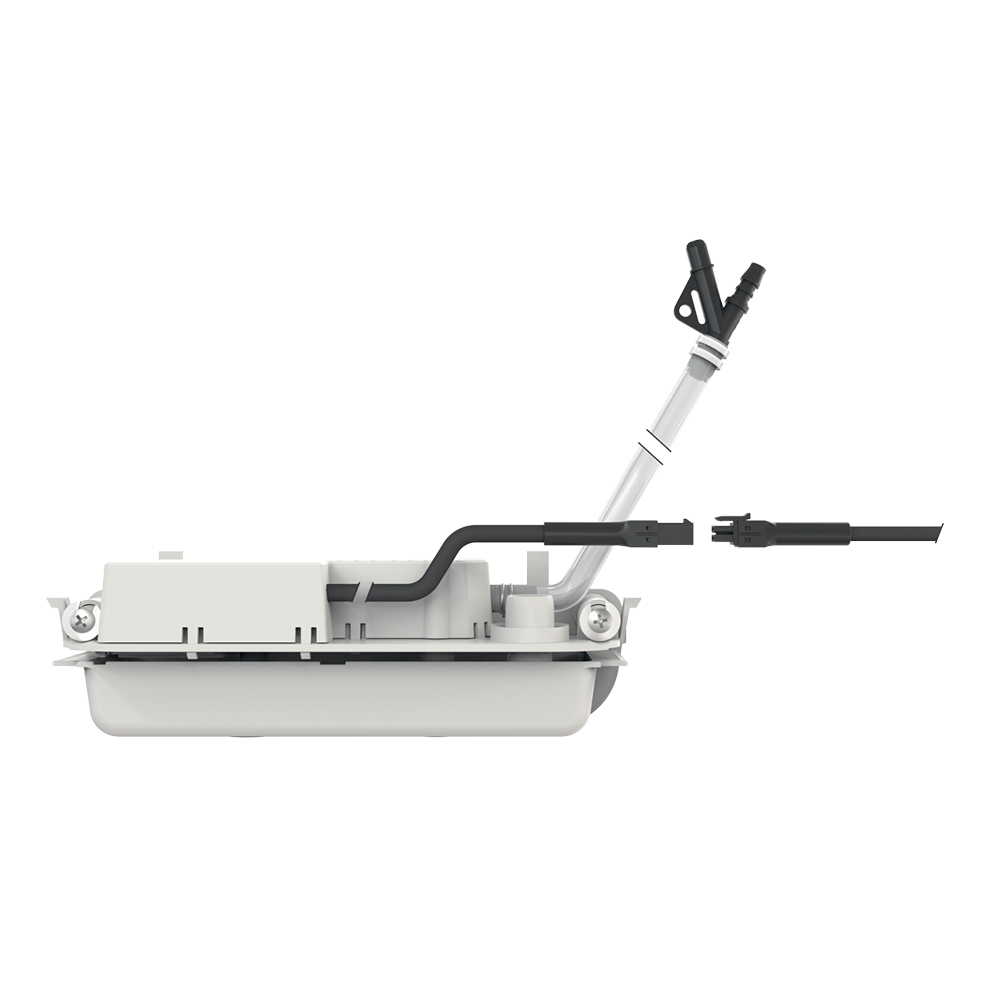

Designed to be placed under a wall-mounted air conditioner, the Omega Pack 2 is an all-in-one solution for optimum condensate drainage.
Inquire nowIn a very compact design, the Omega Pack 2 incorporates a new-generation pump equipped with Sauermann’s latest patented piston pump core and a large tank insulated to prevent condensation.
Quick installation and maintenance
Optimum discretion
UL approved
Top performance
Compact, elegant design
| Technical details | |
| Max flow rate | 5 gph |
| Max discharge head | 32 ft |
| Max pressure | 45 feet |
| Insulation class | Double insulation |
| Mains supply | OP20UL02UN12: 120V ~ 60 Hz - 13 W / OP20UL02UN23: 230V ~ 50/60 Hz - 15 W |
| Operation conditions | 100% - Continuous duty |
| Protection | IP20 |
| Max condensate temperature | 95 °F |
| Color | RAL 9003 – Pure white |
| Weight | 1 15/32 pounds |
| Safety switch | NC 3 A resistive load – 250 V |
| Detection | Detection unit |
1 Omega Pack 2 with integrated piston pump, detection unit and 7.9’’ (0.2 m) length connector
1 Soft transparent PVC tube int. Ø 1/4’’ (6 mm), 39.4’’ (1 m) length, factory fitted with pre-mounted “Drain Safe Device”
1 power & alarm cable, 4’ (1.5 m) length with connector
1 soft PVC tube, 9 27/32’’ (250 mm) length, int. Ø 19/32’’ (15 mm)
2 screws
2 plugs
2 washers
3 rislans
1 Split connector Ø 35/64’’ - Ø 43/64’’
| Pump Dimensions | ||
| Pump | Packaging | |
| Length | 8 1/4 inches | 9 29/32 inches |
| Width | 2 19/32 inches | 5 1/2 inches |
| Height | 2 13/32 inches | 3 19/32 inches |
| Safety standards |
| UL/CSA by Intertek |
| ROHS and WEEE directives |
| Compliant |
| SOUND LEVELS | |
| at 3,3ft or 1m in application (dBA) | ≤ 22 dB(A) |
| Detection levels | |
| ON | 15/16 inches |
| OFF | 25/32 inches |
| SAFETY | 1 1/16 inches |
| Storage temperature | |
| Min | 36.00 °F |
| Max | 122.00 °F |
| Operating temperature | |
| Min | 36.00 °F |
| Max | 122.00 °F |
