Moisture sensor in conjunction with PC software for determining the water content of individual sheets of paper
Inquire nowMeasurement within seconds
Non-destructive measurement
For all types of paper sheets
Lifetime Support
Benefits
Easy to use
For all paper types
Long-term stable sensor technology
Infrared temperature measurement (temperature compensation)
Technical Information
| Measuring range | 1 to 20% water content (depending on product type) |
| Grammage range | 30 to 800 g/m² |
| Paper thickness | Up to a maximum of 0,8 mm (larger range on request) |
| Paper size | At least 180 x 180 mm |
| Temperature range | +10 to +40 °C |
| Dimensions | 274 x 202 x 128 mm |
| Weight | 4,7 kg |
| Power supply and connection to PC | 5 VDC (USB B mini socket) |
Description

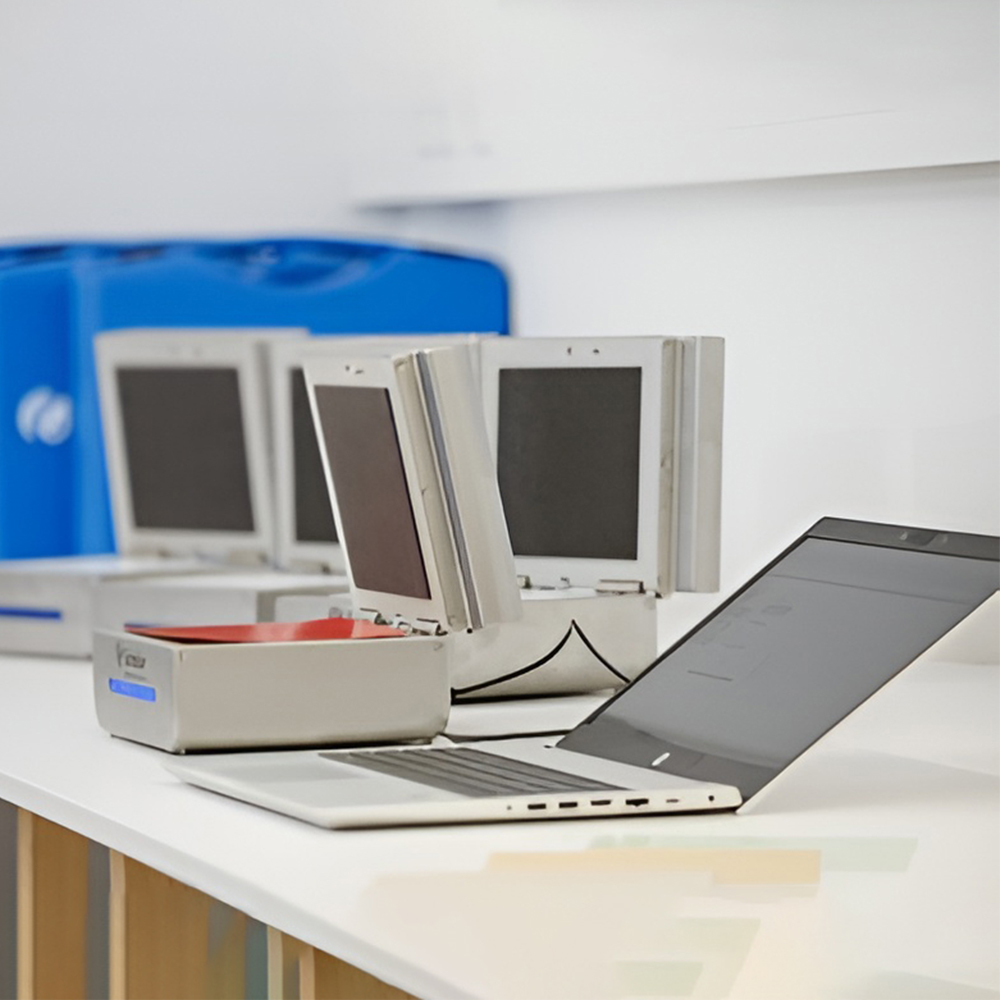

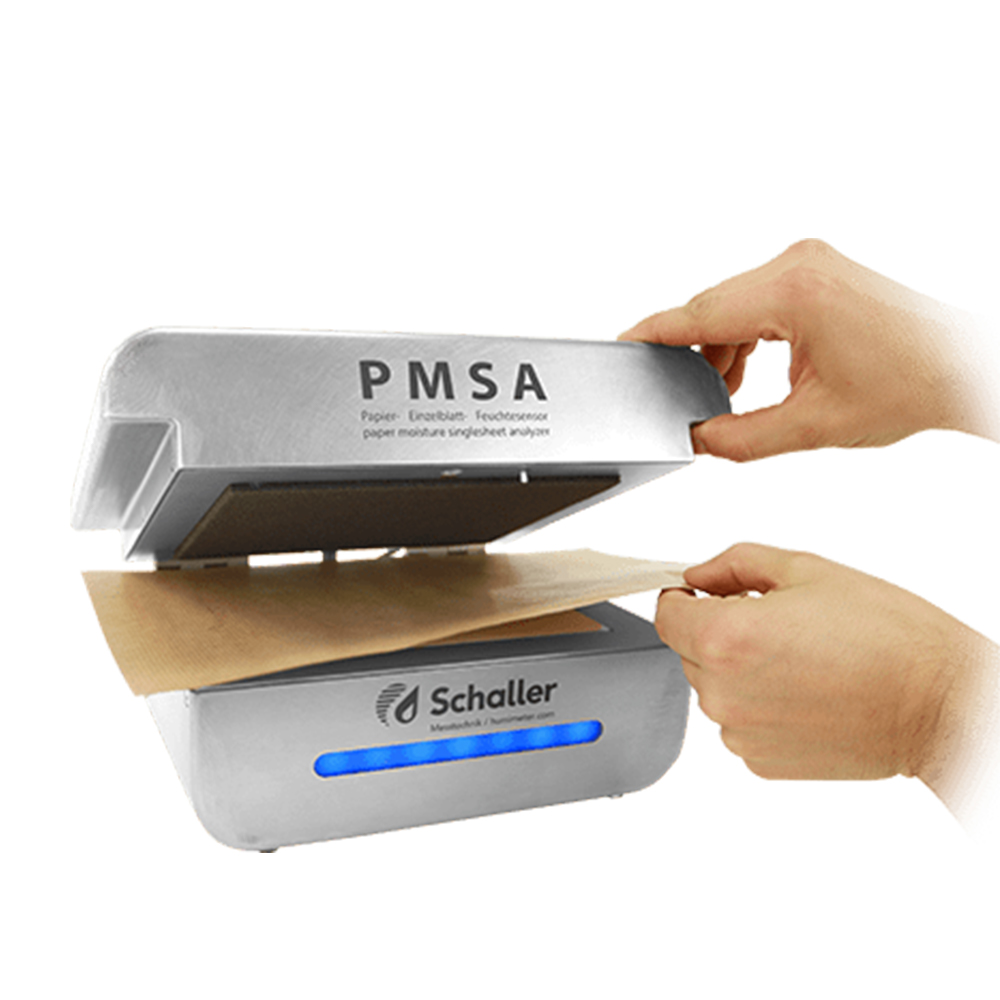

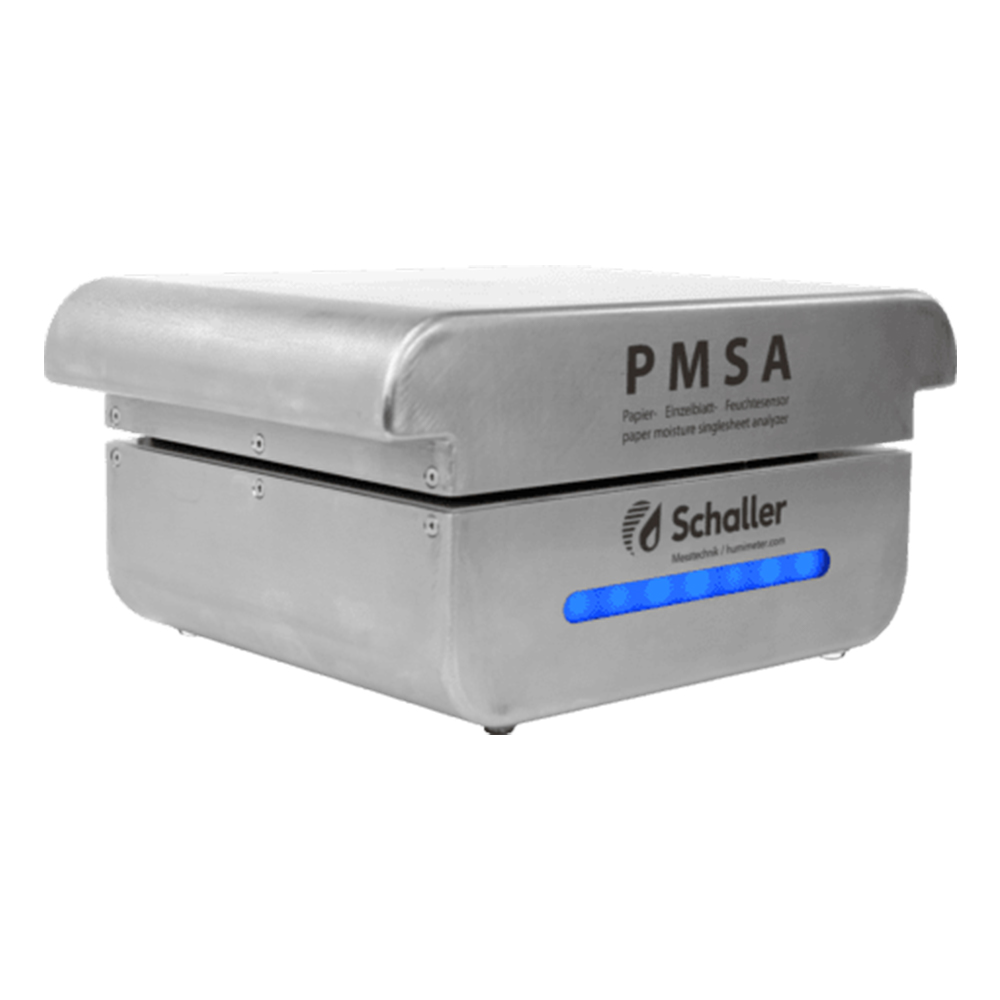

At-line moisture analyser with PC software for determination of water content of single paper sheets. The PMSA is a laboratory instrument for the determination of absolute water content of single paper sheets. Contrary to the traditional kiln-drying method, the PMSA paper moisture analyser determines the water content within a few seconds. The PMSA can be used for analysing samples taken directly from the paper machine as well as for the incoming and exit control of paper sheets.
The analysis of the measuring results is effected on the PC – the intuitive software provides a user-friendly interface for the display of measuring values, calibration of further paper types and the management of measuring data.
The state-of-the-art and long-term stable sensor technology guarantees precise measuring values and extremely high repeat accuracy. To ensure a maximum of accuracy, the system performs a self-calibration of the sensor before each measurement.
