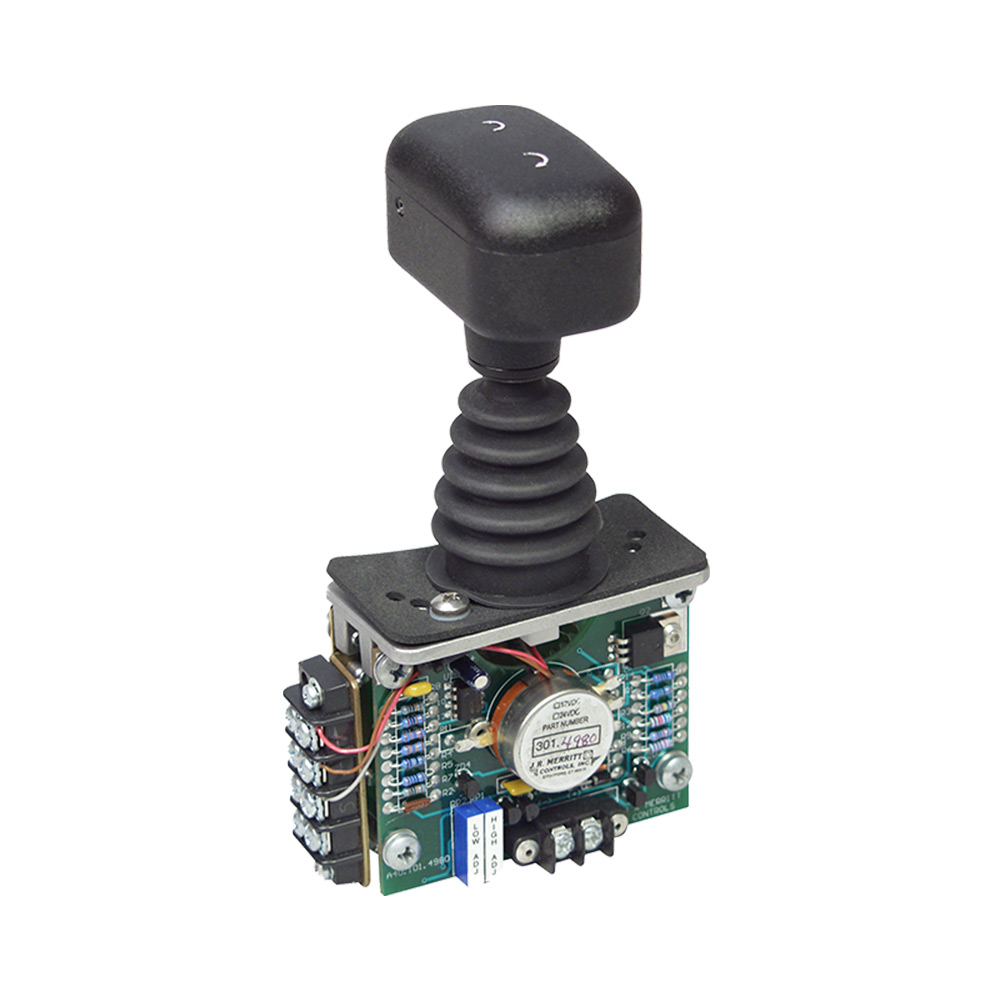

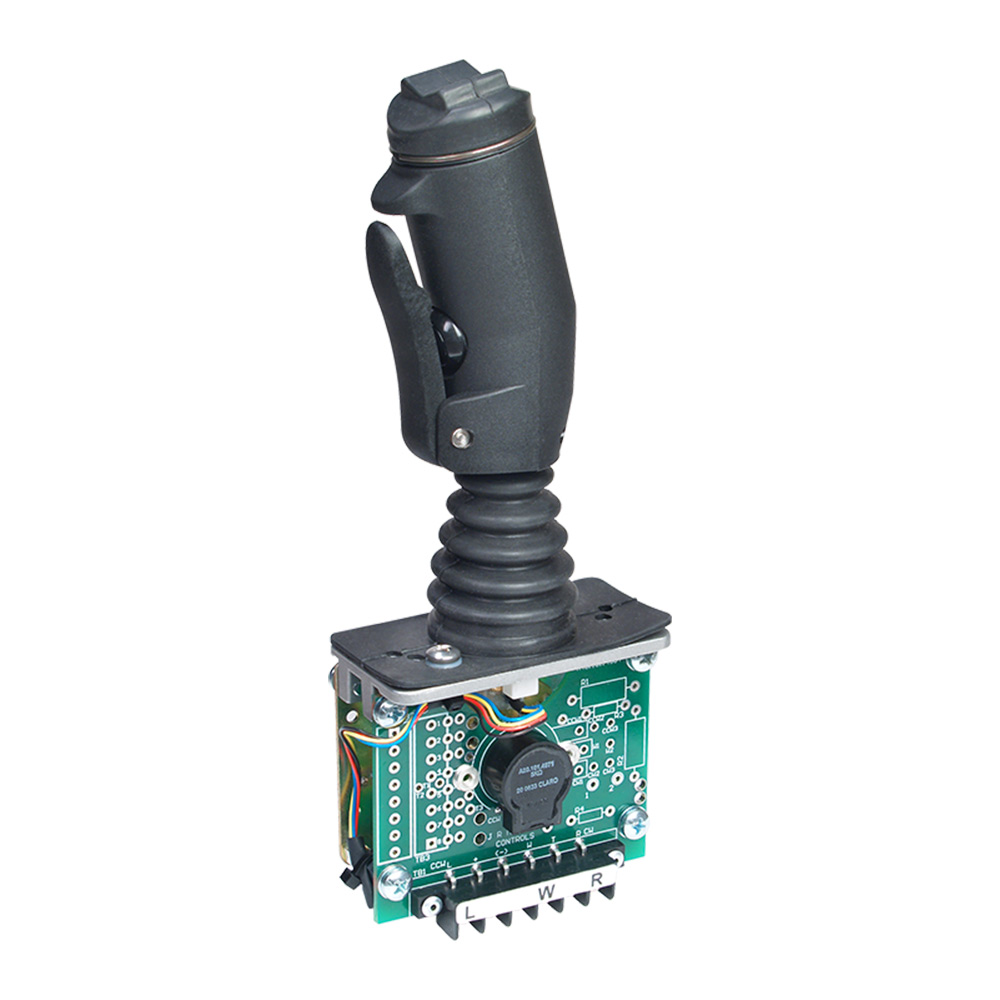

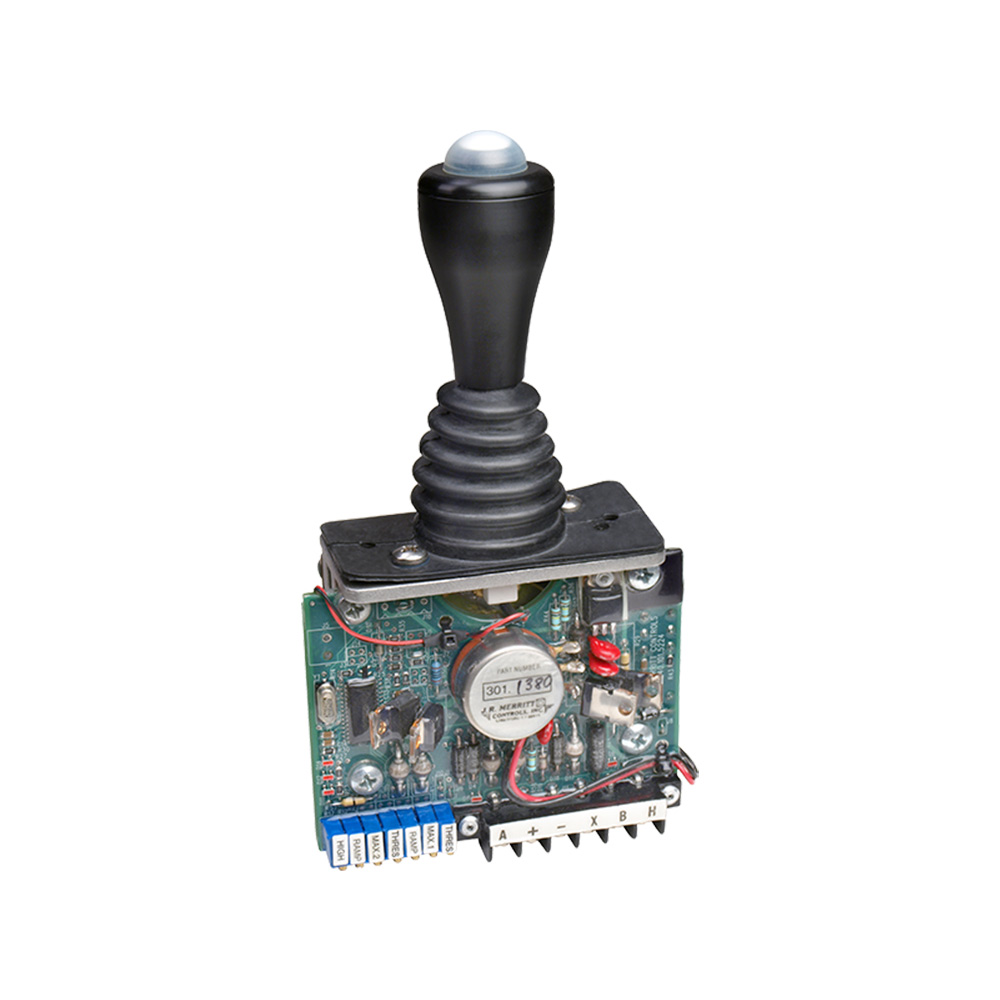

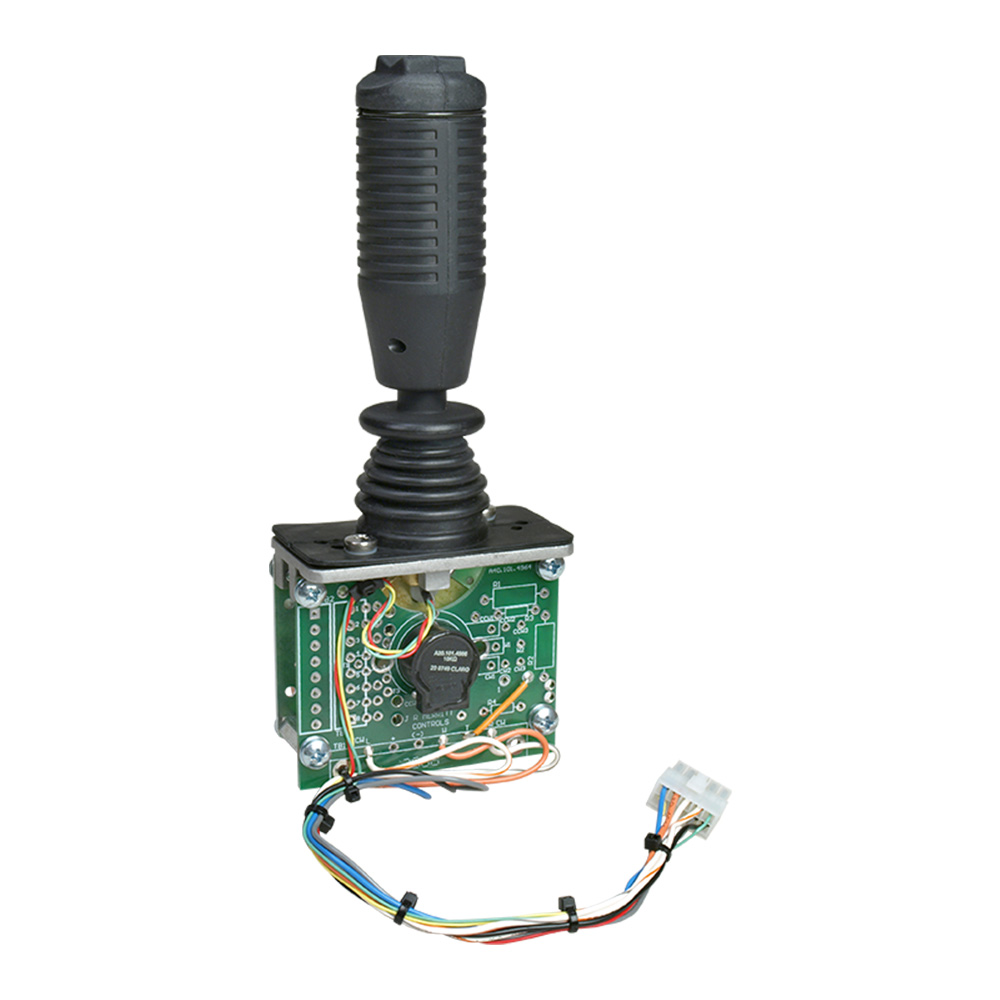

The ultra-rugged PRO-4 provides precise proportional or discrete control for electro-hydraulic valves and AC/DC variable speed drives. Your specific control requirements can be accommodated by a variety of standard and custom engineered configurations. The PRO-4 is available with a variety of outputs including 11A microswitches, potentiometers, hall-effect, PWM, CAN, and VNSO contact blocks.
Inquire nowVersatile design
Heavy duty construction
Long life, compression type return spring system
10 million cycle mechanical operating life
Rugged 10mm diameter handle shaft
Tooled, fixed cams
| General Data | |
| # of Axis | Single |
| Output Options | Contacts, Microswitches, Potentiometer, Hall-Effect, PWM & CAN |
| Joystick Action | Spring Return or Friction Brake |

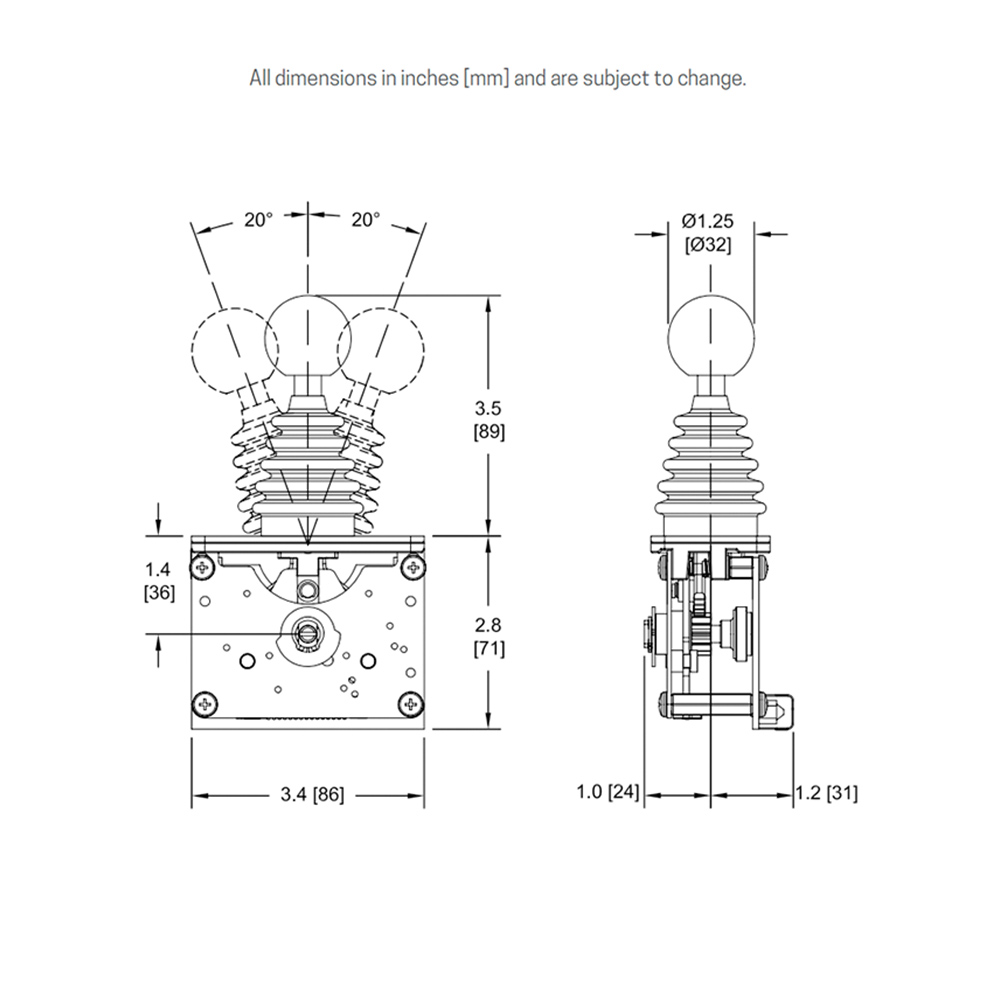

| Handle Travel | +/- 36 degrees for potentiometer +/- 20 degrees for Bang/Bang and Hall-effect |
| Max # of Steps | Up to 3-0-3 with microswitches Up to 5-0-5 with NSO contact blocks |
| Handle Compatibility | 2 Piece, Round Ball, Mechanical Interlock, RH, RHS, BH, FG-2, FG-3, FG-4, FG-5, MG1, MG2, MG13, MG27, TH30, G56 |
| Life | 10 million cycles |
| Materials | Cast Aluminum body with plated steel side plates with self lubricating bearings, hard nickel chromium spring return arms, compression style return spring and brass gears. |
| Est. Shipping Weight | 2 lbs. |
| Est. Shipping Dimensions | 8 in. x 6 in. x 6 in. |
| Electrical Data | |
| Contact Specifications | Switch Type: SPDT (Form C) V Series Microswitches Double Pole Snap-In Contact Blocks (PRO-4N) Max. Number: Up to 4 with potentiometer Up to 6 without potentiometer Up to 3 contact blocks (PRO-4N) Current Rating (AC): 11A 16A (PRO-4N) Voltage Rating (AC): 250 240 (PRO-4N) Termination: .187" x .20" male quick connect Saddle clamps (PRO-4N) Max. Wire Size: 18 AWG for microswitch 12 AWG for contact block (PRO-4N) |
| Hall-Effect Specifications | Supply Voltage: 4.5 to 5.5 VDC Output Voltage: Ratiometric 0.5 - 2.5 - 4.5 +/- 0.15V @ 5.0V supply Additional supply and output options available Output Current: 10mA Power Consumption: 20 mA @ full load Termination: 20 AWG wire 6" leads with mini-fit connector EMC Emissions: Complies with EN61000-6-4:2007 Class A Group 1, 80-1000 MHz EMC Immunity: Complies with or exceeds EN61000-6-2:2005, expanded to include: RFI Immunity of 100 V/M @ 80-1000 MHz ESD Immunity of 15Kv air, 8Kv contact |
| CAN Specifications | CANOpen, J1939 or basic CAN protocols 4 analog inputs 8 digital inputs 2 digital outputs See a complete listing of CANbus technical data in ESS408 CAN Based Interface Module Board literature |
| Applications |
| The PRO-4 is utilized in a variety of single axis industrial and mobile hydraulic machinery. Typical applications includes: • Scissor Lifts • Work Platforms • Bucket trucks • Cranes • And More |
| Mounting Data | |
| Mounting Style | Drop-in or Panel (from below) |
| Mounting Footprint | 2.56" x 2.56" See literature for additional mounting specifications |
| Environmental Data | |
| IP Rating | IP55 |
| Operating Temperature | -13 to +158 degrees F [-25 to +70 degrees C] |
| Storage Temperature | -40 to +158 degrees F [-40 to +70 degrees C] |
