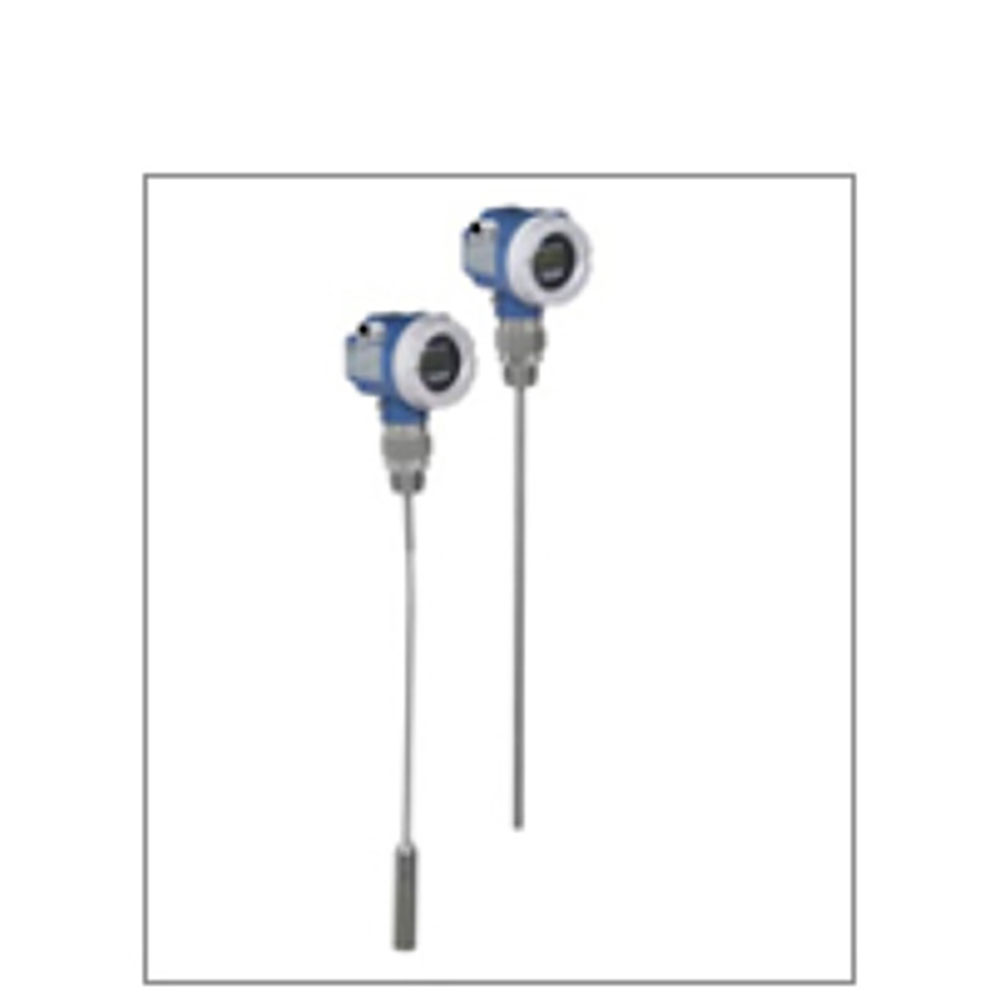

Guides radar fill level measurement Levelflex M FMP 40

Inquire now
  • Smart-transmitter for continuous fill level measurement

  • in solid materials and liquids

  • Measurement independent of: - density resp. material weight, - temperature, - dust, e.g. at pneumatic filling.

  • Measurement also at foam at the surface.

  • Simple menue guided operation by four-line display.

  • Envelope curve illustration at the display for easy diagnosis.

  • documentation at the measuring place by the free of charge delivered operation software ToF Tool.

  • Optional sepatated display and operation.

  • Using coaxial probes the measurement is fully independent of fittings in the tank and from the installation in the flange.

  • Probe rod and probe rope interchangeable.

  • Use in safety systems (overflow protection) with requirements to functional safety up to SIL 2 acc. to IEC 61508/IEC 61511-1

Application range

The Levelflex M is used for continuous fill level measurement of powdery up to granular solid materials e.g. synthetic granules and liquids.

All probes with process connections from ¾" and flanges form DN40 / 1½" available.

  • rope probes, especially for the measurement in solid materials, measuring range up to 35 m.

  • rod probes, especially for liquids.

  • coaxial probes, for liquids.

For the system integration the following output signals resp. protocols are available:


  • HART (standard) with 4...20 mA analogue signal,


  • Foundation Fieldbus.
