Slim Design
Rubber Dampers
Incredibly Quiet
Drain Safe Device
| Technical details | |
| Max flow rate | 5 gph 19 l/h |
| Max discharge head | 33 ft 10 m |
| Max pressure | 46 feet 14 m |
| Max suction head | 10 feet 3 m |
| Insulation class | Double insulation |
| Mains supply | 120V: SI20UL02UN12 / 230V: SI20UL02UN23 |
| Operation conditions | 100 % - Continuous duty |
| Protection | IPX2 |
| Master pack quantity | 6 |
| Safety switch | NC 8A resistive - 250 V |
| Detection | Detection unit |

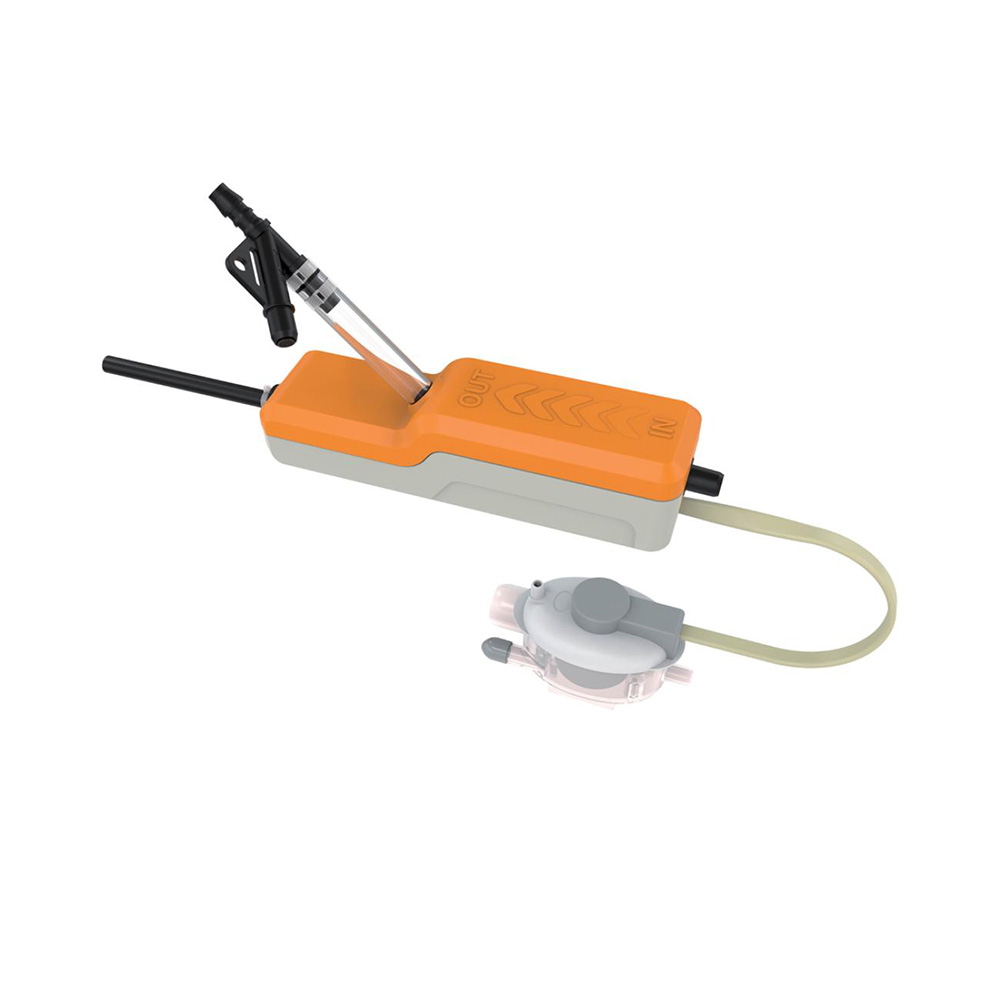

1 Si-20 Piston Pump
1 Detection Unit - SI2958, 2' cable
1 Anti-Vibration Rubber Dampers (2)
1 Clear PVC Tubing, 1/4" i.d. fitted with a Drain Safe Device
1 Power Cable, 5' (2 power wires, 2 safety wires)
1 90 Deg Rubber Elbow, 19/32" i.d. x L 6"
1 Vent Tube, 5/32" i.d. x L 2 15/16"
1 Split Connector, 1/2" - 10/16"
1 Double Wire Clamps (3)
1 Tie Wraps (3)
| Pump Dimensions | ||
| Pump | Packaging | |
| Length | 7 3/32 inches , 180 mm | 6 13/16 inches , 173 mm |
| Width | 1 3/32 inches , 27 mm | 6 5/16 inches , 160 mm |
| Height | 1 3/32 inches , 27 mm | 2 27/32 inches , 72 mm |
| Safety standards | |
| UL/CSA by Intertek | |
