High performing
Drain safe device
Locking power cord
Versatile installation options
| Technical details | |
| Max flow rate | 8 gph 31 l/h |
| Max discharge head | 43 ft |
| Max pressure | 60 feet |
| Max suction head | 13 feet |
| Insulation class | Double insulation |
| Mains supply | 120V: (SI33UL01US12) / 230V: (SI33UL01US23) |
| Operation conditions | 40%: 3s ON - 5s OFF |
| Protection | IP20 |
| Master pack quantity | 20 |
| Safety switch | NC 8A resistive - 250 V |
| Detection | Detection unit |

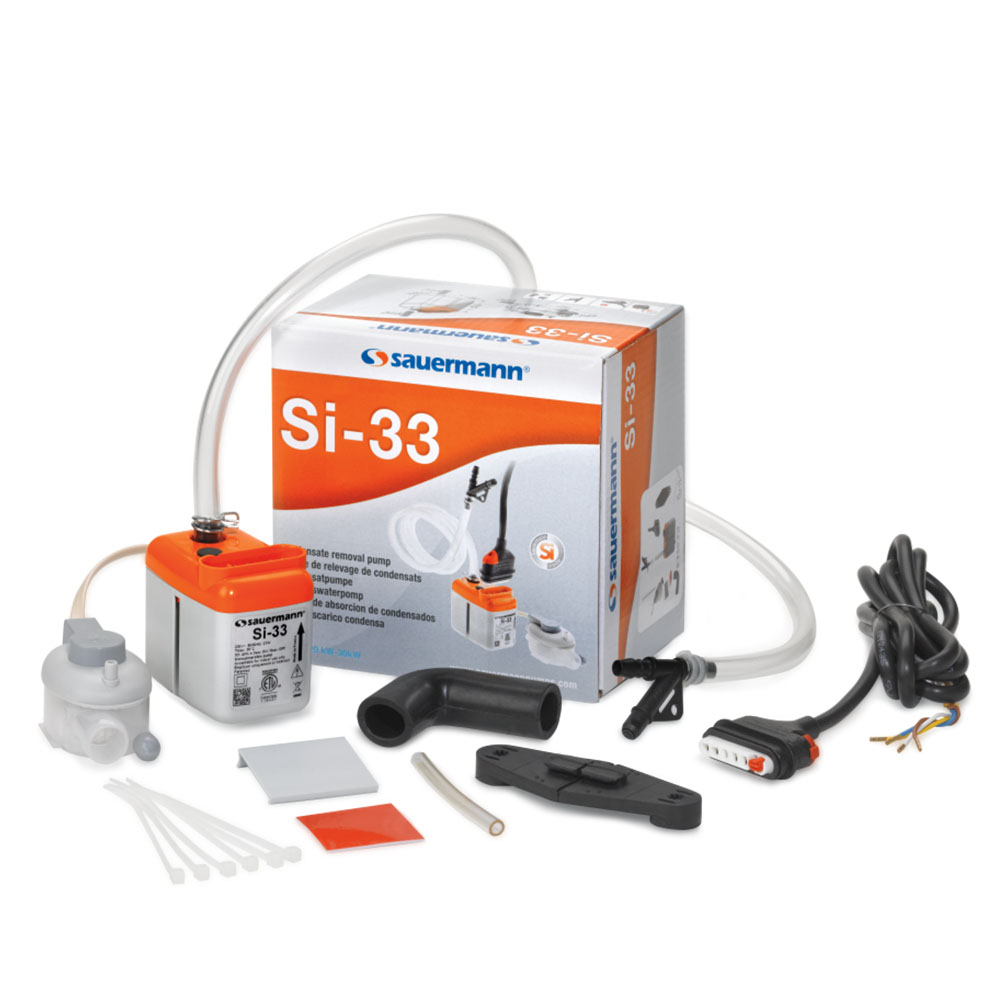

1 Si-33 pump
1 Detection Unit - SI2958, 2' cable
1 Clear PVC Tubing, 1/4" i.d. fitted with a Drain Safe Device
1 Anti-Vibration Mounting Bracket
1 Power Cable, 5' (2 power wires, 2 safety wires)
1 90 Deg Rubber Elbow, 19/32" i.d. x L 6"
1 Vent Tube, 5/32" i.d. x L 2 15/16"
1 Mounting Rail
1 Adhesive
1 Tie Wraps (6)
| Pump Dimensions | ||
| Pump | Packaging | |
| Length | 2 5/8 inches | 5 5/16 inches |
| Width | 1 3/4 inches | 5 5/16 inches |
| Height | 2 3/8 inches | 3 17/32 inches |
| SOUND LEVELS | |
| at 3,3ft or 1m according to EN ISO3744 (dBA) | 34.00 |
| Safety standards | |
| UL/CSA by Intertek | |
