The Si-82 centrifugal pump is designed to be easily installed in any environment. It is capable of evacuating up to 500l/h and suitable for air conditioning units and industrial refrigeration displays. It also tolerates charged, high temperature and acidic condensates (pH>2.5) produced by gas condensing boilers.
Inquire nowHigh performance, up to 5m vertically

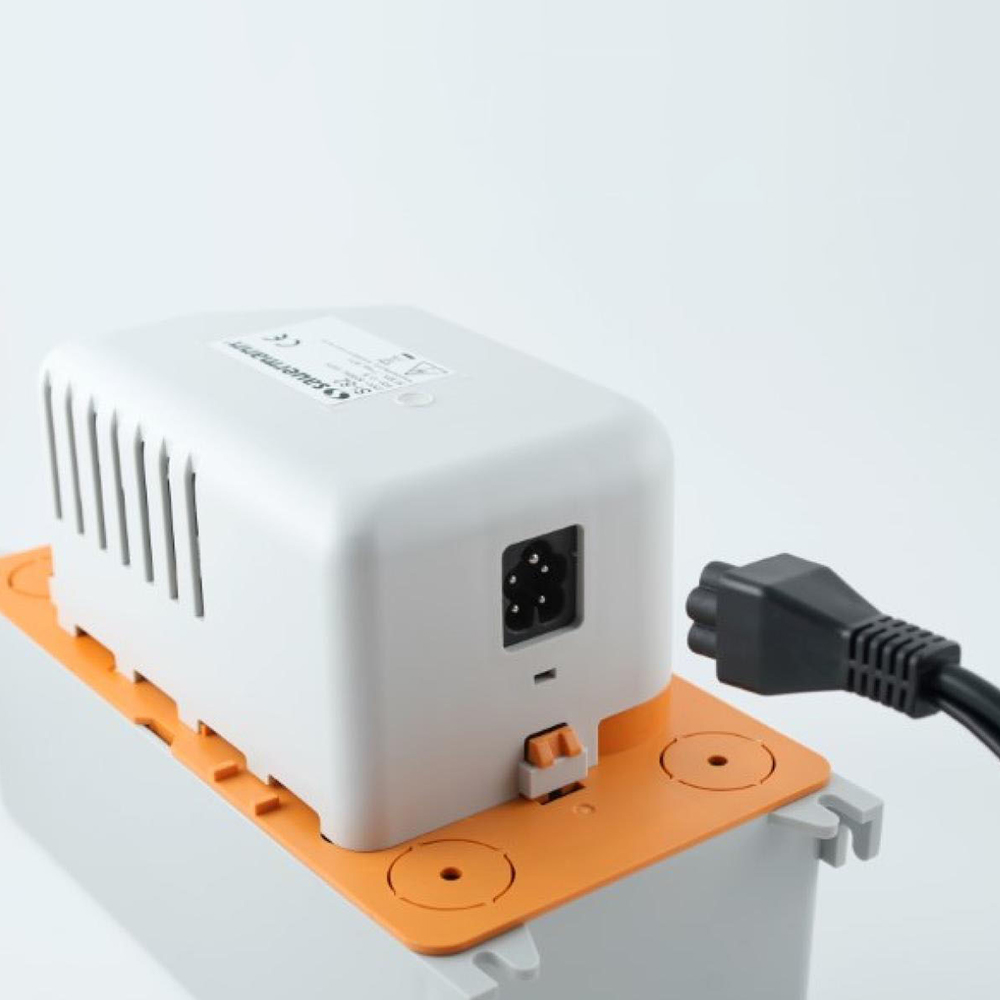

Easy installation, with plug-in power cord and reversible pump
High resistance
| Technical Details | |
| Max flow rate | 132 gph / 500 l/h |
| Max discharge head | 16 ft / 5 m |
| Max pressure | 5.4 m |
| Mains supply | 230V ~ 50Hz - 70W - 0.67A |
| Operation conditions | 30%: 3s ON - 7s OFF |
| Protection | IP20 |
| Max condensate temperature | 65 °C |
| Max condensate acidity | ph > 2.5 |
| Tank volume | 2 L |
| Master pack quantity | 4 |
| Safety switch | NC 4 A resistive – 250V |
| Detection | Integrated detection floats |
| Pump Dimensions | |||
| Length | Width | Height | |
|---|---|---|---|
| Pump | 279 mm | 130 mm | 174.5 mm |
| Packaging | 400 mm | 300 mm | 200 mm |

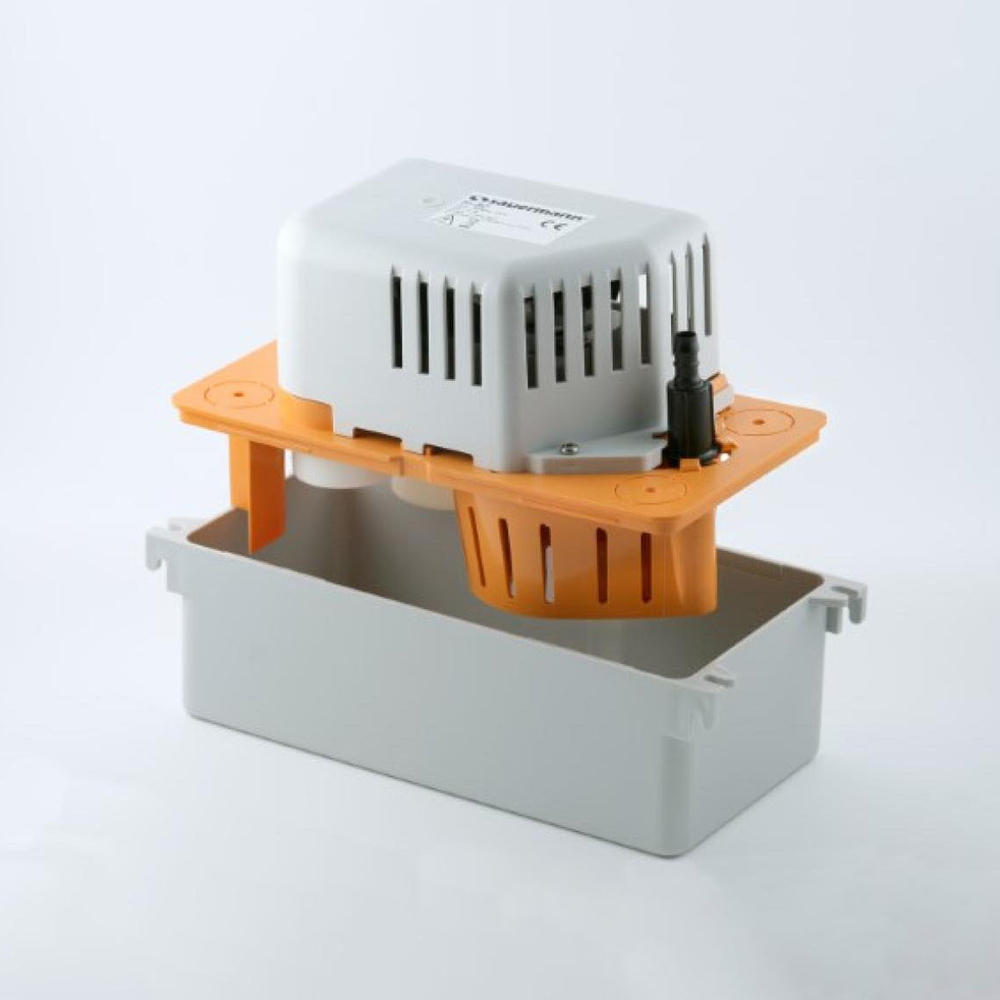

1 One-piece centrifugal pump with tank
1 Integrated barb end check valve (external diameter 10 mm or 3/8")
1 Neutralisation cartridge + maintenance identification label
1 Plug-in power (2 m, European plug) & safety switch cord (1.5 m, bare ends)
1 Inlet hose: 6 m roll Ø int. 10 mm (3/8”)
1 Inlet rubber adapter Ø int. 15-20-24-32-40 mm (Ø int. 5/8"-3/4"-1"- 1"1/4 -1"½)
2 screws + 2 plugs
| Sound Levels | |
| at 3.3 ft or 1 m in application (dBA) | 45.00 |
| Storage Temperature | |
| Min | 2.00 °C / 36.00 °F |
| Max | 50.00 °C / 122.00 °F |
| Operating Temperature | |
| Min | 2.00 °C / 36.00 °F |
| Max | 50.00 °C / 122.00 °F |
| Safety standards |
| CE |
| ROHS and WEEE directives |
| Compliant |
