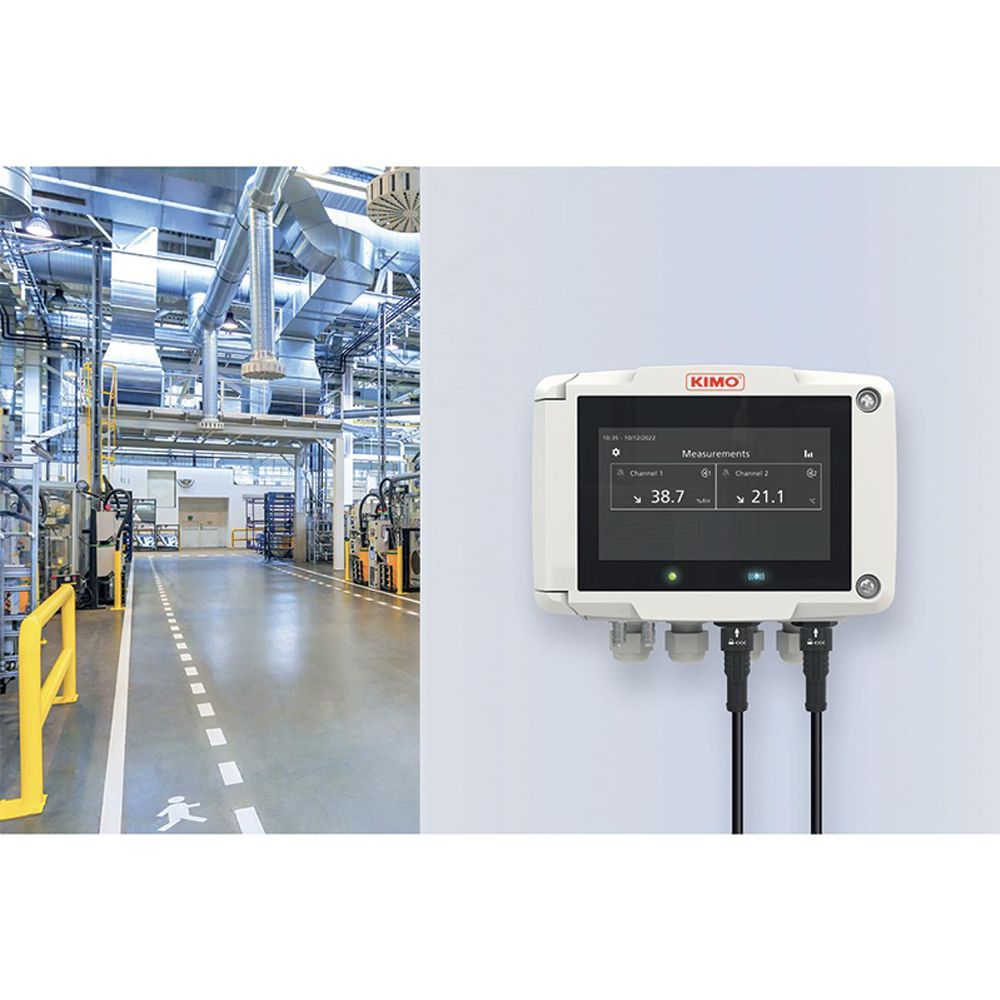

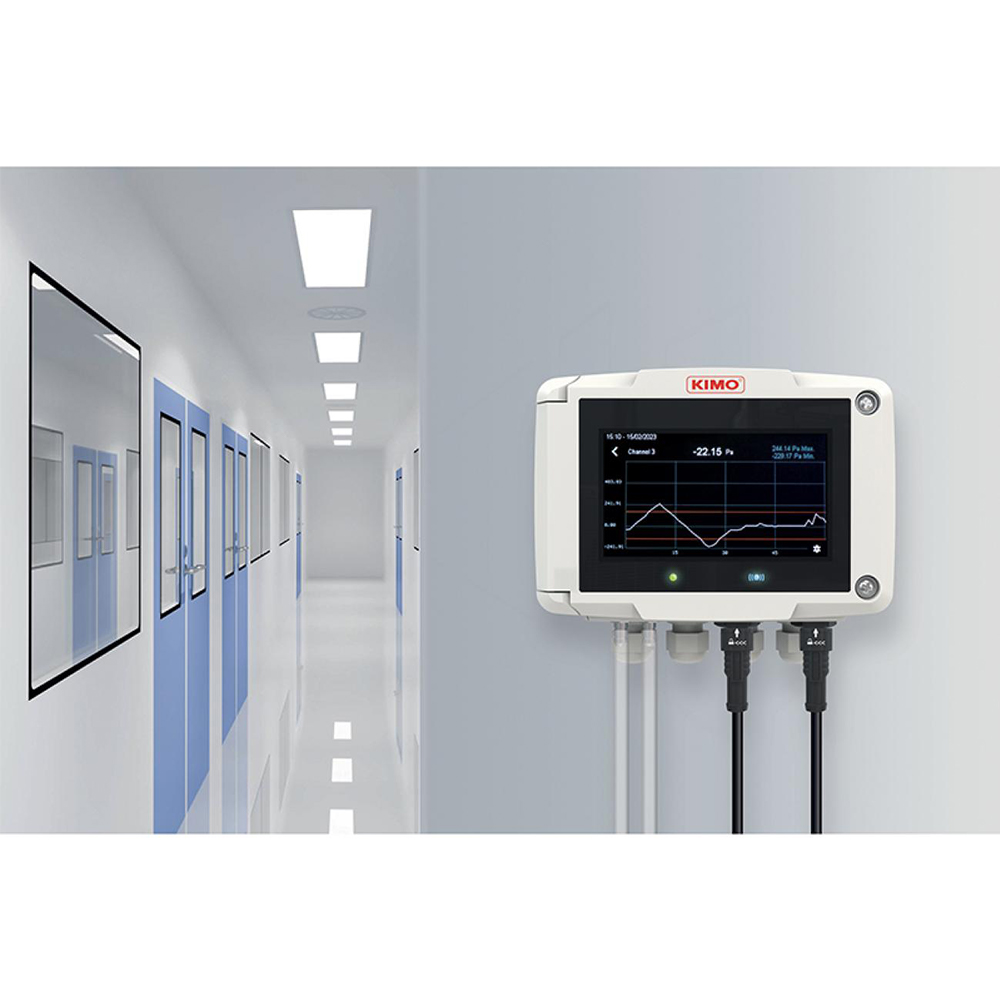

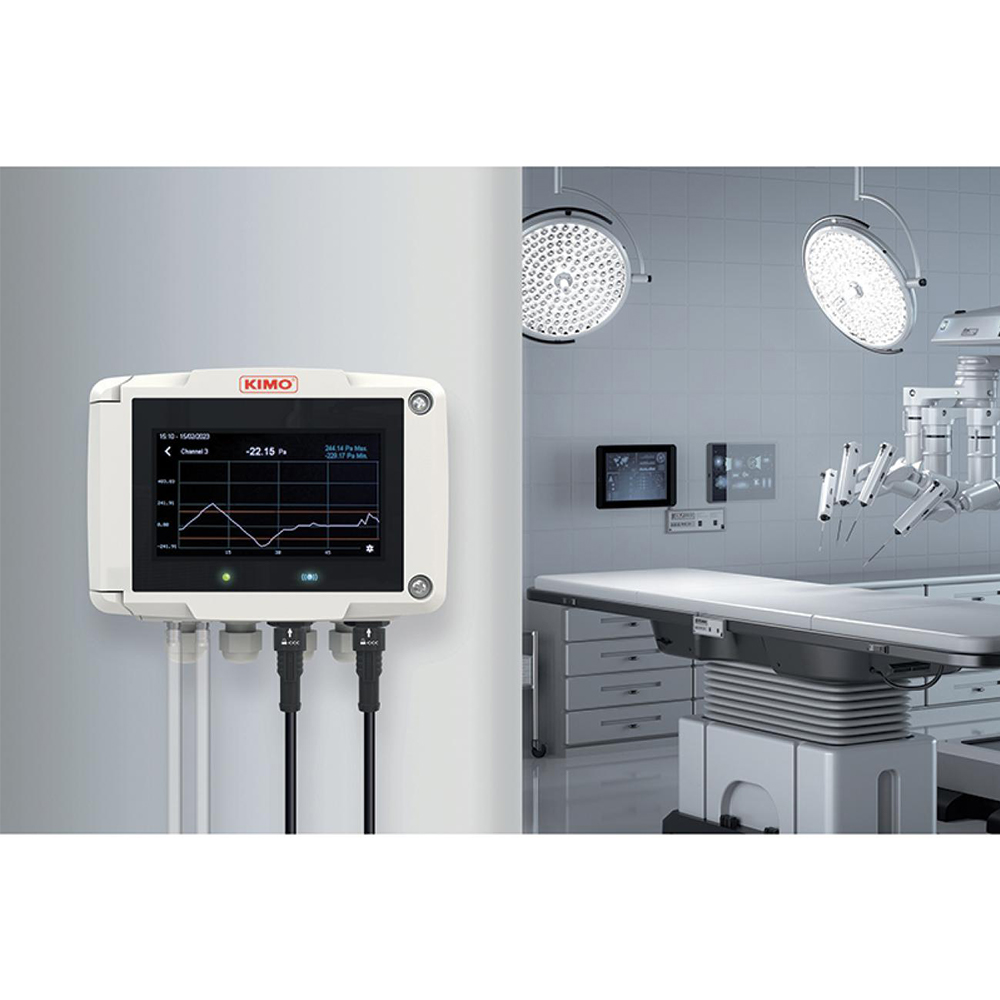

For clean rooms, regulated environments and industrial VAC applications where a perfect regulation/monitoring of the air parameters is needed, our Si-C320 transmitters provide reliable measurements and allow you to achieve compliance with the strictest regulations.
Inquire nowThe Si-C320 housing is waterproof, rugged and resistant to vaporised hydrogen peroxide (VHP). It also features a colour touch screen for comprehensive viewing and advanced control of measurement parameters.
In addition, measurements can be recorded and downloaded via the Sauermann Control application/software.
Multifunction for VAC and IAQ applications
2 x inputs for external probes
4 x analogue outputs
1 x RS485 interface for ModBus RTU protocol
Outputs diagnostic
Possibility to edit the channel names
| Measure Details | |
| Units | ACH, inH?O, ppb, °Ctf, °F, °Ftf, °C, % RH, °Ctw, °Ctd, °Ftd, °Ftw, Pa, ppm, g/m³, g/kg, kj/kg, m/s, m³/h, cfm |
| Alarm | Buzzer (60 dB at 10 cm) |
| Technical Details | |
| Parameters | Absolute humidity, Air Change Rate, Air velocity, Airflow, Atmospheric pressure, CO, VOC, CO?, Dew point, Differential pressure, Enthalpy, Frost point, Mixing Ratio, Relative humidity, Temperature, Wet-bulb temperature |
| Displays | Graphic touch display |
| IP Protection | IP 66, VHP resistant (Vaporized hydrogen peroxide) |
| Standards | 2015/863 EU (RoHS 3), UKCA, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage, 2014/53/EU RED |
| Wireless connection | 1 |
| Power supply | 24 VAC / VDC ±10% |
| Outputs | 4 x 4-20 mA, 0-20 mA, 0-10 V and 0-5 V analogue outputs |
| Ethernet communication | No |
| ModBus network | Yes |
| Instrument Dimensions | |
| Value | |
|---|---|
| Length | 6 7/32 inches / 158.25 mm |
| Width | 3 1/32 inches / 76.65 mm |
| Height | 5 11/32 inches / 135.8 mm |
| Weight | 1 13/32 pounds / 626 g |
| Operating Temperature | |
| Min | -10.00 °C / 14.00 °F |
| Max | 50.00 °C / 122.00 °F |
| Storage Temperature | |
| Min | -10.00 °C / 14.00 °F |
| Max | 70.00 °C / 158.00 °F |

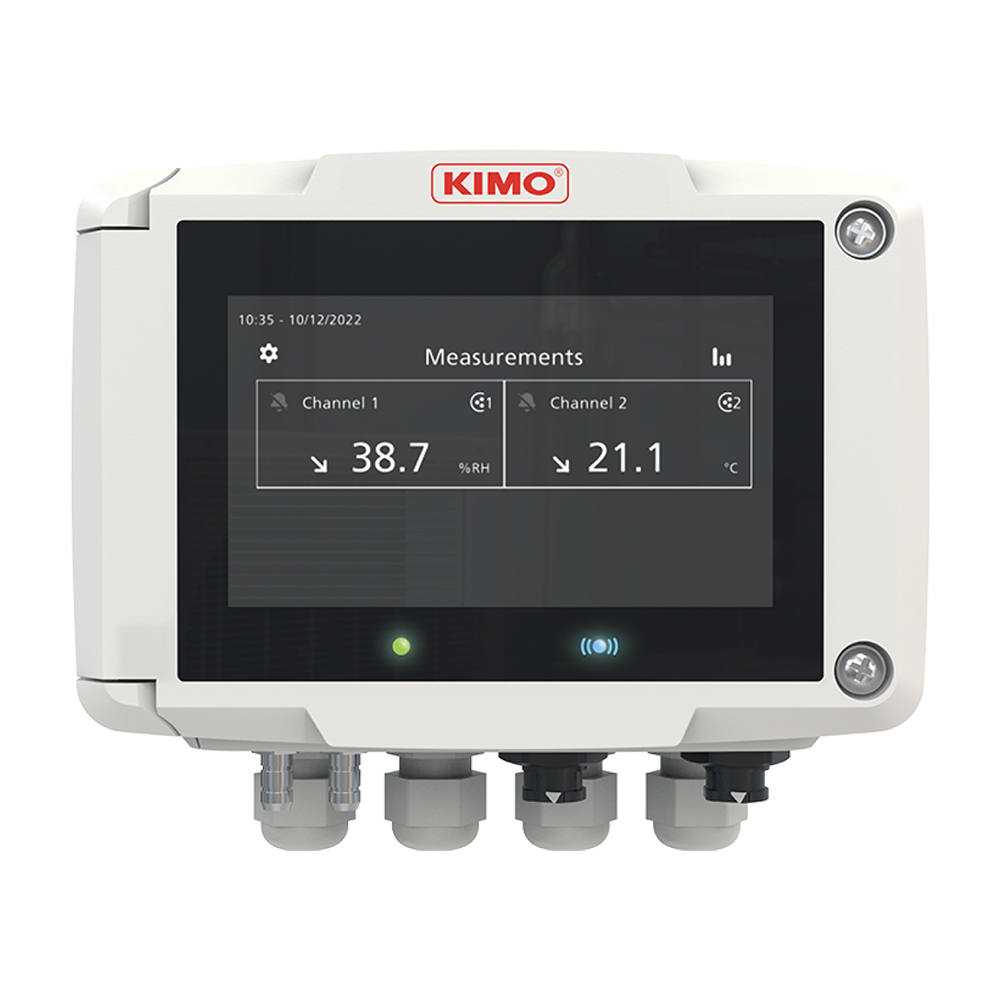

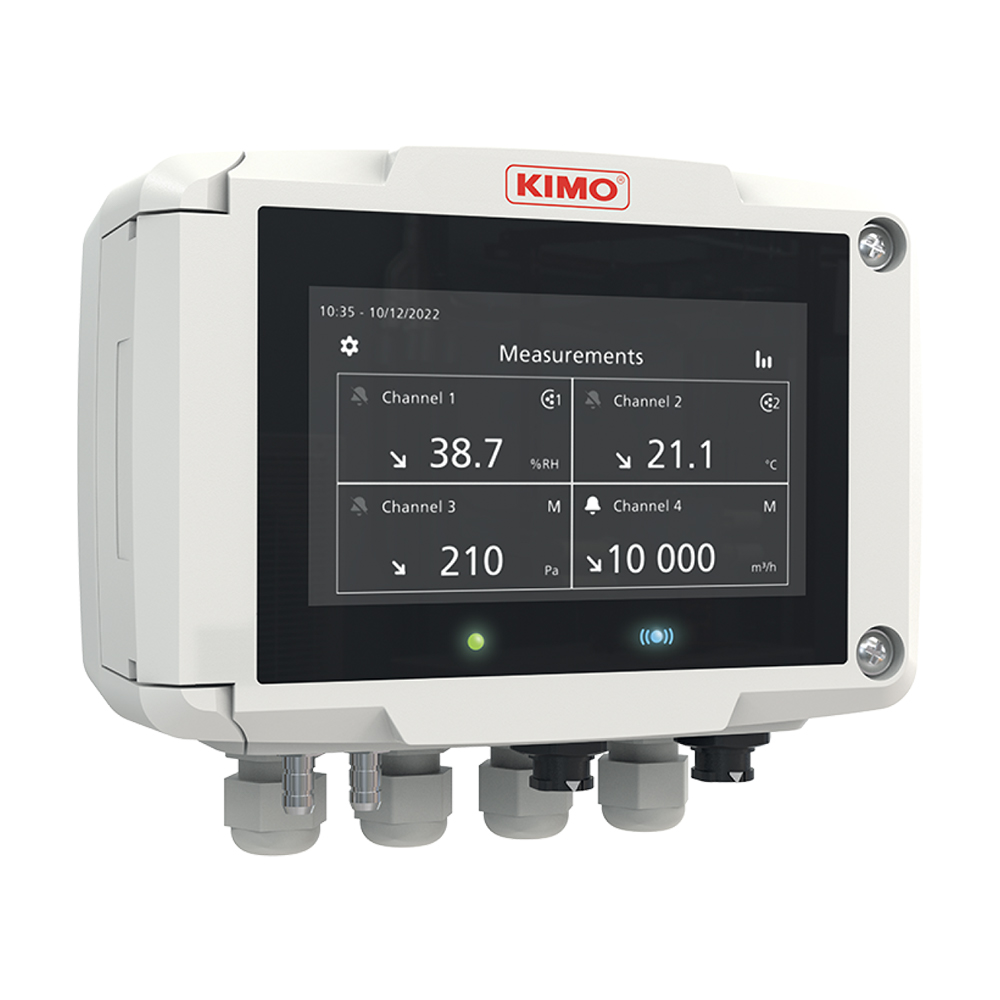

1 Si-C320 Multifunction transmitter
4 analogue outputs
1 RS485 interface with ModBus RTU protocol
Inputs for 2 x probes
1 slot for optional differential pressure module
1 slot for optional relay module
1 slot for optional wireless communication module
Terminal blocks for power connection
Terminal blocks for output connections
Wall-mount fixing plate
1 adjusting certificate
