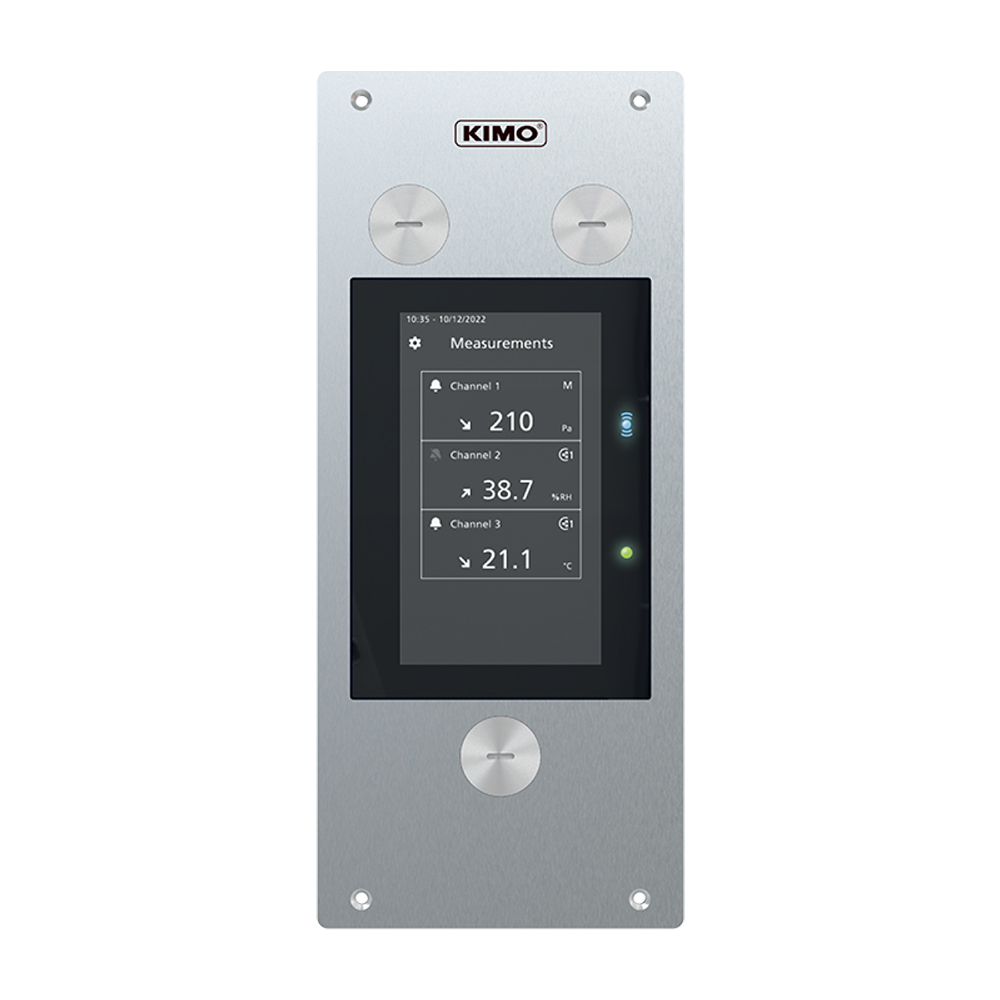

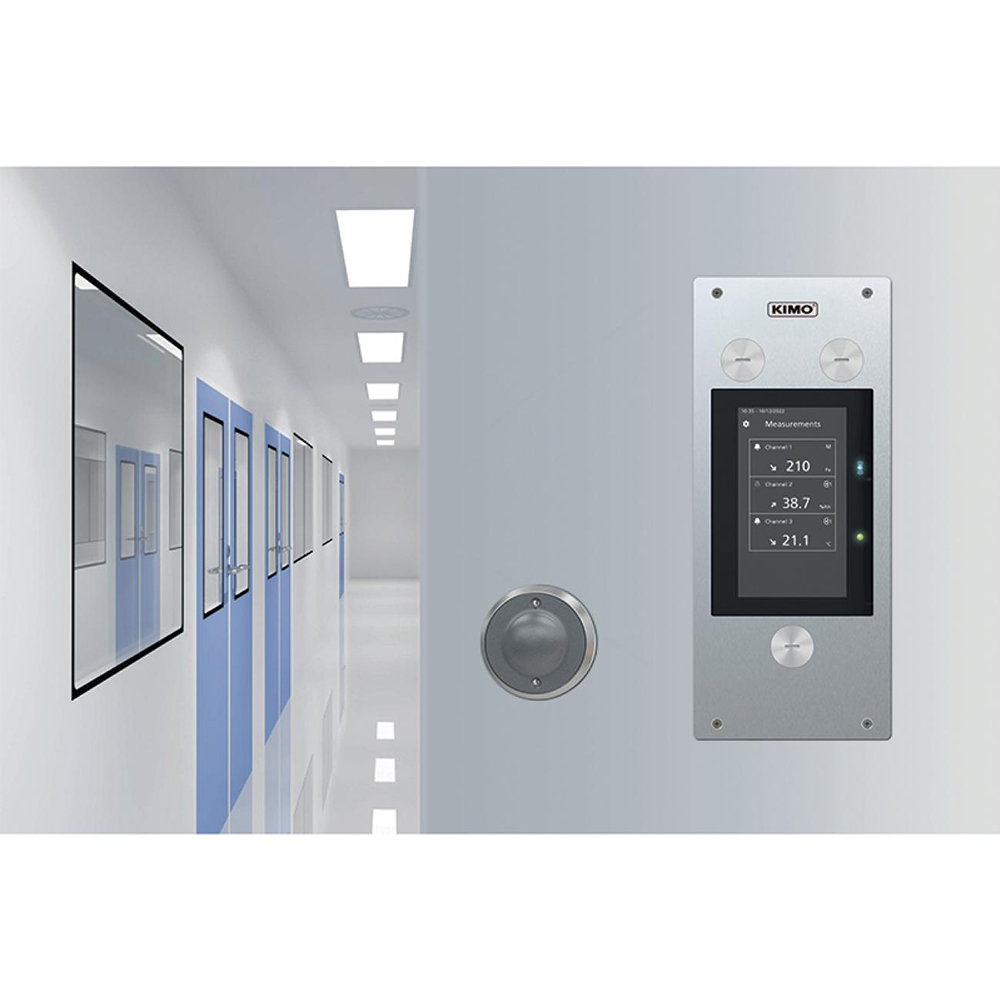

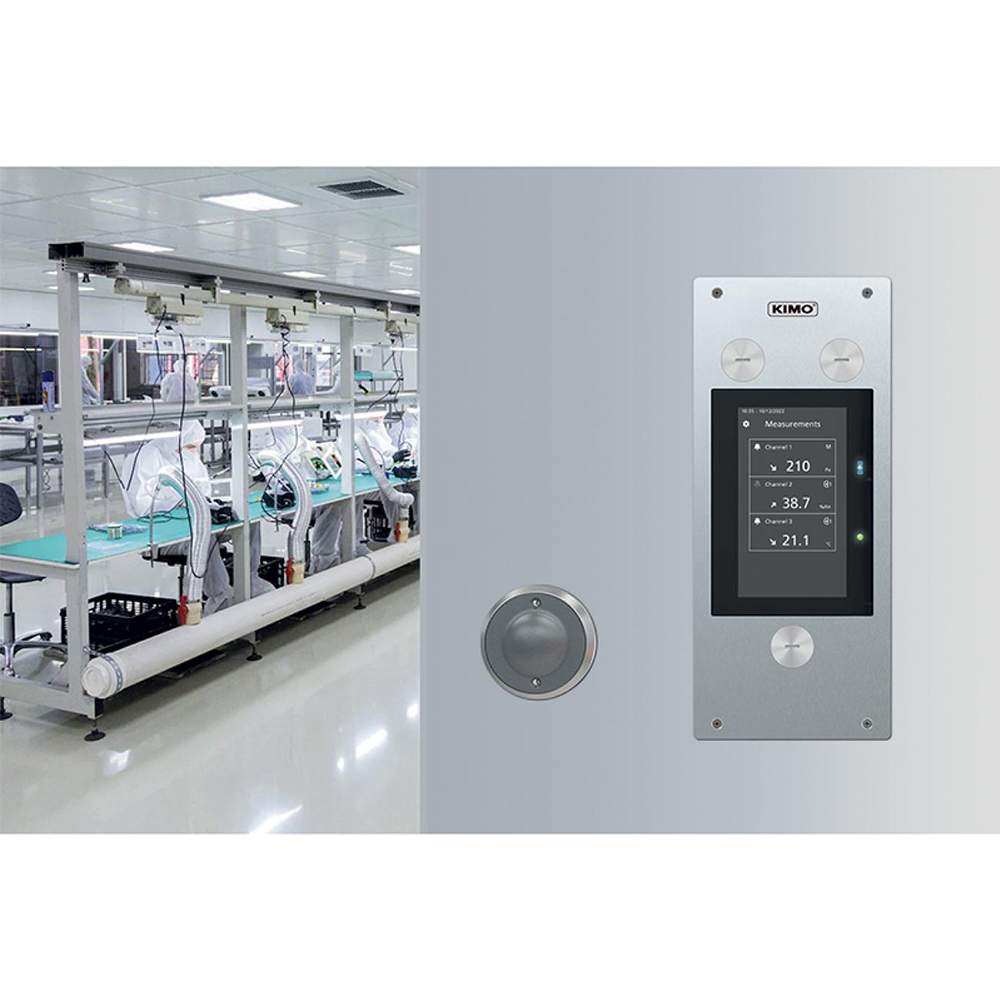

For clean rooms applications, the Si-CPE320 transmitter is flush mountable to avoid disturbing the working environment. It is equipped with a highgrade stainless-steel waterproof front panel with an integrated touch screen.
Inquire nowEquipped with the same technologies as the Si-C320, this panelmounted version provides state-of-the-art reliability and accuracy.
In addition, measurements can be recorded and downloaded via the Sauermann Control application/software.
Si-CPE320: Optional wireless communication module
Si-CPE320-W: Integrated wireless communication module

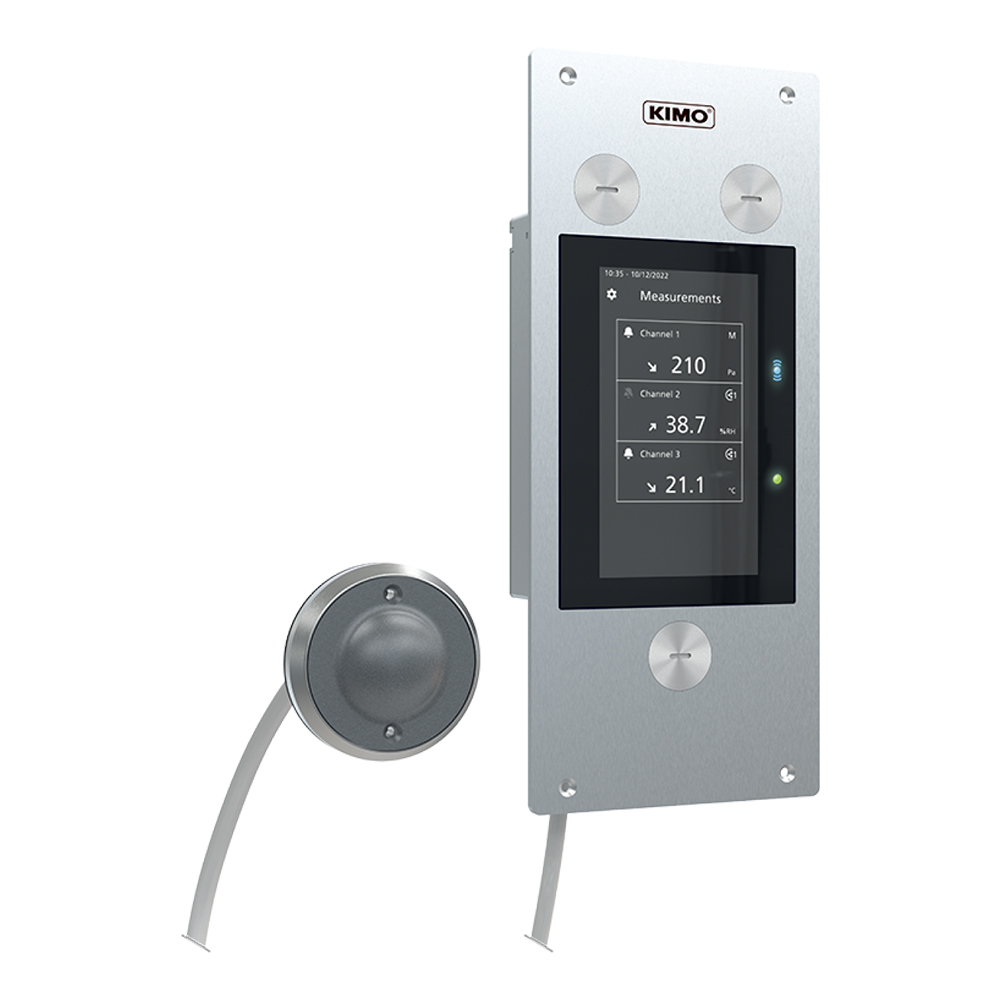

1 x input for external probe
3 x analogue outputs
Graphic touch display
IP 66, VHP resistant (Vaporized hydrogen peroxide)
Outputs diagnostic
Possibility to edit the channel names
| Measure Details | |
| Units | ACH, inH?O, inWc, °Ctf, °F, °Ftf, °C, % RH, °Ctd, °Ftw, Pa, kPa, g/m³, g/kg, kj/kg, mbar, m³/h, mmH?O, daPa, cfm |
| Alarm | Buzzer (60 dB at 10 cm) |
| Technical Details | |
| Parameters | Absolute humidity, Air Change Rate, Air velocity, Airflow, CO, VOC, CO?, Dew point, Differential pressure, Enthalpy, Frost point, Mixing Ratio, Relative humidity, Temperature, Wet-bulb temperature |
| Displays | Graphic touch display |
| IP Protection | IP 66, VHP resistant (Vaporized hydrogen peroxide) |
| Standards | 2015/863 EU (RoHS 3), UKCA, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage, 2014/53/EU RED |
| Wireless connection | 1 |
| Power supply | 24 VAC / VDC ±10% |
| Outputs | 3 x 0/4-20 mA or 3 x 0-5/10 V (4 wires) |
| Ethernet communication | No |
| ModBus network | Yes |
1 Si-CPE320 multifunction panel transmitter
1 integrated high accuracy differential pressure sensor (-250 to 250 Pa / -1.0 to 1.0 inH?O)
3 analogue outputs
1 RS485 interface with ModBus RTU protocol
1 input for probes
1 adjusting certificate
Terminal blocks for power connection, and output connections
1 front pressure connector cap with a pierced hole in the middle
1 silicone cap for closing a rear pressure connector
1 protective cap for frontal interface connection
1 protective cap for the external probe connector
Si-CPE320: Optional wireless communication module
Si-CPE320-W: Integrated wireless communication module
| Instrument Dimensions | |
| Value | |
|---|---|
| Length | 3 15/16 inches / 100 mm |
| Width | 1 27/32 inches / 47 mm |
| Height | 9 7/32 inches / 234 mm |
| Weight | 1 1/2 pounds / 684.4 g |
| Operating Temperature | |
| Min | -10.00 °C / 14.00 °F |
| Max | 50.00 °C / 122.00 °F |
| Storage Temperature | |
| Min | -10.00 °C / 14.00 °F |
| Max | 70.00 °C / 158.00 °F |
