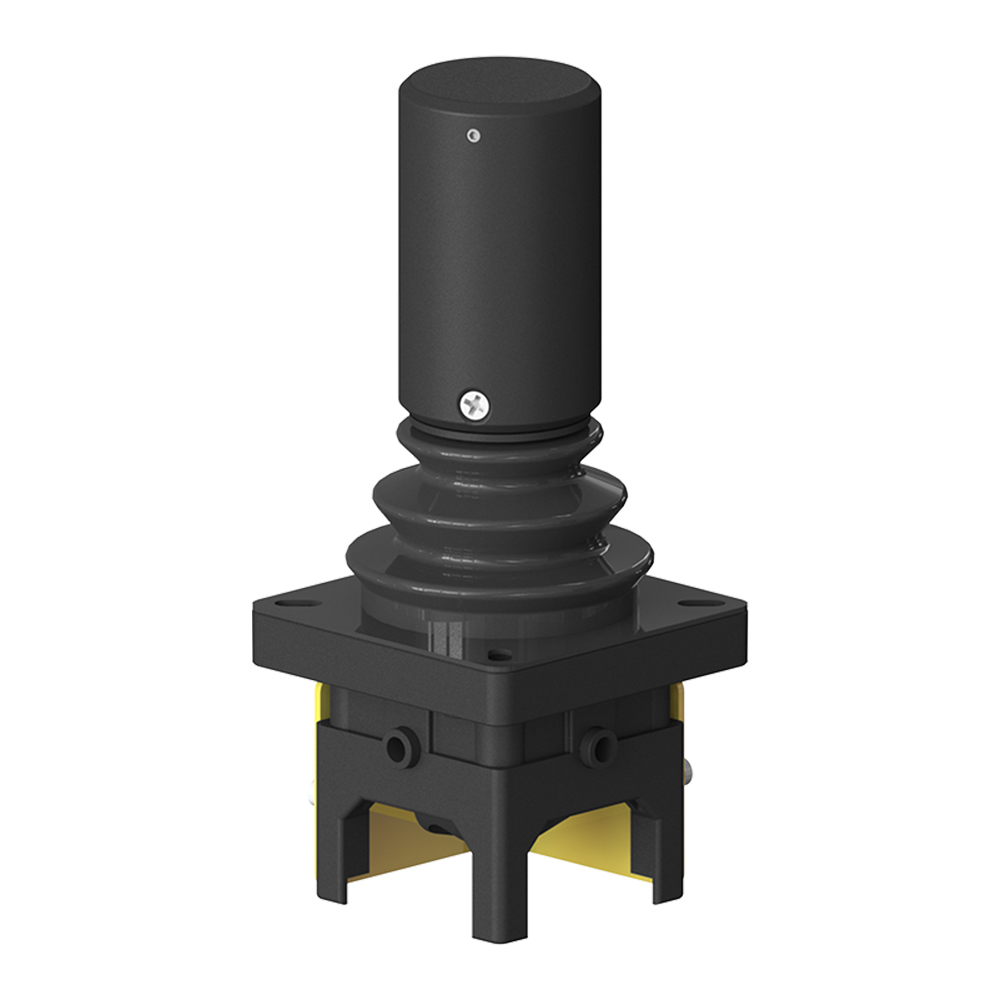

Twist handle that provides proportional twist operation enabling third axis control on dual axis joystick configurations.
Inquire nowDesigned to withstand the most demanding applications
Precision rotation with +/- 75 degree twist
Allows for external centering of potentiometer without having to disassemble the handle
IP54 protection
Applications : Ideal for any application requiring a reliable and rugged twist functionality. Often used in marine and boating applications.
| Features and Functionality | |
| Push Buttons | No |
| Rocker Switch | No |
| Thumbwheel | No |
| Handrest | No |
| Trigger | No |
| Operator Presence Switch | No |
| Mechanical Interlock | No |
| Twist | Yes |
| Capacitive Hand Detection Sensor | No |
| General Data | |
| Type | Twist, Palm |
| Specification Description | Twist handle that provides proportional twist operation enabling third axis control on dual axis joystick configurations. |
| Joystick Compatibility | CS3, CS3 B/B, CS1, PRO-4, PRO-6 |
| Technical Data | |

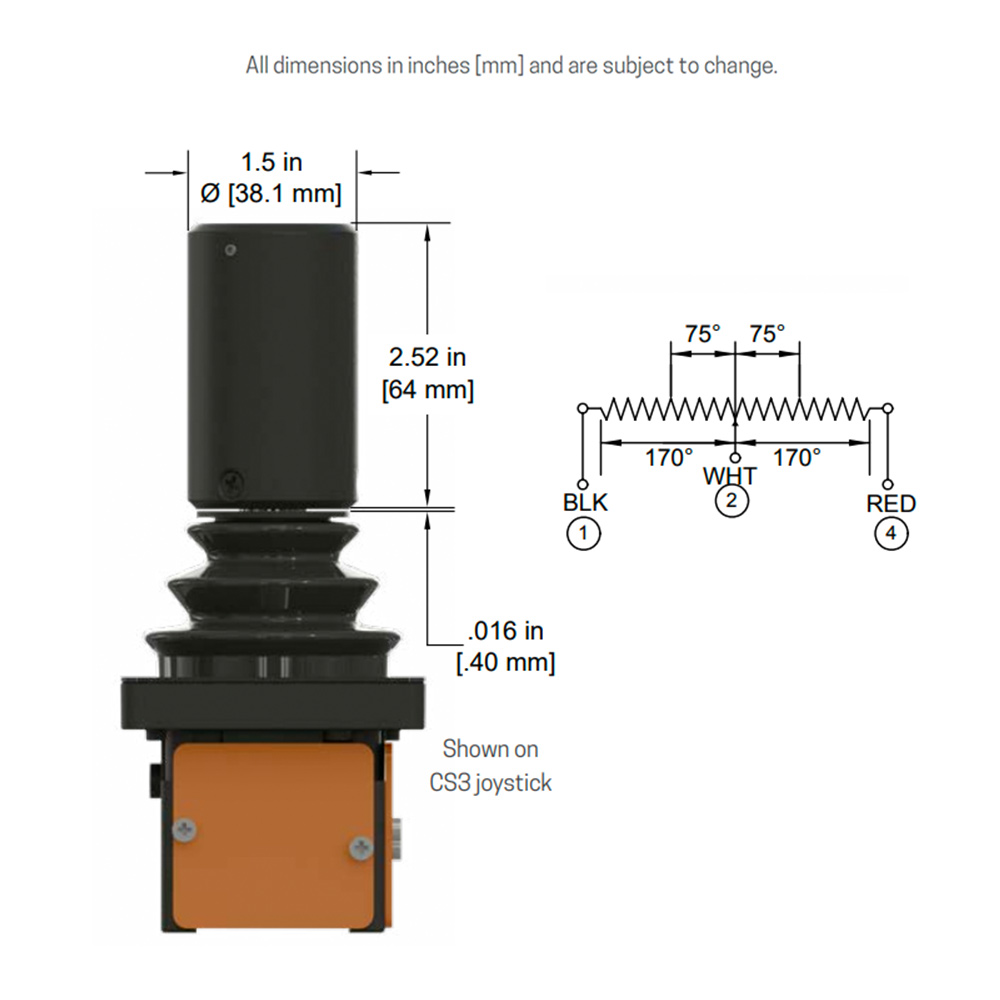

| Handle Height | 2.52 in [64 mm] |
| Additional Specifications | Reference product literature for additional specifications |
